NSN 5930-00-655-1523 MS05831, MS058-31, MS3505831

Product Details | TOGGLE SWITCH

5930-00-655-1523 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.

Part Alternates: MS05831, MS058-31, MS3505831, MS35058-31, AN30216, AN3021-6, ST42H, ST50S, MILDTL83731, MIL-DTL-83731, MILS83731, MIL-S-83731, 8120511, 812051-1, 8809K16, 8815K6, 1885739 ITEM 18 , 1885739ITEM18, 2136531, 213-6531 , 22705143, 22705-14-3 , 2281002P1, 228-1002P1 , 2281259P1, 228-1259P1 , 2281259P12, 228-1259P12 , 228M0028P001 , 238011, 2663057000, 266-3057-000 , 266-3071-00, 2663071000, 266-3071-000, 2663088000, 266-3088-000 , 28541 , 28541120, 28541-120 , 28647120, 28647-120 , 2GK5478, 2GK54-78 , 2GK5478XH01, 2GK54-78XH01 , 2GK7473, 2GK74-73 , 308P259 , 31011061, 3101-1061 , 312110071001, 312-110071-001, 3292162 , 3411, 3500002, 350-0002 , 35058HM, 35059WM, 511TS15, 511TS1-5, 556800, 5568-00, 5930-00-655-1523, 00-655-1523, 5930006551523, 006551523, 266307100

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1961	00-655-1523	00184 ( SWITCH, TOGGLE )

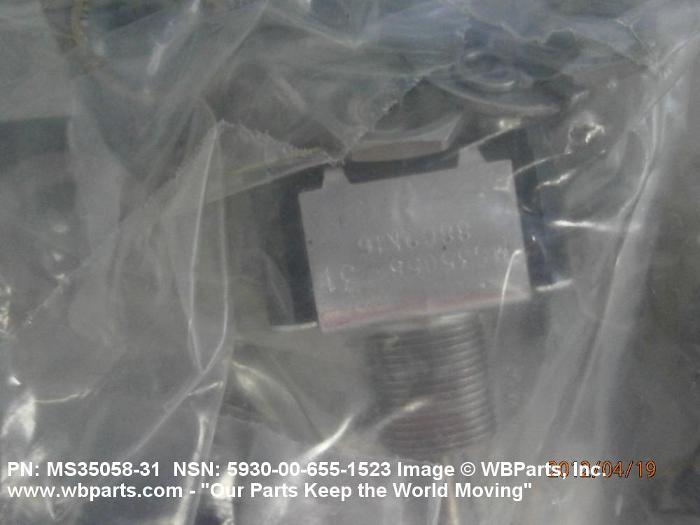

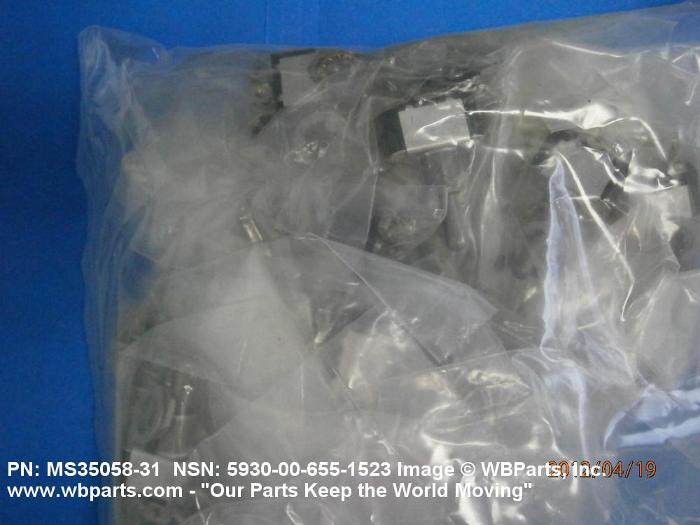

Drawings & Photos | NSN 5930-00-655-1523

Part Number	Request Date	QTY	Origin
5930-00-655-1523	2023-11-325	40	DIBBS
5930-00-655-1523	2022-03-76	104	DIBBS
5930-00-655-1523	2020-09-274	48	DIBBS
5930-00-655-1523	2020-06-156	169	DIBBS
31011061	2017-07-205	1	US
5930-00-655-1523	2016-10-301	117	DIBBS
5930-00-655-1523	2016-04-119	205	DIBBS
MS3505831	2016-01-28	1	TH
5930-00-655-1523	2015-09-266	132	DIBBS
5930-00-655-1523	2015-04-112	93	DIBBS
MS3505831	2012-03-67	30	United States
MS3505831	2012-03-65	30	United States
5930-00-655-1523	2011-12-349	193	DIBBS
2GK7473	2010-01-18	50	US
MS3505831	2009-04-114	2	Spain
5930-00-655-1523	2008-02-60	331	DIBBS
5930-00-655-1523	2007-08-219	624	DIBBS
5930-00-655-1523	2007-03-89	223	DIBBS
5930-00-655-1523	2007-02-43	25	DIBBS

Cross Reference | NSN 5930-00-655-1523

Part Number	Cage Code	Manufacturer
266-3071-00	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
266-3071-000	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
312-110071-001	90073	CMC ELECTRONICS INC
3411	83330	DIALIGHT CORPORATION
3411	91967	ABBATRON, LLC DIV ABBATRON LLC
35058HM	04009	COOPER INDUSTRIES INC COOPER DISTRIBUTION EQUIPMENT DIV
511TS1-5	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
5568-00	08576	PENTAIR FILTRATION SOLUTIONS, LLC DBA EVERPURE
812051-1	65597	THALES DEFENSE & SECURITY, INC.
8809K16	02077	MILLER-HOLZWARTH INC.
8809K16	81640	EATON CORPORATION DBA FLUID POWER DIV
8815K6	88026	EATON CORP CUSTOM DISTRIBUTION AND CONTROL DIV
AN3021-6	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
MIL-DTL-83731	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-S-83731	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS058-31	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35058-31	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
ST42H	08372	EATON YALE LTD CUTLER-HAMMER INDUSTRIAL CONTROLS
ST50S	81350	JOINT ARMY-NAVY SPECIFICATIONS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-00-655-1523

Compare

Related Products | NSN 5930-00-655-1523

5930-00-655-1524, 5930-00-655-1527, 5930-00-655-1528, 5930-00-655-1529, 5930-00-655-1530

Technical Data | NSN 5930-00-655-1523

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY, TWO POSITIONS MAINTAINED SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS	220.0 AC AND 250.0 DC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	500.000 MILLIAMPERES RESISTIVE DC AND 6.000 AMPERES RESISTIVE AC
BODY STYLE	7P BUSHING MOUNT
BUSHING LENGTH	0.450 INCHES MINIMUM AND 0.490 INCHES MAXIMUM
BODY LENGTH	1.141 INCHES MAXIMUM
BODY WIDTH	0.641 INCHES MAXIMUM
MOUNTING SURFACE TO TERMINAL END DISTANCE	1.180 INCHES MAXIMUM
ACTUATOR STYLE	25 ROUND
ACTUATOR DIAMETER	0.235 INCHES MINIMUM AND 0.245 INCHES MAXIMUM
ACTUATOR HEIGHT	0.660 INCHES MINIMUM AND 0.720 INCHES MAXIMUM
ACTUATOR POSITION-ACTION RELATIONSHIP	UP POSITION MAINTAINED AND DOWN POSITION MOMENTARY AND CENTER POSITION MAINTAINED
TERMINAL TYPE AND QUANTITY	3 SCREW
INCLOSURE TYPE	FULLY INCLOSED
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION	DRIPTIGHT
MOUNTING METHOD	THREADED BUSHING
THREAD SERIES DESIGNATOR	UNS
NOMINAL THREAD SIZE	0.469 INCHES
THREAD CLASS	2A
THREAD QUANTITY PER INCH	32
FEATURES PROVIDED	ACTUATOR SEAL
TEST DATA DOCUMENT	81349-MIL-DTL-83731 SPECIFICATION
III OVERALL LENGTH	1.141 INCHES MAXIMUM
III OVERALL WIDTH	0.641 INCHES MAXIMUM
III OVERALL HEIGHT	2.288 INCHES MAXIMUM
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-DTL-83731
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS35058-31
