Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET

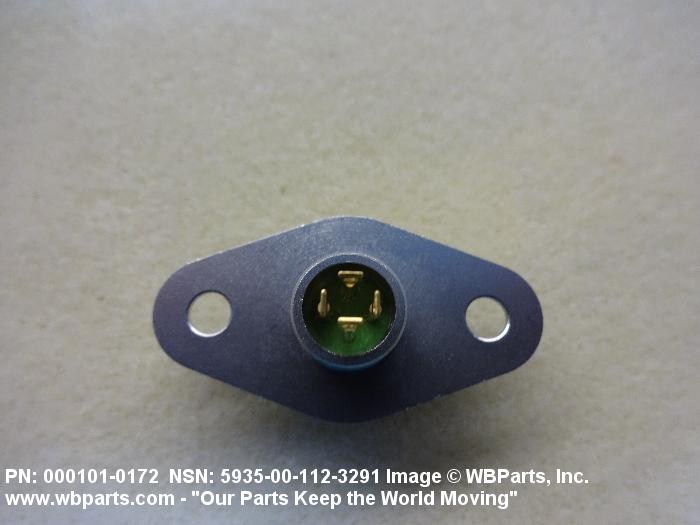

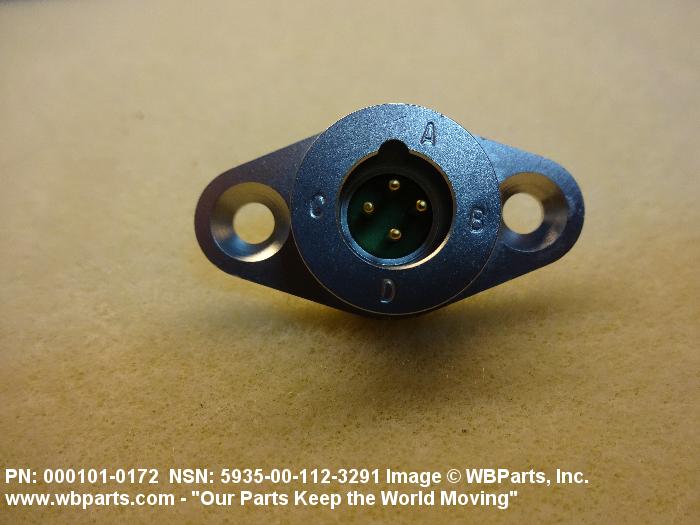

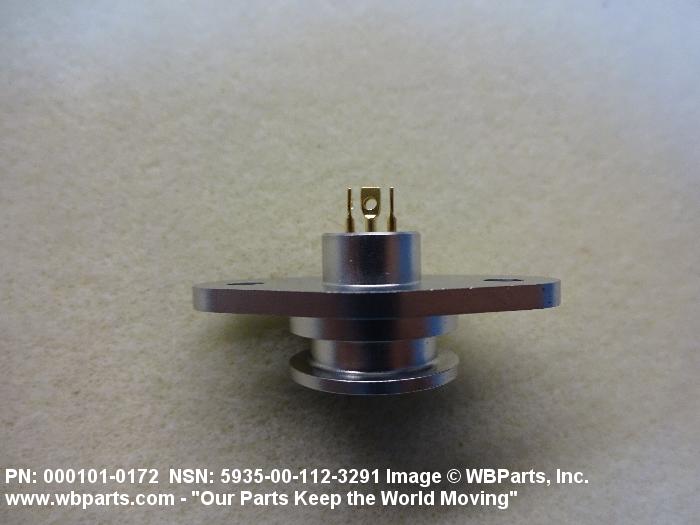

5935-00-112-3291 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: 0001010172, 000101-0172, 5935-00-112-3291, 00-112-3291, 5935001123291, 001123291
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 AUG 1968 | 00-112-3291 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |

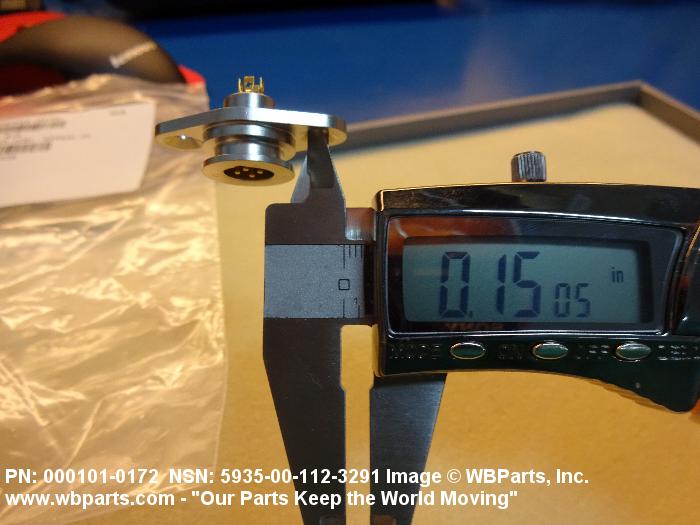

Drawings & Photos | NSN 5935-00-112-3291
Demand History | NSN 5935-00-112-3291
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-112-3291 | 2024-04-19 | 5 | UK |
| 5935-00-112-3291 | 2018-06-14 | 35 | DIBBS |
| 5935-00-112-3291 | 2017-06-02 | 5 | United States |
| 5935-00-112-3291 | 2016-02-08 | 17 | DIBBS |
| 5935-00-112-3291 | 2015-11-26 | 9 | DIBBS |
| 5935-00-112-3291 | 2015-03-05 | 10 | DIBBS |
| 5935-00-112-3291 | 2014-09-09 | 6 | DIBBS |
| 5935-00-112-3291 | 2013-12-08 | 4 | DIBBS |
| 5935-00-112-3291 | 2013-05-01 | 4 | DIBBS |
| 0001010172 | 2010-01-11 | 100 | RU |
Cross Reference | NSN 5935-00-112-3291
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 000101-0172 | 05574 | VIKING ELECTRONICS, INC. DIV VIKING |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5935-00-112-3291
Related Products | NSN 5935-00-112-3291
5935-00-112-3298, 5935-00-112-3331, 5935-00-112-3334, 5935-00-112-3335, 5935-00-112-3337
Technical Data | NSN 5935-00-112-3291
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | 416A CIRCULAR |
| ACCOMMODATED CONTACT QUANTITY | 4 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | GOLD |
| BODY STYLE | 3B TOP OR BOTTOM MOUNT W/METAL SADDLE |

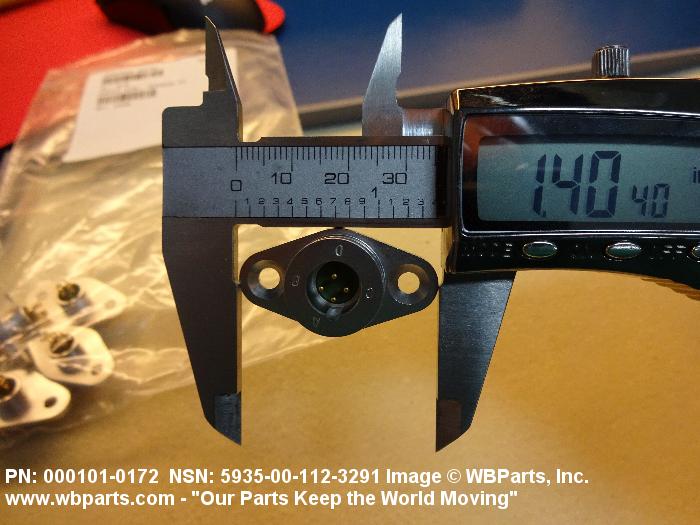

| OVERALL LENGTH | 1.407 INCHES NOMINAL |

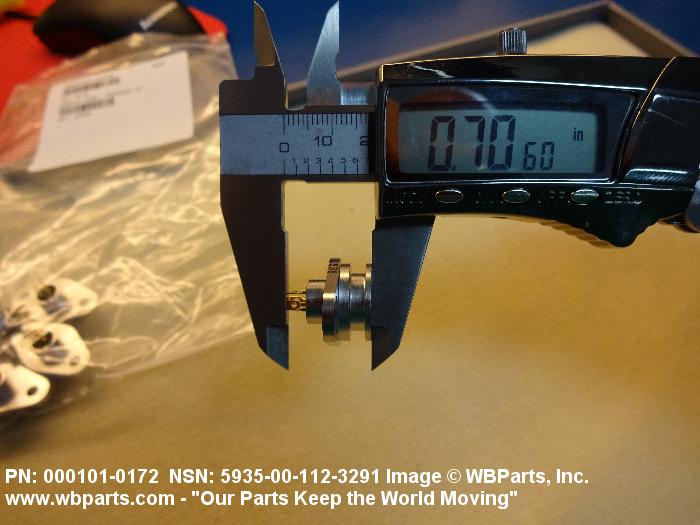

| OVERALL HEIGHT | 0.699 INCHES NOMINAL |

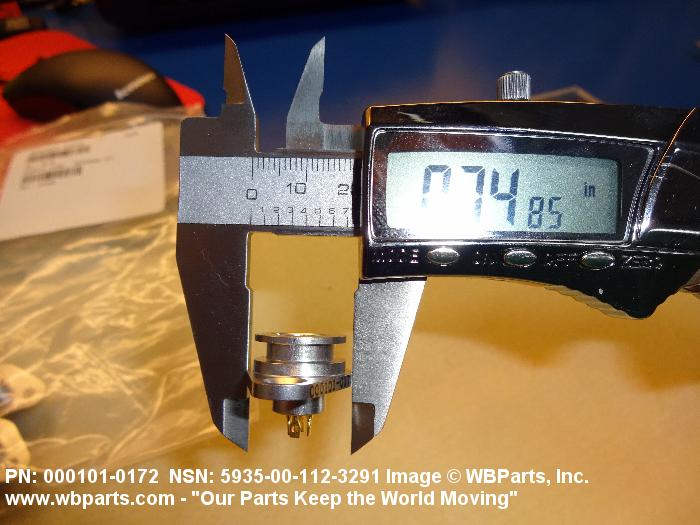

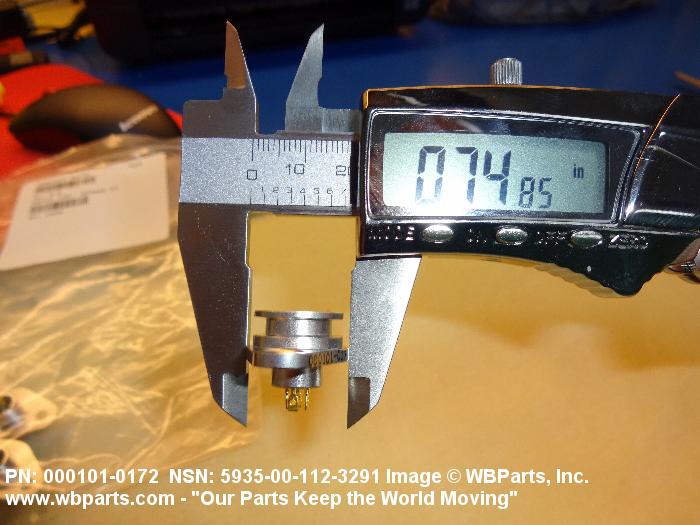

| OVERALL WIDTH | 0.747 INCHES NOMINAL |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | ANY ACCEPTABLE |
| BODY MATERIAL | STEEL |
| TERMINAL TYPE AND QUANTITY | 4 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE STYLE | 17D TWO MOUNTING HOLES/SLOTS, IN-LINE |
| MOUNTING HOLE DIAMETER | 0.156 INCHES NOMINAL |

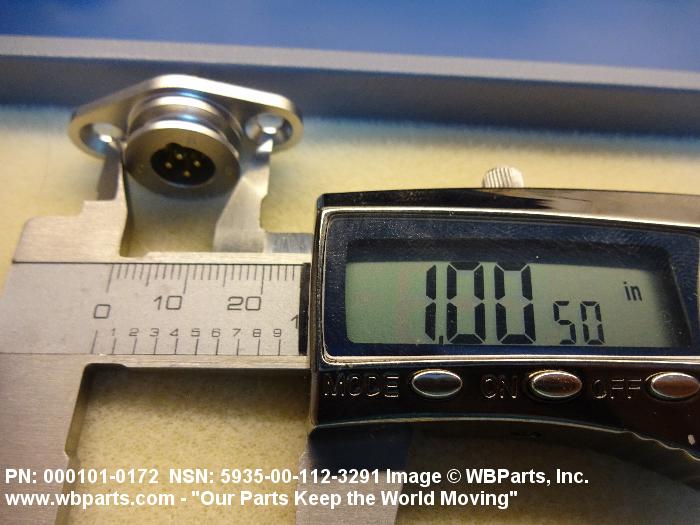

| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.000 INCHES NOMINAL |
| POLARIZATION TYPE | SLOT |
