Product Details | LUG TERMINAL
5940-00-331-0534 A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. It has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. For post like terminals, see TERMINAL STUD. Excludes CLIP, ELECTRICAL; TERMINAL, QUICK DISCONNECT and TERMINAL FEEDTHRU.
Part Alternates: BA719470, 7602087, 5940-00-331-0534, 00-331-0534, 5940003310534, 003310534
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-331-0534 | 00746 ( TERMINAL, LUG ) |
Drawings & Photos | NSN 5940-00-331-0534
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5940-00-331-0534
5940-00-331-1322, 5940-00-331-1387, 5940-00-331-1396, 5940-00-331-1397, 5940-00-331-1423
Technical Data | NSN 5940-00-331-0534
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A21 SOLDER |
| OVERALL LENGTH | 1.000 INCHES |
| OVERALL WIDTH | 0.296 INCHES |
| MATERIAL THICKNESS | 0.031 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | SLANT LUG W/ONE HOLE SINGLE END |
| LARGEST WIDTH | 0.125 INCHES SINGLE END |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 7 AWG |

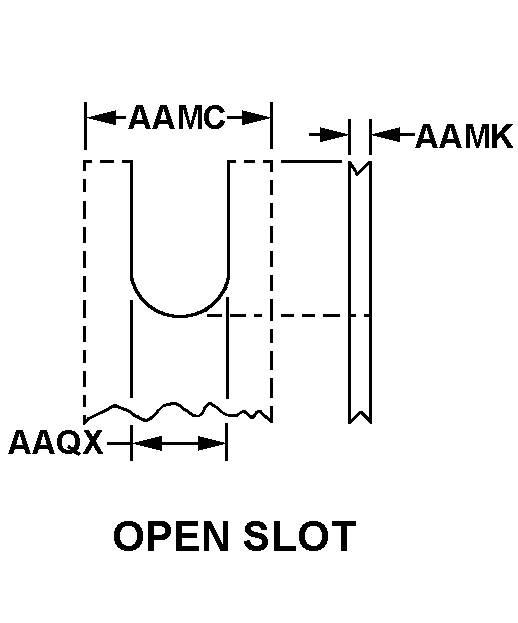

| MOUNTING METHOD STYLE | D15 OPEN SLOT |
| MOUNTING TONGUE WIDTH | 0.296 INCHES |
| MOUNTING FACILITY THICKNESS | 0.031 INCHES |
| MOUNTING SLOT WIDTH | 0.136 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | COPPER OVERALL |
| SURFACE TREATMENT | NICKEL OVERALL SINGLE LAYER |
Restrictions/Controls & Freight Information | NSN 5940-00-331-0534
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-00-331-0534
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
