5945-00-075-7803 - ROTARY RELAY, MDR1671, MDR167-1, 40479PC34

Product Details | ROTARY RELAY

5945-00-075-7803 A relay whose contact arm may rotate through 360 degrees but not in one operation. Includes rotary relays which automatically reset. For an item having the dual functions of a switch and a relay assembled together on a common mounting, see RELAY-SWITCH. Excludes SWITCH, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).

Part Alternates: MDR1671, MDR167-1, 40479PC34, 4047-9PC34, 5945-00-075-7803, 00-075-7803, 5945000757803, 000757803

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	27 JUL 1967	00-075-7803	03890 ( RELAY, ROTARY )

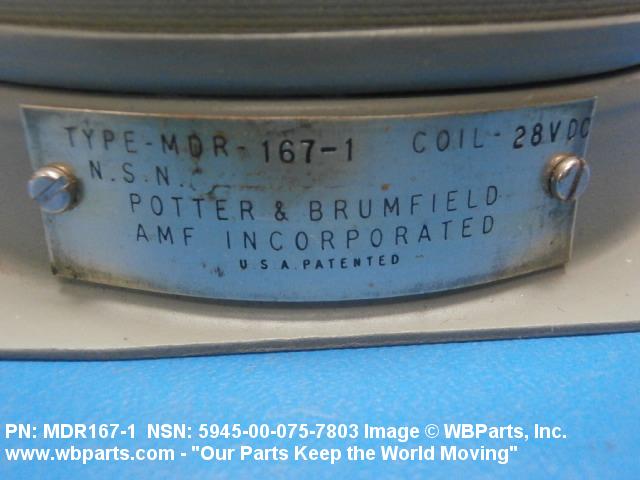

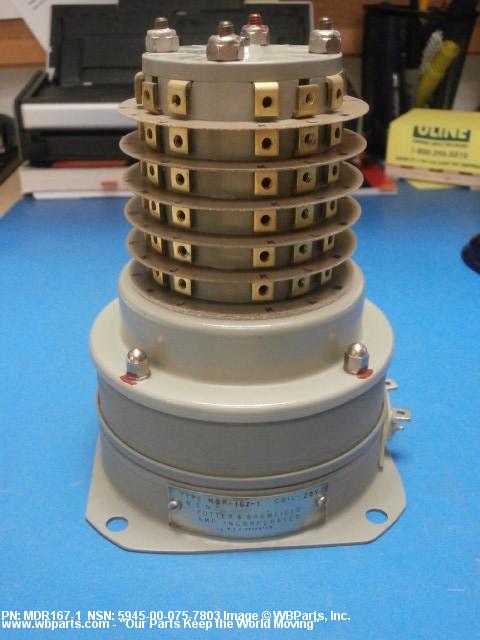

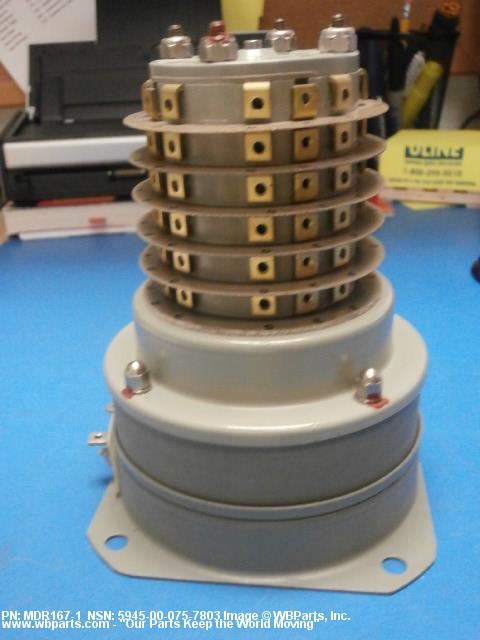

Drawings & Photos | NSN 5945-00-075-7803

Part Number	Request Date	QTY	Origin
4047-9PC34	2024-05-02	7	DIBBS
MDR167-1	2024-05-02	7	DIBBS
4047-9PC34	2023-04-17	8	DIBBS
MDR167-1	2023-04-17	8	DIBBS
4047-9PC34	2023-04-06	8	DIBBS
MDR167-1	2023-04-06	8	DIBBS
4047-9PC34	2022-09-11	4	DIBBS
MDR167-1	2022-09-11	4	DIBBS
4047-9PC34	2022-03-08	2	DIBBS
MDR167-1	2022-03-08	2	DIBBS
4047-9PC34	2022-02-28	2	DIBBS
MDR167-1	2022-02-28	2	DIBBS
4047-9PC34	2022-01-30	2	DIBBS
MDR167-1	2022-01-30	2	DIBBS
4047-9PC34	2021-10-31	2	DIBBS
MDR167-1	2021-10-31	2	DIBBS
4047-9PC34	2021-04-08	2	DIBBS
MDR167-1	2021-04-08	2	DIBBS
4047-9PC34	2021-01-14	2	DIBBS
MDR167-1	2021-01-14	2	DIBBS
5945-00-075-7803	2015-08-21	6	US
5945-00-075-7803	2015-08-11	6	DIBBS
5945-00-075-7803	2015-07-16	2	DIBBS
5945-00-075-7803	2015-07-05	2	DIBBS
5945-00-075-7803	2015-07-01	1	us
5945-00-075-7803	2015-06-10	2	DIBBS
5945-00-075-7803	2015-06-08	2	DIBBS
5945-00-075-7803	2015-05-27	2	DIBBS
5945-00-075-7803	2014-03-17	2	DIBBS
5945-00-075-7803	2013-11-17	5	DIBBS
5945-00-075-7803	2013-01-17	1	DIBBS
5945-00-075-7803	2012-08-07	11	DIBBS
5945-00-075-7803	2011-03-23	3	DIBBS

Cross Reference | NSN 5945-00-075-7803

Part Number	Cage Code	Manufacturer
4047-9PC34	43689	HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS
MDR167-1	77342	TYCO ELECTRONICS CORPORATION

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5945-00-075-7803

Compare

Related Products | NSN 5945-00-075-7803

5945-00-075-7883, 5945-00-075-8315, 5945-00-075-8361, 5945-00-075-8529, 5945-00-076-0233

Technical Data | NSN 5945-00-075-7803

Characteristic	Specifications
STRUCTURAL DESIGN	NONPILE-UP
CONTACT ARRANGEMENT	24PDT
CONTACT CURRENT TYPE	AC AND DC
CONTACT MAXIMUM VOLTAGE RATING IN VOLTS	125.0
CONTACT CURRENT RATING AT MAXIMUM RATED VOLTAGE	800.0 MILLIAMPERES NOMINAL
CONTACT MAXIMUM RATED CURRENT	10.0 AMPERES NOMINAL
CONTACT VOLTAGE RATING AT MAXIMUM RATED CURRENT	115.0
COIL WINDING QUANTITY	2
DC OPERATING VOLTAGE RATING IN VOLTS	28.0 NOMINAL
OPERATING CURRENT RATING	667.0 MILLIAMPERES NOMINAL
COIL DC RESISTANCE	42.0 OHMS NOMINAL
COIL TERMINAL QUANTITY	4
CONTACT TERMINAL QUANTITY	72
SHAFT ROTATION IN DEG	30.0
RESET FACILITY FEATURE	NOT PROVIDED

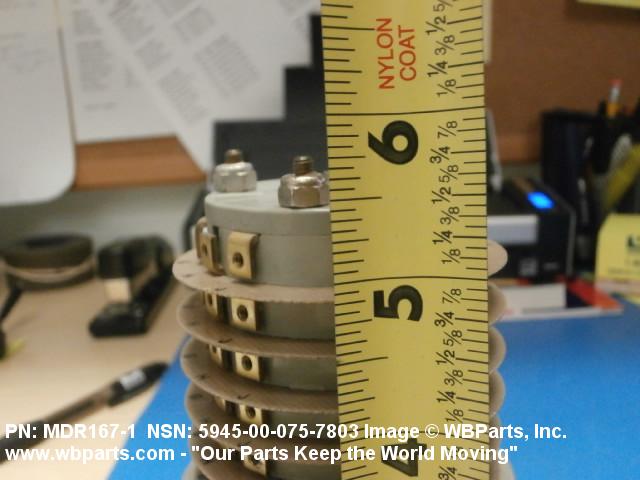

OVERALL HEIGHT	5.750 INCHES MAXIMUM
OVERALL LENGTH	4.190 INCHES NOMINAL
OVERALL WIDTH	4.190 INCHES NOMINAL
MOUNTING CONFIGURATION	FOUR 0.281 IN. DIA MTG HOLES ON 3.250 IN. BY 3.250 IN. MTG CENTERS

Restrictions/Controls & Freight Information | NSN 5945-00-075-7803

Restictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	658	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable
