5945-01-123-3236 - ROTARY RELAY, MDR673, MDR67-3, 10531614

Product Details | ROTARY RELAY

5945-01-123-3236 A relay whose contact arm may rotate through 360 degrees but not in one operation. Includes rotary relays which automatically reset. For an item having the dual functions of a switch and a relay assembled together on a common mounting, see RELAY-SWITCH. Excludes SWITCH, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).

Part Alternates: MDR673, MDR67-3, 10531614, 10-5316-14, 5945-01-123-3236, 01-123-3236, 5945011233236, 011233236

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	10 DEC 1981	01-123-3236	03890 ( RELAY, ROTARY )

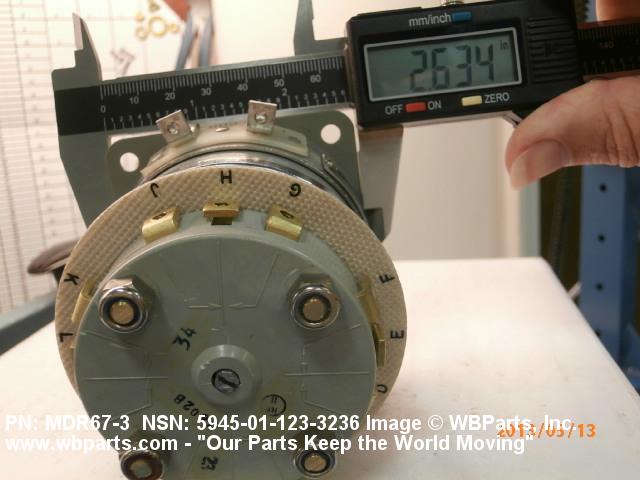

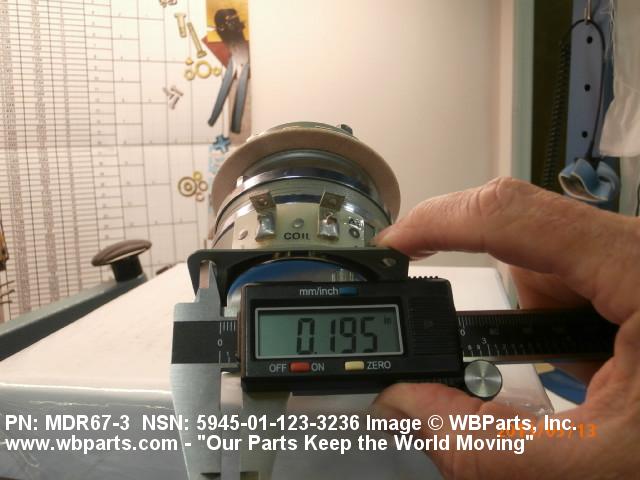

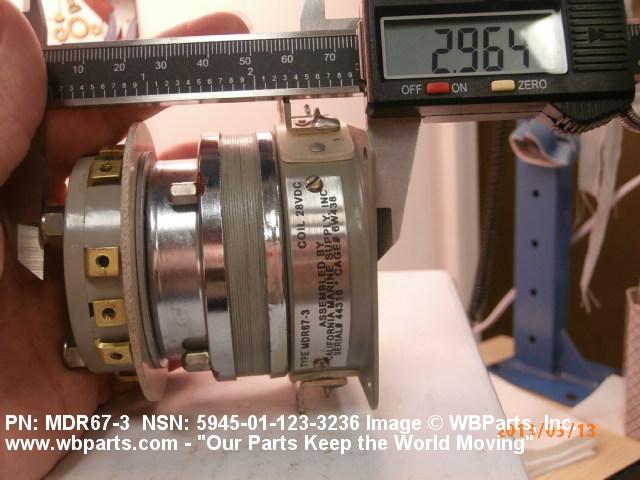

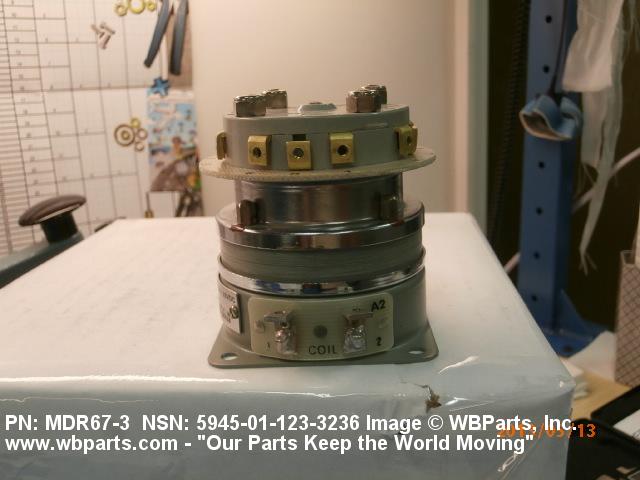

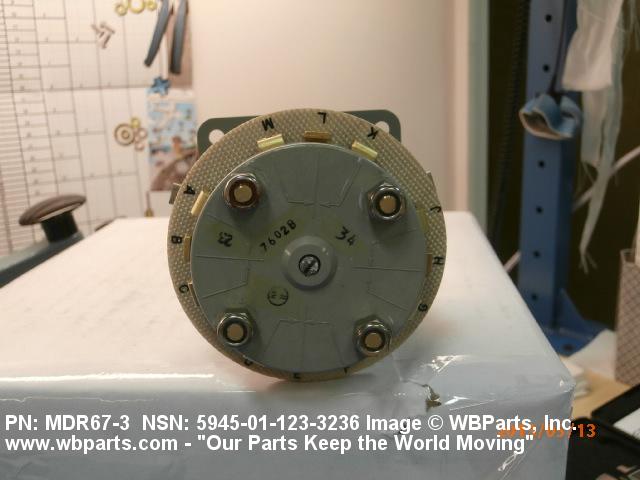

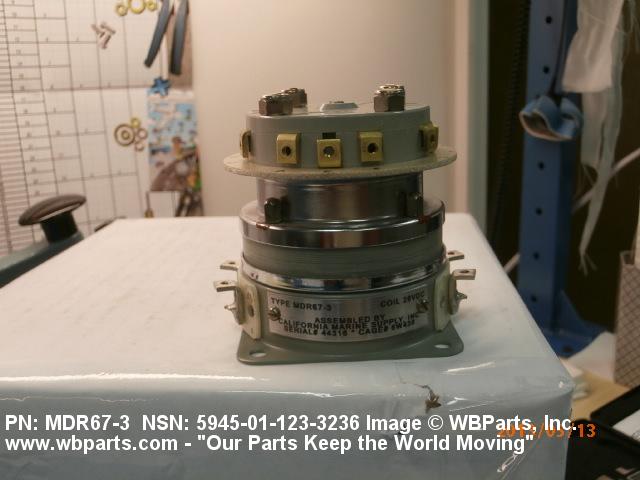

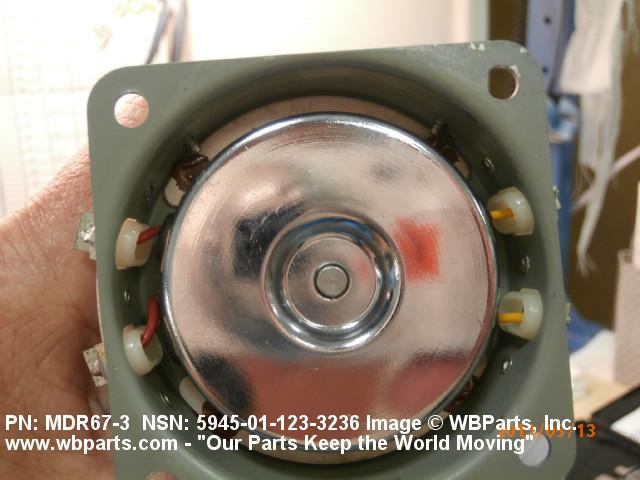

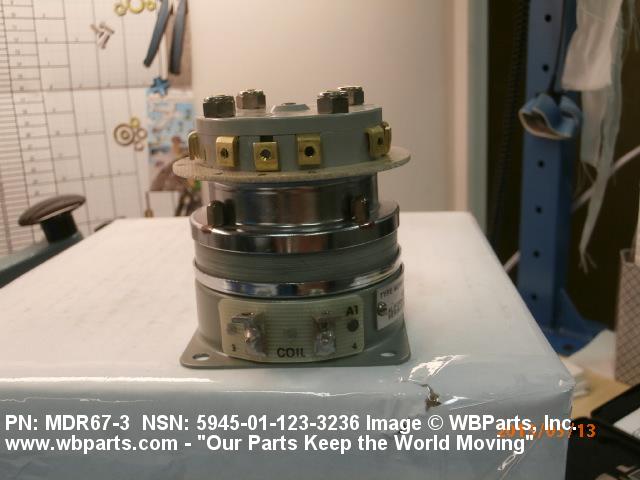

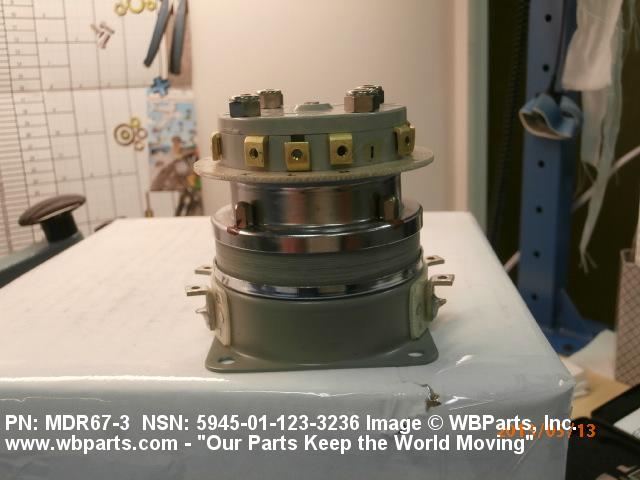

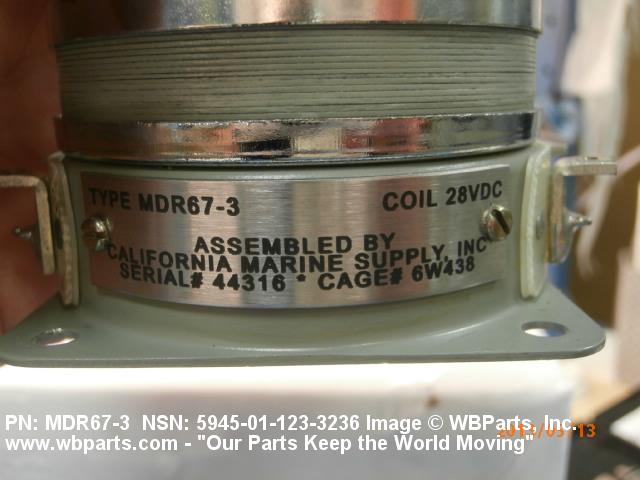

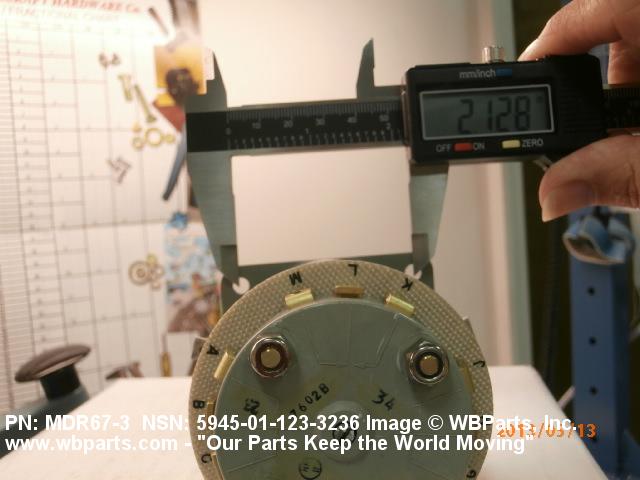

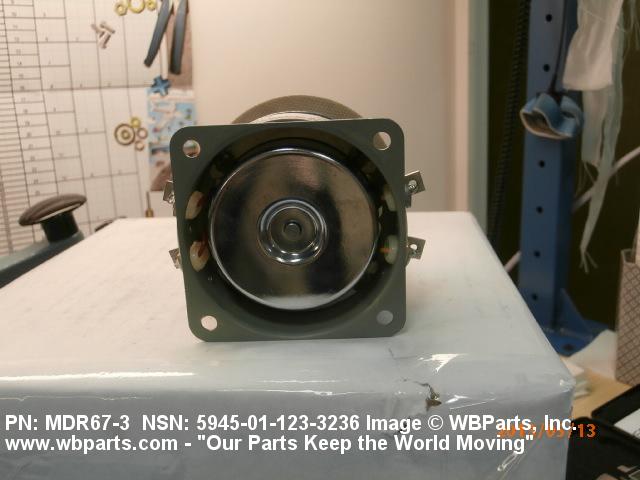

Drawings & Photos | NSN 5945-01-123-3236

Part Number	Request Date	QTY	Origin
MDR67-3	2023-11-15	51	DIBBS
MDR67-3	2023-10-31	51	DIBBS
MDR67-3	2022-11-18	33	DIBBS
MDR67-3	2022-11-03	33	DIBBS
MDR67-3	2021-11-15	30	DIBBS
MDR67-3	2020-11-08	11	DIBBS
MDR67-3	2020-10-15	11	DIBBS
5945-01-123-3236	2020-05-11	9	Taiwan
MDR67-3	2020-04-09	14	DIBBS
MDR67-3	2019-12-01	25	DIBBS
MDR67-3	2019-10-10	20	DIBBS
MDR67-3	2019-06-18	12	DIBBS
MDR67-3	2019-01-03	15	DIBBS
5945-01-123-3236	2018-05-06	11	DIBBS
5945-01-123-3236	2016-08-09	26	DIBBS
5945-01-123-3236	2016-05-09	17	DIBBS
5945-01-123-3236	2016-04-28	17	DIBBS
5945-01-123-3236	2016-02-19	18	DIBBS
5945-01-123-3236	2016-02-08	18	DIBBS
5945-01-123-3236	2015-12-10	13	DIBBS
5945-01-123-3236	2015-10-25	13	DIBBS
5945-01-123-3236	2015-09-17	15	DIBBS
5945-01-123-3236	2014-10-30	27	DIBBS
5945-01-123-3236	2014-09-03	18	DIBBS
5945-01-123-3236	2014-03-25	16	DIBBS
5945-01-123-3236	2014-01-30	22	DIBBS
5945-01-123-3236	2014-01-05	18	DIBBS
5945-01-123-3236	2013-12-13	20	DIBBS
5945-01-123-3236	2013-08-25	21	DIBBS
5945-01-123-3236	2013-08-19	20	DIBBS
5945-01-123-3236	2013-05-01	1	Taiwan
5945-01-123-3236	2012-12-14	26	DIBBS
5945-01-123-3236	2012-08-13	18	DIBBS
5945-01-123-3236	2012-06-29	13	DIBBS
5945-01-123-3236	2012-06-22	2	Taiwan
5945-01-123-3236	2011-10-24	10	DIBBS
5945-01-123-3236	2011-06-29	15	DIBBS
5945-01-123-3236	2011-01-08	8	DIBBS
5945-01-123-3236	2010-11-08	9	DIBBS
5945-01-123-3236	2009-11-20	50	DIBBS
5945-01-123-3236	2009-08-10	20	DIBBS
5945-01-123-3236	2009-06-15	8	DIBBS
5945-01-123-3236	2009-04-22	17	DIBBS
5945-01-123-3236	2008-11-12	9	DIBBS
5945-01-123-3236	2008-09-03	6	DIBBS
5945-01-123-3236	2008-03-04	25	DIBBS
5945-01-123-3236	2008-01-31	13	DIBBS
5945-01-123-3236	2008-01-15	7	DIBBS
MDR673	2007-10-22	6	US
5945-01-123-3236	2007-08-22	5	DIBBS
5945-01-123-3236	2007-08-08	4	DIBBS
5945-01-123-3236	2007-07-23	6	DIBBS
5945-01-123-3236	2007-07-06	7	DIBBS
5945-01-123-3236	2007-05-25	8	DIBBS

Cross Reference | NSN 5945-01-123-3236

Part Number	Cage Code	Manufacturer
10-5316-14	27192	DRS POWER & CONTROL TECHNOLOGIES, INC.
MDR67-3	77342	TYCO ELECTRONICS CORPORATION

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5945-01-123-3236

Compare

Related Products | NSN 5945-01-123-3236

5945-01-123-3463, 5945-01-123-3464, 5945-01-123-3476, 5945-01-123-3618, 5945-01-123-3619

Technical Data | NSN 5945-01-123-3236

Characteristic	Specifications
STRUCTURAL DESIGN	SECTIONAL
SECTION QUANTITY	1
CONTACT CURRENT TYPE	AC AND DC
CONTACT MAXIMUM VOLTAGE RATING IN VOLTS	115.0
CONTACT CURRENT RATING AT MAXIMUM RATED VOLTAGE	10.0 AMPERES RESISTIVE
CONTACT MAXIMUM RATED CURRENT	10.0 AMPERES RESISTIVE
CONTACT VOLTAGE RATING AT MAXIMUM RATED CURRENT	115.0
COIL WINDING QUANTITY	2
WINDING CHARACTERISTIC	SINGLE WOUND UNTAPPED
DC OPERATING VOLTAGE RATING IN VOLTS	28.0 NOMINAL
OPERATING CURRENT RATING	308.0 MILLIAMPERES NOMINAL
COIL DC RESISTANCE	91.0 OHMS NOMINAL
COIL TERMINAL QUANTITY	4
CONTACT TERMINAL QUANTITY	12
COMMON TERMINAL QUANTITY	4
SHAFT ROTATION IN DEG	30.0
ROTATION DIRECTION FOR WHICH DESIGNED	CLOCKWISE
RESET FACILITY FEATURE	NOT PROVIDED
OVERALL HEIGHT	3.130 INCHES MAXIMUM
OVERALL LENGTH	2.625 INCHES NOMINAL
OVERALL WIDTH	2.625 INCHES NOMINAL
MOUNTING CONFIGURATION	FOUR 0.281 IN. DIA MTG HOLES ON 2.125 IN. BY 2.125 IN. MTG CENTERS

Restrictions/Controls & Freight Information | NSN 5945-01-123-3236

Restictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	658	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5945-01-123-3236

Navy

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Schedule B No. and Headings	Commodity Description	Unit of Quantity
85.36	- Electrical apparatus for switching or protecting electrical circuits, or for making connections to or in electrical circuits (for example, switches, relays, fuses, surge suppressors, plugs, sockets, lamp- holders and other
	connectors, junction boxes), for a voltage not exceeding 1,000 V; connectors for optical fibers, optical fiber bundles or cables:
8536.10	- - Fuses:
8536.10.0020	- - - Glass cartridge	No.
8536.10.0040	- - - Other	No.
8536.20	- - Automatic circuit breakers:
8536.20.0020	- - - Molded case	No.
8536.20.0040	- - - Other	No.
8536.30.0000	- - Other apparatus for protecting electrical circuits	X
	- - Relays:
8536.41	- - - For a voltage not exceeding 60 V:
8536.41.0005	- - - - Automotive signaling flashers	No.
	- - - - Other:
	- - - - - With contacts rated at less than 10 A:
8536.41.0020	- - - - - - Electromechanical	No.
8536.41.0030	- - - - - - Other	No.
	- - - - - Other:
8536.41.0045	- - - - - - Contactors	No.
	- - - - - - Other:
8536.41.0050	- - - - - - - Electromechanical	No.
8536.41.0060	- - - - - - - Other	No.
8536.49	- - - Other:
	- - - - With contacts rated at less than 10 A:
8536.49.0050	- - - - - Electromechanical	No.
8536.49.0055	- - - - - Other	No.
	- - - - Other:
8536.49.0065	- - - - - Contactors	No.
	- - - - - Other:
8536.49.0075	- - - - - - Electromechanical	No.
8536.49.0080	- - - - - - Other	No.
8536.50	- - Other switches:
8536.50.4000	- - - Motor starters	No.
	- - - Other:
8536.50.7000	- - - - Electronic AC switches consisting of optically coupled input and output circuits (insulated thyristor AC switches); electronic switches, including temperature protected switches, consisting of a transistor and a logic
	chip (chip-on-chip technology); electro- mechanical snap-action switches for a current not exceeding 11 amps	No.
	- - - - Other:
	- - - - - Rotary:
8536.50.9020	- - - - - - Rated at not over 5 A	No.
8536.50.9025	- - - - - - Rated at over 5 A	No.
	- - - - - Push-button:
8536.50.9030	- - - - - - Rated at not over 5 A	No.
8536.50.9035	- - - - - - Rated at over 5 A	No.
8536.50.9040	- - - - - Snap-action, other than limit	No.
8536.50.9045	- - - - - Knife	No.
8536.50.9050	- - - - - Slide	No.
8536.50.9055	- - - - - Limit	No.
8536.50.9065	- - - - - Other	No.
	- - Lamp-holders, plugs and sockets:
8536.61.0000	- - - Lamp-holders	No.
8536.69	- - - Other:
8536.69.4010	- - - - Coaxial connectors	No.
8536.69.4020	- - - - Cylindrical multicontact connectors	No.
8536.69.4030	- - - - Rack and panel connectors	No.
8536.69.4040	- - - - Printed circuit connectors	No.
8536.69.5050	- - - - Other	X
8536.70.0000	- - Connectors for optical fibers, optical fiber bundles or cables	X
8536.90	- - Other apparatus:
8536.90.4000	- - - Terminals, electrical splices and electrical couplings, wafer probers	X
	- - - Other:
8536.90.8010	- - - - Electrical distribution ducts	X
8536.90.8030	- - - - Junction boxes	No.
8536.90.8085	- - - - Other	X

NSN 5945-01-123-3236 MDR673, MDR67-3, 10531614
