Product Details | CURRENT TRANSFORMER
5950-00-074-8905 An item consisting of one or more windings, designed to be placed near or connected in series with an alternating current power line to measure the current passing through the line by means of a meter; or to control the current passing through the line by means of a control device. Excludes TRANSFORMER, POWER, CURRENT REGULATING.
Part Alternates: M0DEL5101, JHP124083, JHP124-083, 13212E33893, 13212E3389-3, 5101, 511505, 51-150-5, 515101, 51-5101, 5950-00-074-8905, 00-074-8905, 5950000748905, 000748905
Electrical and Electronic Equipment Components | Coils and Transformers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-074-8905 | 00738 ( TRANSFORMER, CURRENT ) |

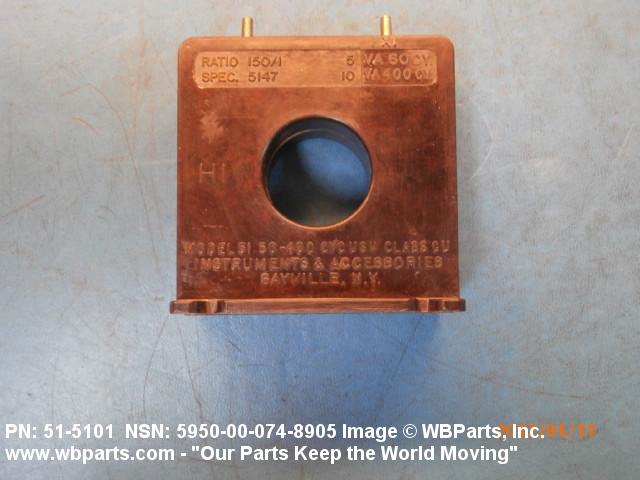

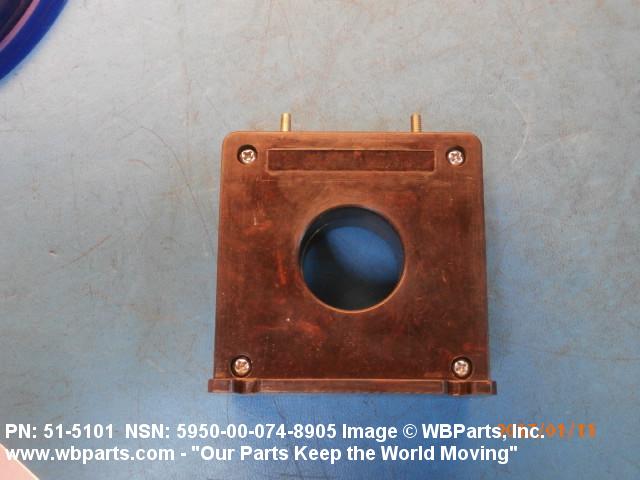

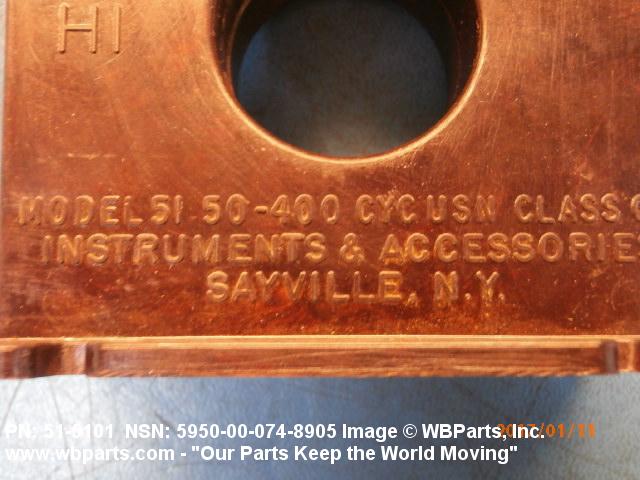

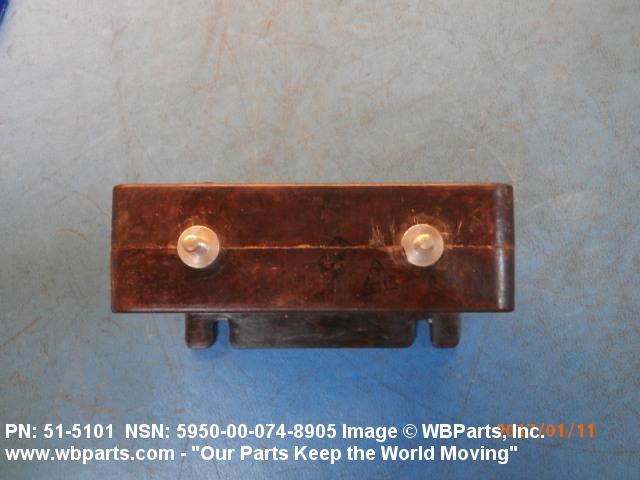

Drawings & Photos | NSN 5950-00-074-8905
Demand History | NSN 5950-00-074-8905
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5101 | 2022-11-16 | 25 | US |
| 5950-00-074-8905 | 2018-04-26 | 49 | DIBBS |
| 5950-00-074-8905 | 2018-03-29 | 49 | DIBBS |
| 5950-00-074-8905 | 2017-09-20 | 49 | DIBBS |
| 5950-00-074-8905 | 2016-12-29 | 2 | United States |
| 5950-00-074-8905 | 2016-12-21 | 2 | United States |
| 5950-00-074-8905 | 2016-12-20 | 2 | United States |
Cross Reference | NSN 5950-00-074-8905
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13212E3389-3 | 97403 | CECOM LR CENTER |
| 51-150-5 | 12670 | SQUARE D CO ELECTROMAGNETIC INDUSTRIES DIV |
| 51-5101 | 12670 | SQUARE D CO ELECTROMAGNETIC INDUSTRIES DIV |
| 5101 | 12670 | SQUARE D CO ELECTROMAGNETIC INDUSTRIES DIV |
| 5101 | 63638 | SQUARE D CO PINELLAS PLANT |
| JHP124-083 | 02032 | HOLLINGSWORTH JOHN R CO |
| M0DEL5101 | 12670 | SQUARE D CO ELECTROMAGNETIC INDUSTRIES DIV |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5950-00-074-8905
Related Products | NSN 5950-00-074-8905
5950-00-074-8906, 5950-00-074-8974, 5950-00-074-9947, 5950-00-075-0198, 5950-00-075-0204
Technical Data | NSN 5950-00-074-8905
| Characteristic | Specifications |
|---|---|

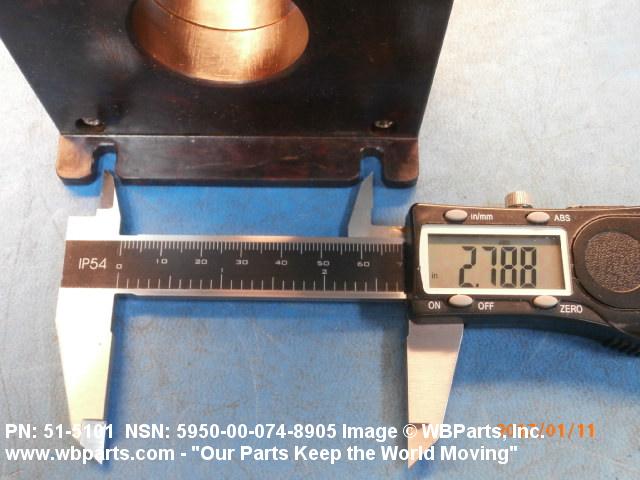

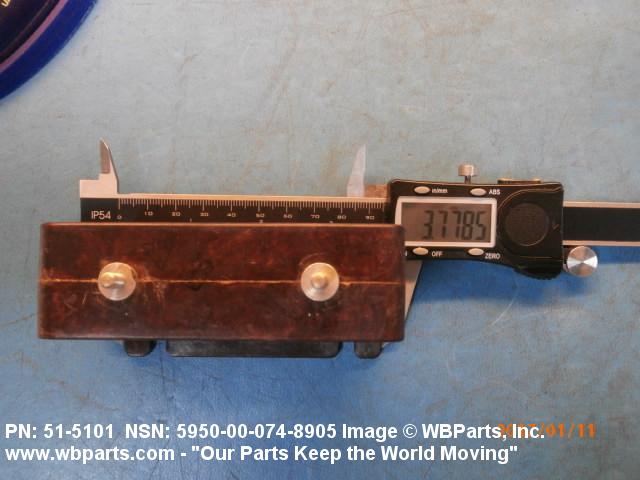

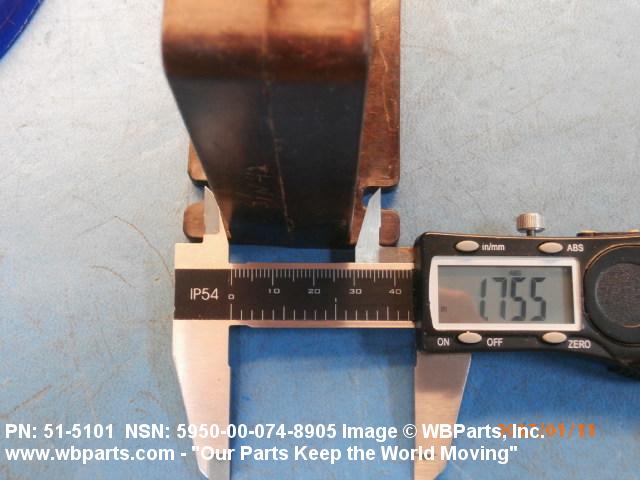

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.781 INCHES NOMINAL SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
| SPECIAL FEATURES | PRIMARY RATED BUT NOT INCLUDED |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.750 INCHES NOMINAL SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |

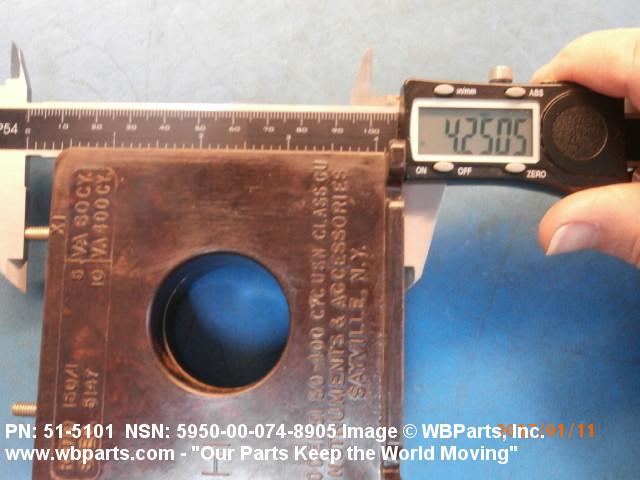

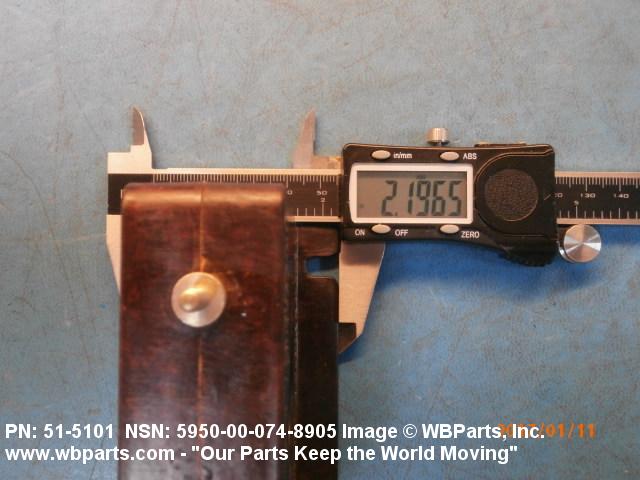

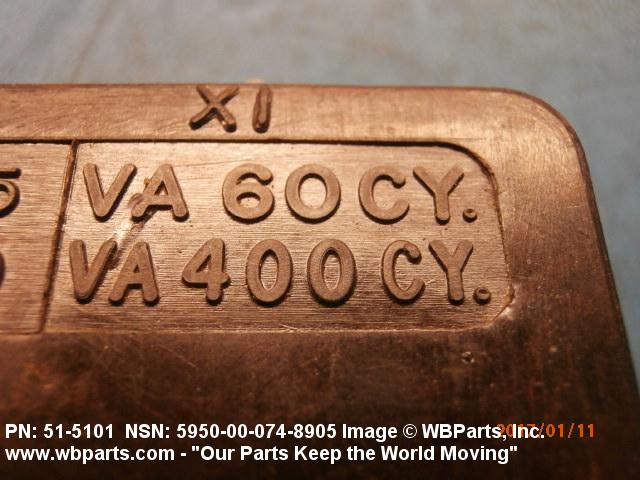

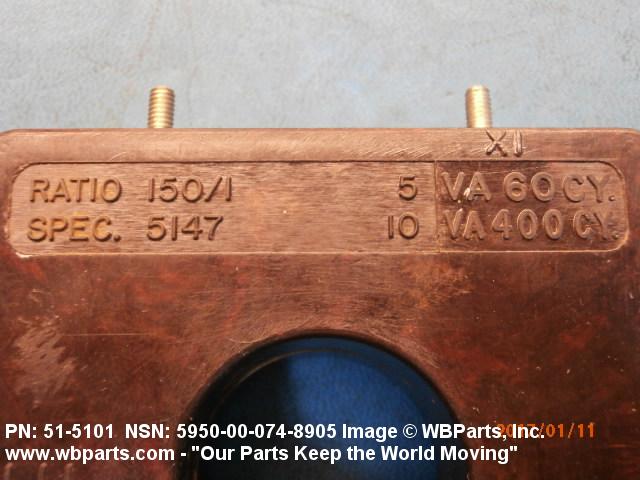

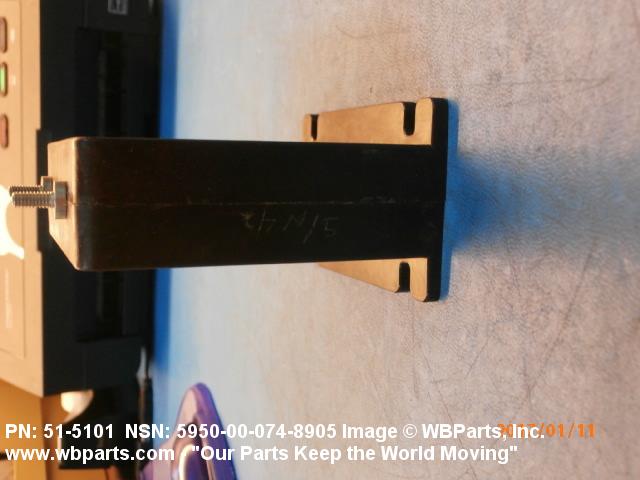

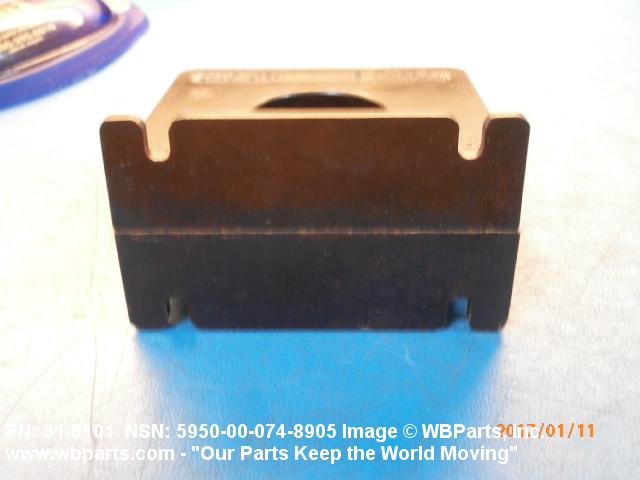

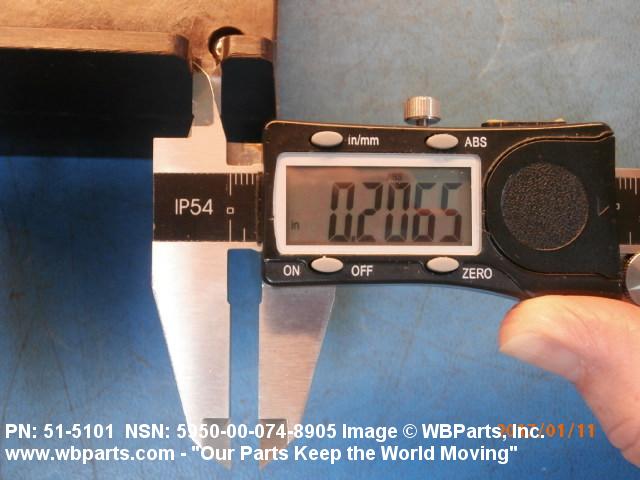

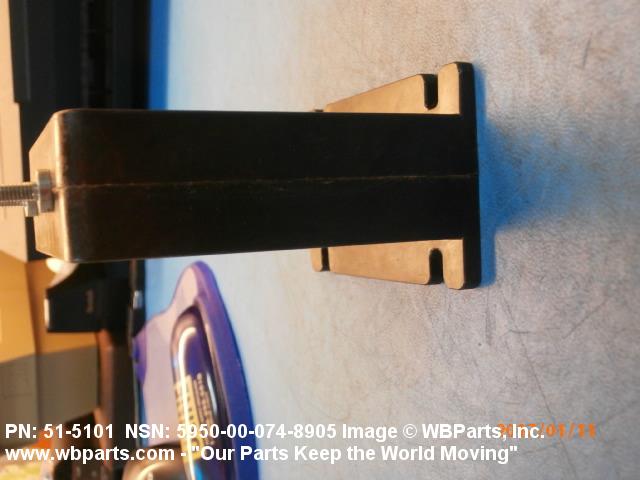

| BODY WIDTH | 2.188 INCHES NOMINAL |
| MOUNTING FACILITY QUANTITY | 4 SINGLE GROUP |
| FREQUENCY RATING | 60.0 HERTZ MINIMUM SINGLE COMPONENT AND 400.0 HERTZ MAXIMUM SINGLE COMPONENT |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| BODY LENGTH | 3.750 INCHES NOMINAL |
| WINDING FUNCTION AND QUANTITY | 1 SECONDARY SINGLE COMPONENT |
| WINDING OPERATING CURRENT | 150.0 AMPERES AC NOMINAL SINGLE COMPONENT SINGLE PRIMARY |
| BODY HEIGHT | 4.344 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 THREADED STUD |
| WINDING OPERATING CURRENT | 5.0 AMPERES AC NOMINAL SINGLE COMPONENT SINGLE SECONDARY |
| MOUNTING SLOT WIDTH | 0.118 INCHES NOMINAL SINGLE GROUP |
| INPUT-OUTPUT PHASE RELATIONSHIP | SINGLE PHASE TO SINGLE PHASE SINGLE COMPONENT |
| MOUNTING METHOD | SLOT SINGLE GROUP |
| INCLOSURE TYPE | FULLY INCLOSED |
