Product Details | CURRENT TRANSFORMER

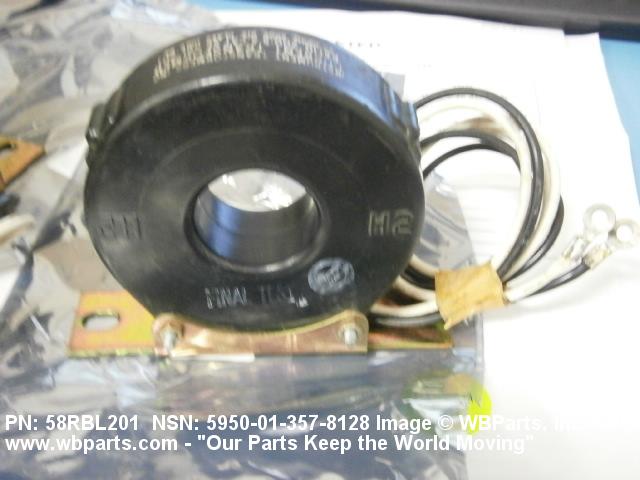

5950-01-357-8128 An item consisting of one or more windings, designed to be placed near or connected in series with an alternating current power line to measure the current passing through the line by means of a meter; or to control the current passing through the line by means of a control device. Excludes TRANSFORMER, POWER, CURRENT REGULATING.
Part Alternates: 370840, 58RBL201, 5950-01-357-8128, 01-357-8128, 5950013578128, 013578128
Electrical and Electronic Equipment Components | Coils and Transformers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 MAY 1992 | 01-357-8128 | 00738 ( TRANSFORMER, CURRENT ) |

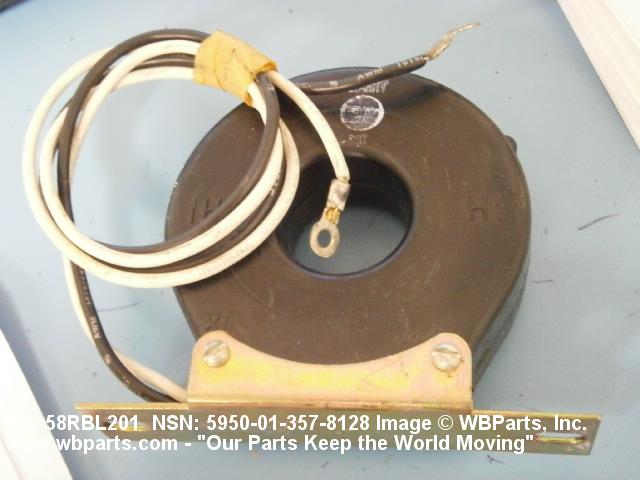

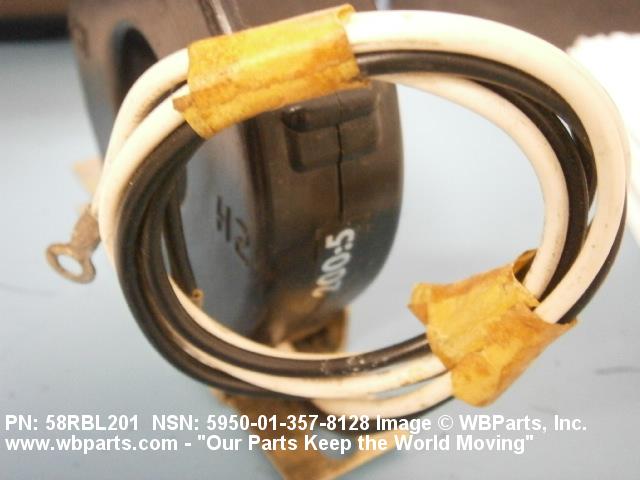

Drawings & Photos | NSN 5950-01-357-8128
Demand History | NSN 5950-01-357-8128
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5950-01-357-8128
Related Products | NSN 5950-01-357-8128
5950-01-357-8129, 5950-01-357-8268, 5950-01-357-8403, 5950-01-357-8404, 5950-01-357-8405
Technical Data | NSN 5950-01-357-8128
| Characteristic | Specifications |
|---|---|

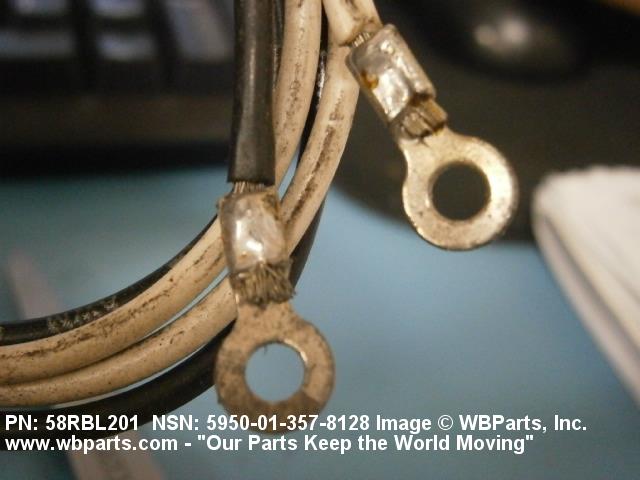

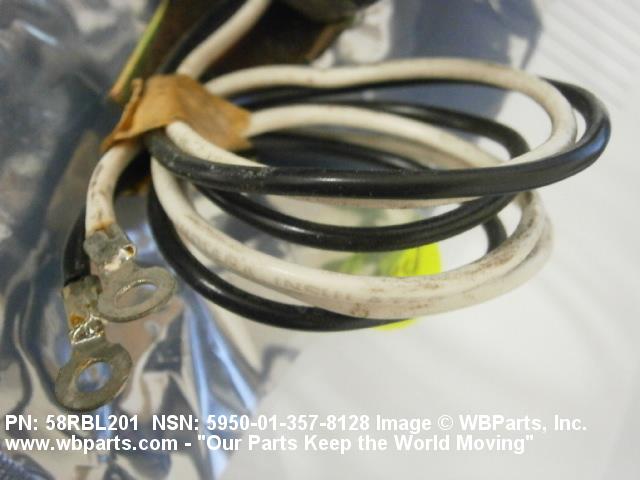

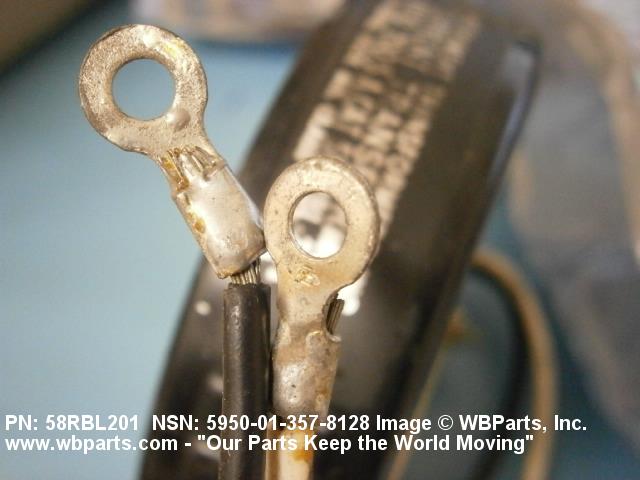

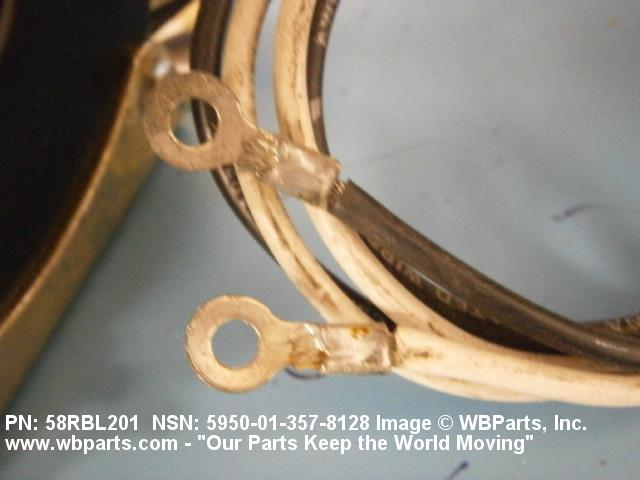

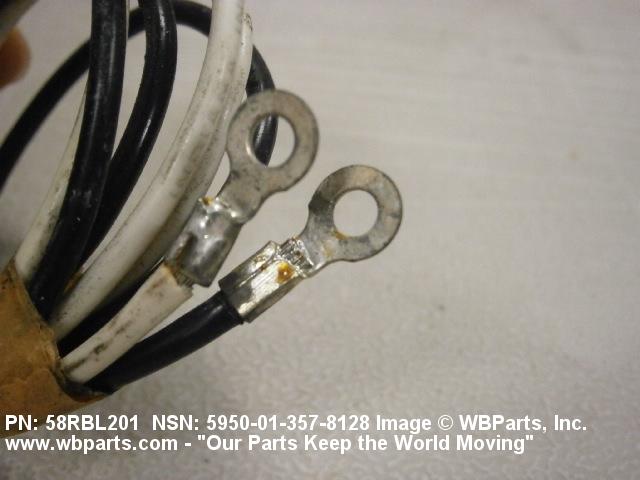

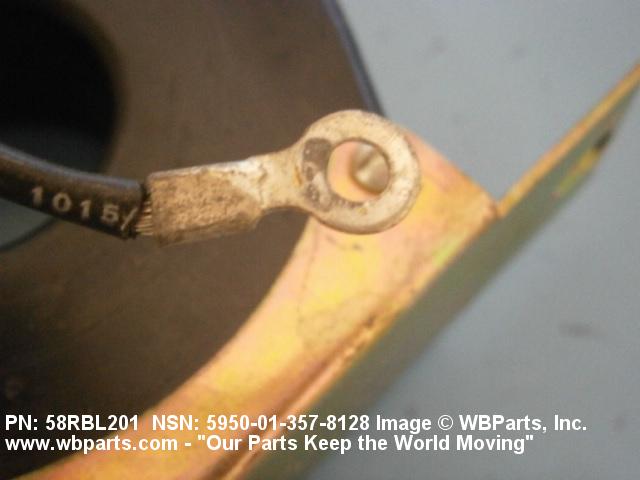

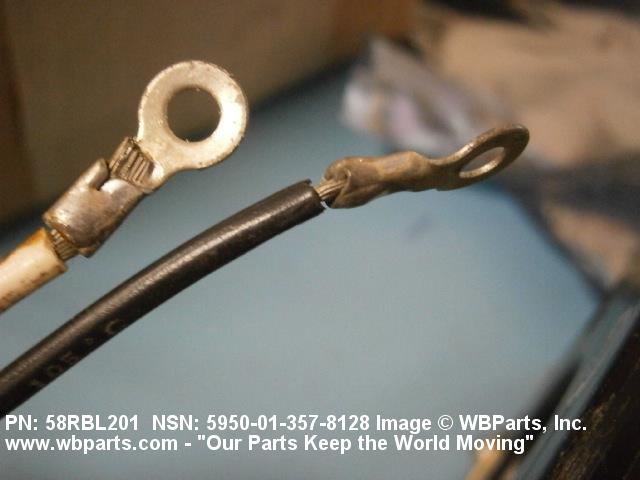

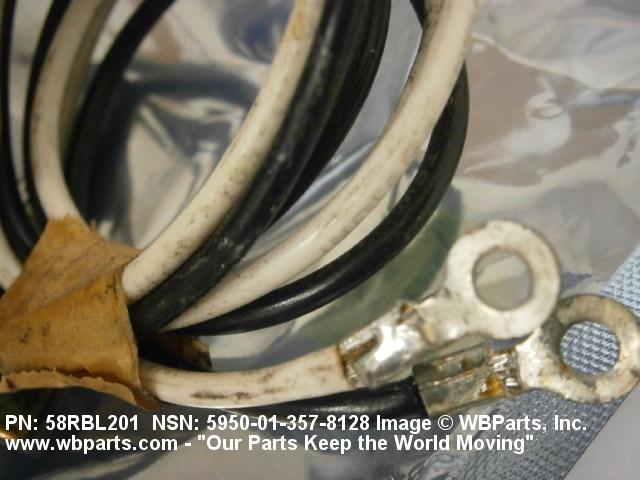

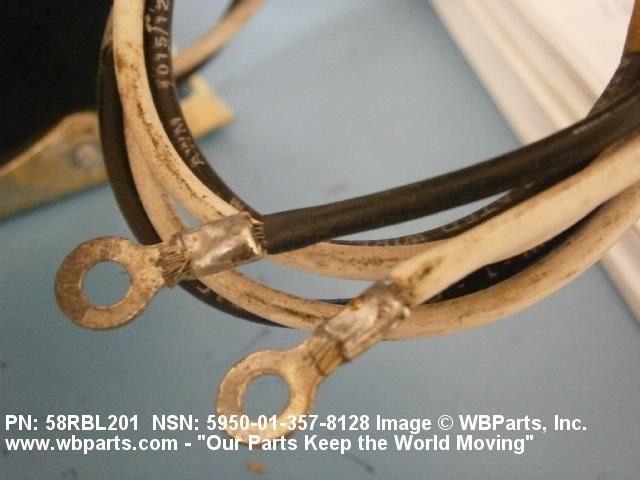

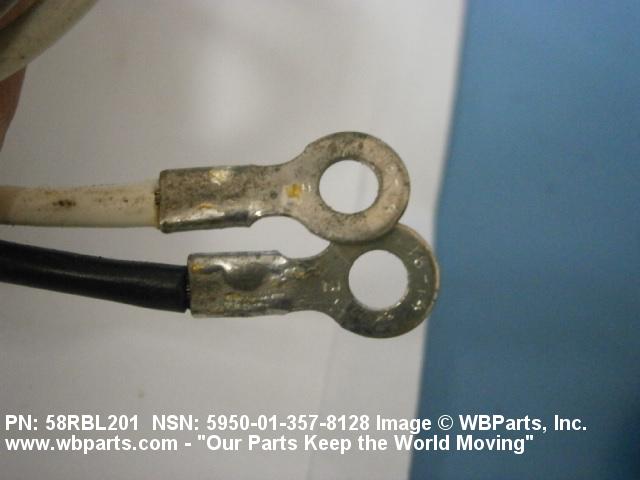

| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |

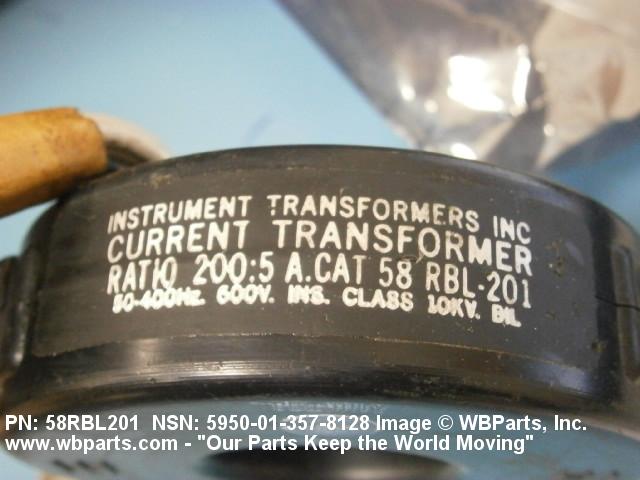

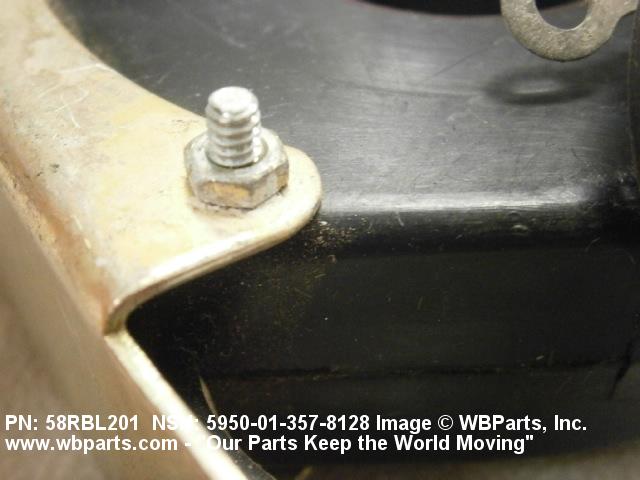

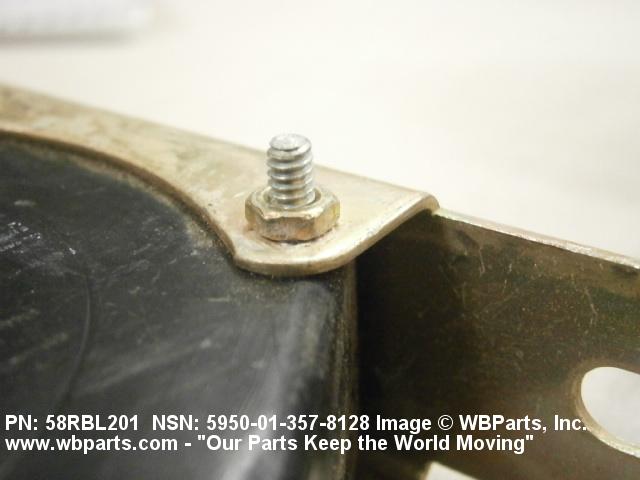

| WINDING OPERATING CURRENT | 200.0 AMPERES AC NOMINAL SINGLE COMPONENT SINGLE PRIMARY 5.0 AMPERES AC NOMINAL SINGLE COMPONENT SINGLE SECONDARY |
| FREQUENCY RATING | 50.0 HERTZ MINIMUM AND 400.0 HERTZ MAXIMUM SINGLE COMPONENT |
| MAXIMUM TRANSFORMER POWER RATING | 12.5 VOLT-AMPERE SINGLE COMPONENT |
| WINDING FUNCTION AND QUANTITY | 1 SECONDARY SINGLE COMPONENT |
| INPUT-OUTPUT PHASE RELATIONSHIP | SINGLE PHASE TO SINGLE PHASE SINGLE COMPONENT |
| MOUNTING METHOD | UNTHREADED HOLE SINGLE GROUP |
| MOUNTING FACILITY QUANTITY | 2 SINGLE GROUP |
| MOUNTING HOLE DIAMETER | 0.310 INCHES NOMINAL SINGLE GROUP |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 3.880 INCHES NOMINAL SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
| INCLOSURE TYPE | OPEN |
| BODY LENGTH | 4.550 INCHES NOMINAL |
| BODY HEIGHT | 3.700 INCHES NOMINAL |
| BODY WIDTH | 1.250 INCHES NOMINAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| SPECIAL FEATURES | PRIMARY RATED BUT NOT INCLUDED |
| (NON-CORE DATA) UNPACKAGED UNIT WEIGHT | 1.300 POUNDS |
