Product Details | MICROPHONE ELEMENT
5965-00-845-5500 A complete fabrication of the essential internal operating parts of a microphone.
Part Alternates: TMC495, TMC49-5, 600A835.208, 600A835208, 67C1867, 6932047, 693-2047, 06975260501, 0697526-0501, 06975260701, 0697526-0701, 10387, 216-030-001, 216030001603, 216-030-001-603, 5965-00-845-5500, 00-845-5500, 5965008455500, 216030001, 008455500
Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 01 JAN 1962 | 00-845-5500 | 00293 ( MICROPHONE ELEMENT ) |
Drawings & Photos | NSN 5965-00-845-5500
Demand History | NSN 5965-00-845-5500
Cross Reference | NSN 5965-00-845-5500
Part Number | Cage Code | Manufacturer |
---|---|---|
0697526-0501 | 06845 | RAYTHEON COMPANY DBA RAYTHEON |
0697526-0701 | 06845 | RAYTHEON COMPANY DBA RAYTHEON |
10387 | 82872 | ROANWELL CORPORATION DBA PARAMOUNT CORDS |
216-030-001 | 82872 | ROANWELL CORPORATION DBA PARAMOUNT CORDS |
216-030-001-603 | 82872 | ROANWELL CORPORATION DBA PARAMOUNT CORDS |
600A835.208 | C3944 | ASC SCHUEBEL ELECTRONIC GMBH |
67C1867 | 81134 | BOSCH SECURITY SYSTEMS, INC DBA USE CAGE CODE 25734 FOR |
67C1867 | 97151 | AIR FORCE LOGISTICS COMMAND 88 0SS OSE |
693-2047 | 81134 | BOSCH SECURITY SYSTEMS, INC DBA USE CAGE CODE 25734 FOR |
TMC49-5 | D0800 | DEUTSCHE ELNO SOCIETE NOUVELLE GMBH |
TMC49-5 | D2295 | ASTRO-TECHNIK GMBH |
Request a Quote
Comments | What our customers are saying...
NSNs for Compare ( up to 4 ): Add 5965-00-845-5500
Related Products | NSN 5965-00-845-5500
5965-00-845-6325, 5965-00-845-6797, 5965-00-847-2865, 5965-00-847-3604, 5965-00-848-6684
Technical Data | NSN 5965-00-845-5500
Characteristic | Specifications |
---|---|
ELEMENT TYPE | DYNAMIC |
FREQUENCY RESPONSE RANGE IN HERTZ | 200.0 TO 6000.0 |
IMPEDANCE SELECTION METHOD | PIN-JACK TYPE LEAD POSITIONING |
IMPEDANCE RATING | 3.5 OHMS NOMINAL |
POLARITY CONNECTION | NOT REQUIRED |
SOUND PICKUP DIRECTIONAL TYPE | BIDIRECTIONAL |
NOISE CANCELING FEATURE | NOT INCLUDED |
SHOCK MOUNT | NOT PROVIDED |
TERMINAL TYPE | PIN JACK |

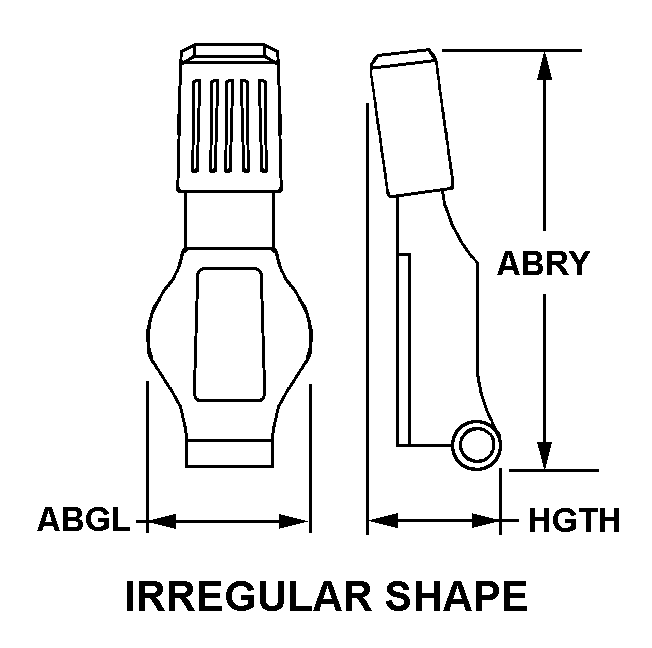

BODY STYLE | 5 IRREGULAR SHAPE |
WIDTH | 1.000 INCHES NOMINAL |
LENGTH | 2.375 INCHES NOMINAL |
HEIGHT | 0.719 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5965-00-845-5500
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 658 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5965-00-845-5500
Category | Code | Description |
---|---|---|
Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
Specific Group/Generic Code | 0 | Medical Materiel |
Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
Agency | DA | Department of the Army |
Service Organization | A | U.S. Army |
Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
Category | Code | Description |
---|---|---|
Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
