Product Details | SPECIAL PURPOSE ELECTRICAL INSULATION SLEEVING
5970-01-089-0120 A rigid or flexible tubing having other than uniform fabricated shapes or forms. It is specifically designed to prevent any undesirable flow of current between conductors or between conductors and other objects. Includes shrinkable type items. Excludes items not having rated electrical characteristics. Also excludes BUSHING, SLEEVE; CABLE NIPPLE, ELECTRICAL; and INSULATION SLEEVING, ELECTRICAL.
Part Alternates: GS830AE2342, GS830AE2-3-42, 382A023-3/42-0, 382A0233420, 493H1341AL, 493H134-1-AL, 5970-01-089-0120, 01-089-0120, 5970010890120, 010890120
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 JAN 1980 | 01-089-0120 | 61626 ( INSULATION SLEEVING, ELECTRICAL, SPECIAL PURPOSE ) |

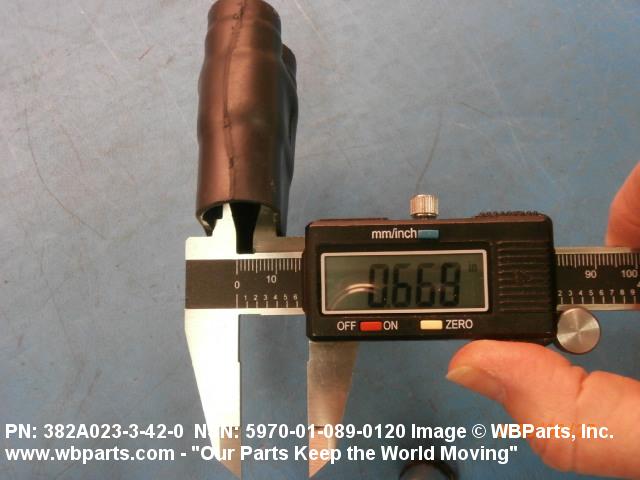

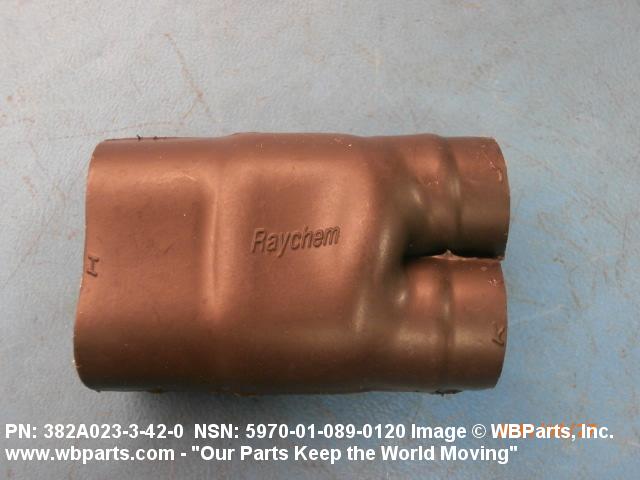

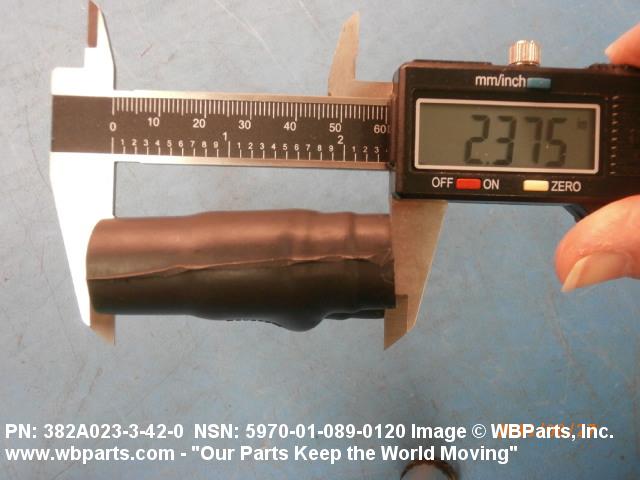

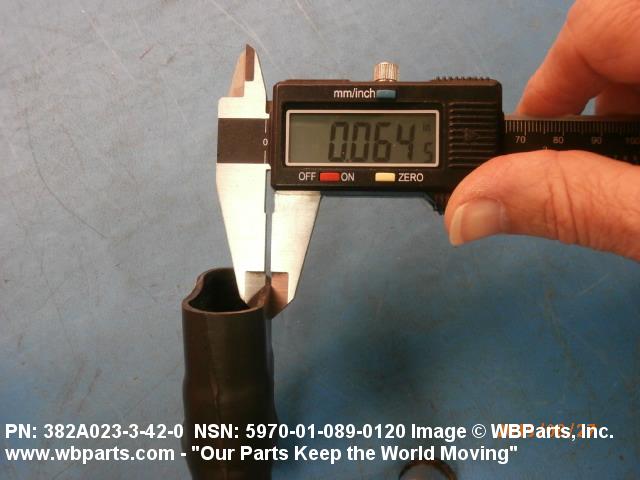

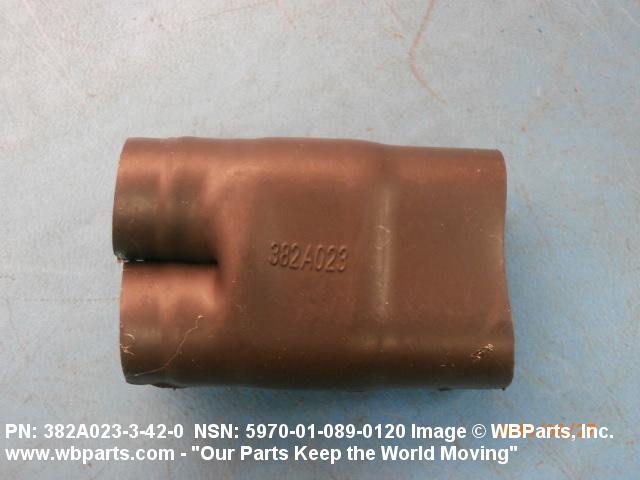

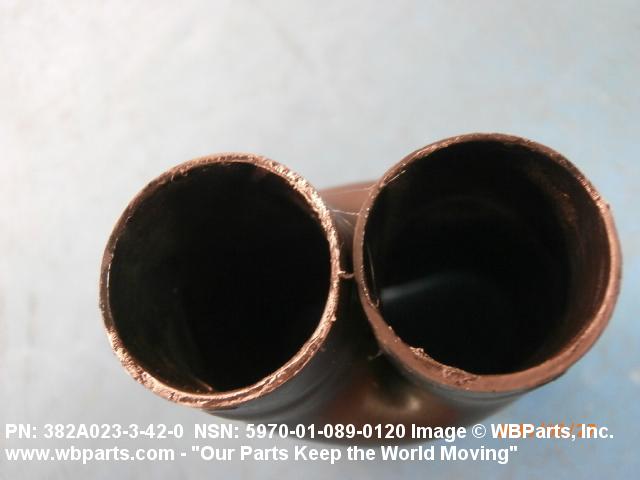

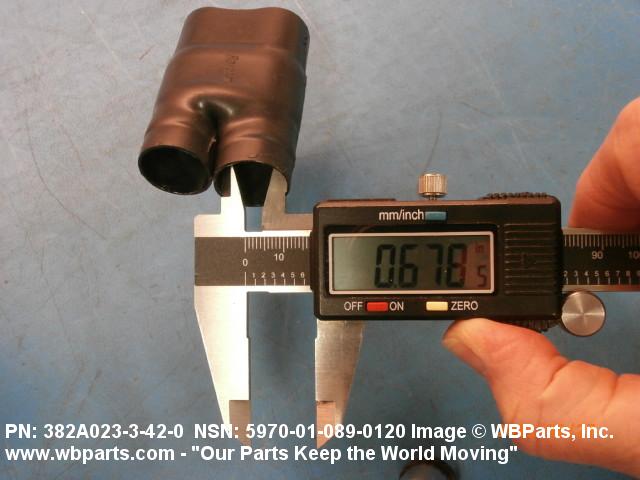

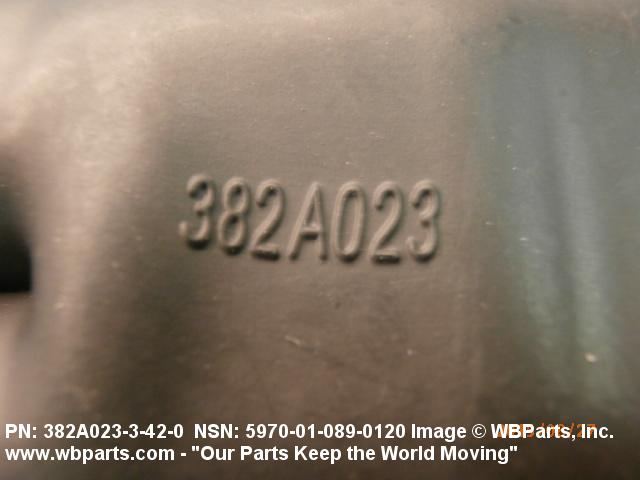

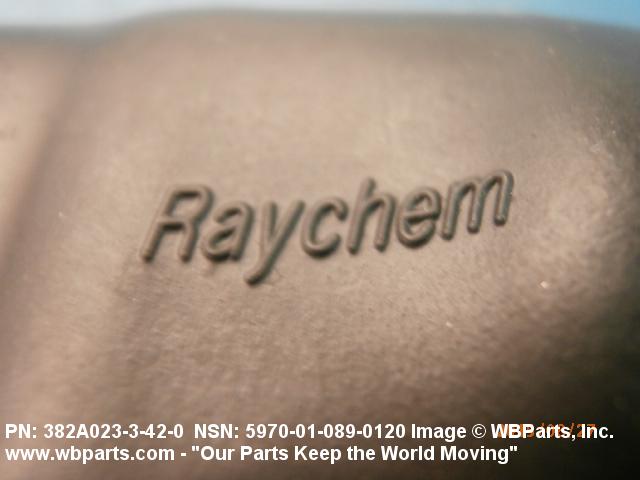

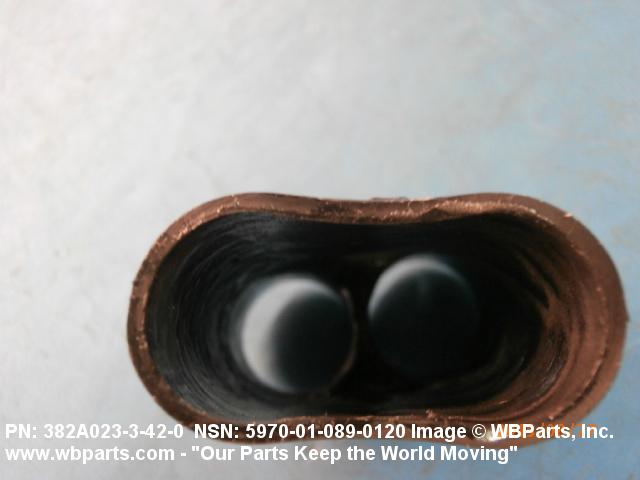

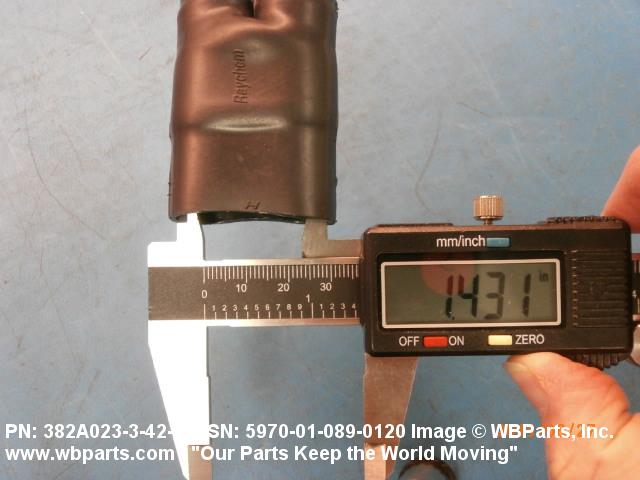

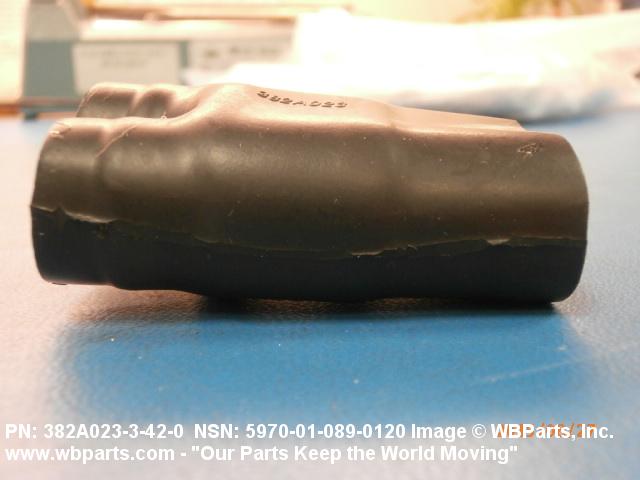

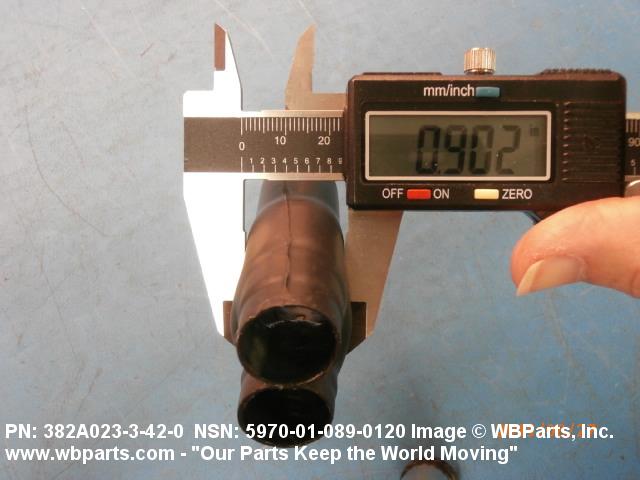

Drawings & Photos | NSN 5970-01-089-0120
Demand History | NSN 5970-01-089-0120
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5970-01-089-0120 | 2015-11-08 | 7812 | DIBBS |
| 5970-01-089-0120 | 2015-08-13 | 80 | Canada |
| 5970-01-089-0120 | 2015-08-06 | 80 | Canada |
| 5970-01-089-0120 | 2015-05-14 | 50 | Canada |
| 5970-01-089-0120 | 2011-11-21 | 4138 | DIBBS |
| 5970-01-089-0120 | 2011-08-25 | 4138 | DIBBS |
| 5970-01-089-0120 | 2011-06-30 | 1350 | DIBBS |
| 5970-01-089-0120 | 2009-02-05 | 1191 | DIBBS |
Cross Reference | NSN 5970-01-089-0120
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 382A023-3/42-0 | 06090 | TYCO ELECTRONICS CORPORATION |
| 493H134-1-AL | 53387 | 3M COMPANY DIV ELECTRO AND COMMUNICATIONS |
| 493H134-1-AL | 75037 | MINNESOTA MINING AND MFG CO 3M COMPANY |
| 493H134-1-AL | K0720 | HELLERMANNTYTON LIMITED |
| GS830AE2-3-42 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5970-01-089-0120
Related Products | NSN 5970-01-089-0120
5970-01-089-0121, 5970-01-089-0548, 5970-01-089-0618, 5970-01-089-0804, 5970-01-089-1111
Technical Data | NSN 5970-01-089-0120
| Characteristic | Specifications |
|---|---|

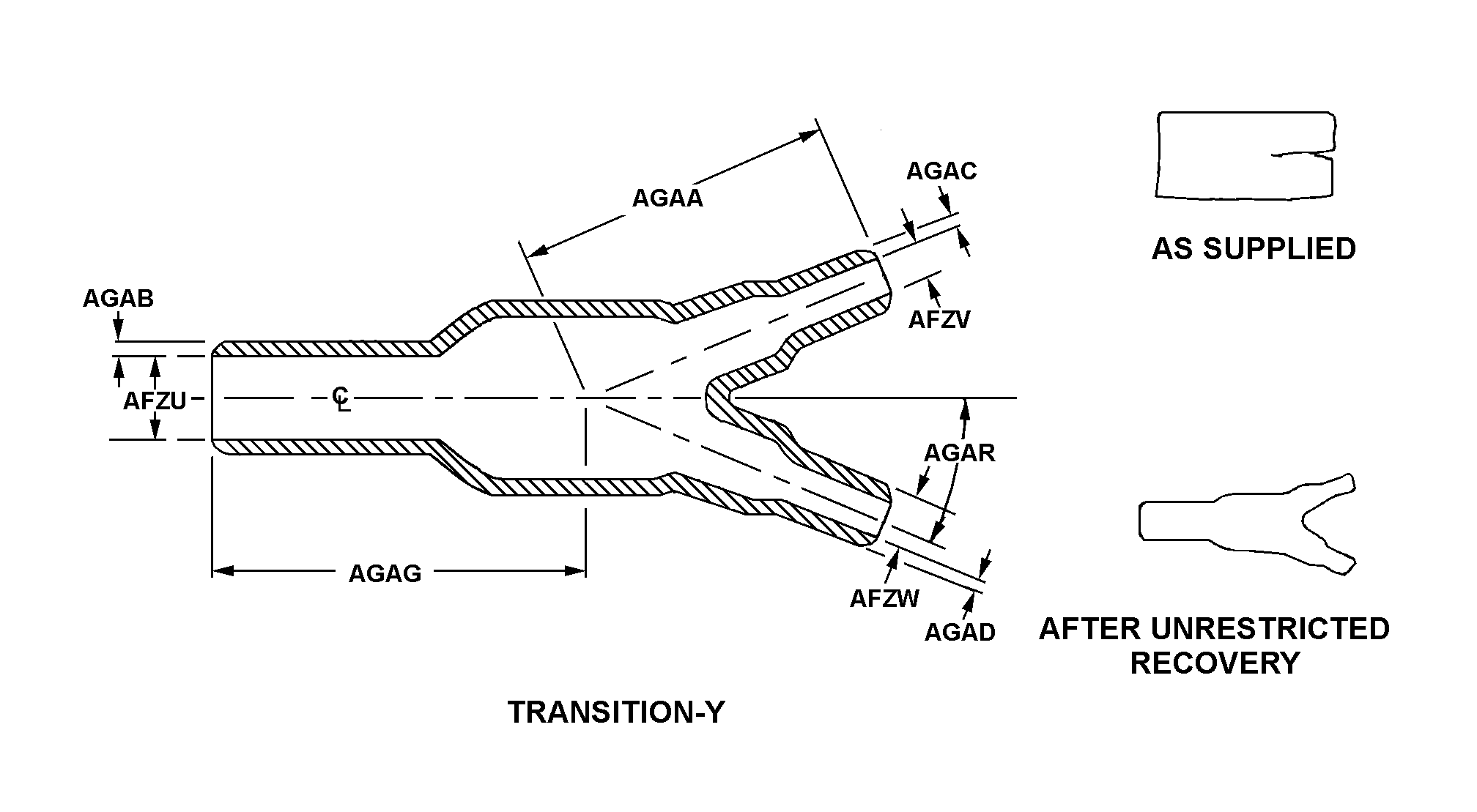

| STYLE DESIGNATOR | B7 TRANSITION-Y |
| MAIN BODY INSIDE DIAMETER | 1.060 INCHES MINIMUM AS SUPPLIED 0.490 INCHES MAXIMUM AFTER UNRESTRICTED RECOVERY |
| FIRST BRANCH INSIDE DIAMETER | 0.520 INCHES MINIMUM AS SUPPLIED 0.240 INCHES MAXIMUM AFTER UNRESTRICTED RECOVERY |
| SECOND BRANCH INSIDE DIAMETER | 0.520 INCHES MINIMUM AS SUPPLIED 0.240 INCHES MAXIMUM AFTER UNRESTRICTED RECOVERY |
| DISTANCE FROM INTERSECTING CENTERLINE OF MAIN BODY TO END OF FIRST BRANCH | 1.700 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| MAIN BODY WALL THICKNESS | 0.100 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| FIRST BRANCH WALL THICKNESS | 0.060 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| SECOND BRANCH WALL THICKNESS | 0.060 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| DISTANCE FROM EDGE OF MAIN BODY TO INTERSECTING CENTERLINES | 1.500 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| ANGLE BETWEEN MAIN BODY AND SECOND BRANCH CENTERLINES IN DEG | 10.0 NOMINAL AS SUPPLIED 22.5 NOMINAL AFTER UNRESTRICTED RECOVERY |
| MATERIAL | PLASTIC, POLYOLEFIN, RT-301, RAYCHEM CORP |
| COLOR | BLACK |
| FLEXIBILITY | SEMIRIGID |
| TEMP RATING | -55.0 DEG CELSIUS |
| MINIMUM TENSILE STRENGTH | 1500 POUNDS PER SQUARE INCH |
| DIELECTRIC MATERIAL VOLTAGE RATING PER UNIT THICKNESS | 200.0 VOLTS PER MIL /0.001 INCH/ |
| ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND FLAME RESISTANT AND MILDEW RESISTANT AND SOLVENT RESISTANT AND WATER RESISTANT |
| SPECIAL FEATURES | ADHESIVE COATING INSIDE |
Restrictions/Controls & Freight Information | NSN 5970-01-089-0120
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103300 | INSULATING MATERIAL NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
