Product Details | SPECIAL PURPOSE ELECTRICAL INSULATION SLEEVING
5970-00-073-4729 A rigid or flexible tubing having other than uniform fabricated shapes or forms. It is specifically designed to prevent any undesirable flow of current between conductors or between conductors and other objects. Includes shrinkable type items. Excludes items not having rated electrical characteristics. Also excludes BUSHING, SLEEVE; CABLE NIPPLE, ELECTRICAL; and INSULATION SLEEVING, ELECTRICAL.
Part Alternates: 000734729
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-JAN-63 | 00-073-4729 | 61626 ( INSULATION SLEEVING, ELECTRICAL, SPECIAL PURPOSE ) |

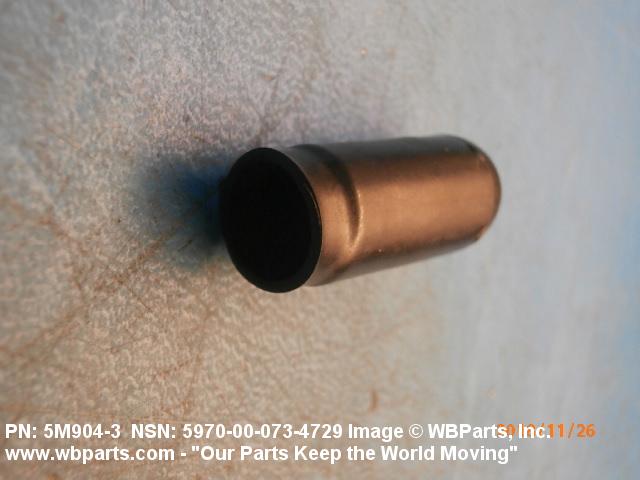

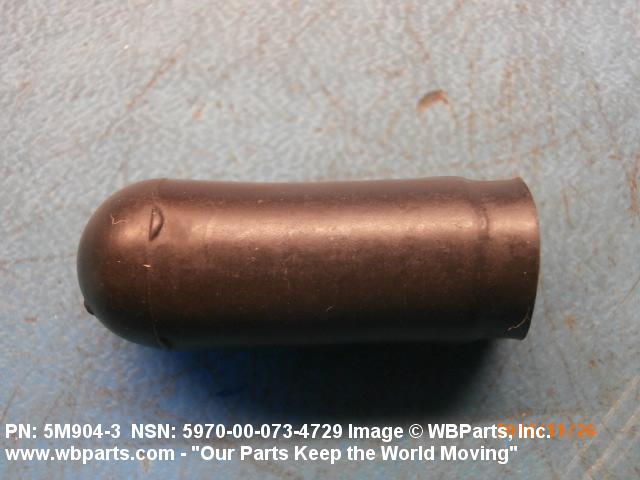

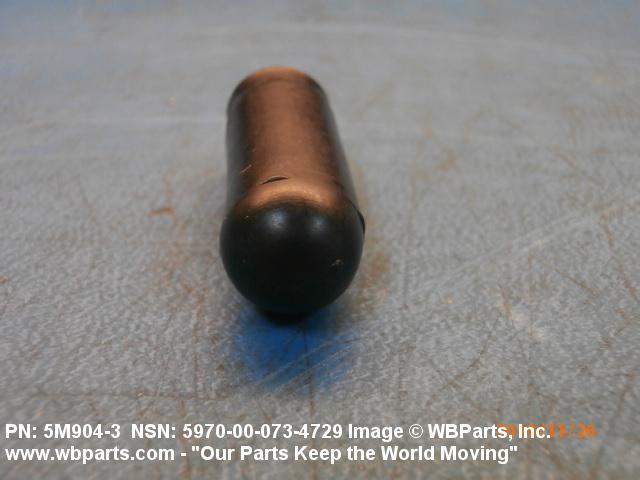

Drawings & Photos | NSN 5970-00-073-4729
Demand History | NSN 5970-00-073-4729
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| GC860N18 | 2020-09-17 | 5 | United States |
| GC860N18 | 2020-08-05 | 5 | United States |
| 5970-00-073-4729 | 2018-11-09 | 1 | United States |
| 5970-00-073-4729 | 2018-10-02 | 1 | United States |
| GC860N18 | 2018-09-26 | 2 | United States |
| 5970-00-073-4729 | 2018-09-13 | 4 | United States |
| GC860N18 | 2018-09-13 | 10 | United States |
| D30018 | 2015-02-12 | 185 | United States |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5970-00-073-4729
5970-00-073-5308, 5970-00-073-5313, 5970-00-073-5503, 5970-00-073-6534, 5970-00-073-6540
Technical Data | NSN 5970-00-073-4729
| Characteristic | Specifications |
|---|---|

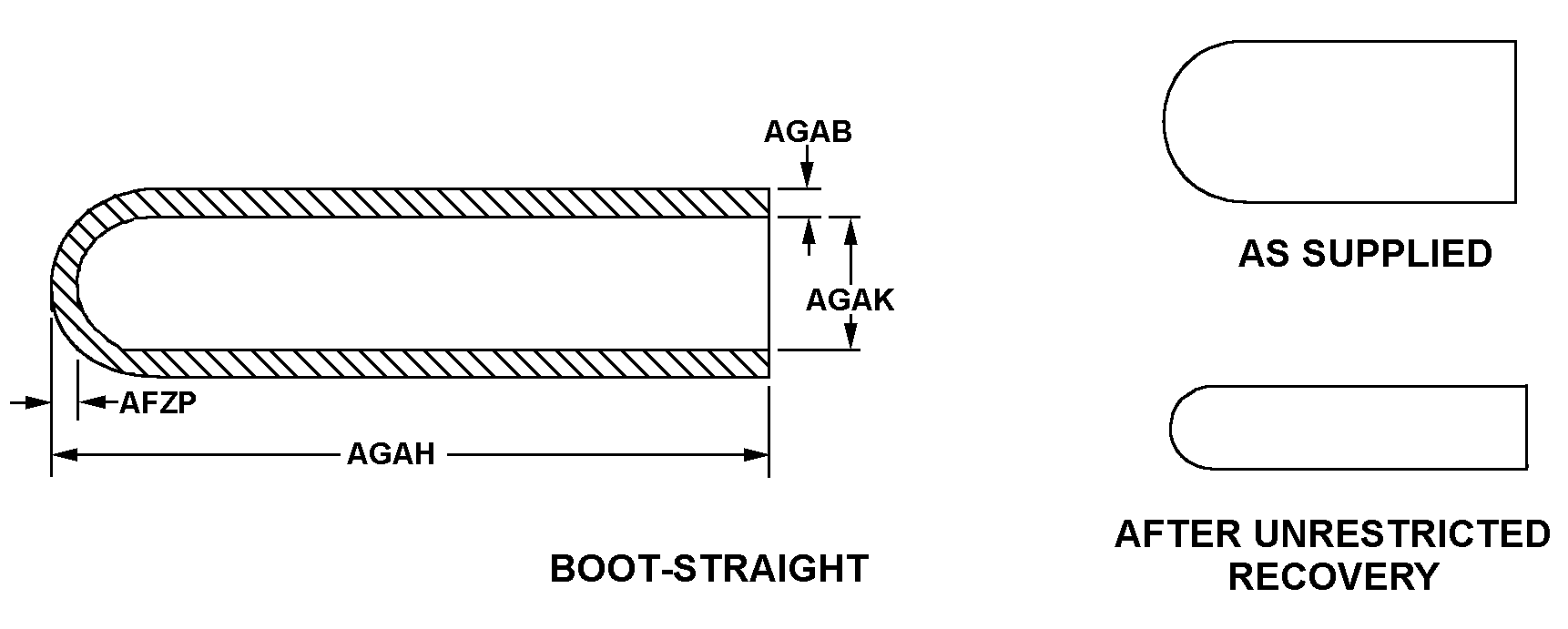

| STYLE DESIGNATOR | B10 BOOT-STRAIGHT |
| LARGE END WALL THICKNESS OF MAIN BODY | 0.015 INCHES MINIMUM AS SUPPLIED 0.050 INCHES MINIMUM AFTER UNRESTRICTED RECOVERY |
| MAIN BODY WALL THICKNESS | 0.015 INCHES MINIMUM AS SUPPLIED 0.050 INCHES MINIMUM AFTER UNRESTRICTED RECOVERY |
| MAIN BODY OVERALL LENGTH | 1.300 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| MAIN BODY LARGE END INSIDE DIAMETER | 0.360 INCHES MINIMUM AS SUPPLIED 0.180 INCHES MAXIMUM AFTER UNRESTRICTED RECOVERY |
| MATERIAL | PLASTIC, POLYOLEFIN |
| COLOR | BLACK |
| FLEXIBILITY | SEMIRIGID |
| TEMP RATING | -55.0 DEG CELSIUS AND 125.0 DEG CELSIUS |
| MINIMUM TENSILE STRENGTH | 1500 POUNDS PER SQUARE INCH |
| DIELECTRIC MATERIAL VOLTAGE RATING PER UNIT THICKNESS | 200.0 VOLTS PER MIL /0.001 INCH/ |
| ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND FLAME RESISTANT AND MILDEW RESISTANT AND WATER RESISTANT |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| SPECIAL FEATURES | INCLUDES MELTABLE INSERT |
Restrictions/Controls & Freight Information | NSN 5970-00-073-4729
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
