5975-00-117-5630 An item designed to mechanically connect in a straight line or an angle electrical conduit, conduit assemblies, wire, wireway, cable, or cable assemblies to a point of termination, such as a junction box, conduit outlet, or the like. The termination end must have an external thread with a boss or shoulder and may be furnished with a locknut or bondnut; or, must have internal thread with which is furnished an externally threaded hub with a wrenching feature; or be of a snap-in type that may be installed from either inside or outside the box and secured with a captive screw. It is not intended to join conduit to conduit. For angle type items having a male thread without a boss or shoulder, see ELBOW, ELECTRICAL CONDUIT. Does not include facilities to mount wiring devices. Excludes CHASE NIPPLE, CONDUIT.
Part Alternates: 920EX8, 9-20EX8, 5975-00-117-5630, 00-117-5630, 5975001175630, 001175630
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 OCT 1968 | 00-117-5630 | 09663 ( BOX CONNECTOR, ELECTRICAL ) |
Drawings & Photos | NSN 5975-00-117-5630
Cross Reference | NSN 5975-00-117-5630
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9-20EX8 | 30463 | DCX-CHOL ENTERPRISES, INC. DBA ELECSYS DIVISION OF DCX-CHOL |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5975-00-117-5630
5975-00-117-8139, 5975-00-117-8323, 5975-00-117-9251, 5975-00-117-9401, 5975-00-117-9515
Technical Data | NSN 5975-00-117-5630
| Characteristic | Specifications |
|---|---|

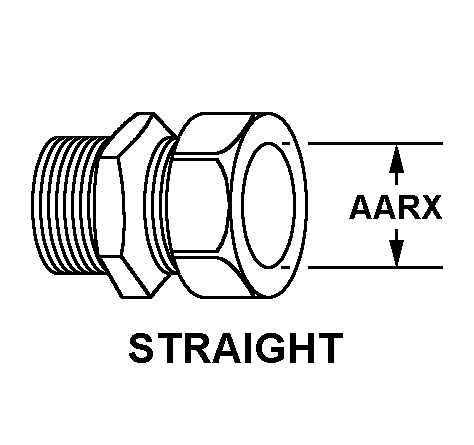

| STYLE DESIGNATOR | A22 STRAIGHT |
| INSIDE DIAMETER | 0.625 INCHES NOMINAL FIRST END 0.625 INCHES NOMINAL SECOND END |
| MATERIAL | STEEL |
| SURFACE TREATMENT | CADMIUM |
| THREAD SERIES DESIGNATOR | UNEF FIRST END NPT SECOND END |
| NOMINAL THREAD SIZE | 0.875 INCHES FIRST END 0.750 INCHES SECOND END |
| THREAD CLASS | 2A FIRST END |
| THREAD LENGTH | 0.440 INCHES NOMINAL FIRST END 0.760 INCHES NOMINAL SECOND END |
| CONDUIT TYPE ACCOMMODATED | ANY ACCEPTABLE FIRST END |
| END TYPE | EXTERNAL THREAD FIRST END EXTERNAL THREAD SECOND END |
