Product Details | ELECTRICAL CONDUIT ELBOW
5975-00-234-2402 An item fabricated in the form of an elbow and having both ends threaded female, or with unthreaded connecting facilities on both ends, or connecting facilities on both ends, one of which is a male thread without boss or shoulder. If a locknut or bondnut is included, it shall not be considered as a thread boss or shoulder. It is primarily intended to connect conduit to conduit. It may have a removable cover to facilitate pulling wires, but does not include facilities for mounting wiring devices. For items having a removable cover to facilitate pulling wires and specifically designed for close installation in exposed outdoor locations and which may have facilities for an outside driven ground, see ENTRANCE ELBOW, ELECTRICAL. For items with one end having a male thread with a boss or shoulder, see BOX CONNECTOR, ELECTRICAL. For items having a removable screw cap for pulling wires, with the cap positioned 45 degrees from the connection facilities, see ENTRANCE ELBOW, ELECTRICAL. For items fabricated in the form of an elbow having both ends threaded male, see BEND, ELECTRICAL CONDUIT.
Part Alternates: AN30638, AN3063-8, 5975-00-234-2402, 00-234-2402, 5975002342402, 002342402
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-234-2402 | 06944 ( ELBOW, ELECTRICAL CONDUIT ) |

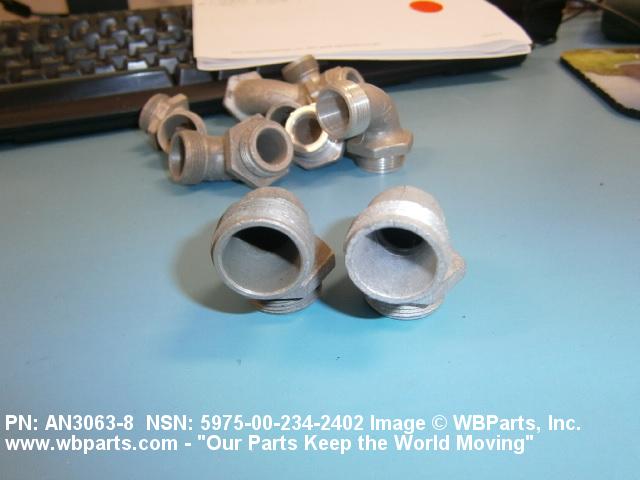

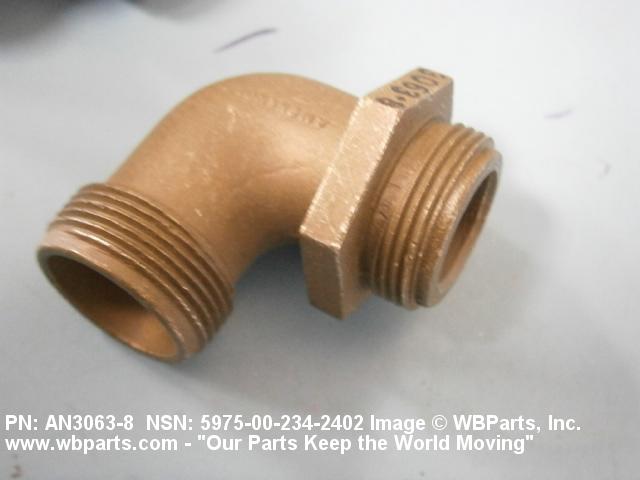

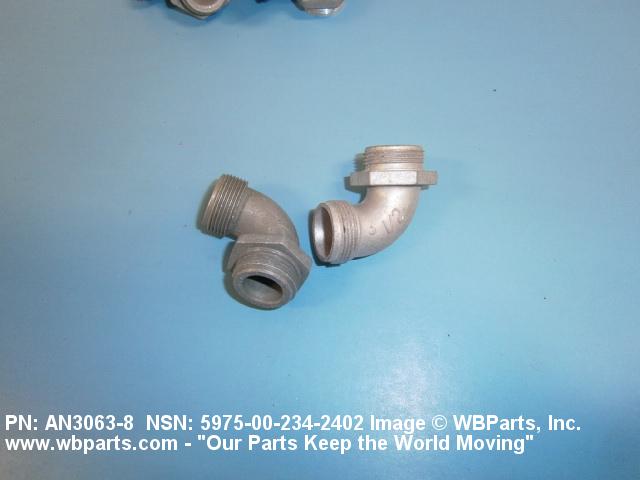

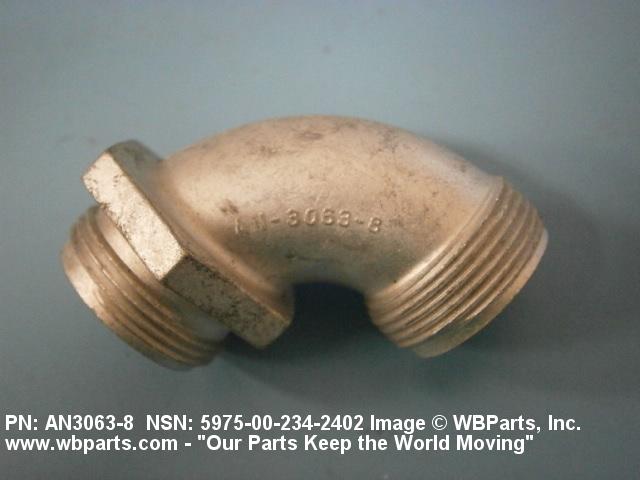

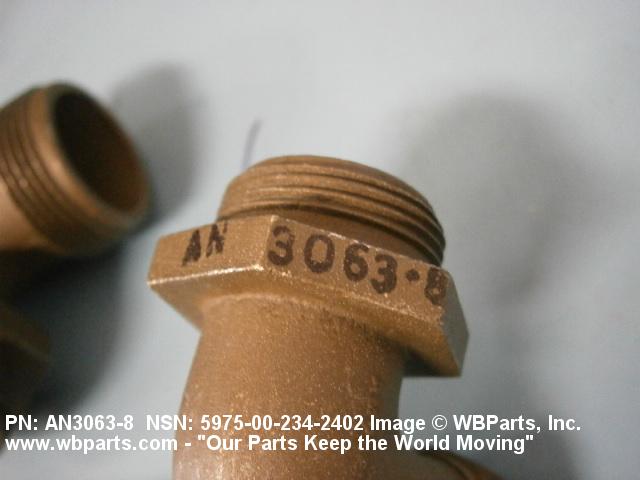

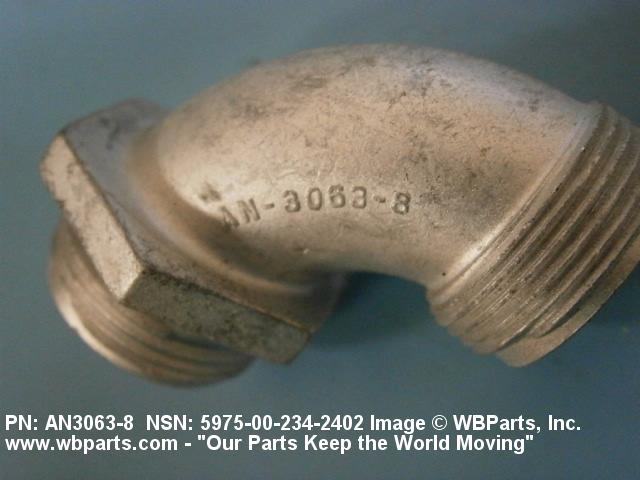

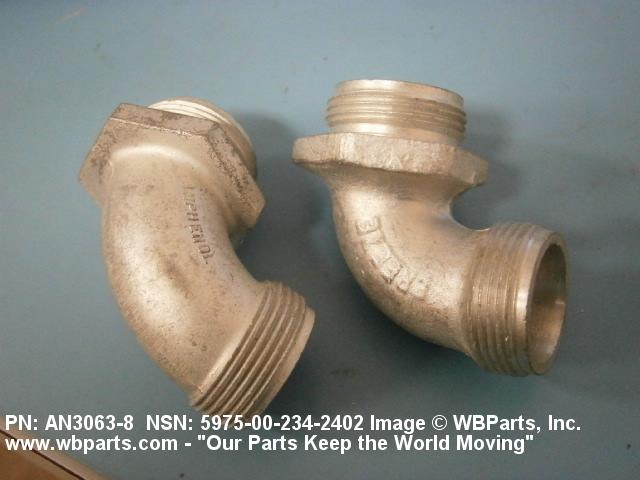

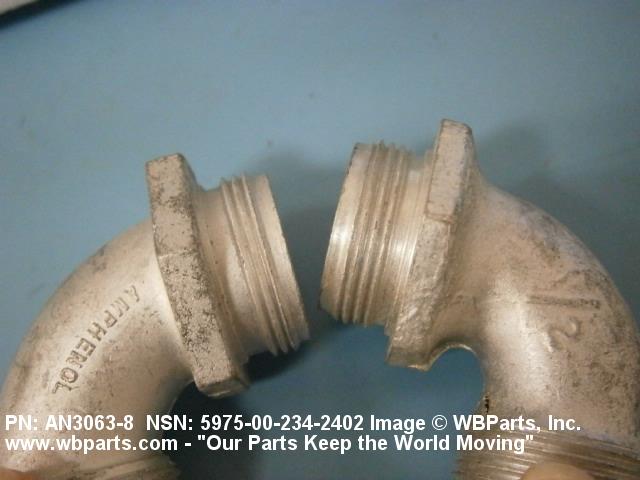

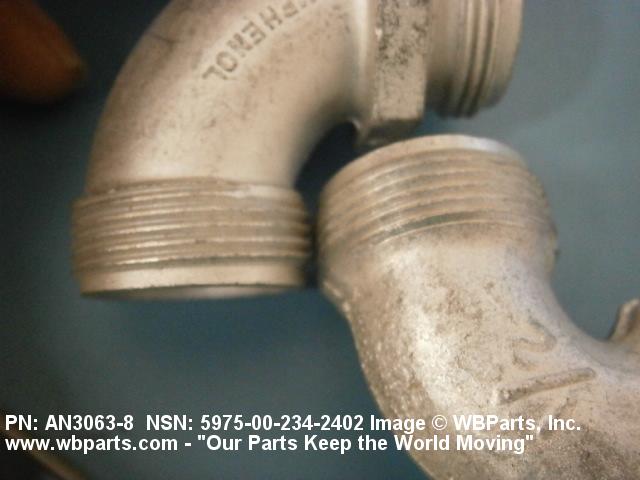

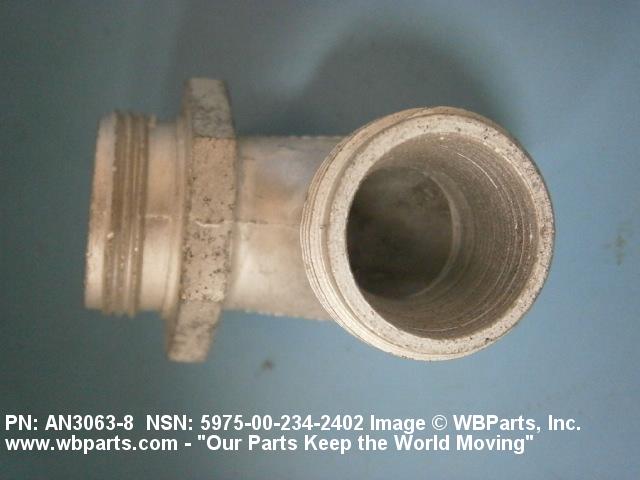

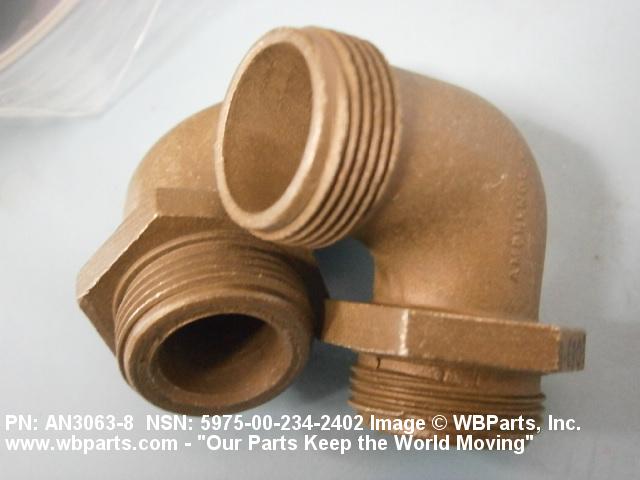

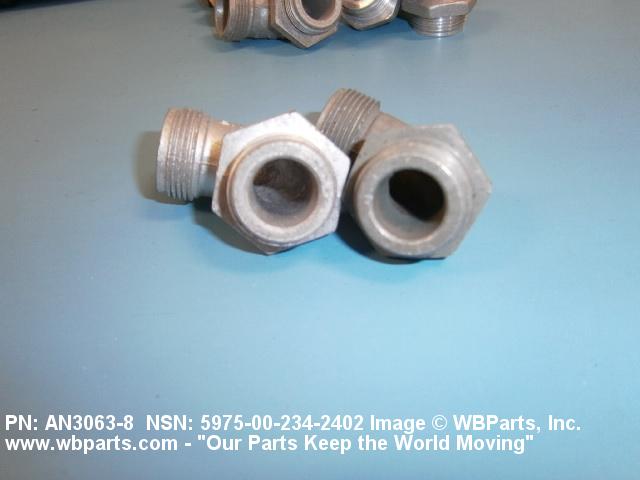

Drawings & Photos | NSN 5975-00-234-2402
Demand History | NSN 5975-00-234-2402
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5975-00-234-2402 | 2023-12-20 | 109 | DIBBS |
| 5975-00-234-2402 | 2023-12-12 | 109 | DIBBS |
| 5975-00-234-2402 | 2023-05-05 | 109 | DIBBS |
| 5975-00-234-2402 | 2023-04-27 | 109 | DIBBS |
| 5975-00-234-2402 | 2022-01-30 | 58 | DIBBS |
| 5975-00-234-2402 | 2017-11-29 | 122 | DIBBS |
| 5975-00-234-2402 | 2016-12-18 | 62 | DIBBS |
| AN30638 | 2012-03-26 | 20 | United States |
| AN30638 | 2012-03-13 | 20 | United States |
| AN30638 | 2012-01-31 | 224 | United States |
| 5975-00-234-2402 | 2011-12-16 | 224 | DIBBS |
| 5975-00-234-2402 | 2010-05-05 | 47 | DIBBS |
Cross Reference | NSN 5975-00-234-2402
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN3063-8 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5975-00-234-2402
Related Products | NSN 5975-00-234-2402
5975-00-234-2405, 5975-00-234-2406, 5975-00-234-2411, 5975-00-234-2413, 5975-00-234-2422
Technical Data | NSN 5975-00-234-2402
| Characteristic | Specifications |
|---|---|

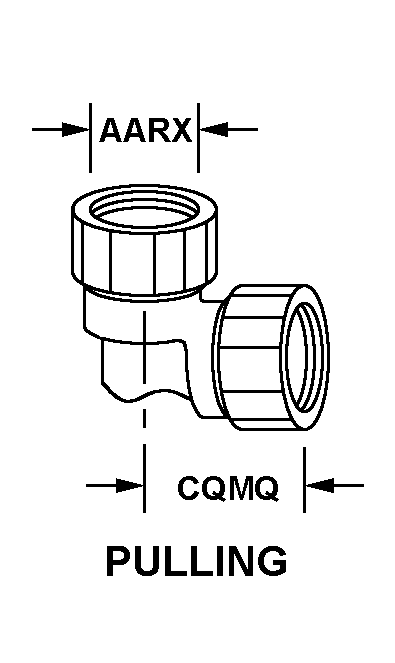

| STYLE DESIGNATOR | A39 PULLING |
| LEG END TO PLANE OF BEND DISTANCE | 1.156 INCHES NOMINAL FIRST END 1.094 INCHES NOMINAL SECOND END |
| ITEM ACCOMMODATED TRADE SIZE | 0.500 INCHES FIRST END 0.500 INCHES SECOND END |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | CADMIUM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE |
| CONDUIT TYPE ACCOMMODATED | RIGID METALLIC THINWALL FIRST END RIGID METALLIC THINWALL SECOND END |
| END TYPE | EXTERNAL THREAD FIRST END EXTERNAL THREAD SECOND END |
| DEFLECTION ANGLE | 90.0 DEGREES |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN3063-8 |
