Product Details | ELECTRICAL CONDUIT ELBOW
5975-00-296-2865 An item fabricated in the form of an elbow and having both ends threaded female, or with unthreaded connecting facilities on both ends, or connecting facilities on both ends, one of which is a male thread without boss or shoulder. If a locknut or bondnut is included, it shall not be considered as a thread boss or shoulder. It is primarily intended to connect conduit to conduit. It may have a removable cover to facilitate pulling wires, but does not include facilities for mounting wiring devices. For items having a removable cover to facilitate pulling wires and specifically designed for close installation in exposed outdoor locations and which may have facilities for an outside driven ground, see ENTRANCE ELBOW, ELECTRICAL. For items with one end having a male thread with a boss or shoulder, see BOX CONNECTOR, ELECTRICAL. For items having a removable screw cap for pulling wires, with the cap positioned 45 degrees from the connection facilities, see ENTRANCE ELBOW, ELECTRICAL. For items fabricated in the form of an elbow having both ends threaded male, see BEND, ELECTRICAL CONDUIT.
Part Alternates: HL423, HL-423, LB43, LBY3, 1482, 19100, 19-100, 327, 353, 392, 5975-00-296-2865, 00-296-2865, 5975002962865, 002962865
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-296-2865 | 06944 ( ELBOW, ELECTRICAL CONDUIT ) |
Drawings & Photos | NSN 5975-00-296-2865
Demand History | NSN 5975-00-296-2865
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 327 | 2018-10-11 | 250 | RO |
| 327 | 2017-03-24 | 10 | SG |
| 327 | 2015-04-07 | 180 | NL |
| 327 | 2014-08-04 | 1 | United States |
| 327 | 2014-07-29 | 10 | India |
| 327 | 2014-05-28 | 9 | United States |
| 327 | 2014-05-14 | 9 | United States |
| 327 | 2014-05-07 | 9 | United States |
| 327 | 2014-05-02 | 9 | United States |
| 327 | 2014-04-17 | 1 | United States |
| 327 | 2014-02-28 | 20 | RU |
| 327 | 2014-02-27 | 20 | RU |
| 327 | 2014-01-07 | 1900 | IL |
| 327 | 2013-06-13 | 1 | Hong Kong |
| 392 | 2012-11-05 | 8 | |
| 327 | 2012-09-10 | 10 | AR |
| 327 | 2009-10-27 | 100 | US |
| 327 | 2006-06-08 | 30 | US |
| 327 | 2006-05-03 | 20 | Chile |
Cross Reference | NSN 5975-00-296-2865
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1482 | 56501 | THOMAS & BETTS CORPORATION |
| 19-100 | 83879 | EGS ELECTRIC CO LLC |
| 327 | 81284 | MIDWEST ELECTRIC MFG CORP SUB OF CROUSE-HINDS CO |
| 353 | 05500 | BRIDGEPORT FITTINGS INC |
| 392 | 72971 | EFCOR INC |
| HL-423 | 56501 | THOMAS & BETTS CORPORATION |
| LB43 | 77774 | CROUSE-HINDS LIGHTING |
| LBY3 | 15235 | CROUSE-HINDS CO |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5975-00-296-2865
5975-00-296-2866, 5975-00-296-2869, 5975-00-296-2870, 5975-00-296-2879, 5975-00-296-2885
Technical Data | NSN 5975-00-296-2865
| Characteristic | Specifications |
|---|---|

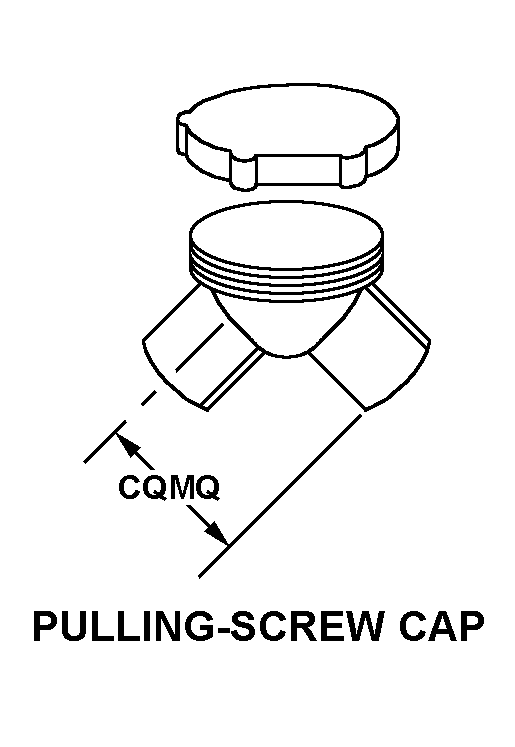

| STYLE DESIGNATOR | A38 PULLING-SCREW CAP |
