Product Details | ELECTRICAL CONTACT BRUSH
5977-00-284-6565 An item specifically designed to be used in the transfer of electrical energy to or from another conducting surface. Either the brush or the surface is continually moving during the transfer of energy. The brush is usually composed in part of some form of the element carbon. Includes: (1) a single brush either with or without an attached shunt (flexible wire lead) and/or a helical or flat type pressure spring; (2) a split brush composed of two or more pieces (wafers), which are used in place of one brush usually connected together by individual shunts to a common terminal; (3) paired brushes composed of two identical or non-identical brushes connected together by a common shunt either with or without pressure springs or connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like either with or without individual shunts; (4) multiple brushes composed of more than two identical or non-identical brushes without pressure springs connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like by individual shunts. Does not include moving contacts which make and slide past stationary contacts, but are stationary while the circuit is conducting, such as the sliding contacts on a rheostat or the stationary contact on a synchro. Excludes: CONTACT, ELECTRICAL; and CONTACT ASSEMBLY, ELECTRICAL.
Part Alternates: 5977-00-284-6565, 00-284-6565, 5977002846565, 002846565
Electrical and Electronic Equipment Components | Electrical Contact Brushes and Electrodes
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-284-6565 | 00302 ( BRUSH, ELECTRICAL CONTACT ) |
Drawings & Photos | NSN 5977-00-284-6565
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5977-00-284-6565
5977-00-284-6568, 5977-00-284-6569, 5977-00-284-6570, 5977-00-284-6571, 5977-00-284-6572
Technical Data | NSN 5977-00-284-6565
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A1 ONE PIECE |
| MATERIAL | ELECTROGRAPHITIC OR SILVER GRAPHITE |
| MATERIAL DOCUMENT AND CLASSIFICATION | STACKPOLE CARBON CO,GRADE 199 MFR REF 1ST MATERIAL RESPONSE OR SUPERIOR CARBON CO,GRADE B54 MFR REF 2ND MATERIAL RESPONSE OR SPEER CARBON CO,GRADE B1192 MFR REF 3RD MATERIAL RESPONSE |
| BODY STYLE | B3 RECTANGULAR COMMUTATOR |
| WIDTH | 0.155 INCHES NOMINAL |
| THICKNESS | 0.122 INCHES NOMINAL |
| LENGTH | 0.297 INCHES NOMINAL |
| CONTACT FACE STYLE | D2 CONCAVE |
| RADIUS | 0.175 INCHES NOMINAL |

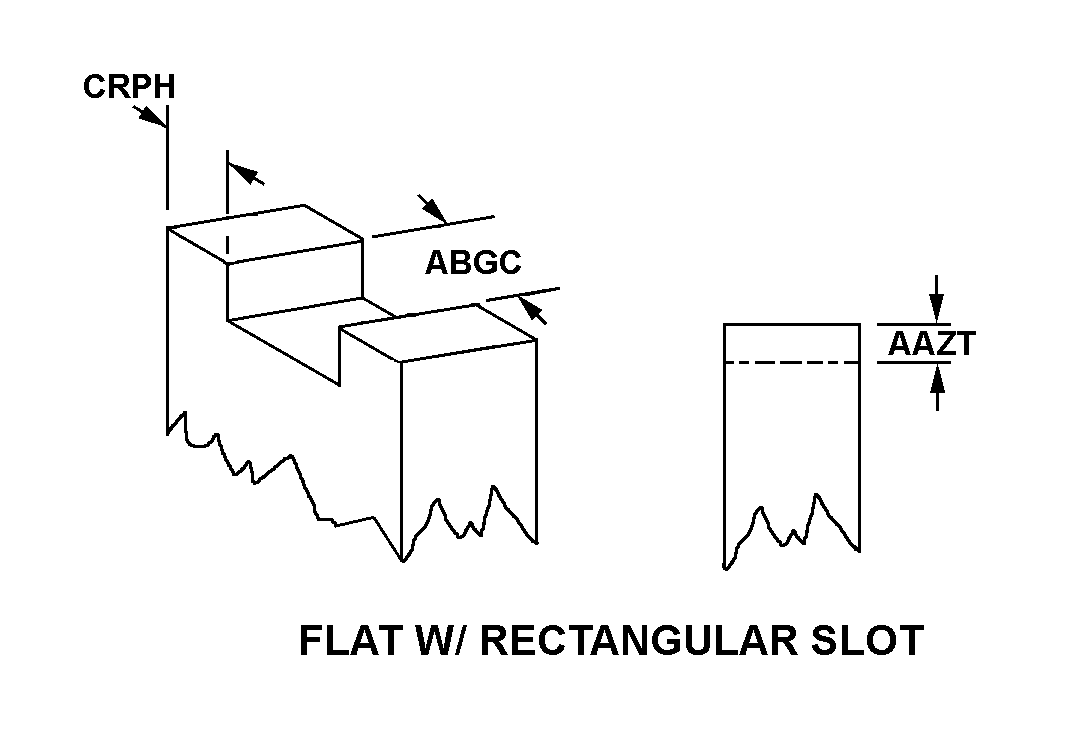

| TOP STYLE | E8 FLAT WITH RECTANGULAR SLOT |
| SLOT DEPTH | 0.025 INCHES NOMINAL |
| SLOT WIDTH | 0.030 INCHES NOMINAL |
| OUTER EDGE TO SLOT EDGE DISTANCE | 0.046 INCHES NOMINAL |
| SHUNT INSULATION PROVISION AND QUANTITY | 1 UNINSULATED |
| SHUNT POSITION DESIGNATOR | 8 |
| BRUSH SHUNT LENGTH | 0.688 INCHES NOMINAL SINGLE SHUNT |
| SPECIAL FEATURES | RIGHT EDGE BEVELED |
Restrictions/Controls & Freight Information | NSN 5977-00-284-6565
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 040580 | CARBON BRUSHES GENERATOR/MOTOR |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
