Product Details | ELECTRICAL CONTACT BRUSH

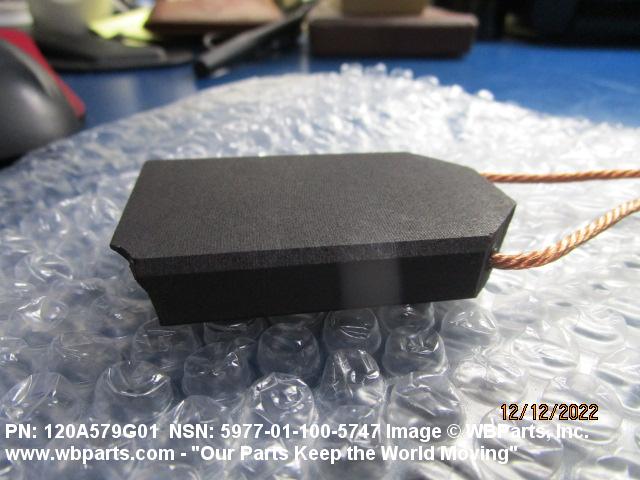

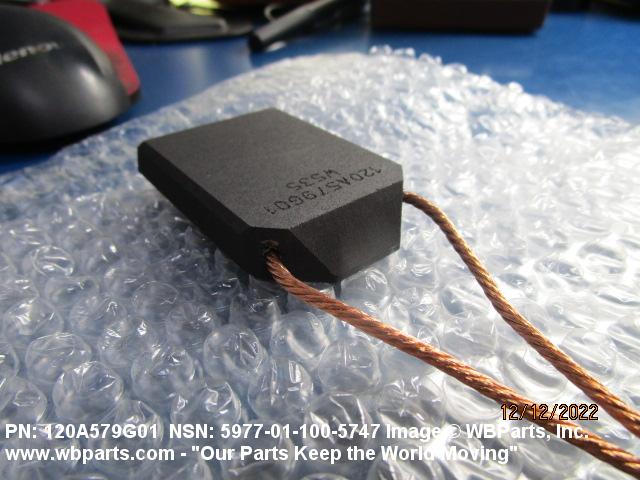

5977-01-100-5747 An item specifically designed to be used in the transfer of electrical energy to or from another conducting surface. Either the brush or the surface is continually moving during the transfer of energy. The brush is usually composed in part of some form of the element carbon. Includes: (1) a single brush either with or without an attached shunt (flexible wire lead) and/or a helical or flat type pressure spring; (2) a split brush composed of two or more pieces (wafers), which are used in place of one brush usually connected together by individual shunts to a common terminal; (3) paired brushes composed of two identical or non-identical brushes connected together by a common shunt either with or without pressure springs or connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like either with or without individual shunts; (4) multiple brushes composed of more than two identical or non-identical brushes without pressure springs connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like by individual shunts. Does not include moving contacts which make and slide past stationary contacts, but are stationary while the circuit is conducting, such as the sliding contacts on a rheostat or the stationary contact on a synchro. Excludes: CONTACT, ELECTRICAL; and CONTACT ASSEMBLY, ELECTRICAL.
Part Alternates: WS-27, 073558, 07-3558, 120A579G01, 1873B31H01, WS27, 5977-01-100-5747, 01-100-5747, 5977011005747, 011005747
Electrical and Electronic Equipment Components | Electrical Contact Brushes and Electrodes
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 10 SEP 1980 | 01-100-5747 | 00302 ( BRUSH, ELECTRICAL CONTACT ) |

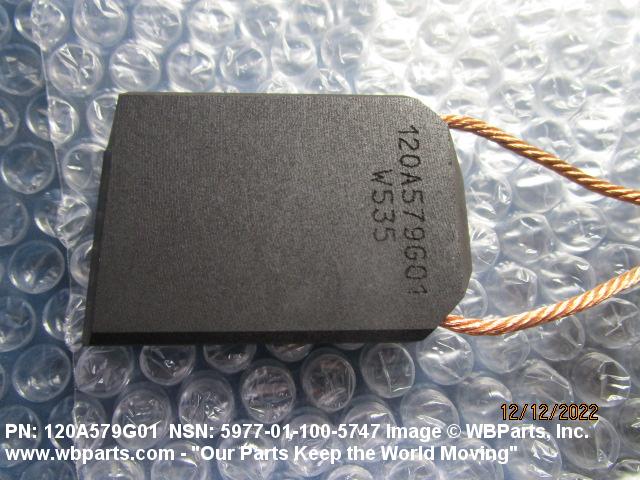

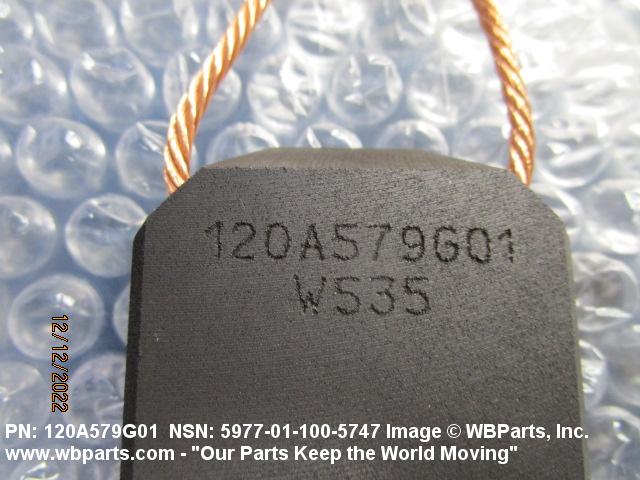

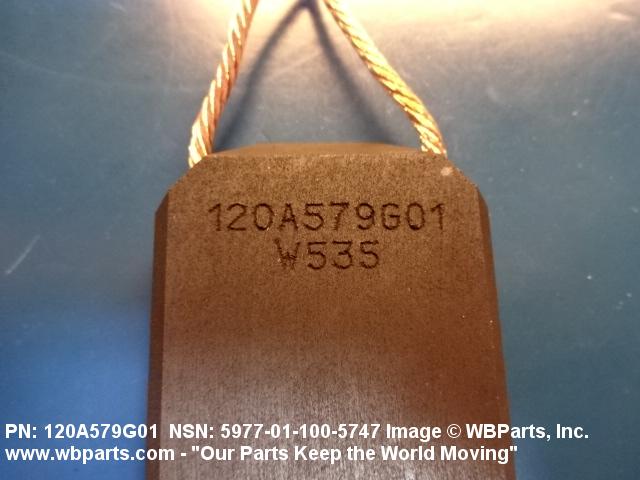

Drawings & Photos | NSN 5977-01-100-5747
Demand History | NSN 5977-01-100-5747
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5977-01-100-5747 | 2023-02-14 | 150 | United States |
| 120A579G01 | 2022-11-10 | 50 | United States |
| 120A579G01 | 2022-02-25 | 200 | US |
| 5977-01-100-5747 | 2019-10-03 | 192 | US |
| 5977-01-100-5747 | 2019-01-02 | 32 | US |
| 5977-01-100-5747 | 2018-05-17 | 100 | United States |
| 5977-01-100-5747 | 2017-09-18 | 150 | United States |
| 5977-01-100-5747 | 2017-08-31 | 100 | US |
| 5977-01-100-5747 | 2017-08-30 | 100 | US |
| 5977-01-100-5747 | 2016-08-17 | 100 | US |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5977-01-100-5747
5977-01-100-8878, 5977-01-100-9425, 5977-01-101-6819, 5977-01-101-7169, 5977-01-101-7410
Technical Data | NSN 5977-01-100-5747
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A1 ONE PIECE |
| MATERIAL | GRAPHITE |
| BODY STYLE | B3 RECTANGULAR COMMUTATOR |

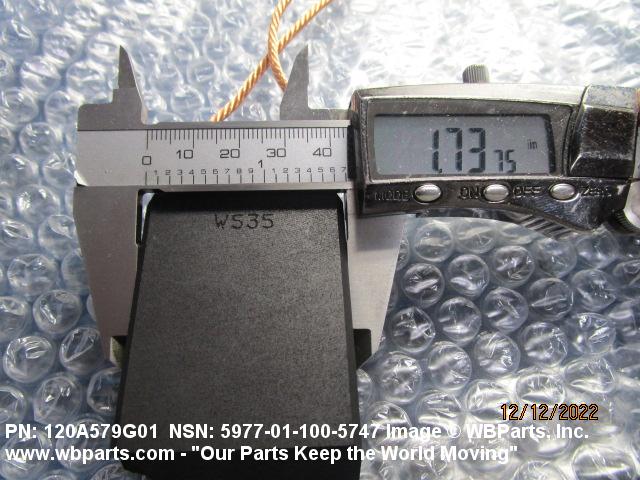

| WIDTH | 1.500 INCHES NOMINAL |

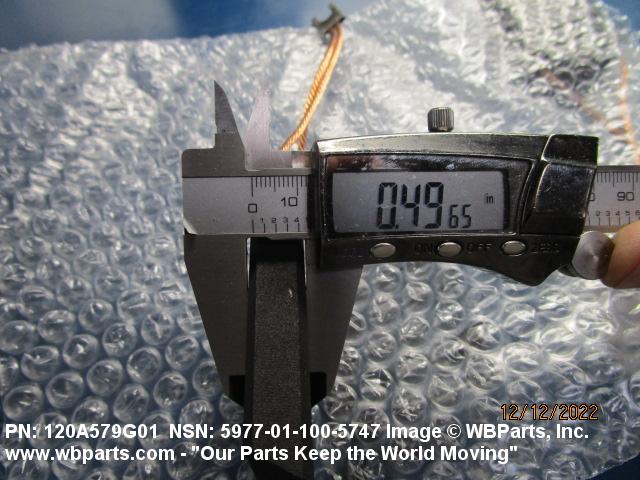

| THICKNESS | 0.500 INCHES NOMINAL |

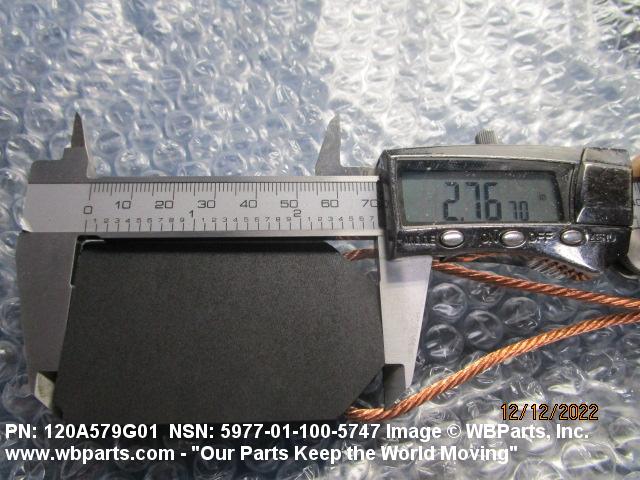

| LENGTH | 3.000 INCHES NOMINAL |
| CONTACT FACE STYLE | D1 BEVELED |
| BEVEL ANGLE | 30.0 DEGREES NOMINAL |
| TOP STYLE | E17C BEVELED FRONT WITH LEFT AND RIGHT EDGE BEVELED |
| BEVEL DEPTH | 0.500 INCHES NOMINAL |
| BEVEL LENGTH | 0.500 INCHES NOMINAL |
| ANGLE | 45.0 DEGREES NOMINAL |

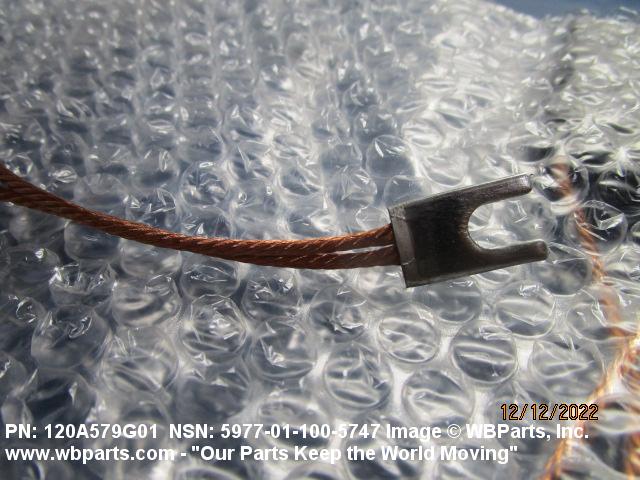

| SHUNT INSULATION PROVISION AND QUANTITY | 2 UNINSULATED |
| SHUNT POSITION DESIGNATOR | 2 AND 8 |
| BRUSH SHUNT LENGTH | 5.500 INCHES NOMINAL ALL SHUNTS |
| TERMINAL TYPE AND QUANTITY | 1 STRAIGHT W/SLOT |
| TERMINAL SLOT WIDTH | 0.250 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | MAIN PROPULSION MOTOR ONBOARD 140 FT WTGB CG VESSELS |
| MANUFACTURERS CODE | 71310 |
| DESIGN CONTROL REFERENCE | WS-27 |
Restrictions/Controls & Freight Information | NSN 5977-01-100-5747
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5977-01-100-5747
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | S | Stock Fund item managed for the Coast Guard by the respective Inventory Control Point. A funded requisition is required |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
