Product Details | ELECTRICAL CONTACT BRUSH

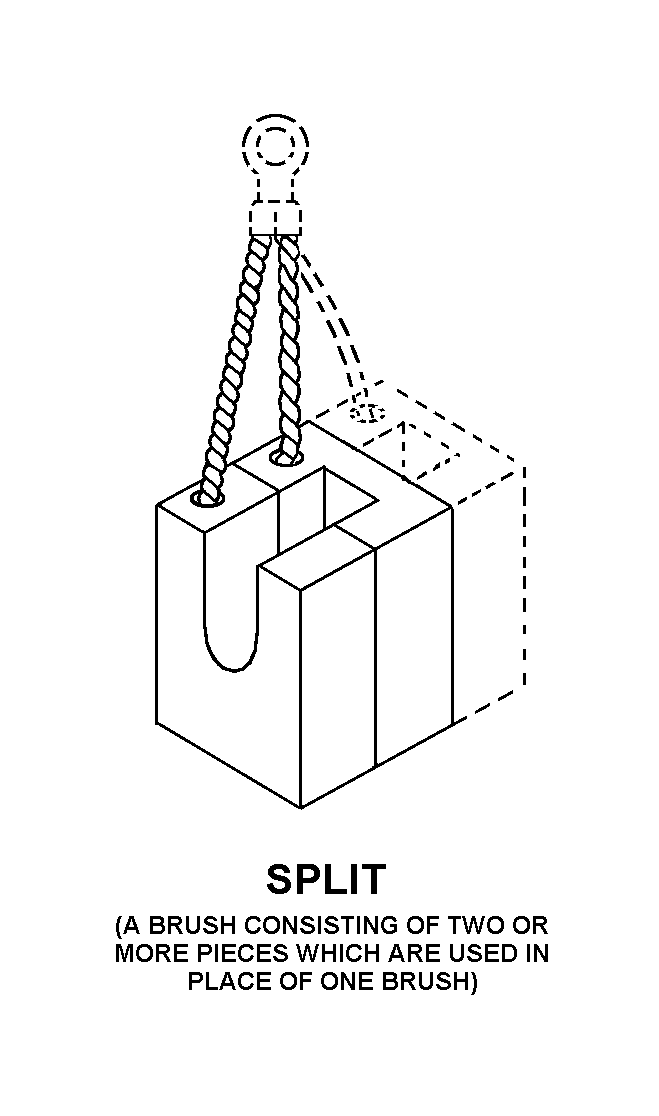

5977-00-945-8790 An item specifically designed to be used in the transfer of electrical energy to or from another conducting surface. Either the brush or the surface is continually moving during the transfer of energy. The brush is usually composed in part of some form of the element carbon. Includes: (1) a single brush either with or without an attached shunt (flexible wire lead) and/or a helical or flat type pressure spring; (2) a split brush composed of two or more pieces (wafers), which are used in place of one brush usually connected together by individual shunts to a common terminal; (3) paired brushes composed of two identical or non-identical brushes connected together by a common shunt either with or without pressure springs or connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like either with or without individual shunts; (4) multiple brushes composed of more than two identical or non-identical brushes without pressure springs connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like by individual shunts. Does not include moving contacts which make and slide past stationary contacts, but are stationary while the circuit is conducting, such as the sliding contacts on a rheostat or the stationary contact on a synchro. Excludes: CONTACT, ELECTRICAL; and CONTACT ASSEMBLY, ELECTRICAL.
Part Alternates: 10402, 1530453, 1530453C, 5977-00-945-8790, 00-945-8790, 5977009458790, 009458790
Electrical and Electronic Equipment Components | Electrical Contact Brushes and Electrodes
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 MAR 1966 | 00-945-8790 | 00302 ( BRUSH, ELECTRICAL CONTACT ) |

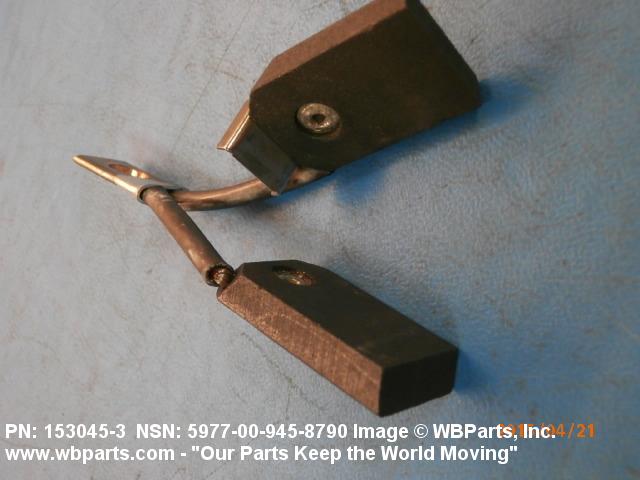

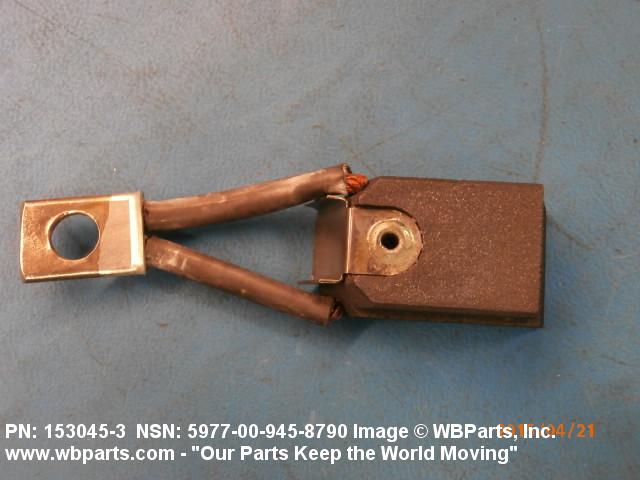

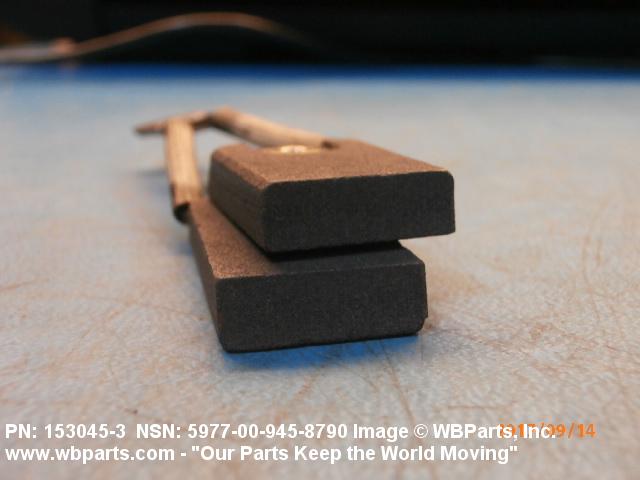

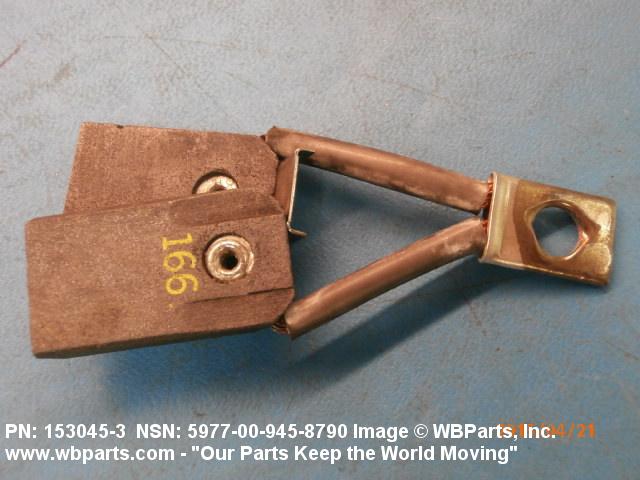

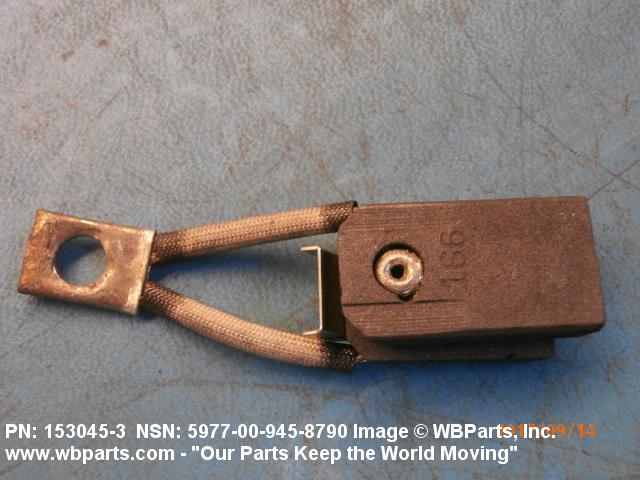

Drawings & Photos | NSN 5977-00-945-8790
Demand History | NSN 5977-00-945-8790
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5977-00-945-8790 | 2018-01-09 | 8 | United States |
| 5977-00-945-8790 | 2017-12-27 | 16 | US |
| 5977-00-945-8790 | 2017-12-26 | 24 | United States |
| 5977-00-945-8790 | 2017-12-26 | 24 | United States |
| 5977-00-945-8790 | 2017-12-22 | 16 | US |
| 5977-00-945-8790 | 2017-10-06 | 16 | United States |
| 5977-00-945-8790 | 2017-10-03 | 16 | United States |
| 1530453 | 2017-09-05 | 8 | United States |
| 1530453 | 2017-04-10 | 6 | Romania |
| 1530453 | 2017-04-06 | 8 | Romania |
| 1530453 | 2016-06-01 | 8 | Romania |
| 5977-00-945-8790 | 2015-04-20 | 80 | DIBBS |
| 5977-00-945-8790 | 2015-04-07 | 80 | DIBBS |
| 1530453 | 2015-03-24 | 1 | Romania |
| 5977-00-945-8790 | 2014-11-11 | 60 | DIBBS |
| 1530453 | 2011-05-02 | 75 | us |
| 5977-00-945-8790 | 2011-03-28 | 75 | Lebanon |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5977-00-945-8790
5977-00-945-8935, 5977-00-946-2042, 5977-00-946-2543, 5977-00-946-2544, 5977-00-946-9832
Technical Data | NSN 5977-00-945-8790

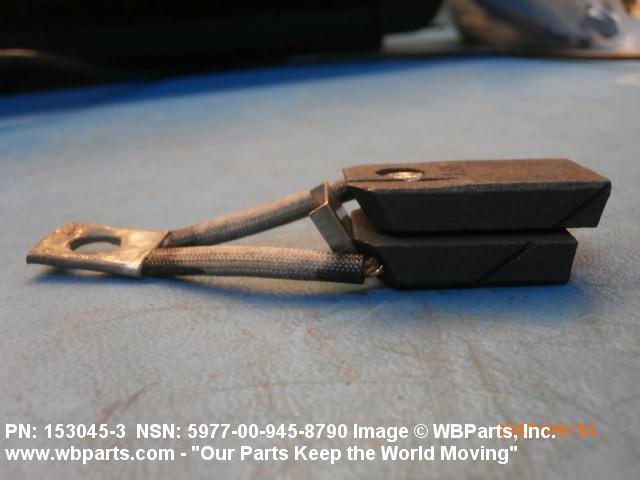

| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A2 SPLIT |
| MATERIAL | CARBON |
| MATERIAL DOCUMENT AND CLASSIFICATION | CARBONE GRADE 166 MFR REF SINGLE MATERIAL RESPONSE |
| BODY STYLE | B3 RECTANGULAR COMMUTATOR |

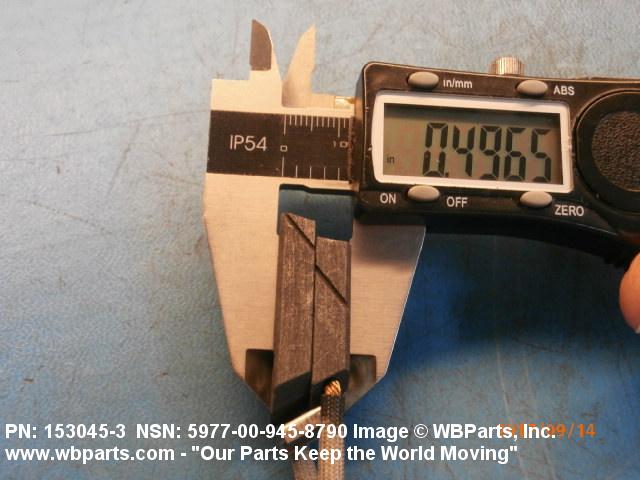

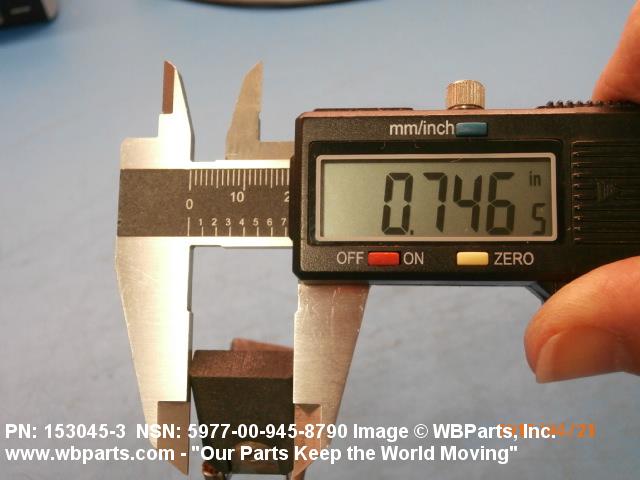

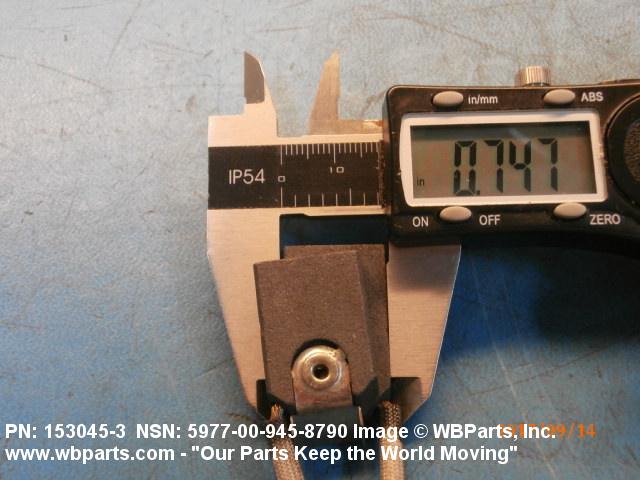

| WIDTH | 0.745 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |

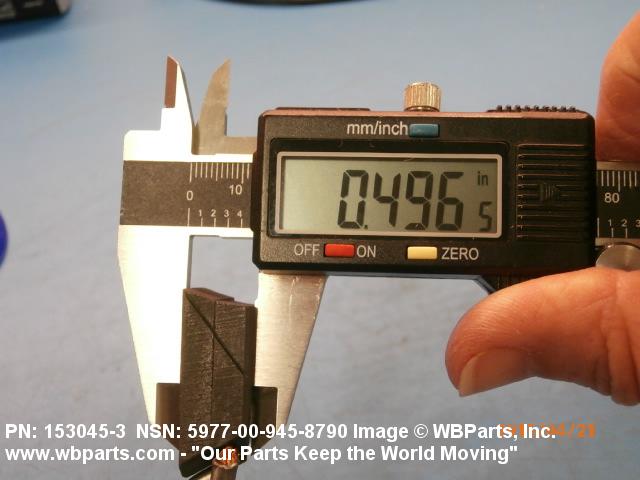

| THICKNESS | 0.495 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |

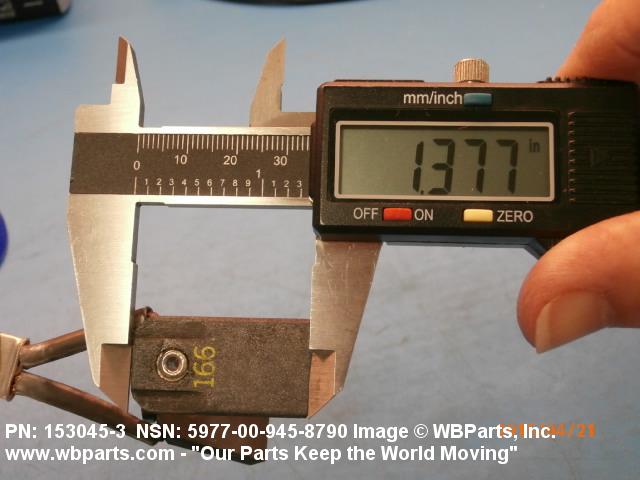

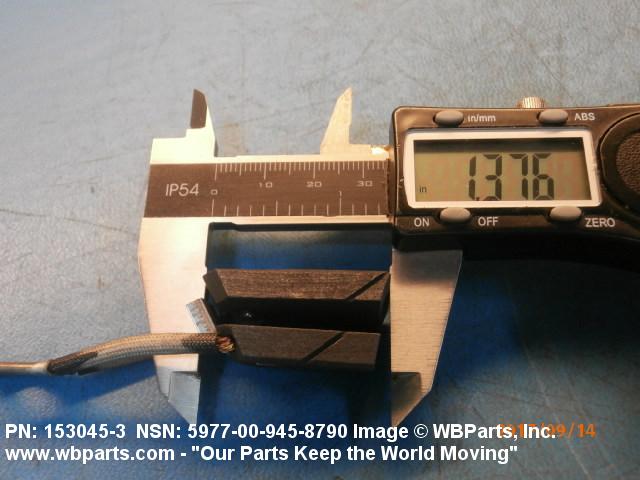

| LENGTH | 1.375 INCHES NOMINAL |

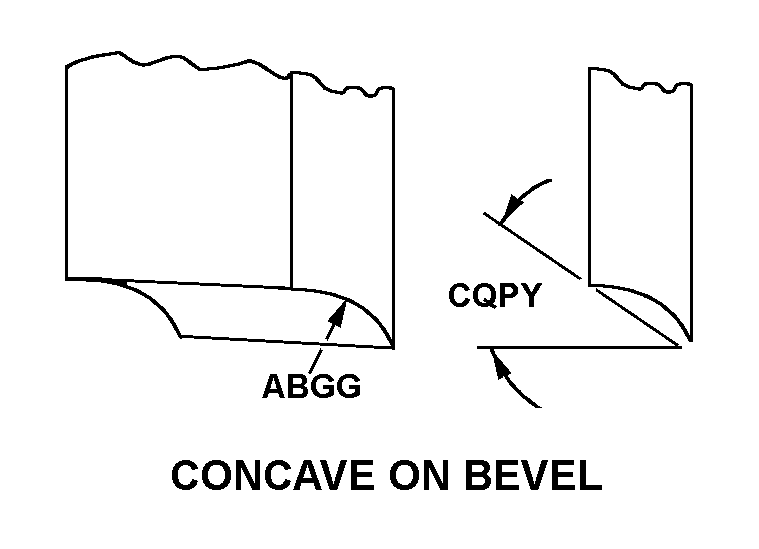

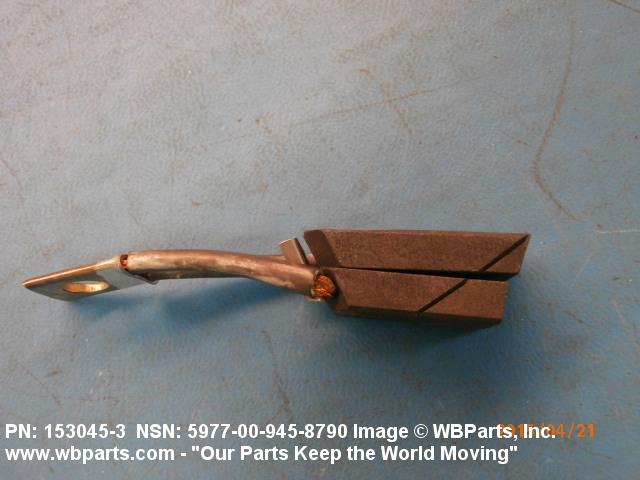

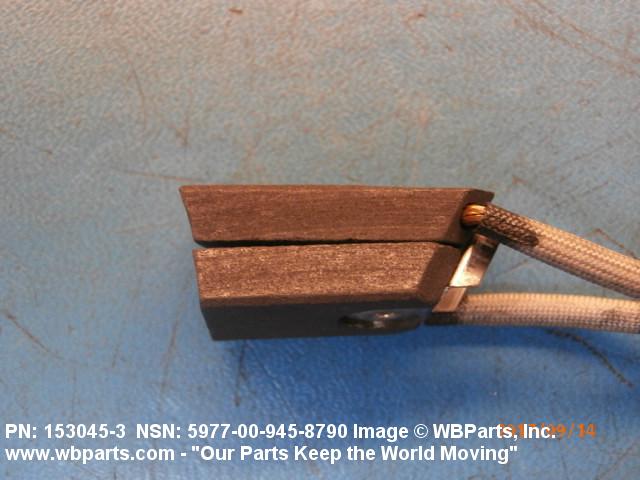

| CONTACT FACE STYLE | D3 CONCAVE ON BEVEL |
| RADIUS | 1.438 INCHES NOMINAL |
| BEVEL ANGLE | 12.5 DEGREES NOMINAL |

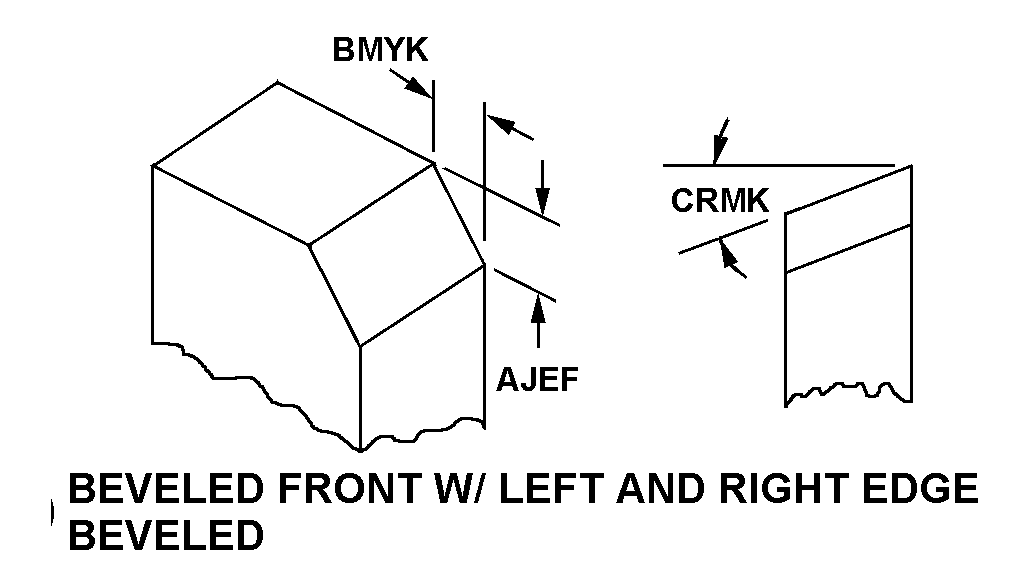

| TOP STYLE | E17C BEVELED FRONT WITH LEFT AND RIGHT EDGE BEVELED |
| BEVEL DEPTH | ANY ACCEPTABLE |
| BEVEL LENGTH | ANY ACCEPTABLE |
| ANGLE | 30.0 DEGREES NOMINAL |
| CLIP TYPE | NEMA HAMMER TYPE CHANNEL A |
| SHUNT INSULATION PROVISION AND QUANTITY | 2 INSULATED |
| SHUNT POSITION DESIGNATOR | 3 AND 7 |

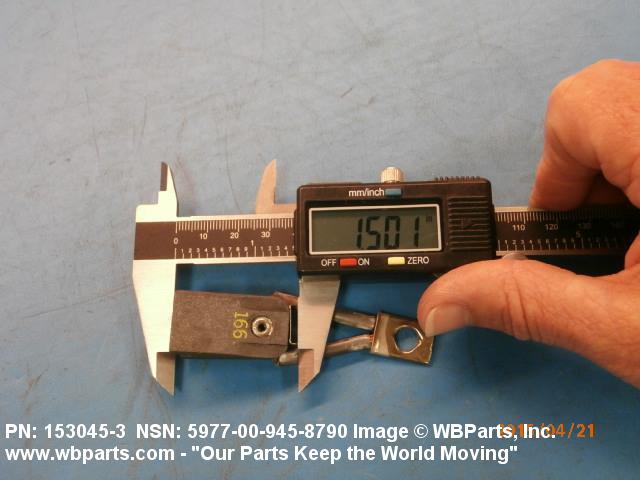

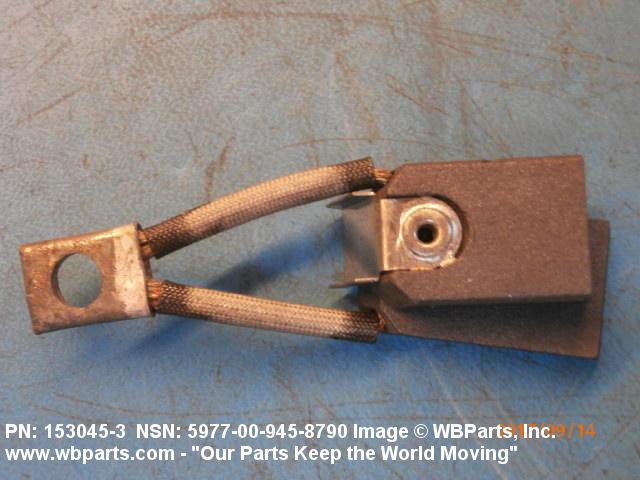

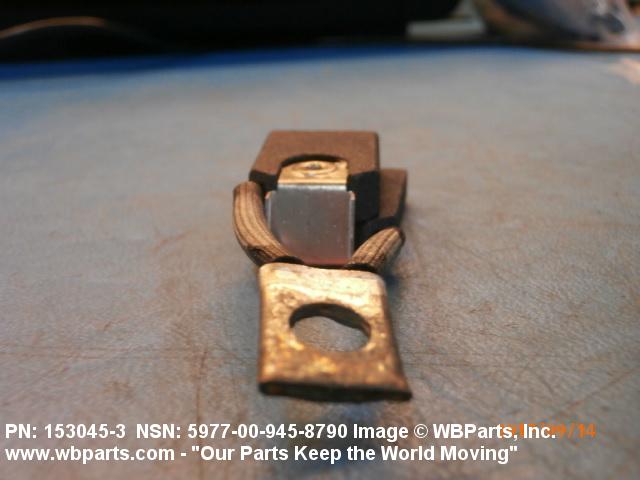

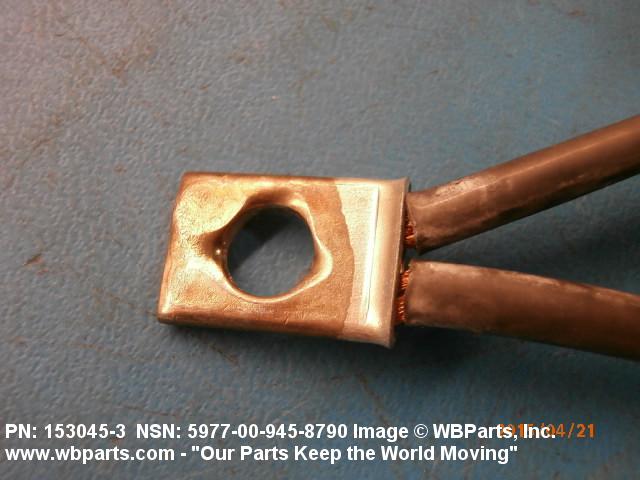

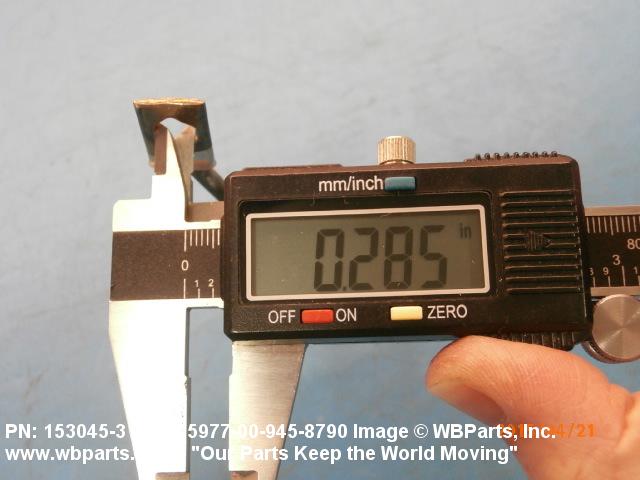

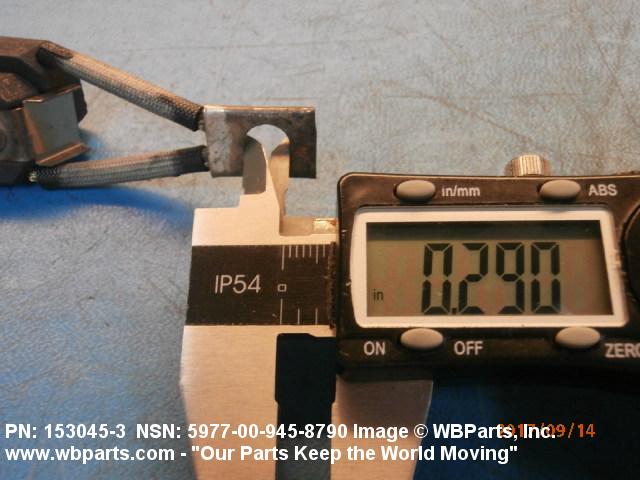

| BRUSH SHUNT LENGTH | 1.500 INCHES NOMINAL ALL SHUNTS |
| TERMINAL TYPE AND QUANTITY | 1 TUBULAR W/HOLE |
| TERMINAL HOLE DIAMETER | 0.281 INCHES NOMINAL |
| SPECIAL FEATURES | COAT SLEEVING ENDS WITH BENTLEY HARRIS COMPOUND NO. 734 FOUR PLACES |
