Product Details | ELECTRICAL CONTACT BRUSH
5977-00-578-7885 An item specifically designed to be used in the transfer of electrical energy to or from another conducting surface. Either the brush or the surface is continually moving during the transfer of energy. The brush is usually composed in part of some form of the element carbon. Includes: (1) a single brush either with or without an attached shunt (flexible wire lead) and/or a helical or flat type pressure spring; (2) a split brush composed of two or more pieces (wafers), which are used in place of one brush usually connected together by individual shunts to a common terminal; (3) paired brushes composed of two identical or non-identical brushes connected together by a common shunt either with or without pressure springs or connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like either with or without individual shunts; (4) multiple brushes composed of more than two identical or non-identical brushes without pressure springs connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like by individual shunts. Does not include moving contacts which make and slide past stationary contacts, but are stationary while the circuit is conducting, such as the sliding contacts on a rheostat or the stationary contact on a synchro. Excludes: CONTACT, ELECTRICAL; and CONTACT ASSEMBLY, ELECTRICAL.
Part Alternates: NEMA PUB CB1, NEMAPUBCB1, MILB003743, 172640X03, 1726480P02, 1726480P2, 5977-00-578-7885, 00-578-7885, 5977005787885, 005787885
Electrical and Electronic Equipment Components | Electrical Contact Brushes and Electrodes
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-578-7885 | 00302 ( BRUSH, ELECTRICAL CONTACT ) |
Drawings & Photos | NSN 5977-00-578-7885
Cross Reference | NSN 5977-00-578-7885
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 172640X03 | 34990 | NATIONAL ELECTRICAL CARBON PRODUCTS INC |
| 1726480P02 | 34990 | NATIONAL ELECTRICAL CARBON PRODUCTS INC |
| 1726480P2 | 0AHP6 | NATIONAL ELECTRICAL CARBON PRODUCTS INC. |
| 1726480P2 | 30221 | GENERAL ELECTRIC CO ARMAMENT AND ELECTRICAL SYSTEMS DEPT |
| 1726480P2 | 71669 | GENERAL ELECTRIC CO SWITCHGEAR AND CONTROL DIVISION |
| MILB003743 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| NEMA PUB CB1 | 1P787 | NATIONAL ELECTRICAL MFRS ASSN DBA NEMA |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5977-00-578-7885
5977-00-578-7913, 5977-00-578-7951, 5977-00-578-7976, 5977-00-581-7810, 5977-00-583-1264
Technical Data | NSN 5977-00-578-7885
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A1 ONE PIECE |
| MATERIAL | ELECTROGRAPHITIC |
| MATERIAL DOCUMENT AND CLASSIFICATION | NATIONAL GRADE 581 MFR REF SINGLE MATERIAL RESPONSE |
| BODY STYLE | B3 RECTANGULAR COMMUTATOR |
| WIDTH | 1.250 INCHES NOMINAL |
| THICKNESS | 1.000 INCHES NOMINAL |
| LENGTH | 2.000 INCHES NOMINAL |

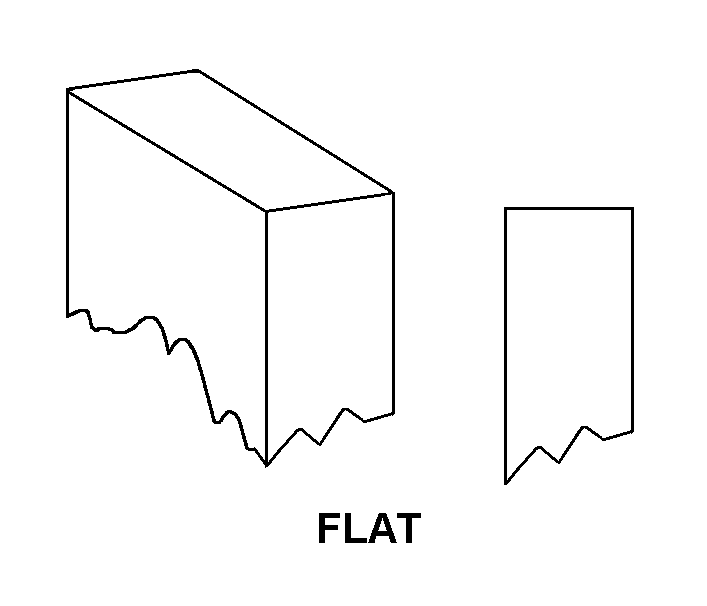

| CONTACT FACE STYLE | D5 FLAT |
