Product Details | VARIABLE ATTENUATOR
5985-00-988-4194 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Part Alternates: A2614N, 608D34, 608D-34, 608D34PL, 608DL3141, 9163182, 5985-00-988-4194, 00-988-4194, 5985009884194, 009884194
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-988-4194 | 00838 ( ATTENUATOR, VARIABLE ) |
Drawings & Photos | NSN 5985-00-988-4194
Cross Reference | NSN 5985-00-988-4194
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 608D-34 | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
| 608D-34 | 28480 | HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP |
| 608D34PL | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
| 608D34PL | 28480 | HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP |
| 608DL3141 | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
| 608DL3141 | 28480 | HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP |
| 9163182 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| A2614N | 99872 | ENTRON INDUSTRIES LIMITED PARTNERSHIP |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5985-00-988-4194
Related Products | NSN 5985-00-988-4194
5985-00-988-4405, 5985-00-988-4752, 5985-00-988-5261, 5985-00-988-5268, 5985-00-988-5270
Technical Data | NSN 5985-00-988-4194
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |
| FREQUENCY RANGE | 10.000 MEGAHERTZ MINIMUM AND 480.000 MEGAHERTZ MAXIMUM |
| IMPEDANCE RATING IN OHMS | 50.0 OUTPUT |
| OVERALL ATTENUATION RANGE IN DECIBELS | -127.0 TO 7.0 |
| OVERALL ATTENUATION ACCURACY IN DECIBELS | -1.00 TO 1.00 |
| ATTENUATION VARIATION METHOD | CONTINUOUS |

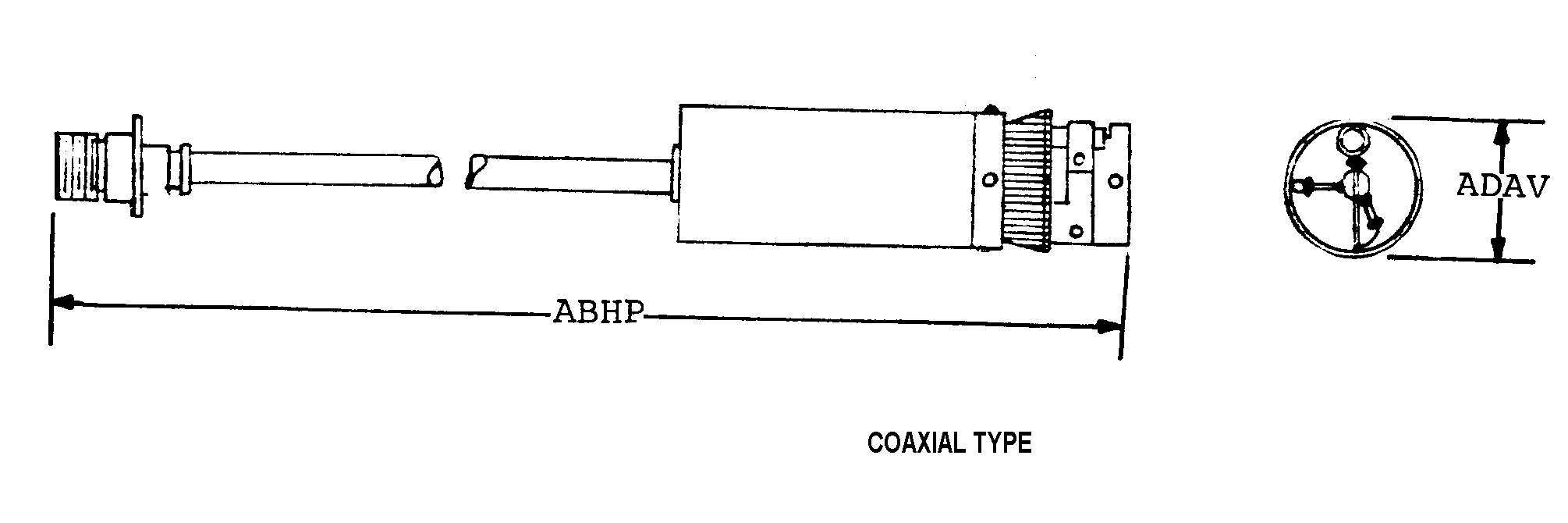

| BODY STYLE | 25A COAXIAL TYPE |
| OVERALL LENGTH | 55.500 INCHES NOMINAL |
| OVERALL DIAMETER | 1.000 INCHES NOMINAL |
| ADJUSTMENT DEVICE TYPE AND QUANTITY | 1 ELECTRONIC, CURRENT CONTROLLED |
| TERMINAL TYPE AND QUANTITY | 2 CONNECTOR, COAXIAL, MALE |
| COAXIAL CONNECTOR SERIES DESIGNATION | N |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 CONNECTOR |
| III END ITEM IDENTIFICATION | MODEL NO. 608D; FORRESTAL CLASS CV; GENERAL PURPOSE ELECTRONIC TEST EQUIPMENT GPETE; IWO JIMA CLASS LPH; WASP CLASS LHD |
| III FSC APPLICATION DATA | SIGNAL GENERATOR,EXCEPT SPECIALLY DESIGNED |
