Product Details | INTERMEDIATE FREQUENCY AMPLIFIER
5996-01-178-3551 An electronic device whose input signals controls a local source of power and delivers an output signal of greater amplitude with respect to current and/or voltage. The output signals characteristics are uniformly related to the input signals. It is tuned to a single fixed frequency which is the resultant of heterodyne action between a local oscillator frequency and a signal frequency introduced from an external source.
Part Alternates: SCA841240, SCA84-1240, 2624850, 2624850G001, 5996-01-178-3551, 01-178-3551, 5996011783551, 011783551
Electrical and Electronic Equipment Components | Amplifiers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 MAY 1984 | 01-178-3551 | 00885 ( AMPLIFIER, INTERMEDIATE FREQUENCY ) |

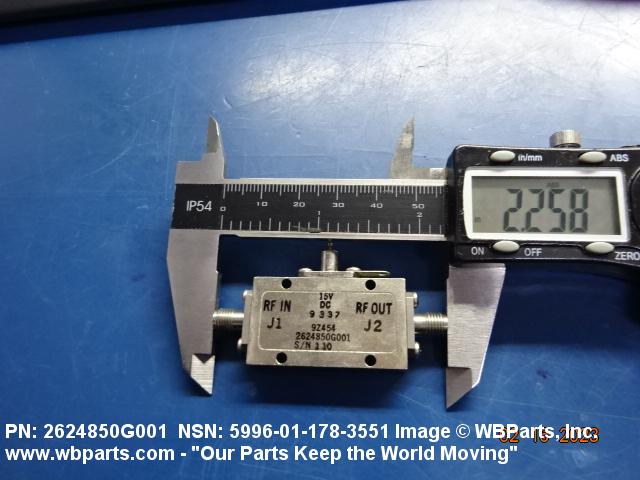

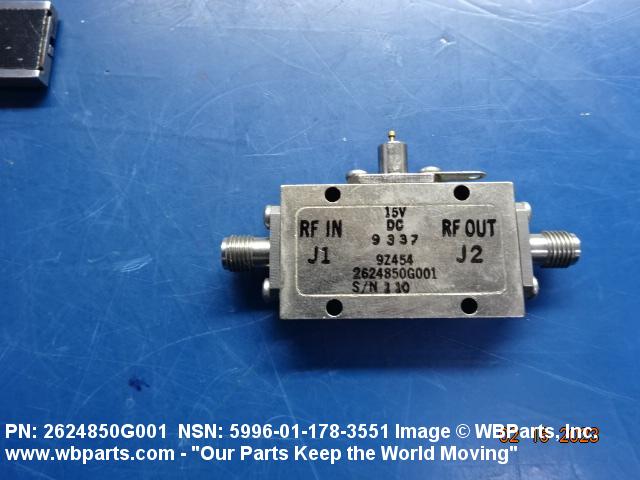

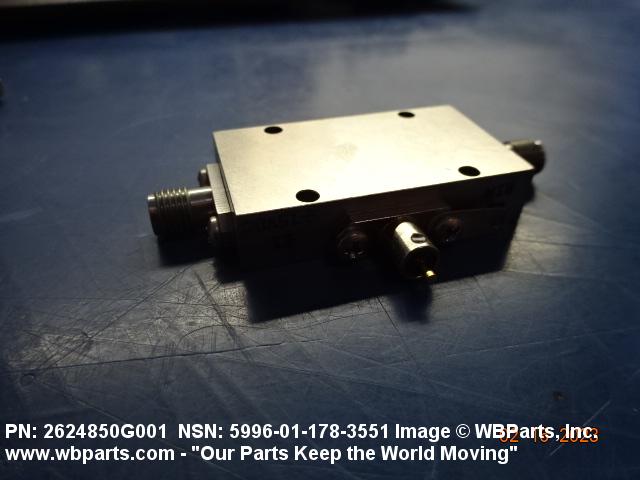

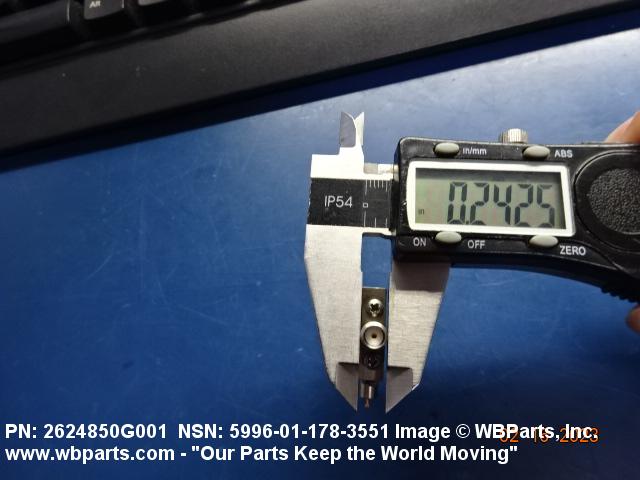

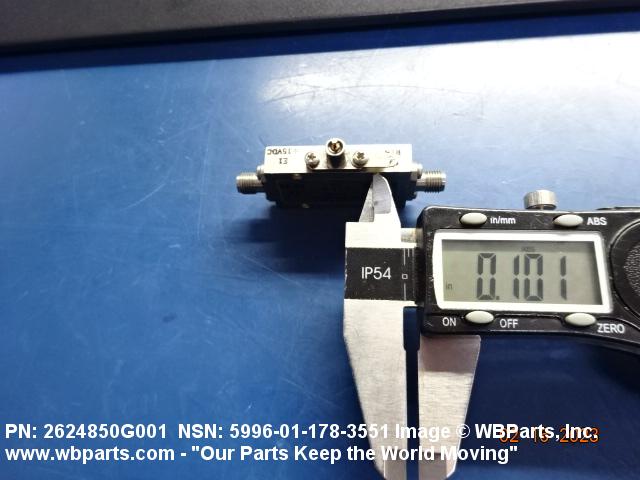

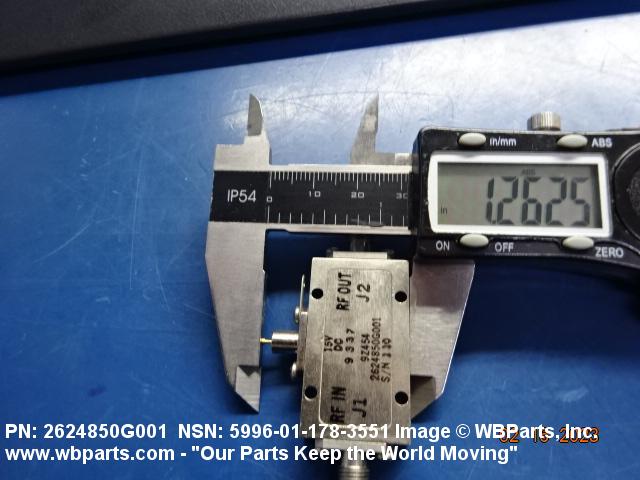

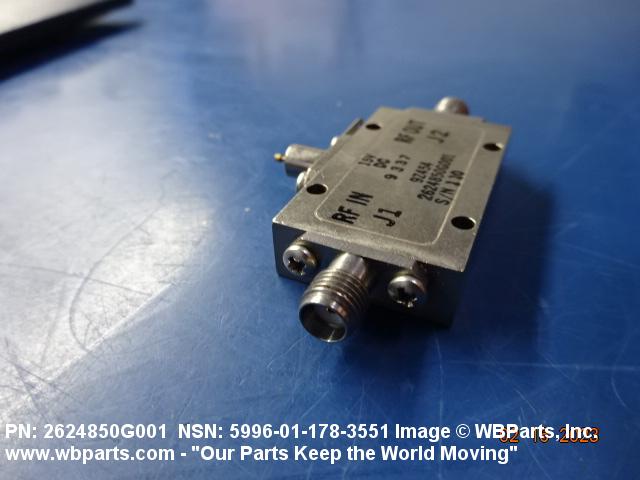

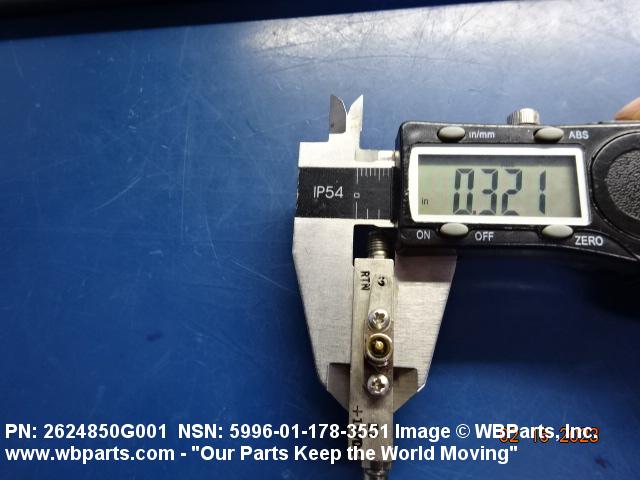

Drawings & Photos | NSN 5996-01-178-3551
Demand History | NSN 5996-01-178-3551
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5996-01-178-3551
5996-01-178-5272, 5996-01-178-7733, 5996-01-178-7734, 5996-01-178-8890, 5996-01-179-1743
Technical Data | NSN 5996-01-178-3551
| Characteristic | Specifications |
|---|---|
| CIRCUIT CONSTRUCTION TYPE | SOLID STATE |
| FREQUENCY PER CHANNEL | 350.0 MEGAHERTZ MINIMUM OPERATING CHANNEL AND 1250.0 MEGAHERTZ MAXIMUM OPERATING CHANNEL |
| FREQUENCY ADJUSTMENT TYPE | CONTINUOUS |
| OVERALL GAIN | 44.0 DECIBELS |
| OPERATING CONTROL METHOD | AUTOMATIC |
| AVERAGE LIFE MEASUREMENT | HOURS |
| MAXIMUM OPERATING ALTITUDE RATING | 70000.0 FEET |
| OPERATING TEMP RANGE | -54.0 TO 85.0 DEG CELSIUS |
| VIBRATION RESISTANCE RANGE IN HERTZ | 0.2 TO 250.0 |
| VIBRATION RESISTANCE AMPLITUDE | 5.5 GRAVITATIONAL UNITS |
| SHOCK RESISTANCE RATING IN GRAVITATIONAL UNITS | 15.0 |
| SHOCK PULSE DURATION TIME | 11.0 MILLISECONDS |
| BASIC SHAPE STYLE | 1 RECTANGULAR OR SQUARE |
| OVERALL LENGTH | 2.083 INCHES NOMINAL |
| OVERALL HEIGHT | 0.670 INCHES NOMINAL |
| OVERALL WIDTH | 1.150 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | 5865-00-335-7261 |
| MANUFACTURERS CODE | 28527 |
| DESIGN CONTROL REFERENCE | 2624850G001 |
Restrictions/Controls & Freight Information | NSN 5996-01-178-3551
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | C | Munitions List Item or Commerce Control List Item. Demilitarization required. Remove and/or demilitarize installed key point(s) as prescribed in the Defense Demilitarization Manual, or lethal parts, components and accessories. |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063035 | SETS RADIO/TV AND RELATED ARTICLES |
| Less than car load rating | ||
| Less than truck load rating | G | 125.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
