6625-01-038-6869 - ELECTRICAL FREQUENCY METER, 25RS10586, 3020760, 302-0760

Product Details | ELECTRICAL FREQUENCY METER

6625-01-038-6869 An instrument which measures the rate of regularly recurring variations in an electric current or voltage and is usually calibrated in Hertz (cycles per second or CPS). The value may be expressed by means of a pointer and calibrated dial vibrating reed or a digital read out display. For instruments which measure radio frequencies, see CALIBRATOR, FREQUENCY; and WAVEMENTER. Excludes: COUNTER ELECTRONIC DIGITAL.

Part Alternates: 25RS10586, 3020760, 302-0760, 36.1912, 361912, 369012, 369-012, 63818049, 638-18049, 725015, 72-5015, 6625-01-038-6869, 01-038-6869, 6625010386869, 010386869

Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
66	10 APR 1977	01-038-6869	16454 ( METER, ELECTRICAL FREQUENCY )

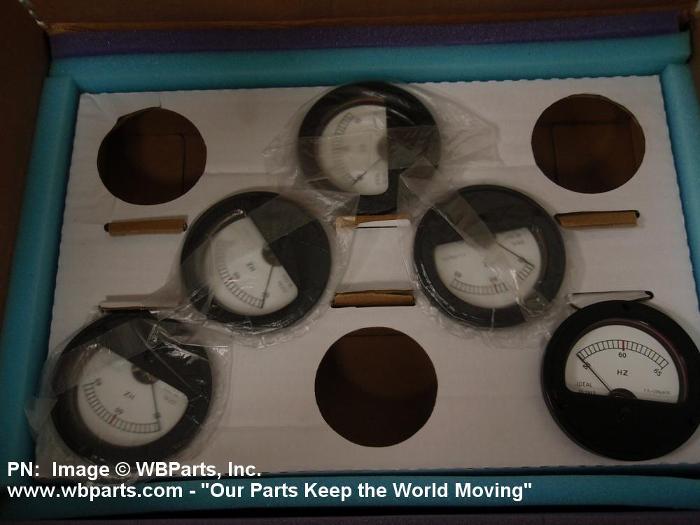

Drawings & Photos | NSN 6625-01-038-6869

Part Number	Request Date	QTY	Origin
6625-01-038-6869	2024-03-19	1	US
6625-01-038-6869	2022-05-06	1	AE
6625-01-038-6869	2022-05-06	4	AE
361912	2022-02-14	1	US
6625-01-038-6869	2021-08-13	1	US
6625-01-038-6869	2021-08-13	1	CA
6625-01-038-6869	2020-10-25	1	US
6625-01-038-6869	2020-06-11	1	US
6625-01-038-6869	2020-04-14	1	US
6625-01-038-6869	2019-11-26	1	United States
6625-01-038-6869	2019-11-22	1	United States
63818049	2019-10-23	2	US
63818049	2019-10-16	1	United States
369-012	2019-10-04	187	DIBBS
638-18049	2019-10-04	187	DIBBS
369-012	2019-09-23	187	DIBBS
638-18049	2019-09-23	187	DIBBS
6625-01-038-6869	2019-07-09	5	United States
369-012	2019-02-14	200	DIBBS
638-18049	2019-02-14	200	DIBBS
6625-01-038-6869	2018-12-26	400	DIBBS
6625-01-038-6869	2018-12-12	400	DIBBS
6625-01-038-6869	2018-12-11	10	United States
725015	2018-12-04	10	us
6625-01-038-6869	2018-05-07	123	DIBBS
6625-01-038-6869	2018-04-24	123	DIBBS
6625-01-038-6869	2018-03-18	10	US
6625-01-038-6869	2014-10-08	1	US
6625-01-038-6869	2014-09-13	3	US
6625-01-038-6869	2014-01-31	190	DIBBS
6625-01-038-6869	2014-01-22	160	DIBBS
6625-01-038-6869	2014-01-16	190	DIBBS
6625-01-038-6869	2014-01-07	160	DIBBS
6625-01-038-6869	2013-10-15	1	DIBBS-RFPs
6625-01-038-6869	2013-09-11	1	DIBBS-RFPs
6625-01-038-6869	2013-04-11	1	MANUAL
6625-01-038-6869	2013-03-15	1	US
6625-01-038-6869	2013-01-06	1	US
6625-01-038-6869	2012-11-18	1	US
6625-01-038-6869	2012-04-04	829	DIBBS
361912	2012-02-10	1	US
6625-01-038-6869	2011-08-23	398	DIBBS
6625-01-038-6869	2011-08-18	327	DIBBS
6625-01-038-6869	2011-06-29	416	DIBBS
6625-01-038-6869	2011-03-11	424	DIBBS
6625-01-038-6869	2011-02-03	5	United States
6625-01-038-6869	2011-02-03	2	US
6625-01-038-6869	2010-05-17	783	DIBBS
6625-01-038-6869	2010-05-03	51	DIBBS
6625-01-038-6869	2010-04-15	527	DIBBS
6625-01-038-6869	2010-04-09	197	DIBBS
6625-01-038-6869	2010-03-25	645	DIBBS
6625-01-038-6869	2010-02-10	1	US
6625-01-038-6869	2010-01-13	257	DIBBS
6625-01-038-6869	2009-12-30	460	DIBBS
6625-01-038-6869	2009-12-22	1	US
6625-01-038-6869	2009-10-07	2	US
369012	2008-10-15	10	US
6625-01-038-6869	2007-08-23	574	DIBBS
6625-01-038-6869	2007-03-09	407	DIBBS
6625-01-038-6869	2007-01-24	465	DIBBS

Cross Reference | NSN 6625-01-038-6869

Part Number	Cage Code	Manufacturer
25RS10586	55026	SIMPSON ELECTRIC COMPANY DBA (SUB OF LAC DU FLAMBEAU BAND OF
302-0760	44940	CUMMINS POWER GENERATION INC.
36.1912	11707	IDEAL PRECISION METER CO
369-012	15309	JEWELL INSTRUMENTS, LLC DBA MODUTEC USE CAGE CODE 33005 FOR
638-18049	77221	PHAOSTRON INSTRUMENT AND ELECTRONIC COMPANY
72-5015	30554	DEPARTMENT OF DEFENSE PROJECT MANAGER-MOBILE ELECTRIC POWER

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 6625-01-038-6869

Compare

Related Products | NSN 6625-01-038-6869

6625-01-038-7048, 6625-01-038-7113, 6625-01-038-7114, 6625-01-038-7120, 6625-01-038-7121

Technical Data | NSN 6625-01-038-6869

Characteristic	Specifications
INSTALLATION DESIGN	PANEL
(NON-CORE DATA) PANEL FOR WHICH DESIGNED	MAGNETIC OR NONMAGNETIC
(NON-CORE DATA) CIRCUIT CONSTRUCTION TYPE	NONELECTRONIC

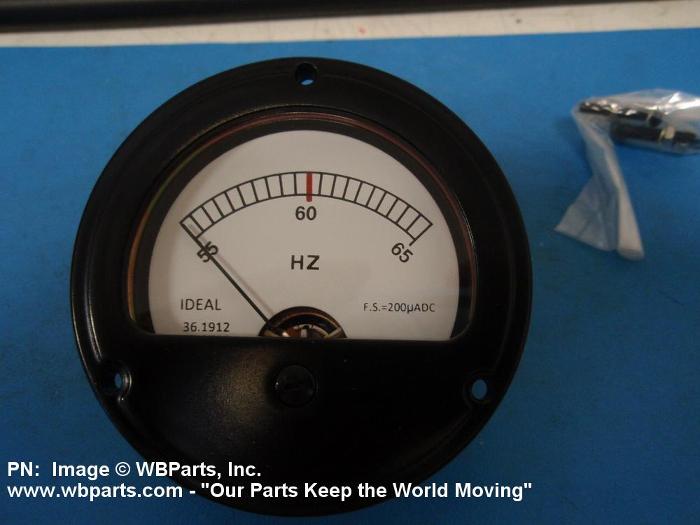

INDICATOR TYPE	DIAL W/POINTER
MEASUREMENT RANGE	55.0 TO 65.0 HERTZ SINGLE INDICATOR SINGLE RANGE
ACCURACY IN PERCENT	-2.0 TO 2.0 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE
SCALE GRADUATION TYPE	LINEAR SINGLE INDICATOR SINGLE RANGE
SCALE DIVISION QUANTITY	20 SINGLE INDICATOR SINGLE RANGE
POINTER COLOR	BLACK SINGLE INDICATOR SINGLE RANGE
DIAL SCALE MARKING COLOR	BLACK SINGLE INDICATOR SINGLE RANGE
BACKGROUND COLOR	WHITE SINGLE INDICATOR SINGLE RANGE
MOVEMENT TYPE	MOVING COIL, PERMANENT MAGNET
MOVEMENT SUSPENSION METHOD	JEWEL PIVOT BASE
FREQUENCY RESPONSE RANGE	55.000 TO 65.000 HERTZ

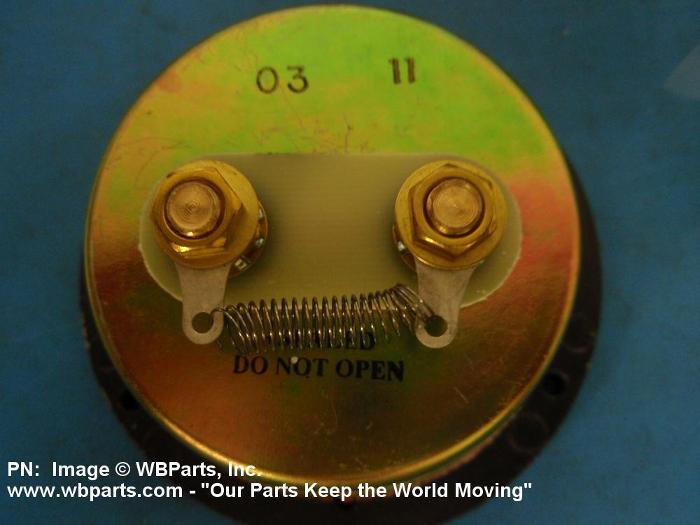

CIRCUIT ATTACHMENT METHOD AND QUANTITY	2 THREADED STUD
SENSITIVITY RATING	200.0 MICROAMPERES
DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS	3000.0
POWER SOURCE	EXTERNAL
CIRCUIT CURRENT FOR WHICH DESIGNED	AC
OPERATING VOLTAGE RATING IN VOLTS	120.0 AC NOMINAL
FREQUENCY RATING	60.0 HERTZ NOMINAL
PHASE	SINGLE
STYLE DESIGNATOR	C1 ROUND FLUSH MTG
METER BODY DIAMETER BEHIND MOUNTING FLANGE	2.800 INCHES MAXIMUM
METER DEPTH BEHIND MOUNTING FLANGE	2.450 INCHES MAXIMUM
OVERALL DIAMETER	3.510 INCHES MAXIMUM
OVERALL LENGTH	2.850 INCHES MAXIMUM
MOUNTING FACILITY TYPE AND QUANTITY	3 THREADED STUD
MOUNTING STUD DIAMETER	0.138 INCHES NOMINAL
MOUNTING STUD LENGTH	0.500 INCHES NOMINAL
MOUNTING ARRANGEMENT STYLE	E5 THREE HOLE/STUD BOLT CIRCLE
MOUNTING BOLT CIRCLE DIAMETER	3.160 INCHES NOMINAL
MATERIAL	STEEL
SURFACE TREATMENT	ENAMEL SEMIGLOSS
ENVIRONMENTAL PROTECTION	SHOCK RESISTANT AND VIBRATION RESISTANT

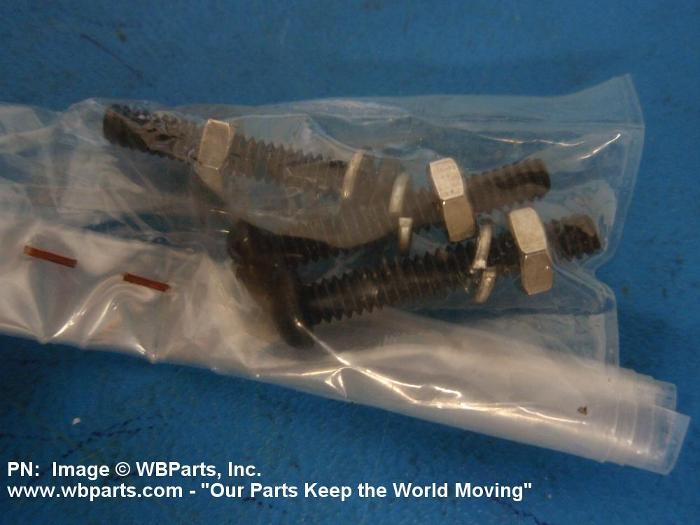

FURNISHED ITEMS AND QUANTITY	MTG HDW 2; TERM. HDW 3
SPECIAL MARKINGS	DOUBLE WIDTH RED MARK AT 60 HERTZ
FEATURES PROVIDED	MAGNETIC SHIELD AND ZERO ADJUSTER
SPECIAL FEATURES	RUGGEDIZED; WEAPON SYSTEM ESSENTIAL
CRITICALITY CODE JUSTIFICATION	FEAT
III FSC APPLICATION DATA	TEST SET,ELECT. EQUIP.
III END ITEM IDENTIFICATION	AIRCRAFT, AWACS, E-3A, SHIPBOARD MATERIAL HANDLING EQUIPMENT (MHE), SAFEGUARD CLASS ARS, SEALIFT SUPPORT FACILITIES PROGRAM (SSFP) EQUIPMENT,

Restrictions/Controls & Freight Information | NSN 6625-01-038-6869

Restictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	Y	The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	136740	METERS ELEC/PARTS
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	657	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6625-01-038-6869

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	TG	TG:AF SICA RESIDUAL MMAC-WR-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Schedule B No. and Headings	Commodity Description	Unit of Quantity
90.30	- Oscilloscopes, spectrum analyzers and other instruments and apparatus for measuring or checking electrical quantities, excluding meters of heading 9028; instruments and apparatus for measuring or detecting alpha, beta,
	gamma, X-ray, cosmic or other ionizing radiations; parts and accessories thereof:
9030.10.0000	- - Instruments and apparatus for measuring or detecting ionizing radiations	No.
9030.20.1500	- - Oscilloscopes and oscillographs	No.
	- - Other instruments and apparatus, for measuring or checking voltage, current, resistance or power:
9030.31.0000	- - - Multimeters without a recording device	No.
9030.32.0000	- - - Multimeters with a recording device	No.
9030.33	- - - Other, without a recording device:
9030.33.0040	- - - - For measuring or checking voltage, current or resistance	X
9030.33.0080	- - - - Other	X
9030.39.0100	- - - Other, with a recording device	X
9030.40.0000	- - Other instruments and apparatus, specially designed for telecommunications (for example, cross-talk meters, gain measuring instruments, distortion factor meters, psophometers)	X
	- - Other instruments and apparatus:
9030.82.0000	- - - For measuring or checking semiconductor wafers or devices	No.
9030.84.0000	- - - Other, with a recording device	X
9030.89.0100	- - - Other	X
9030.90	- - Parts and accessories:
9030.90.4000	- - - For articles of subheading 9030.10	X
	- - - Other:
9030.90.8010	- - - - Of articles of subheading 9030.20	X
9030.90.8020	- - - - Of articles of subheading 9030.31	X
9030.90.8030	- - - - Of articles of subheading 9030.39	X
9030.90.8040	- - - - Of articles of subheading 9030.40	X
9030.90.8050	- - - - Of articles of subheadings 9030.82 or 9030.84	X
9030.90.8060	- - - - Other	X

NSN 6625-01-038-6869 25RS10586, 3020760, 302-0760
