Product Details | ELECTRICAL FREQUENCY METER
6625-01-097-0043 An instrument which measures the rate of regularly recurring variations in an electric current or voltage and is usually calibrated in Hertz (cycles per second or CPS). The value may be expressed by means of a pointer and calibrated dial vibrating reed or a digital read out display. For instruments which measure radio frequencies, see CALIBRATOR, FREQUENCY; and WAVEMENTER. Excludes: COUNTER ELECTRONIC DIGITAL.
Part Alternates: MK71120, MK711-20, 714B538A16, 07741LAPNAT, 077-41-L-A-PNAT, 077-41LA-PNAT, 103372ATAT, 103-372-ATAT, 28301371PNAT, 2830-1371-PNAT, 6625-01-097-0043, 01-097-0043, 6625010970043, 010970043
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 02 JUL 1980 | 01-097-0043 | 16454 ( METER, ELECTRICAL FREQUENCY ) |

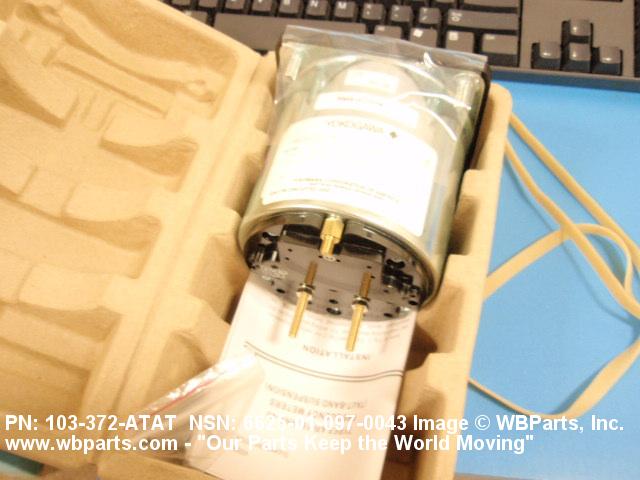

Drawings & Photos | NSN 6625-01-097-0043
Demand History | NSN 6625-01-097-0043
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6625-01-097-0043 | 2021-12-12 | 1 | US |
| 007-41LA-PNAT-AT | 2019-03-21 | 37 | DIBBS |
| 077-41-L-A-PNAT | 2019-03-21 | 37 | DIBBS |
| 103-372-ATAT | 2019-03-21 | 37 | DIBBS |
| 2830-1371-PNAT | 2019-03-21 | 37 | DIBBS |
| 714B538A16 | 2019-03-21 | 37 | DIBBS |
| MK711-20 | 2019-03-21 | 37 | DIBBS |
| 6625-01-097-0043 | 2018-05-30 | 1 | United States |
| 6625-01-097-0043 | 2015-12-30 | 22 | DIBBS |
| 6625-01-097-0043 | 2014-04-30 | 23 | DIBBS |
| 6625-01-097-0043 | 2013-03-25 | 15 | DIBBS |
| 6625-01-097-0043 | 2012-07-06 | 13 | DIBBS |
| 6625-01-097-0043 | 2012-04-06 | 8 | DIBBS |
| 6625-01-097-0043 | 2010-12-01 | 14 | DIBBS |
| 6625-01-097-0043 | 2010-10-04 | 5 | DIBBS |
| 6625-01-097-0043 | 2010-05-21 | 5 | DIBBS |
| 6625-01-097-0043 | 2009-12-16 | 5 | DIBBS |
| 6625-01-097-0043 | 2009-01-02 | 1 | United States |
| 6625-01-097-0043 | 2008-06-26 | 1 | US |
| 6625-01-097-0043 | 2008-06-26 | 1 | US |
| 6625-01-097-0043 | 2008-06-26 | 1 | US |
| 6625-01-097-0043 | 2008-04-22 | 13 | DIBBS |
Cross Reference | NSN 6625-01-097-0043
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 077-41-L-A-PNAT | 32171 | CROMPTON MODUTEC INC |
| 077-41LA-PNAT | 53498 | TYCO ELECTRONICS CROMPTON INSTRUMENT |
| 103-372-ATAT | 60336 | YOKOGAWA CORPORATION OF AMERICA DIV FINANCE |
| 2830-1371-PNAT | 32171 | CROMPTON MODUTEC INC |
| 714B538A16 | 6Z382 | HUGHES CORPORATION DBA WESCHLER INSTRUMENTS |
| MK711-20 | 0BZM1 | MKC ELECTRONICS, INC DBA M K ELECTRONICS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 6625-01-097-0043
Related Products | NSN 6625-01-097-0043
6625-01-097-0044, 6625-01-097-0052, 6625-01-097-0053, 6625-01-097-0440, 6625-01-097-0443
Technical Data | NSN 6625-01-097-0043
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| (NON-CORE DATA) PANEL FOR WHICH DESIGNED | NONMAGNETIC |
| (NON-CORE DATA) CIRCUIT CONSTRUCTION TYPE | NONELECTRONIC |
| INDICATOR TYPE | DIAL W/POINTER |
| MEASUREMENT RANGE | 58.0 TO 62.0 HERTZ SINGLE INDICATOR SINGLE RANGE |
| ACCURACY IN PERCENT | -0.093 TO 0.093 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE |
| SCALE GRADUATION TYPE | LINEAR SINGLE INDICATOR SINGLE RANGE |
| SCALE DIVISION QUANTITY | 40 SINGLE INDICATOR SINGLE RANGE |
| POINTER COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| DIAL SCALE MARKING COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| BACKGROUND COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
| MOVEMENT TYPE | MOVING COIL, PERMANENT MAGNET |
| MOVEMENT SUSPENSION METHOD | TAUT BAND |
| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 THREADED STUD |
| POWER SOURCE | EXTERNAL |
| CIRCUIT CURRENT FOR WHICH DESIGNED | AC |
| OPERATING VOLTAGE RATING IN VOLTS | 120.0 AC NOMINAL |
| FREQUENCY RATING | 60.0 HERTZ NOMINAL |
| STYLE DESIGNATOR | C2 RECTANGULAR FLUSH MTG |
| METER BODY DIAMETER BEHIND MOUNTING FLANGE | 3.970 INCHES NOMINAL |
| METER DEPTH BEHIND MOUNTING FLANGE | 3.790 INCHES NOMINAL |
| OVERALL HEIGHT | 4.330 INCHES NOMINAL |
| OVERALL LENGTH | 5.710 INCHES NOMINAL |
| OVERALL WIDTH | 4.330 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 SCREW AND 4 UNTHREADED HOLE |
| MOUNTING HOLE DIAMETER | 0.312 INCHES NOMINAL |
| MOUNTING ARRANGEMENT STYLE | E3 FOUR HOLE/STUD RECTANGULAR/SQUARE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 3.360 INCHES MINIMUM AND 3.390 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 3.360 INCHES MINIMUM AND 3.390 INCHES MAXIMUM |
| MATERIAL | PLASTIC |
| NUCLEAR HARDNESS CRITICAL FEATURE | NONHARDENED |
| ENVIRONMENTAL PROTECTION | DUST RESISTANT AND SHOCK RESISTANT AND VIBRATION RESISTANT |
| FURNISHED ITEMS AND QUANTITY | NUT 6; WASHER 6 |
| FEATURES PROVIDED | ZERO ADJUSTER |
| SPECIAL FEATURES | RUGGEDIZED; INTEGRAL TRANSDUCER |
| SPECIAL TEST FEATURES | COMPLIES WITH SPECIFICATION ANSI C-39.1 |
| III FSC APPLICATION DATA | TEST SET,ELECT. EQUIP. |
Restrictions/Controls & Freight Information | NSN 6625-01-097-0043
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | XF | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6625-01-097-0043
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
