Product Details | TURNBUCKLE BODY
1640-00-067-9878 A metal loop, sleeve or solid item having both ends threaded or one end threaded and the other end designed to accommodate a swivel. Items with both ends threaded shall have right hand screw threads on one and left hand screw threads on the other. It is a component of TURNBUCKLE. See also TIE ROD, TENSIONING, THREADED END. For items specifically designed for aviation, see TURNBUCKLE BODY, AVIATION.
Part Alternates: 000679878
Aircraft Components and Accessories | Aircraft Control Cable Products
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
16 | 00-067-9878 | 19315 ( TURNBUCKLE BODY ) |
Drawings & Photos | NSN 1640-00-067-9878
Demand History | NSN 1640-00-067-9878
Part Number | Request Date | QTY | Origin |
---|---|---|---|
MS21251B5S | 2022-11-21 | 2 | US |
1640-00-067-9878 | 2017-08-21 | 100 | US |
MS21251B5S | 2017-07-05 | 10 | Brazil |
MS21251B5S | 2017-04-17 | 20 | Brazil |
MS21251B5S | 2015-02-02 | 20 | United States |
MS21251B5S | 2013-08-17 | 50 | Canada |
MS21251B5S | 2008-12-10 | 540 | us |
1640-00-067-9878 | 2007-10-05 | 1973 | DIBBS |
1640-00-067-9878 | 2007-07-07 | 752 | DIBBS |
Request a Quote
Comments | What our customers are saying...
NSNs for Compare ( up to 4 ): Add 1640-00-067-9878
Related Products | NSN 1640-00-067-9878
1640-00-067-9879, 1640-00-067-9880, 1640-00-067-9882, 1640-00-067-9885, 1640-00-067-9887
Technical Data | NSN 1640-00-067-9878
Characteristic | Specifications |
---|---|
MATERIAL | COPPER ALLOY 482 OVERALL |
MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-637,COMP 2 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
THREAD SERIES DESIGNATOR | UNF BODY |
NOMINAL THREAD SIZE | 0.250 INCHES BODY |
THREAD CLASS | 3B BODY |
THREAD DIRECTION | RIGHT-HAND OVERALL |
THREAD LENGTH | 2.200 INCHES NOMINAL OVERALL |

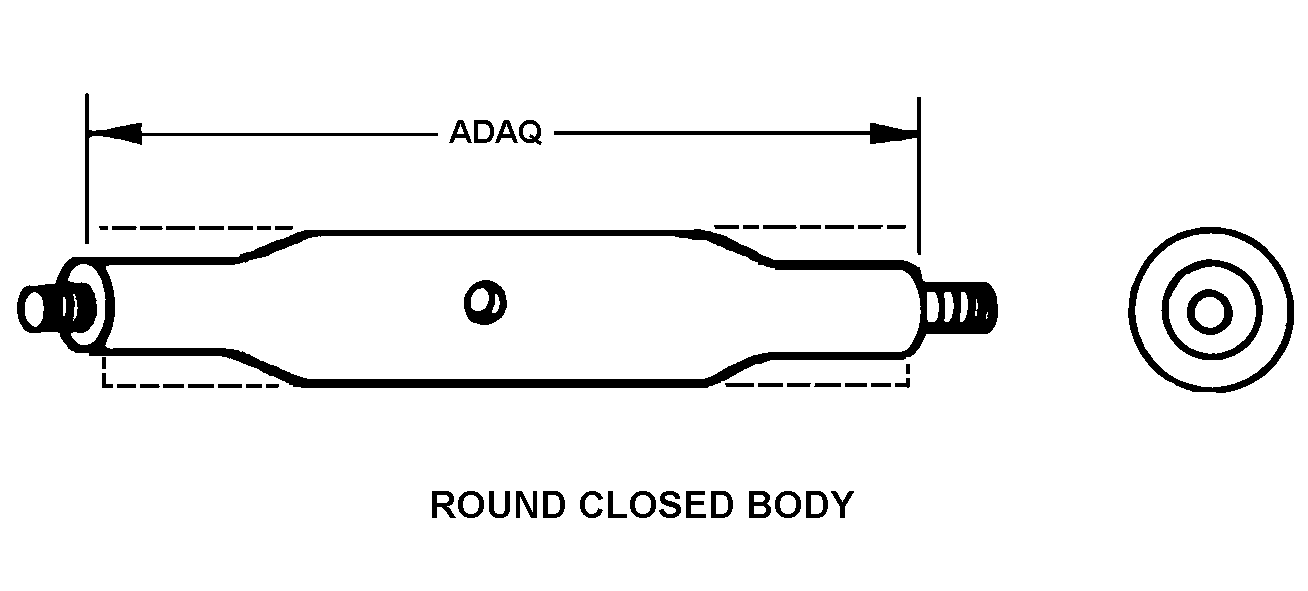

BODY STYLE | 252 ROUND CLOSED BODY |
BODY LENGTH | 2.219 INCHES MINIMUM AND 2.281 INCHES MAXIMUM |
MANUFACTURERS CODE | 96906 |
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21251B5S |
Restrictions/Controls & Freight Information | NSN 1640-00-067-9878
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Category | Code | Description |
---|---|---|
No Freight Information |
