Product Details | CHECK VALVE
4820-00-453-2981 A valve permitting flow in one direction only. It does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. It may be inline or cartridge (manifold) design.
Part Alternates: 1-02712-001, 99-1446227, 4820-00-453-2981, 00-453-2981, 4820004532981, 102712001, 991446227, 004532981
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 08 MAY 1970 | 00-453-2981 | 05487 ( VALVE, CHECK ) |
Drawings & Photos | NSN 4820-00-453-2981
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4820-00-453-2981
Related Products | NSN 4820-00-453-2981
4820-00-467-9182, 4820-00-486-4356, 4820-00-522-5728, 4820-00-540-3427, 4820-00-684-5032
Technical Data | NSN 4820-00-453-2981
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | ENAMEL |
| STYLE DESIGNATOR | A3 STRAIGHT THRU |
| FLOW CONTROL DEVICE | POPPET |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL BOSS 2ND END |

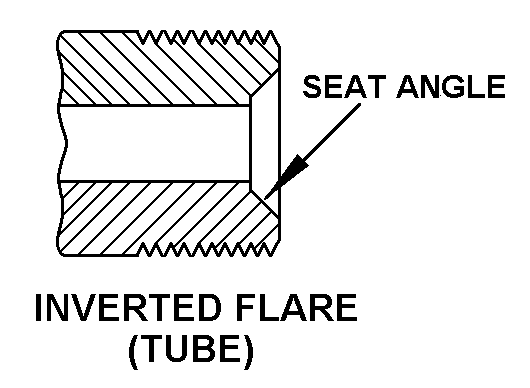

| CONNECTION STYLE | B41A INVERTED FLARE 1ST END B50 EXTERNAL SEAT FOR GASKET SEAL 2ND END |
| SEAT ANGLE | 30.0 DEGREES 1ST END |
| THREAD SERIES DESIGNATOR | ISO S 1ST END UNF 2ND END |
| NOMINAL THREAD SIZE | 17.000 MILLIMETERS 1ST END 0.562 INCHES 2ND END |
| THREAD CLASS | 2A 2ND END |
| THREAD DIRECTION | RIGHT-HAND 1ST END RIGHT-HAND 2ND END |
| MOUNTING POSITION | HORIZONTAL OR VERTICAL |
| DISK LOADING METHOD | SPRING |
Restrictions/Controls & Freight Information | NSN 4820-00-453-2981
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | 98 | DLIS-LFF Battle Creek, MI 49037-3084 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-453-2981
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
