Product Details | FINISHING WASHER

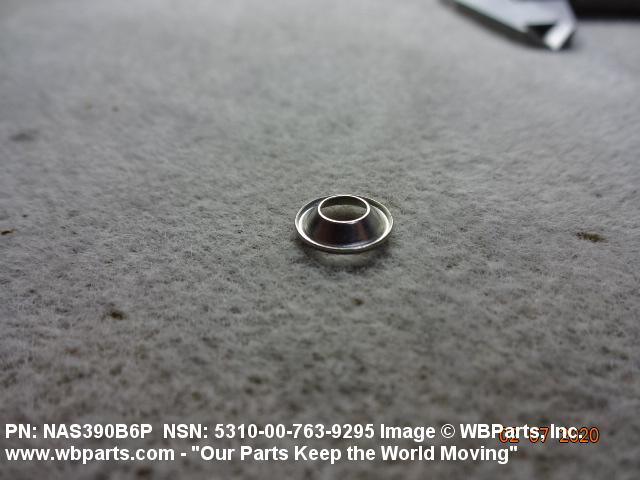

5310-00-763-9295 A washer or cone or disk shape with a centrally located hole, designed to accommodate a flat or oval head screw and provide additional bearing area on the material being fastened. It may or may not have a flush flange feature.
Part Alternates: NAS3906P, NAS390-6P, NAS390B6P, 5310-00-763-9295, 00-763-9295, 5310007639295, 007639295
Hardware and Abrasives | Nuts and Washers
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 13 MAR 1968 | 00-763-9295 | 15932 ( WASHER, FINISHING ) |

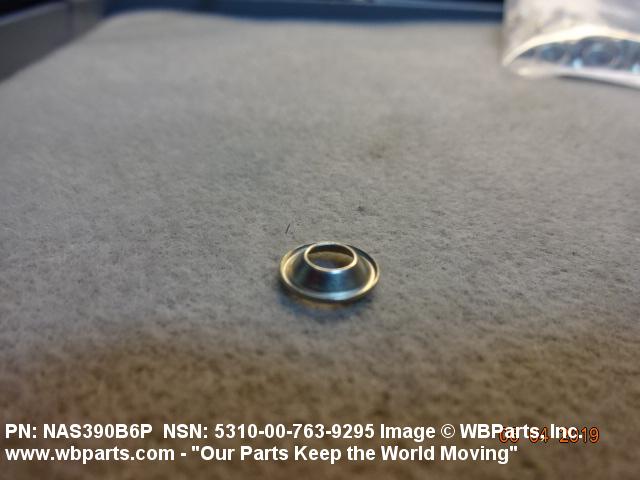

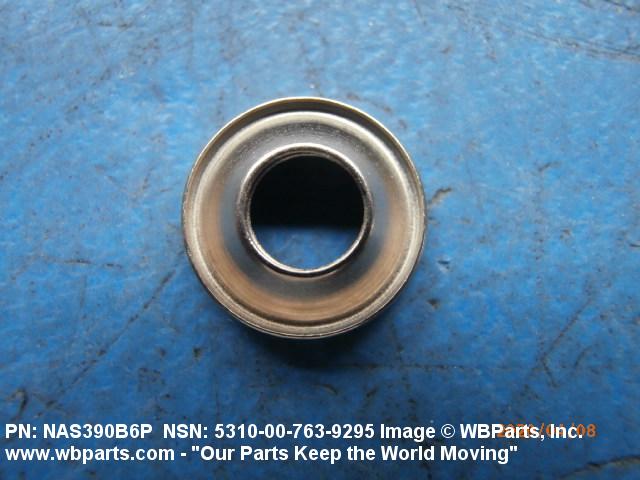

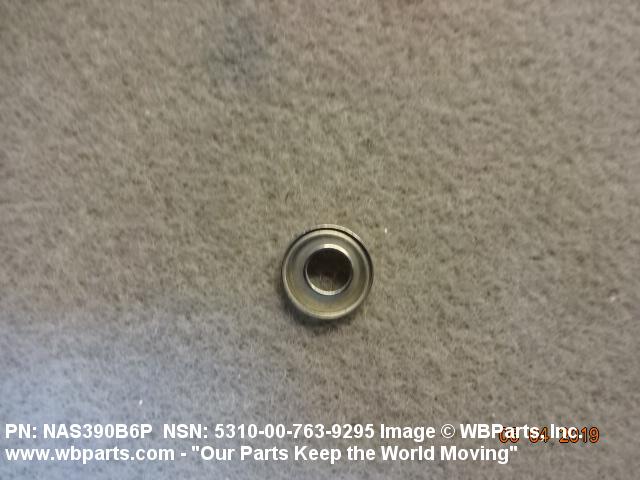

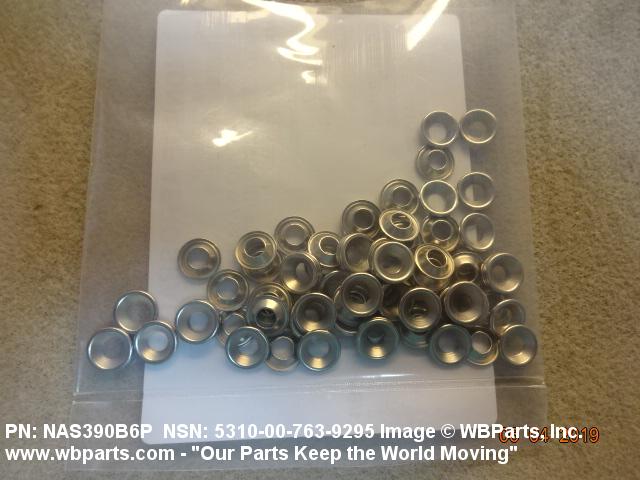

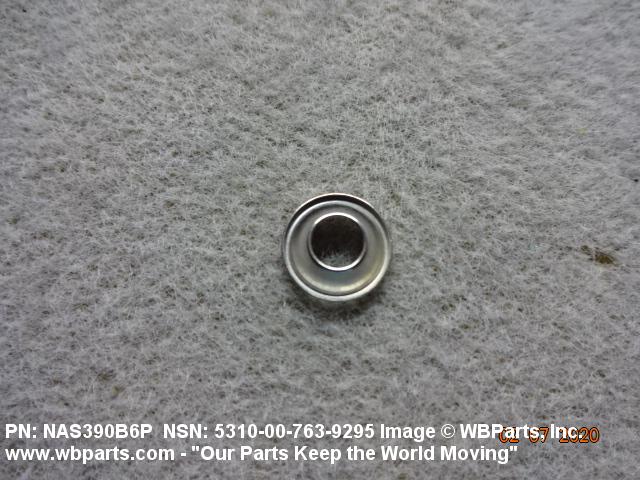

Drawings & Photos | NSN 5310-00-763-9295
Demand History | NSN 5310-00-763-9295
Part Number | Request Date | QTY | Origin |
---|---|---|---|
NAS390B6P | 2024-03-07 | 1 | US |
5310-00-763-9295 | 2023-12-07 | 3924 | DIBBS |
NAS390B6P | 2023-01-24 | 50 | US |
5310-00-763-9295 | 2017-08-07 | 3040 | DIBBS |
5310-00-763-9295 | 2016-09-28 | 2536 | DIBBS |
5310-00-763-9295 | 2016-03-03 | 1123 | DIBBS |
5310-00-763-9295 | 2014-10-26 | 1064 | DIBBS |
5310-00-763-9295 | 2012-06-29 | 1160 | DIBBS |
5310-00-763-9295 | 2011-09-08 | 829 | DIBBS |
5310-00-763-9295 | 2011-08-01 | 916 | DIBBS |
NAS390B6P | 2011-06-28 | 250 | SG |
NAS390B6P | 2011-06-24 | 250 | Sri Lanka |
5310-00-763-9295 | 2009-01-28 | 300 | DIBBS |
5310-00-763-9295 | 2008-12-08 | 1997 | DIBBS |
5310-00-763-9295 | 2008-12-03 | 1108 | DIBBS |
5310-00-763-9295 | 2008-08-18 | 808 | DIBBS |
Request a Quote
Comments | What our customers are saying...
NSNs for Compare ( up to 4 ): Add 5310-00-763-9295
Related Products | NSN 5310-00-763-9295
5310-00-763-9393, 5310-00-763-9394, 5310-00-763-9398, 5310-00-763-9834, 5310-00-763-9836
Technical Data | NSN 5310-00-763-9295
Characteristic | Specifications |
---|---|
MATERIAL | STEEL OR COPPER ALLOY OVERALL |
STYLE DESIGNATOR | 5 FINISHING |

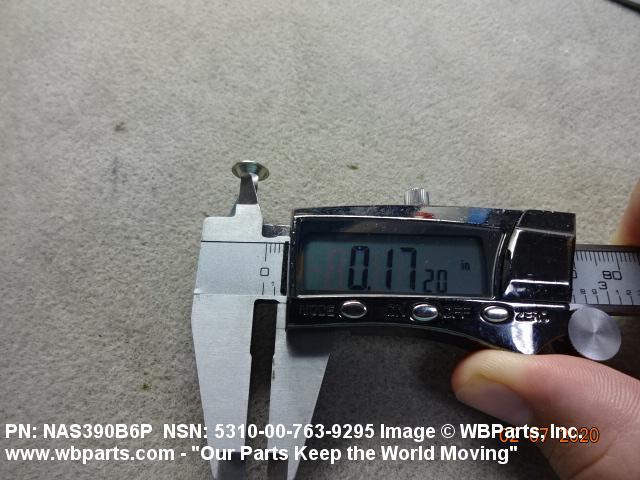

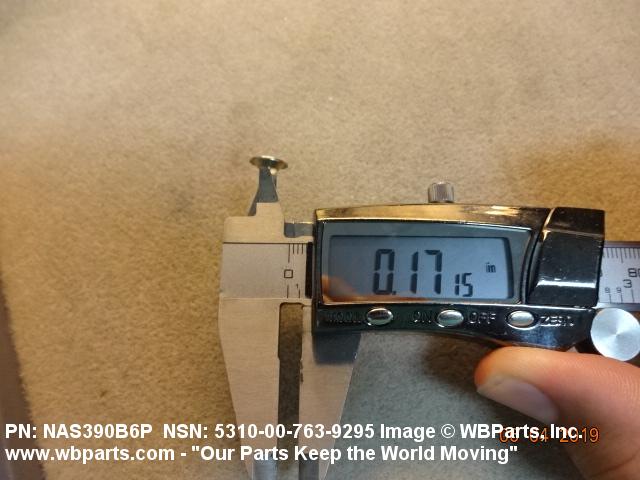

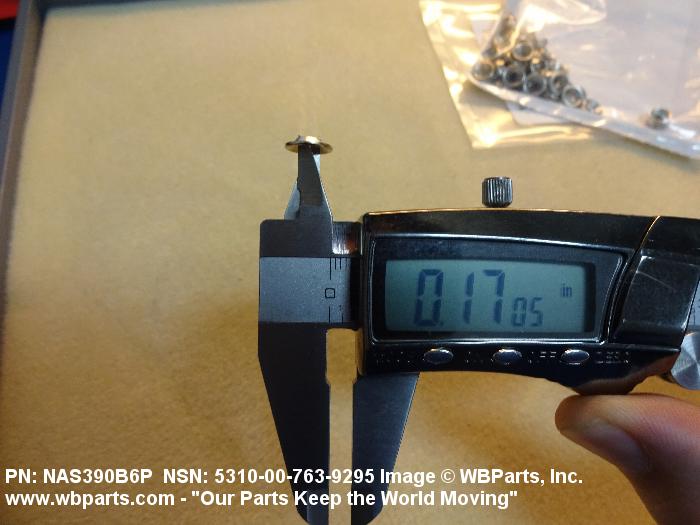

HOLE DIAMETER | 0.150 INCHES MINIMUM AND 0.180 INCHES MAXIMUM |

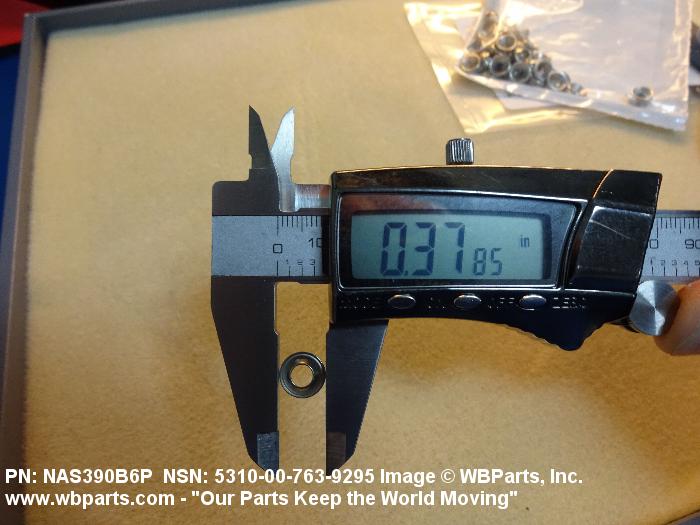

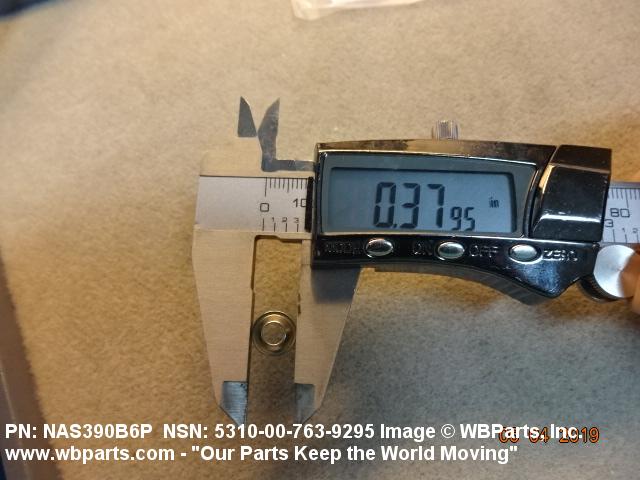

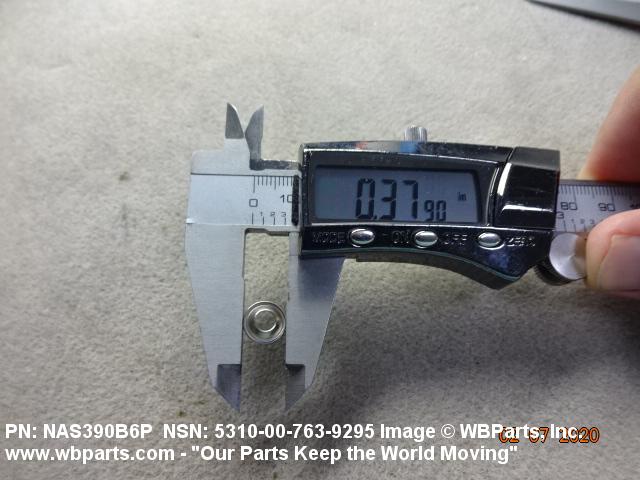

OUTSIDE DIAMETER | 0.350 INCHES MINIMUM AND 0.390 INCHES MAXIMUM |

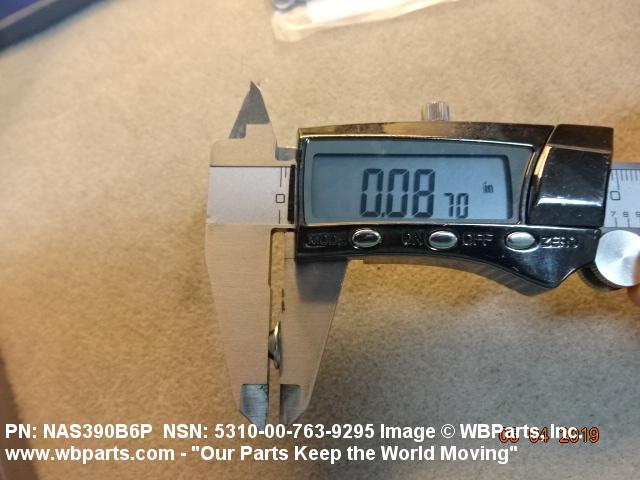

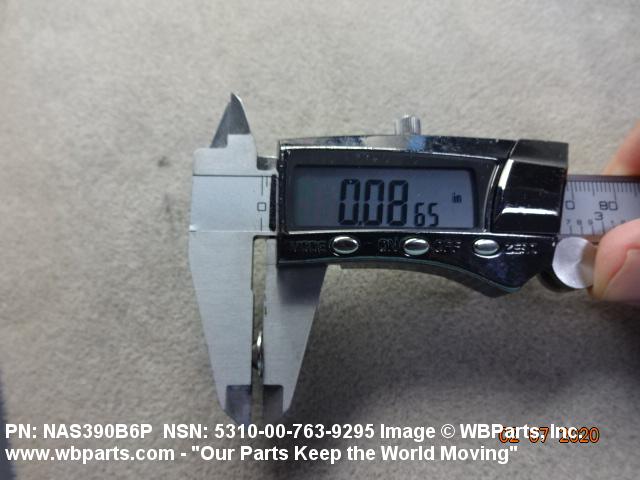

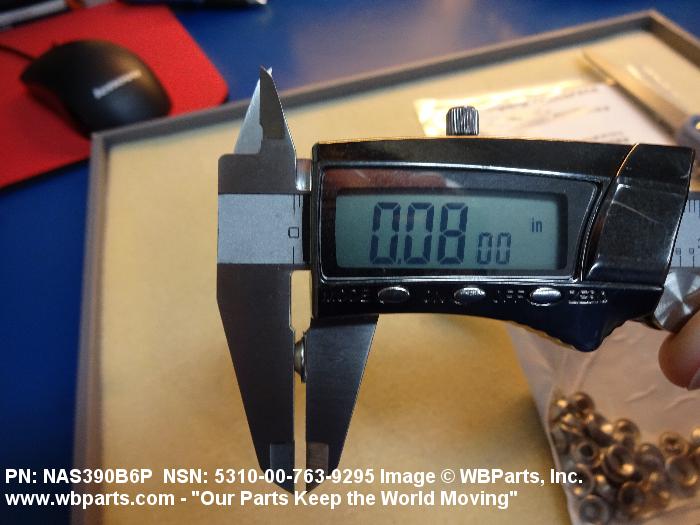

OVERALL HEIGHT | 0.070 INCHES MINIMUM AND 0.100 INCHES MAXIMUM |

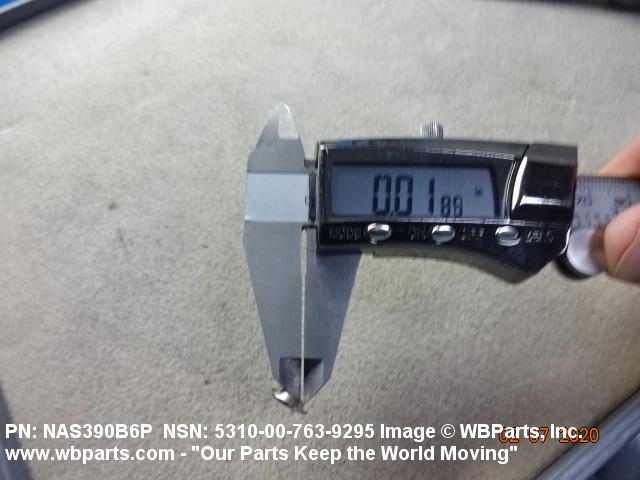

MATERIAL THICKNESS | 0.010 INCHES MINIMUM AND 0.018 INCHES MAXIMUM |
SPECIFICATION/STANDARD DATA | 80205-NAS390 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5310-00-763-9295
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
Less than car load rating | ||
Less than truck load rating | U | 50.0 |
Water commodity Code | 713 | unknown |
Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-763-9295
Category | Code | Description |
---|---|---|
Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
Specific Group/Generic Code | 0 | Medical Materiel |
Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DA | Department of the Army |
Service Organization | A | U.S. Army |
Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
Category | Code | Description |
---|---|---|
Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DF | Department of the Air Force |
Service Organization | F | U.S. Air Force |
Reparability | N | Stock Fund (except Munitions) |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
