Product Details | PRESSURE SWITCH
5930-00-137-4965 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: OE4SBKS45K, OE4-SBKS-45K, 0E4SBKS45K, 5930-00-137-4965, 00-137-4965, 5930001374965, 001374965
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 JUL 1971 | 00-137-4965 | 00206 ( SWITCH, PRESSURE ) |

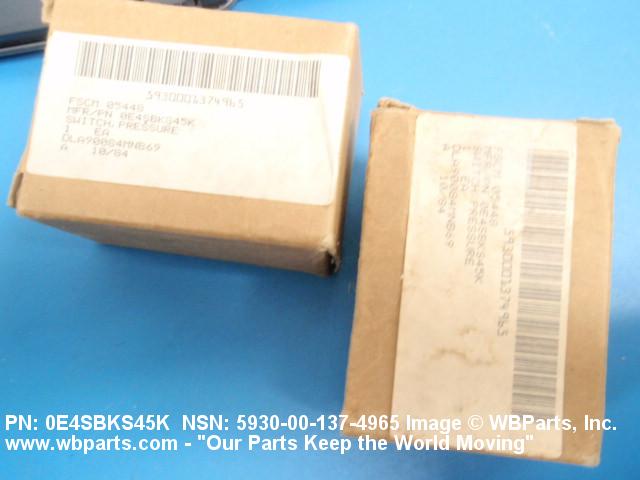

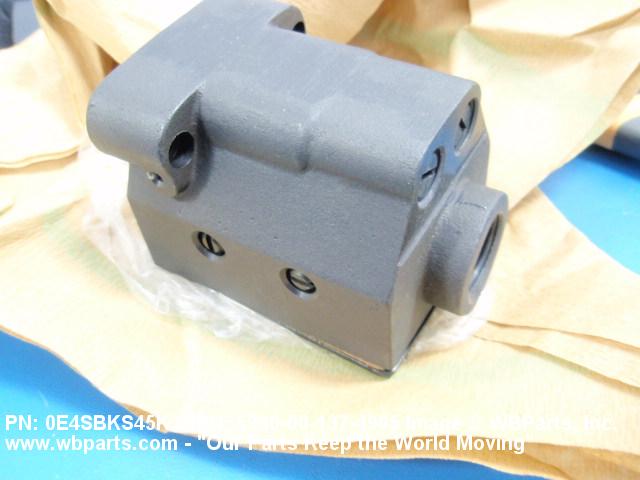

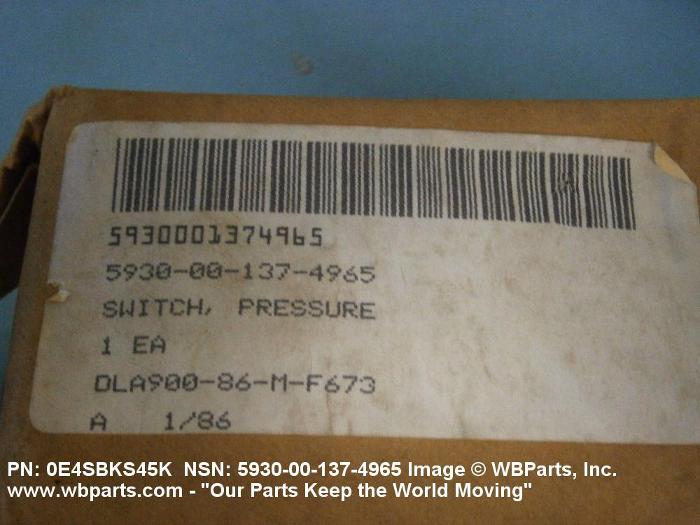

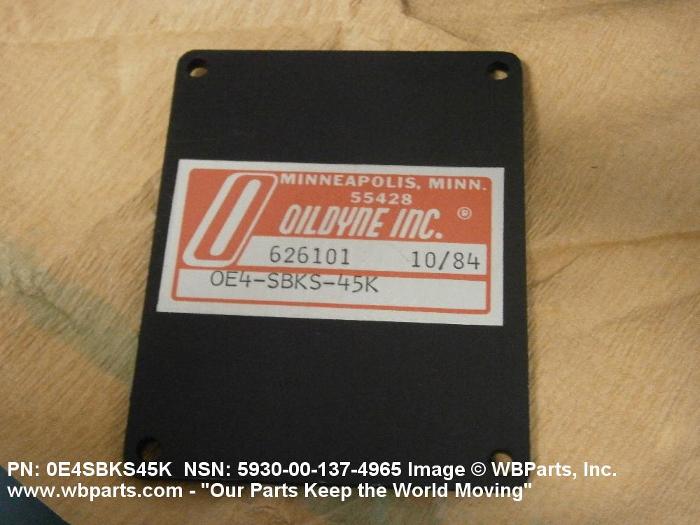

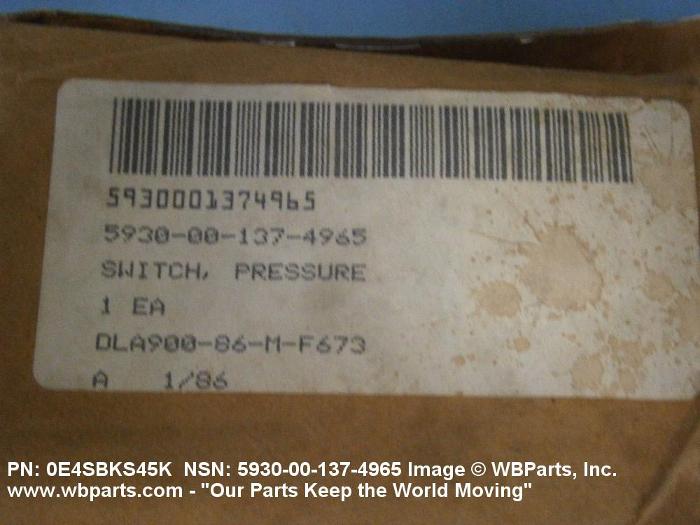

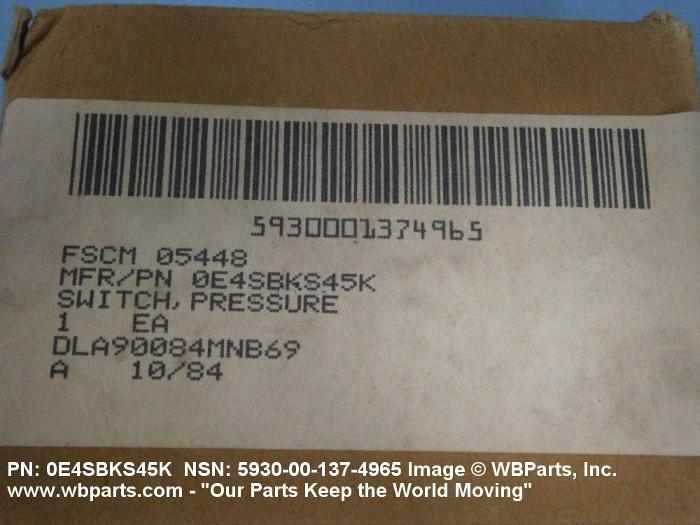

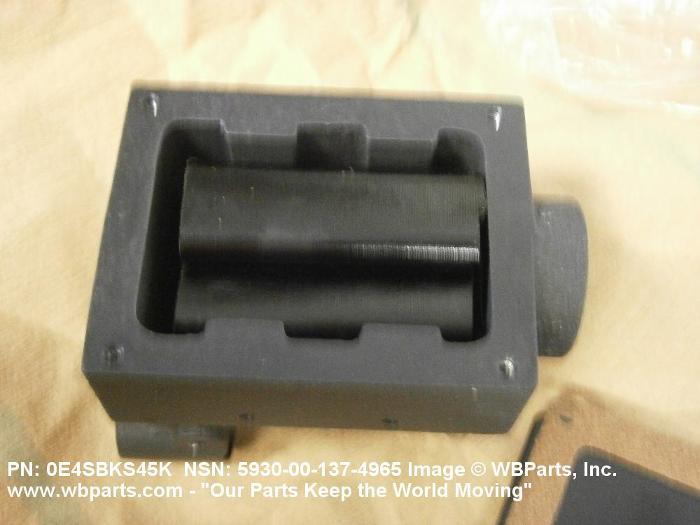

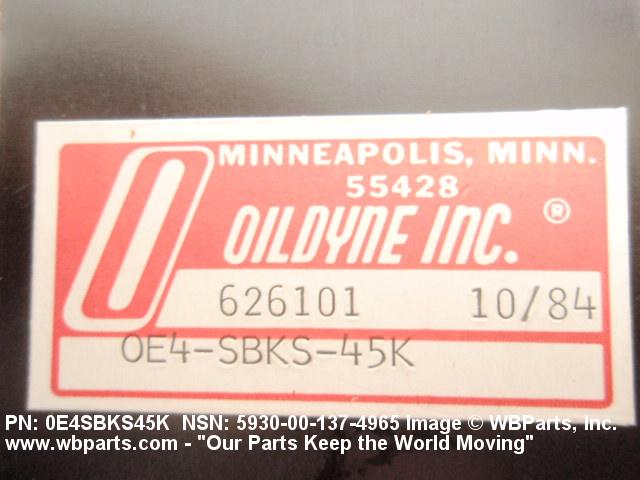

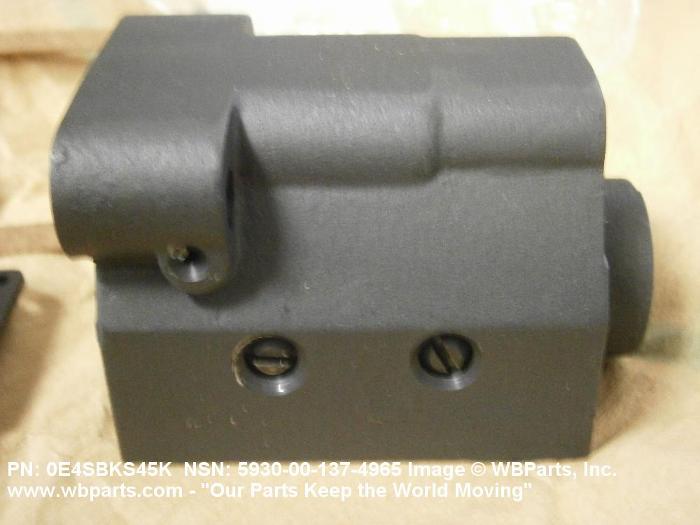

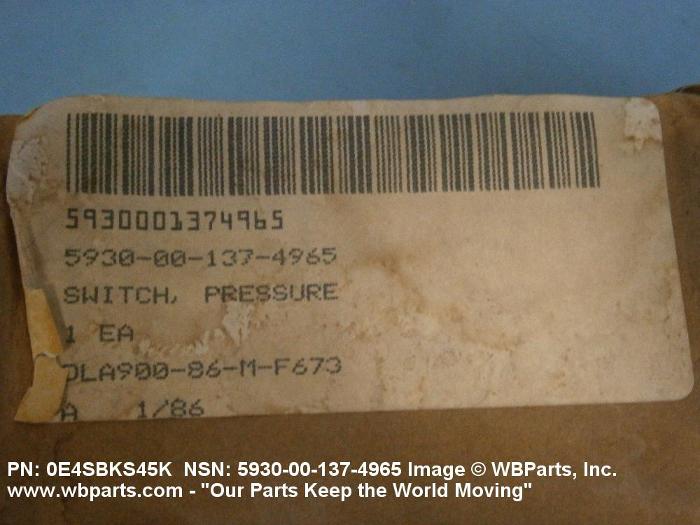

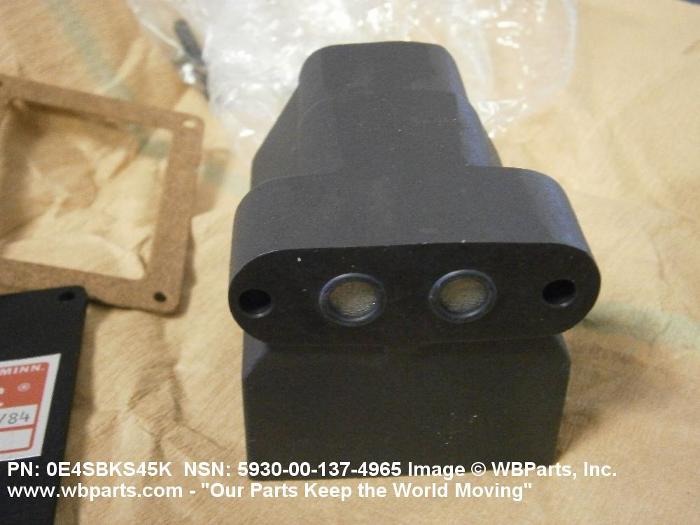

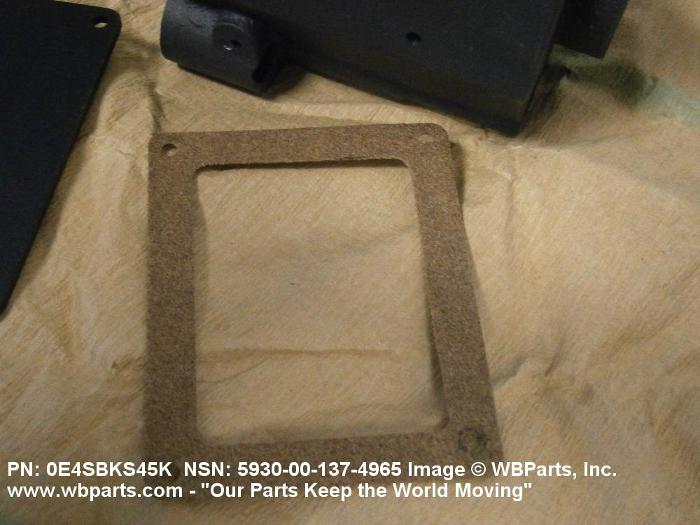

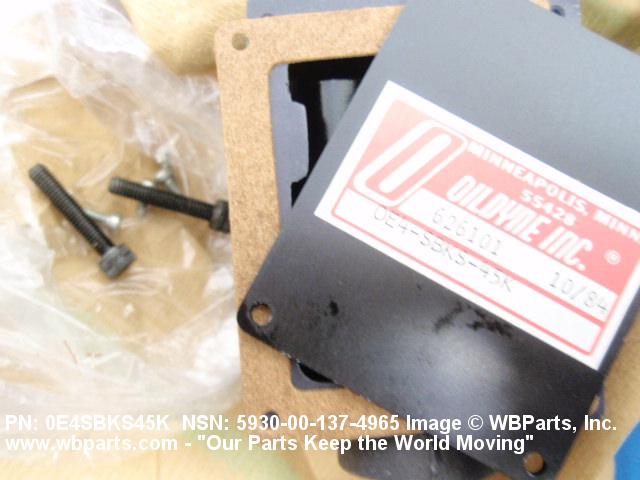

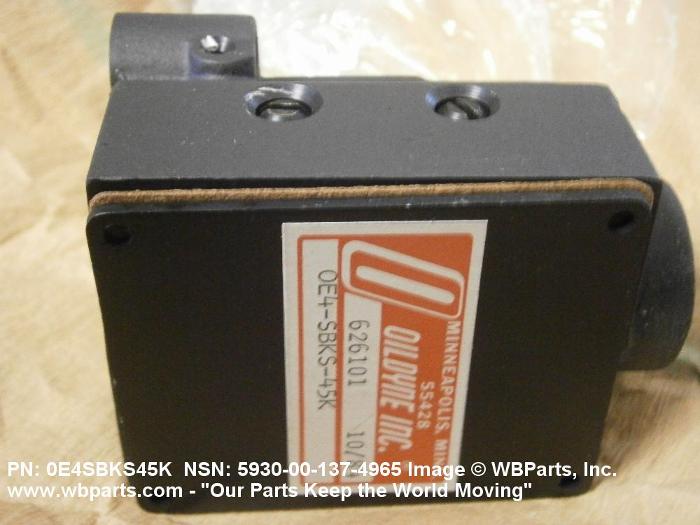

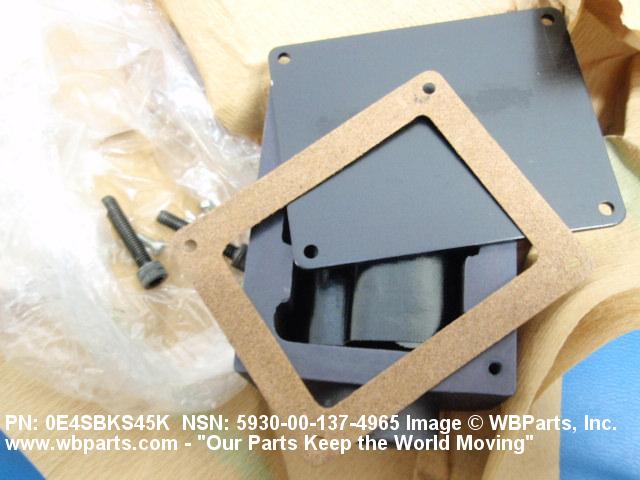

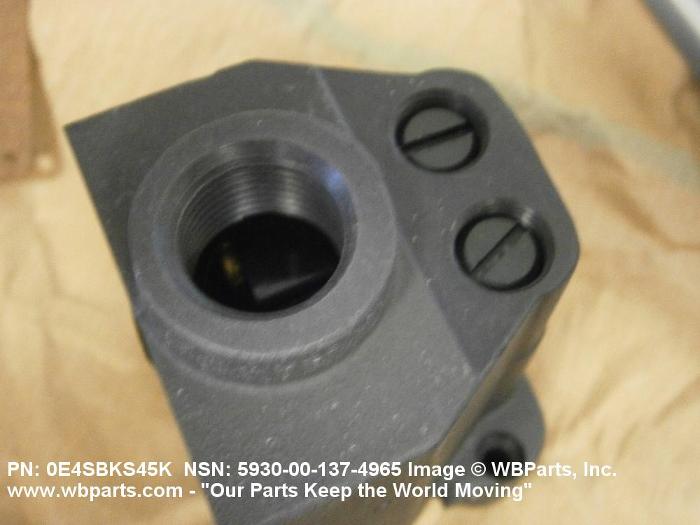

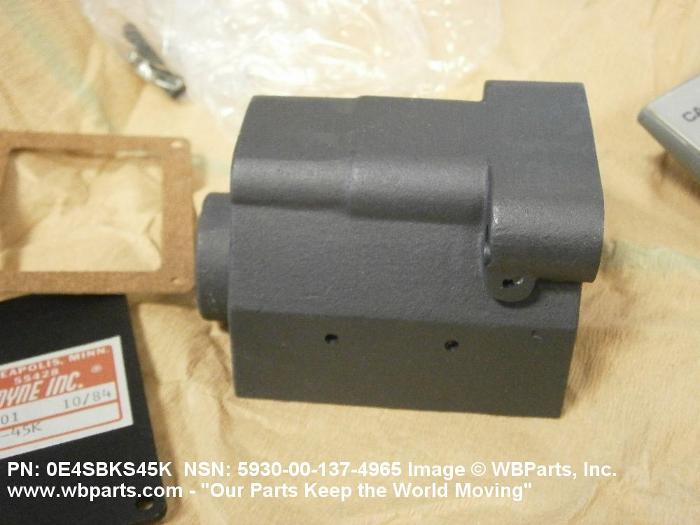

Drawings & Photos | NSN 5930-00-137-4965
Demand History | NSN 5930-00-137-4965
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| OE4SBKS45K | 2023-03-19 | 2 | IL |
| 5930-00-137-4965 | 2023-03-19 | 2 | IL |
| OE4SBKS45K | 2021-01-21 | 1 | US |
| 5930-00-137-4965 | 2020-12-13 | 1 | US |
| 5930-00-137-4965 | 2018-12-19 | 6 | ID |
| 5930-00-137-4965 | 2016-09-08 | 1 | US |
| 5930-00-137-4965 | 2016-08-12 | 6 | United States |
| OE4SBKS45K | 2012-08-28 | 6 | United States |
| 5930-00-137-4965 | 2012-05-08 | 4 | United States |
| 5930-00-137-4965 | 2011-07-21 | 6 | United States |
| 5930-00-137-4965 | 2011-06-20 | 2 | United States |
| OE4SBKS45K | 2010-02-25 | 1 | United States |
| 5930-00-137-4965 | 2010-02-02 | 1 | US |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5930-00-137-4965
Related Products | NSN 5930-00-137-4965
5930-00-137-4967, 5930-00-137-4968, 5930-00-137-4969, 5930-00-137-5301, 5930-00-137-6618
Technical Data | NSN 5930-00-137-4965
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 28 RECTANGULAR |
| OVERALL LENGTH | 3.344 INCHES NOMINAL |
| OVERALL HEIGHT | 2.359 INCHES NOMINAL |
| OVERALL WIDTH | 2.438 INCHES NOMINAL |
| BODY LENGTH | 3.094 INCHES NOMINAL |
| PRESSURE SWITCH TYPE | GAGE |
| NONPILE-UP CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | ACTUATION POINT ADJUSTABLE |
| CONTACT ADJUSTMENT TYPE | EXTERNAL ACTUATION POINT SCREW |
| CONTACT VOLTAGE RATING IN VOLTS | 125.0 AC AT SEA LEVEL FIRST VOLTAGE 460.0 AC AT SEA LEVEL SECOND VOLTAGE 125.0 DC AT SEA LEVEL THIRD VOLTAGE 250.0 DC AT SEA LEVEL FOURTH VOLTAGE |
| CONTACT LOAD CURRENT RATING | 15.0 AMPERES RESISTIVE LOAD FIRST VOLTAGE 15.0 AMPERES RESISTIVE LOAD SECOND VOLTAGE 0.5 AMPERES RESISTIVE LOAD THIRD VOLTAGE 0.25 AMPERES RESISTIVE LOAD FOURTH VOLTAGE |
| MEDIA FOR WHICH DESIGNED | GAS OR LIQUID |
| PRESSURE CONNECTOR TYPE | PLAIN, UNTHREADED INTERNAL ALL CONNECTIONS |
| INSIDE DIAMETER | 0.250 INCHES NOMINAL ALL CONNECTIONS |
| TERMINAL TYPE | SCREW |
| MOUNTING METHOD | THREADED STUD |
| MOUNTING FACILITY PATTERN | TWO POSITION IN-LINE |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.937 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF ALL THREADED STUD |
| NOMINAL THREAD SIZE | 0.190 INCHES ALL THREADED STUD |
| THREAD CLASS | 2A ALL THREADED STUD |
| FEATURES PROVIDED | ELECTRICAL ACCESS PORT |
| SPECIAL FEATURES | TWO DIFFERENT PRESSURE RANGES: FIRST ONE IS ADJUSTABLE FROM 200.00 TO 1000.00 PSI; THE OTHER IS ADJUSTABLE FROM 300.00 TO 2000.00 PSI |
| III UNPACKAGED UNIT WEIGHT | 14.000 OUNCES |
Restrictions/Controls & Freight Information | NSN 5930-00-137-4965
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-137-4965
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
