5930-01-014-5069 - PRESSURE SWITCH, 1105P311, 1105P31-1, 38760011

Product Details | PRESSURE SWITCH

5930-01-014-5069 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.

Part Alternates: 1105P311, 1105P31-1, 38760011, 3876001-1, 38760011A, 3876001-1A, 7074, 8G1020, 5930-01-014-5069, 01-014-5069, 5930010145069, 010145069

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	24 DEC 1975	01-014-5069	00206 ( SWITCH, PRESSURE )

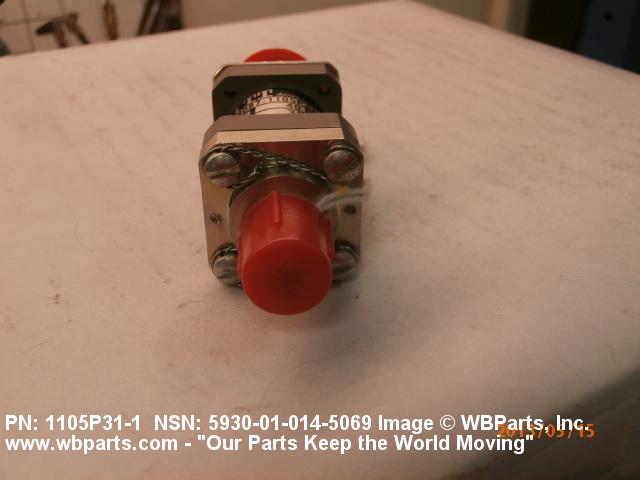

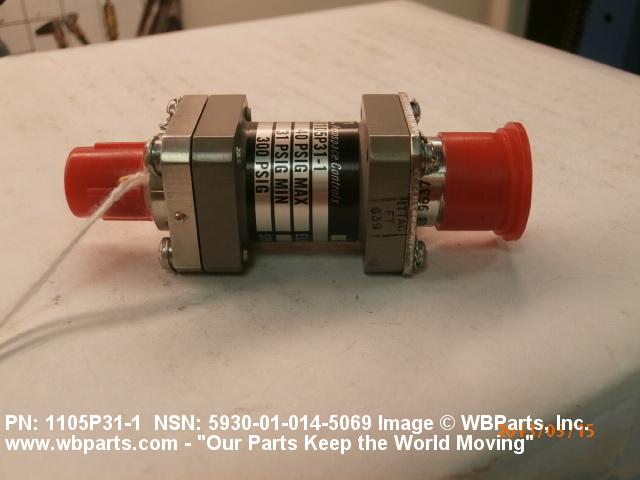

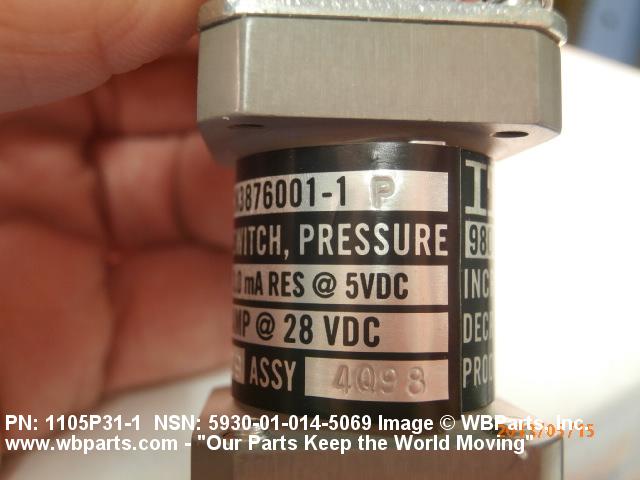

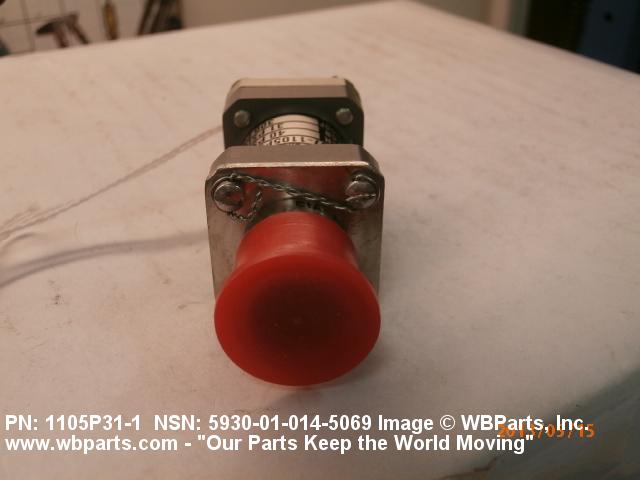

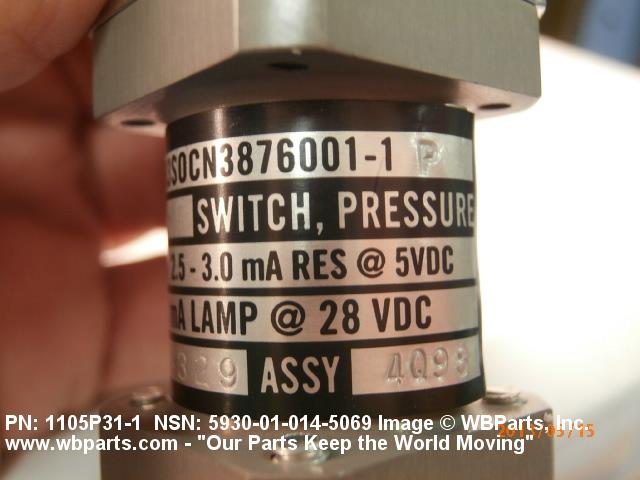

Drawings & Photos | NSN 5930-01-014-5069

Part Number	Request Date	QTY	Origin
1105P31-1	2024-02-08	26	DIBBS
7074	2024-02-08	26	DIBBS
8G1020	2024-02-08	26	DIBBS
1105P31-1	2023-04-06	22	DIBBS
7074	2023-04-06	22	DIBBS
8G1020	2023-04-06	22	DIBBS
1105P31-1	2022-10-06	34	DIBBS
7074	2022-10-06	34	DIBBS
8G1020	2022-10-06	34	DIBBS
1105P31-1	2020-02-25	48	DIBBS
7074	2020-02-25	48	DIBBS
8G1020	2020-02-25	48	DIBBS
1105P31-1	2019-06-09	76	DIBBS
7074	2019-06-09	76	DIBBS
8G1020	2019-06-09	76	DIBBS
5930-01-014-5069	2018-09-27	39	DIBBS
5930-01-014-5069	2018-06-28	46	DIBBS
5930-01-014-5069	2018-01-16	30	DIBBS
7074	2017-10-10	1	FI
5930-01-014-5069	2017-02-14	34	DIBBS
5930-01-014-5069	2017-02-02	43	DIBBS
5930-01-014-5069	2016-12-05	38	DIBBS
5930-01-014-5069	2016-02-25	27	DIBBS
5930-01-014-5069	2015-11-15	25	DIBBS
5930-01-014-5069	2013-11-04	24	DIBBS
5930-01-014-5069	2013-05-07	1	United States
5930-01-014-5069	2012-11-13	36	DIBBS
5930-01-014-5069	2011-04-19	17	DIBBS
5930-01-014-5069	2009-10-19	21	DIBBS
5930-01-014-5069	2009-07-30	28	DIBBS
5930-01-014-5069	2009-07-24	33	DIBBS
38760011	2009-02-05	25	United States
5930-01-014-5069	2009-01-29	28	DIBBS
5930-01-014-5069	2008-10-09	35	DIBBS
5930-01-014-5069	2007-10-25	150	DIBBS
5930-01-014-5069	2007-10-24	25	DIBBS
5930-01-014-5069	2007-08-04	60	DIBBS

Cross Reference | NSN 5930-01-014-5069

Part Number	Cage Code	Manufacturer
1105P31-1	98087	ITT CORPORATION DBA ITT AEROSPACE CONTROLS UNIT S
3876001-1	99193	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
3876001-1A	99193	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
7074	98505	HYDRA-ELECTRIC COMPANY
8G1020	09049	CUSTOM CONTROL SENSORS, INC. DBA CUSTOM AVIATION SUPPLY

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5930-01-014-5069

Compare

Related Products | NSN 5930-01-014-5069

5930-01-014-5083, 5930-01-014-5084, 5930-01-014-5197, 5930-01-014-5572, 5930-01-014-5949

Technical Data | NSN 5930-01-014-5069

Characteristic	Specifications

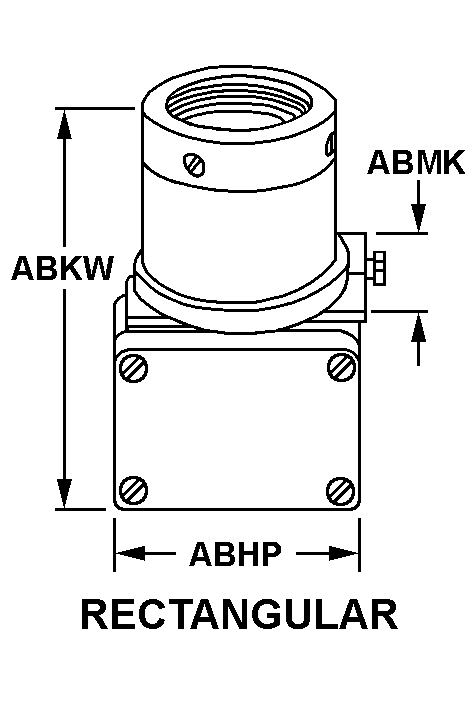

STYLE DESIGNATOR	22 RECTANGULAR
OVERALL LENGTH	1.000 INCHES NOMINAL
OVERALL HEIGHT	2.906 INCHES NOMINAL
OVERALL WIDTH	1.000 INCHES NOMINAL
PRESSURE SWITCH TYPE	DIFFERENTIAL
NONPILE-UP CONTACT ARRANGEMENT	1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY
CONTACT ACTION STIMULUS	INCREASE
CONTACT ADJUSTABILITY	ACTUATION POINT NOT ADJUSTABLE AND DEACTUATION POINT NOT ADJUSTABLE

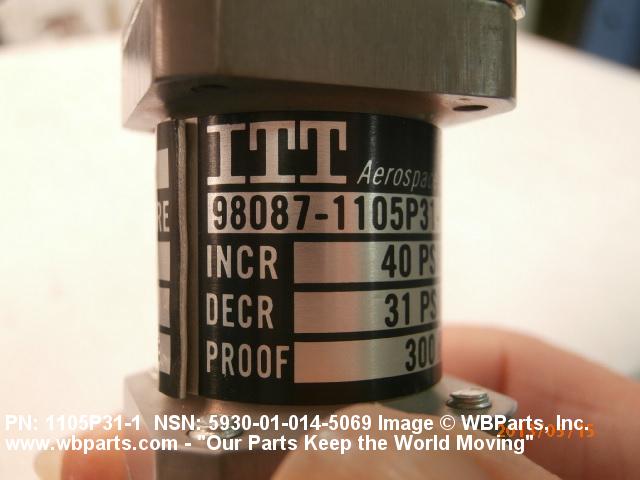

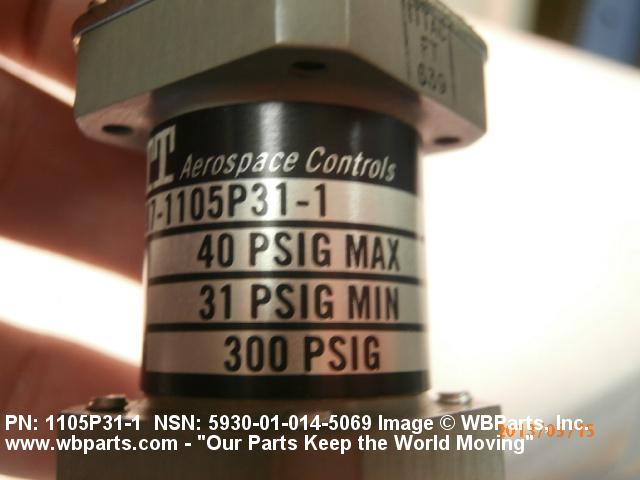

CONTACT STIMULUS RATING	40.00 ACTUATION POINT NOMINAL POUNDS PER SQUARE INCH AND 31.00 DEACTUATION POINT NOMINAL POUNDS PER SQUARE INCH
CONTACT VOLTAGE RATING IN VOLTS	5.0 AC AT SEA LEVEL SINGLE VOLTAGE

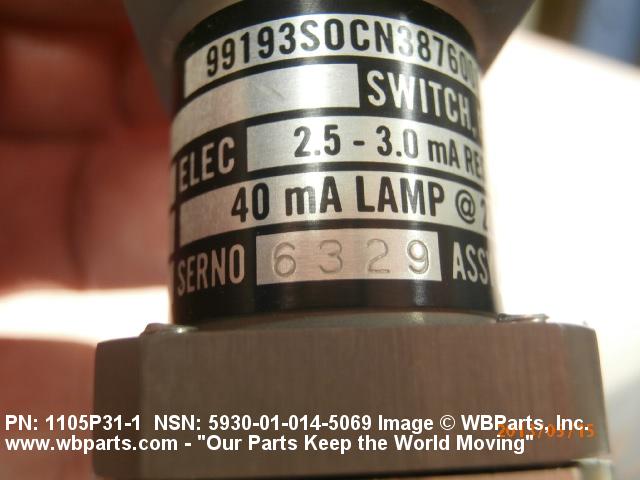

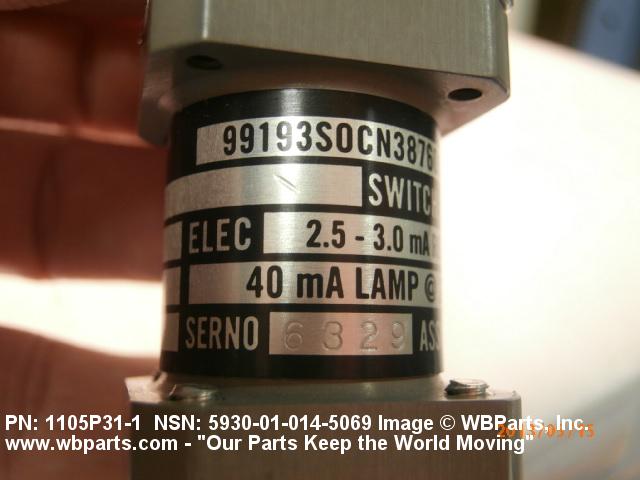

CONTACT LOAD CURRENT RATING	3.0 MILLIAMPERES RESISTIVE LOAD SINGLE VOLTAGE
MEDIA FOR WHICH DESIGNED	GAS
PROOF PRESSURE	300.00 POUNDS PER SQUARE INCH

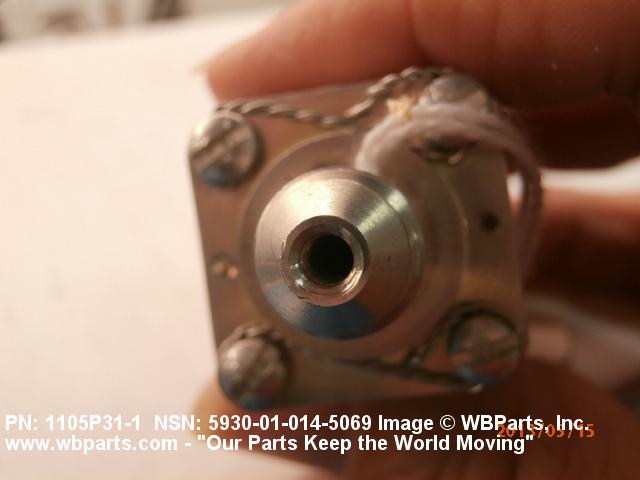

PRESSURE CONNECTOR TYPE	FLARED, THREADED EXTERNAL SINGLE CONNECTION
OUTSIDE DIAMETER	0.438 INCHES NOMINAL SINGLE CONNECTION

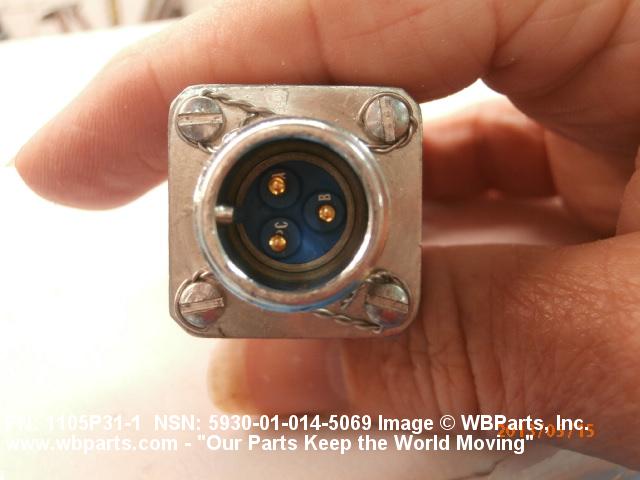

TERMINAL TYPE	CONNECTOR, RECEPTACLE
MOUNTING METHOD	LINE
THREAD SERIES DESIGNATOR	UNF SINGLE PRESSURE CONNECTION
NOMINAL THREAD SIZE	0.438 INCHES SINGLE PRESSURE CONNECTION
THREAD CLASS	2A SINGLE PRESSURE CONNECTION
THREAD LENGTH	0.438 INCHES NOMINAL SINGLE PRESSURE CONNECTION
FEATURES PROVIDED	ELECTRICAL ACCESS PORT
MANUFACTURERS CODE	99193
MFR SOURCE CONTROLLING REFERENCE	3876001-1
