Product Details | PRESSURE SWITCH
5930-01-034-0120 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: 1032015, 10-3201-5, 900175, 90017-5, 5930-01-034-0120, 01-034-0120, 5930010340120, 010340120
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 JAN 1977 | 01-034-0120 | 00206 ( SWITCH, PRESSURE ) |

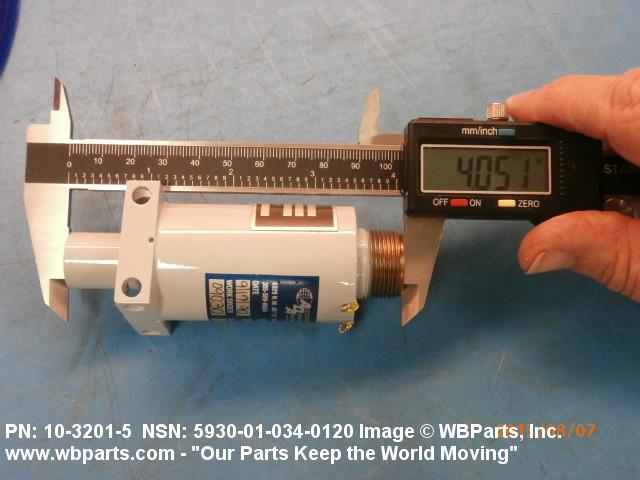

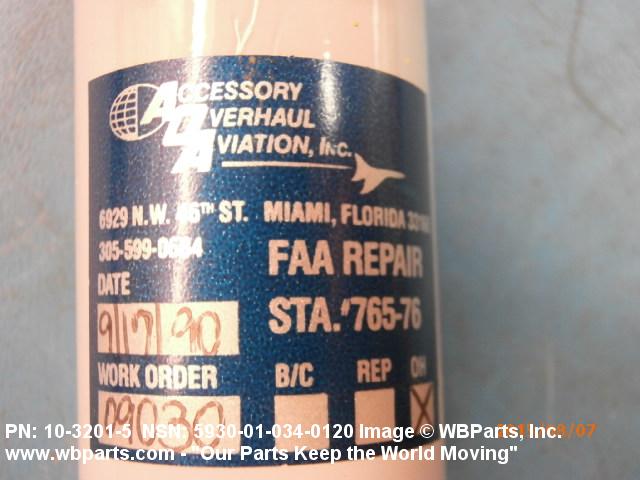

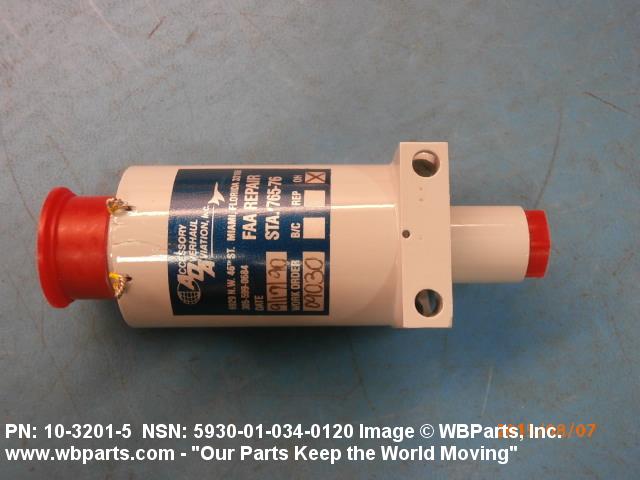

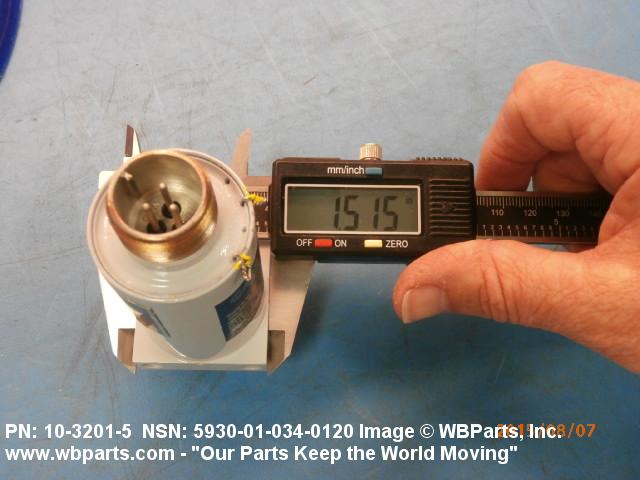

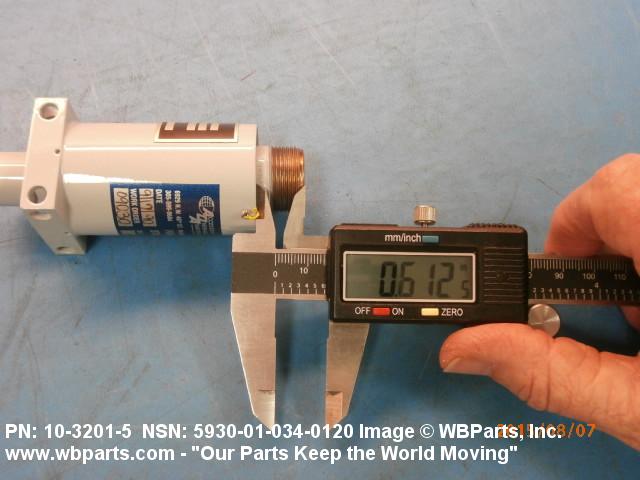

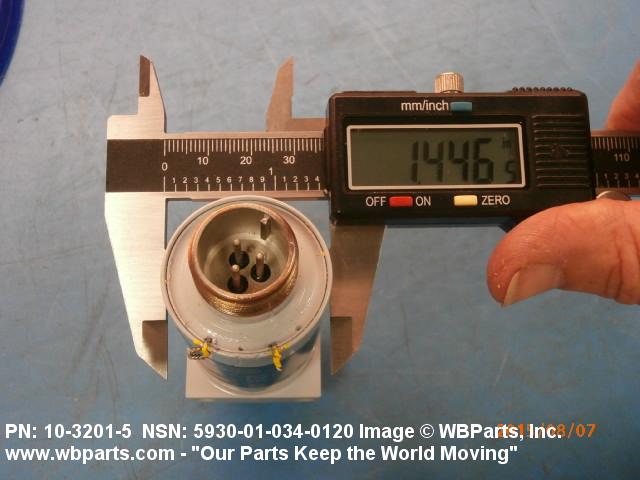

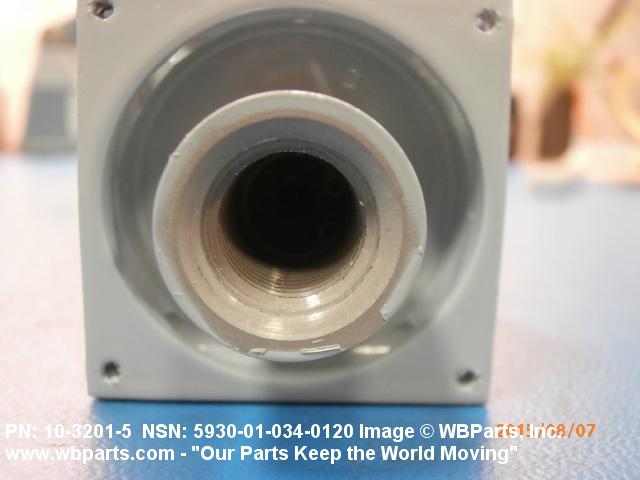

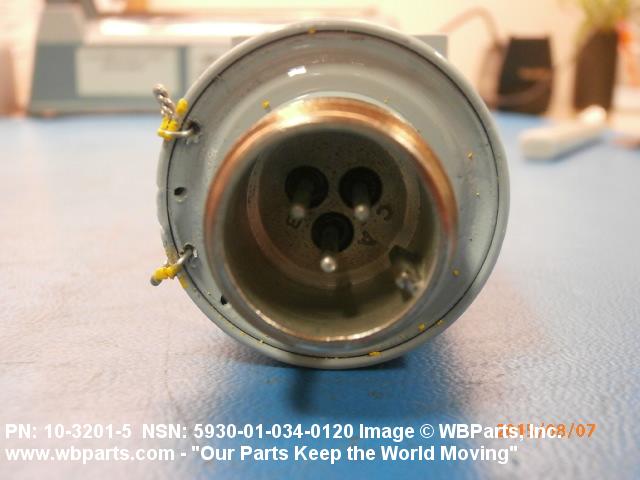

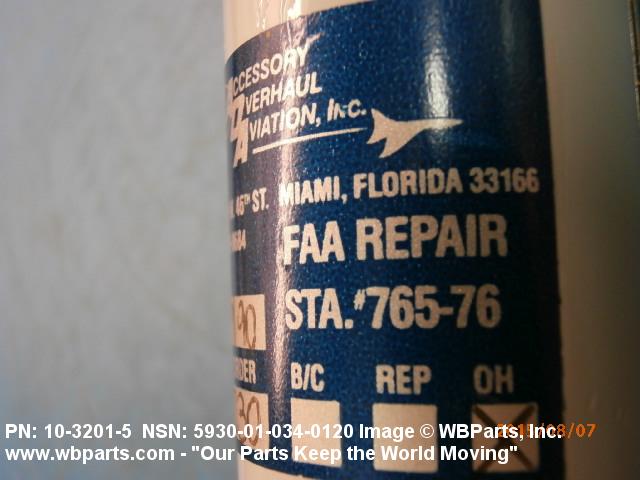

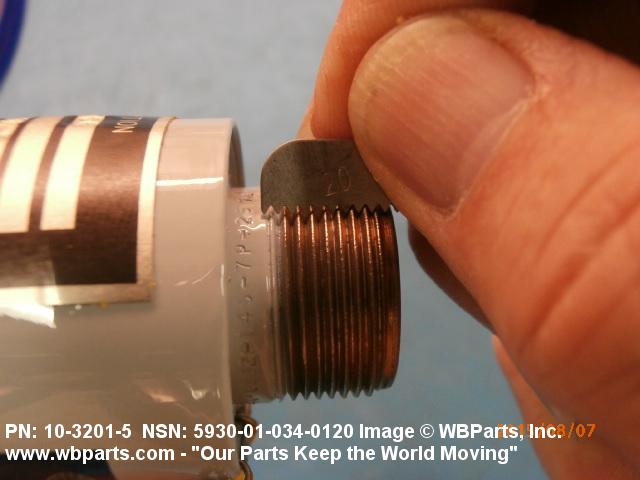

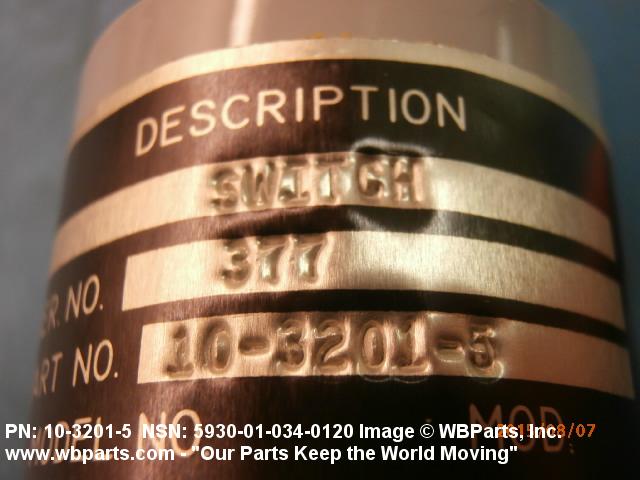

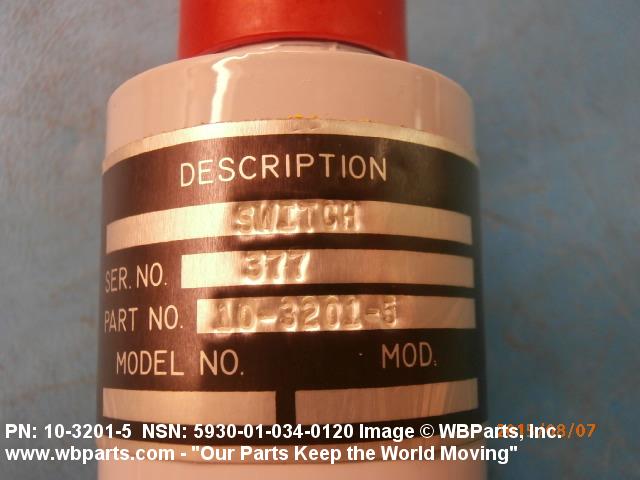

Drawings & Photos | NSN 5930-01-034-0120
Demand History | NSN 5930-01-034-0120
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-034-0120 | 2020-09-15 | 1 | DIBBS-RFPs |
| 10-3201-5 | 2019-11-21 | 14 | DIBBS |
| 90017-5 | 2019-11-21 | 14 | DIBBS |
| 10-3201-5 | 2019-09-12 | 10 | DIBBS |
| 90017-5 | 2019-09-12 | 10 | DIBBS |
| 10-3201-5 | 2019-08-29 | 5 | DIBBS |
| 90017-5 | 2019-08-29 | 5 | DIBBS |
| 10-3201-5 | 2019-08-15 | 9 | DIBBS |
| 90017-5 | 2019-08-15 | 9 | DIBBS |
| 5930-01-034-0120 | 2018-10-25 | 2 | DIBBS |
| 5930-01-034-0120 | 2018-10-11 | 11 | DIBBS |
| 5930-01-034-0120 | 2018-05-08 | 6 | India |
| 5930-01-034-0120 | 2017-12-28 | 10 | DIBBS |
| 5930-01-034-0120 | 2017-08-08 | 12 | DIBBS |
| 5930-01-034-0120 | 2017-01-08 | 9 | DIBBS |
| 5930-01-034-0120 | 2016-12-12 | 20 | DIBBS |
| 5930-01-034-0120 | 2015-10-13 | 19 | DIBBS |
| 5930-01-034-0120 | 2015-08-03 | 1 | United States |
| 1032015 | 2015-07-29 | 2 | United States |
| 5930-01-034-0120 | 2015-06-23 | 14 | DIBBS |
| 5930-01-034-0120 | 2015-03-05 | 12 | DIBBS |
| 5930-01-034-0120 | 2015-01-29 | 11 | DIBBS |
| 5930-01-034-0120 | 2014-11-23 | 11 | DIBBS |
| 5930-01-034-0120 | 2014-07-31 | 13 | DIBBS |
| 5930-01-034-0120 | 2014-02-05 | 9 | DIBBS |
| 5930-01-034-0120 | 2014-01-21 | 9 | DIBBS |
| 5930-01-034-0120 | 2014-01-05 | 9 | DIBBS |
| 5930-01-034-0120 | 2013-02-27 | 12 | DIBBS |
| 5930-01-034-0120 | 2013-02-01 | 13 | DIBBS |
| 5930-01-034-0120 | 2012-11-04 | 7 | DIBBS |
| 900175 | 2012-04-10 | 1 | United States |
| 1032015 | 2012-03-23 | 1 | Italy |
| 900175 | 2012-03-23 | 1 | Italy |
| 1032015 | 2012-02-29 | 1 | Italy |
| 5930-01-034-0120 | 2010-09-07 | 8 | DIBBS |
| 5930-01-034-0120 | 2010-07-16 | 6 | DIBBS |
| 5930-01-034-0120 | 2010-06-17 | 5 | DIBBS |
| 5930-01-034-0120 | 2007-03-30 | 10 | DIBBS |
| 5930-01-034-0120 | 2007-02-10 | 14 | DIBBS |
| 5930-01-034-0120 | 2006-06-23 | 11 | DIBBS |
| 5930-01-034-0120 | 2006-06-08 | 6 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5930-01-034-0120
Related Products | NSN 5930-01-034-0120
5930-01-034-0121, 5930-01-034-0129, 5930-01-034-0135, 5930-01-034-0181, 5930-01-034-0432
Technical Data | NSN 5930-01-034-0120
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 3.970 INCHES MINIMUM AND 4.270 INCHES MAXIMUM |
| BODY DIAMETER | 1.280 INCHES MINIMUM AND 1.580 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.350 INCHES MINIMUM AND 1.650 INCHES MAXIMUM |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, TWO POSITIONS MOMENTARY |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | DEACTUATION POINT ADJUSTABLE AND ACTUATION POINT ADJUSTABLE |
| CONTACT ADJUSTMENT RANGE | 250.00 TO 1200.00 ACTUATION POINT POUNDS PER SQUARE INCH GAGE AND 100.00 TO 700.00 DEACTUATION POINT POUNDS PER SQUARE INCH GAGE |
| CONTACT VOLTAGE RATING IN VOLTS | 28.0 DC AT SEA LEVEL SINGLE VOLTAGE |
| OPERATING TEMP RATING | -65.0 DEG FAHRENHEIT MINIMUM AND 160.0 DEG FAHRENHEIT MAXIMUM |
| MEDIA FOR WHICH DESIGNED | LIQUID |
| PROOF PRESSURE | 4500.00 POUNDS PER SQUARE INCH GAGE |
| TERMINAL TYPE | CONNECTOR, RECEPTACLE |
| MOUNTING METHOD | THREADED BUSHING |
| MOUNTING FACILITY PATTERN | TWO POSITION IN-LINE |
| THREAD SERIES DESIGNATOR | UNF SINGLE THREADED BUSHING |
| NOMINAL THREAD SIZE | 0.438 INCHES SINGLE THREADED BUSHING |
| THREAD CLASS | 3B SINGLE THREADED BUSHING |
| THREAD QUANTITY PER INCH | 20 SINGLE THREADED BUSHING |
| THREAD LENGTH | 0.633 INCHES NOMINAL SINGLE THREADED BUSHING |
Restrictions/Controls & Freight Information | NSN 5930-01-034-0120
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TA | Sacramento Air Logistics Center McClellan AFB, CA 95652-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-034-0120
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
