Product Details | TOGGLE SWITCH
5930-00-655-1515 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: MS3505815, MS35058-15, MS3505823, MS35058-23, MS350584, MS35058-4, A7241, AN30213, AN3021-3, CE216698, CH8810K12, CH8816K5, H667811, H6678-11, S621697, S62-1697, ST40D, ST42D, ST84000223, ST840002-23, TIP00002, L-40-D, MILDTL83731, MIL-DTL-83731, MILS83731, MIL-S-83731, RA11570004AA, RA1157-0004AA, JHP39706, JHP39-706, JHP397111, JHP39-711-1, L00216, GHN20054003, GHN20054-003 , L40D, 4186300-60, 4520017003, 452-0017-003, 4521341, 452-1341, 502683, 511TS13, 511TS1-3, 511TS16742, 511TS1-6742, 511TSI3, 511-TSI-3, 5120167, 5585734 PIECE 68, 5585734PIECE68, 559E332058, 559E33-2058, 09N50N, 100465, 10192088, 1019208-8, 1034D70023, 1034-D700-23, 1107105, 1107-105, 11570004, 1157-0004, 11612, 11TS13, 11TS1-3, 11TS153, 122104, 122-10-4, 1460070005, 146-007-0005, 1560, 1679000154, 16-790-00-154, 2281001P4, 228-1001P4, 2281035P1, 228-1035P1, 2281258P15, 228-1258P15, 23F201, 266-3067-00, 2663067000, 266-3067-000, 270035, 27-0035, 292343-000, 3007092, 35058DM, 352258901676, 395-199-007, 3Z986340D, 3Z9863-40D, 40000415, 400004-15, 4186300060, 4186300-060, 614534, 689207, 689-207, 7582K6, 7582K7, 7586006P001, 7611130013, 76111-3-0013, 7655160, 7655-160, 8069075, 8-06907-5, 81083, 8120310023, 812031-0023, 8810K12, 8810K15, 8810K22, 8810K6, 8816K4, 8816K5, 8816K6, 8816K9, 8906K699, 902587, 9270223A, 927-0223A, 94575826, 973.52.17.103, 9735217103, 9999110, 9N50N, 5930-00-655-1515, 00-655-1515, 5930006551515, 006551515, 418630060, 395199007, 292343000, 266306700
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-655-1515 | 00184 ( SWITCH, TOGGLE ) |

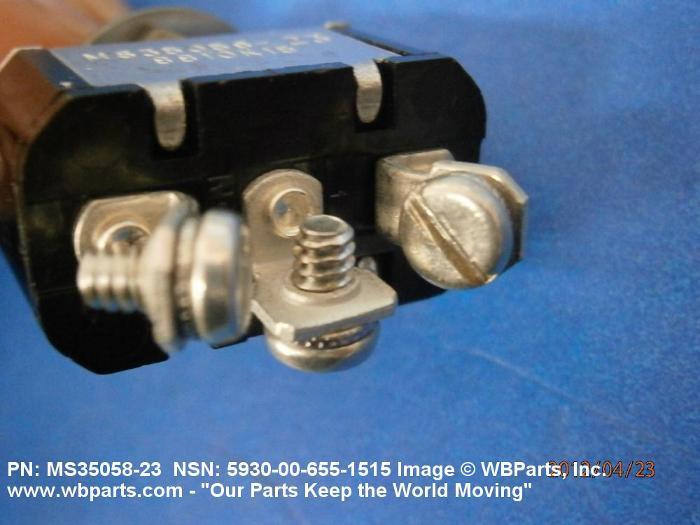

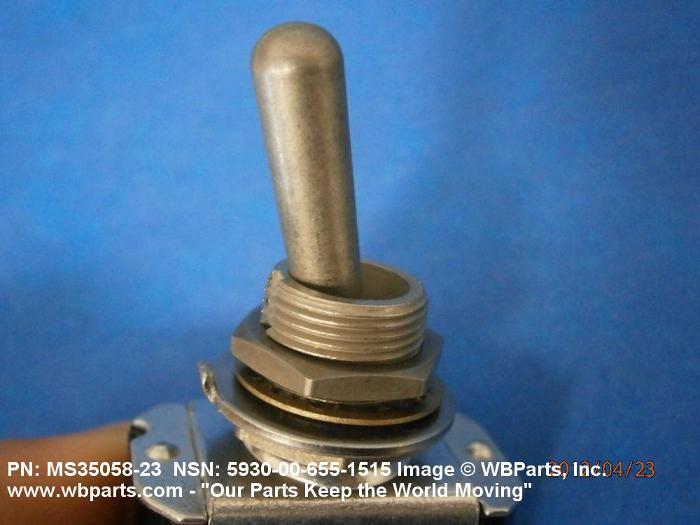

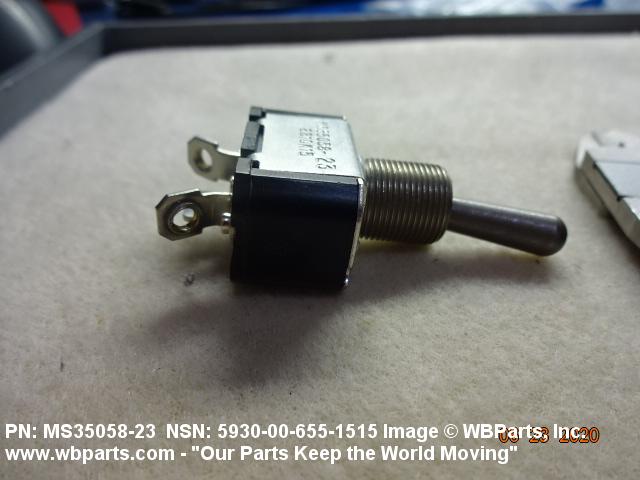

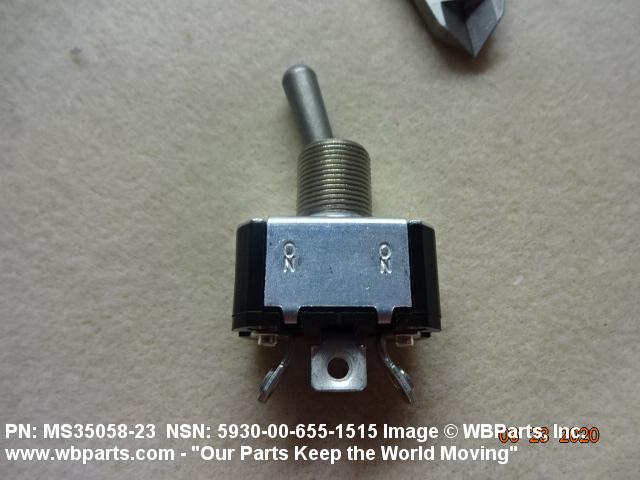

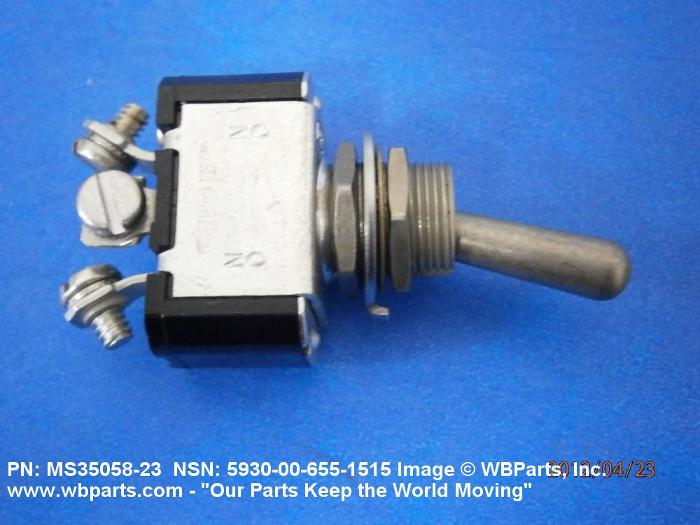

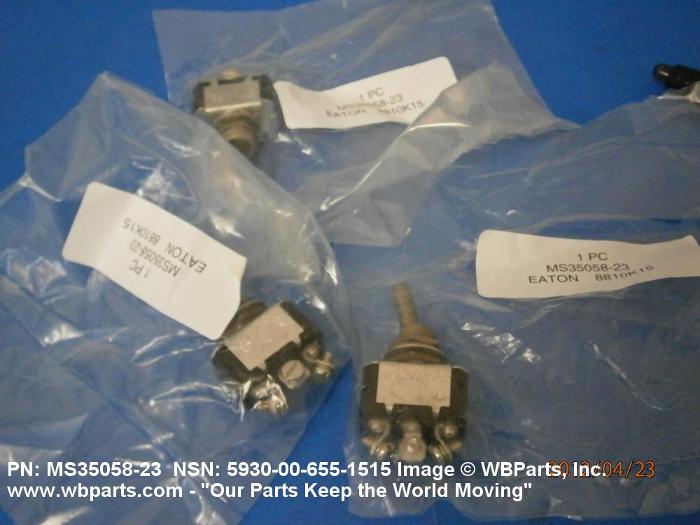

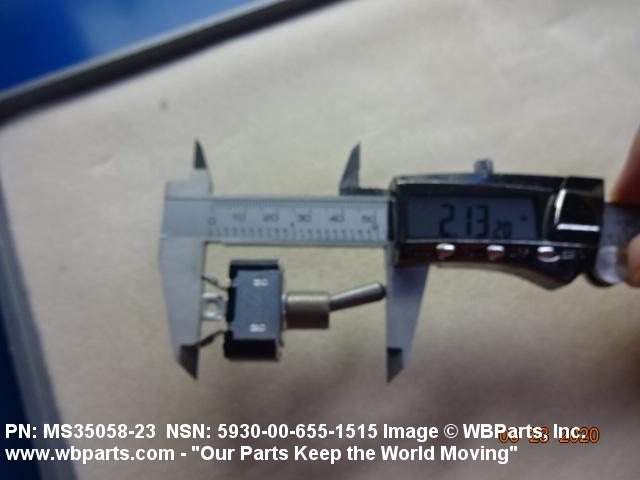

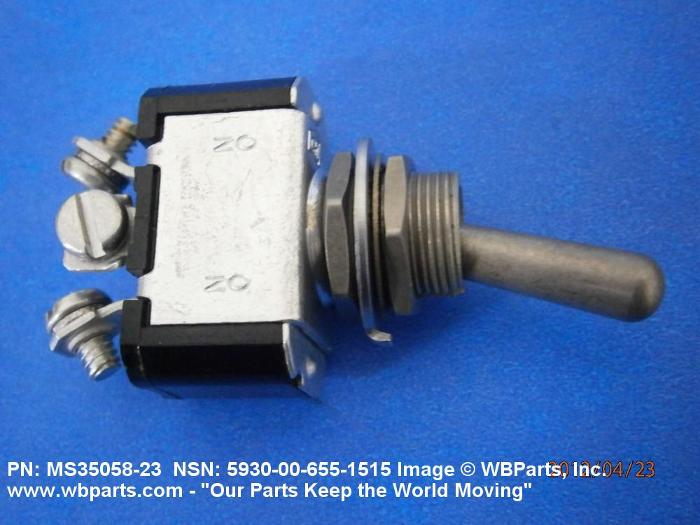

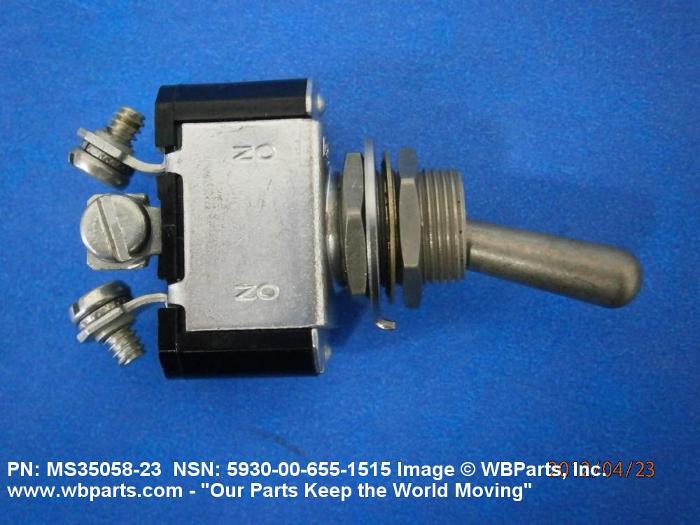

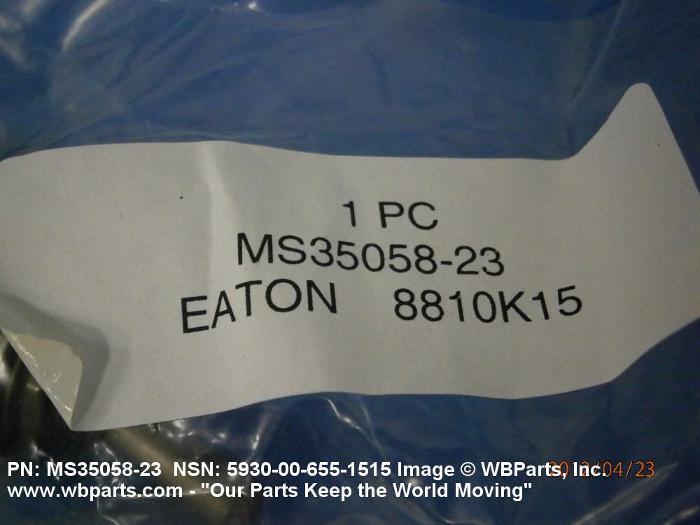

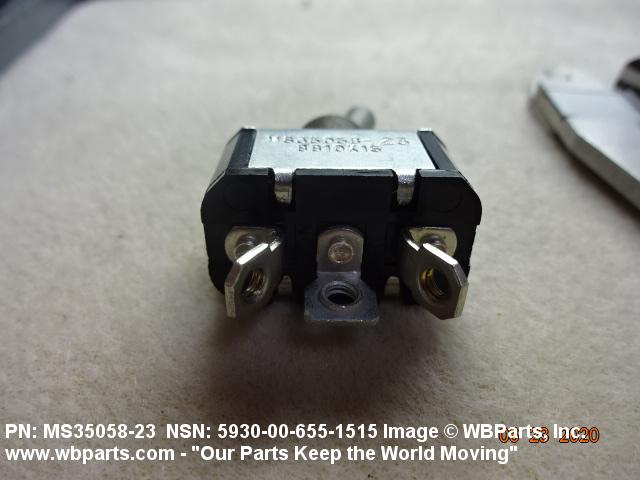

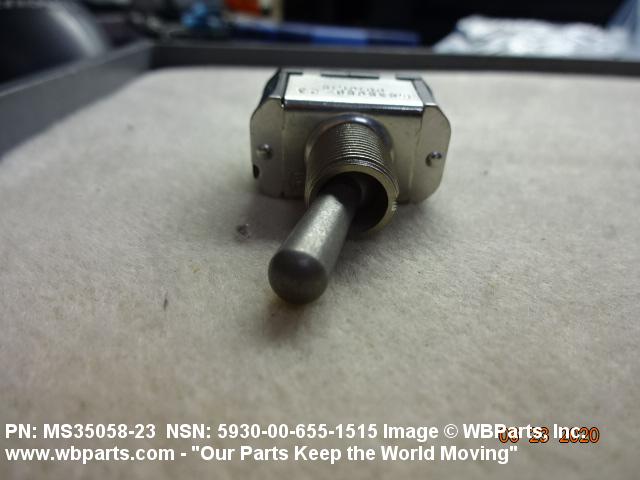

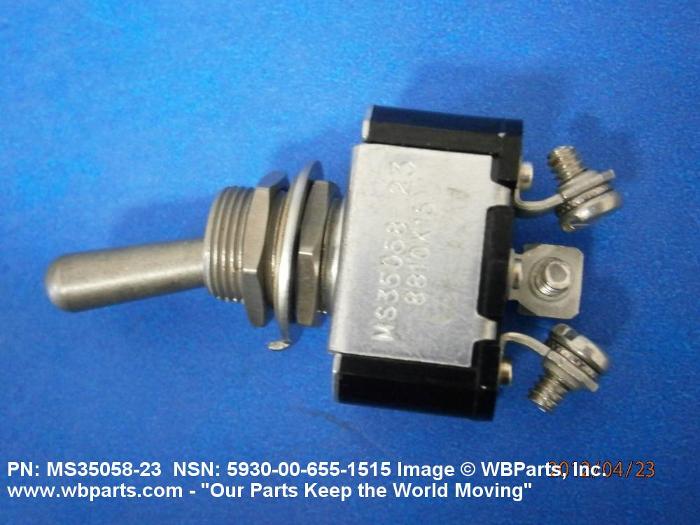

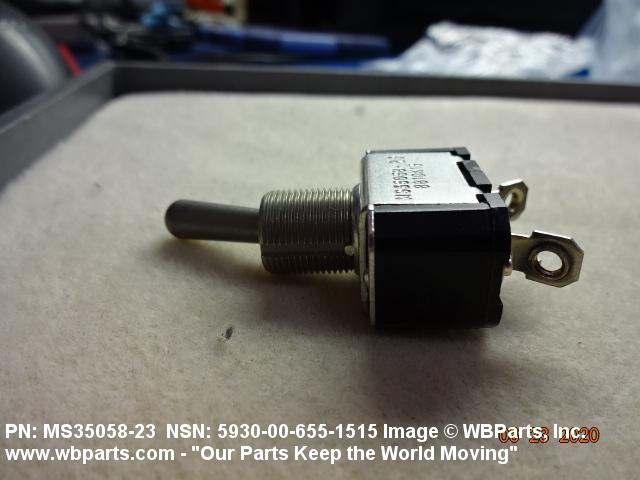

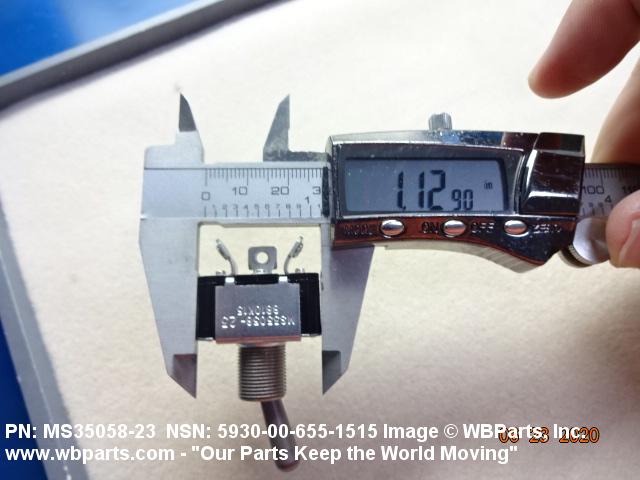

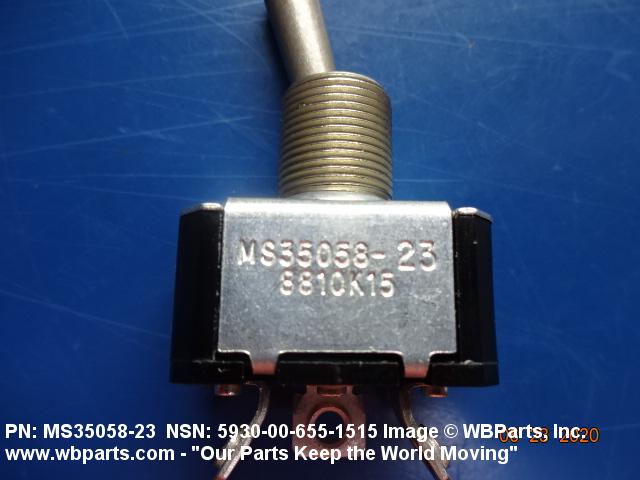

Drawings & Photos | NSN 5930-00-655-1515
Demand History | NSN 5930-00-655-1515
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-655-1515 | 2022-03-28 | 810 | DIBBS |
| 5930-00-655-1515 | 2022-03-17 | 810 | DIBBS |
| 5930-00-655-1515 | 2022-02-24 | 55 | DIBBS |
| 5930-00-655-1515 | 2021-08-19 | 141 | DIBBS |
| 5930-00-655-1515 | 2021-06-30 | 1 | United States |
| 5930-00-655-1515 | 2021-05-06 | 213 | DIBBS |
| 5930-00-655-1515 | 2021-04-12 | 43 | DIBBS |
| 5930-00-655-1515 | 2021-03-30 | 69 | DIBBS |
| 5930-00-655-1515 | 2021-03-18 | 591 | DIBBS |
| 5930-00-655-1515 | 2020-10-27 | 187 | DIBBS |
| 5930-00-655-1515 | 2020-10-01 | 144 | DIBBS |
| 5930-00-655-1515 | 2020-07-30 | 98 | DIBBS |
| 5930-00-655-1515 | 2020-05-04 | 5 | United States |
| 5930-00-655-1515 | 2020-03-25 | 5 | United States |
| 5930-00-655-1515 | 2020-03-25 | 5 | United States |
| 5930-00-655-1515 | 2020-01-09 | 127 | DIBBS |
| 5930-00-655-1515 | 2020-01-07 | 69 | DIBBS |
| 5930-00-655-1515 | 2019-11-19 | 85 | PK |
| 5930-00-655-1515 | 2019-09-13 | 100 | PK |
| 5930-00-655-1515 | 2018-06-07 | 314 | DIBBS |
| 5930-00-655-1515 | 2018-03-04 | 484 | DIBBS |
| 5930-00-655-1515 | 2017-04-25 | 794 | DIBBS |
| 5930-00-655-1515 | 2017-04-03 | 794 | DIBBS |
| 5930-00-655-1515 | 2017-03-02 | 703 | DIBBS |
| 5930-00-655-1515 | 2017-02-24 | 4 | United States |
| 5930-00-655-1515 | 2015-11-23 | 880 | DIBBS |
| 5930-00-655-1515 | 2015-10-28 | 1678 | DIBBS |
| 5930-00-655-1515 | 2015-09-27 | 1678 | DIBBS |
| MS3505823 | 2015-08-12 | 1 | United States |
| MS3505823 | 2015-03-26 | 6 | United States |
| MS3505823 | 2015-03-25 | 1 | United States |
| 5930-00-655-1515 | 2013-12-23 | 15 | Malaysia |
| MS3505823 | 2013-09-03 | 500 | GE |
| 5930-00-655-1515 | 2012-11-20 | 0 | DIBBS |
| MS3505823 | 2012-03-07 | 60 | United States |
| MS3505823 | 2012-03-05 | 60 | United States |
| 5930-00-655-1515 | 2012-02-28 | 400 | Italy |
| 5930-00-655-1515 | 2011-08-11 | 1 | PH |
| 5930-00-655-1515 | 2010-07-30 | 1450 | DIBBS |
| 8810K6 | 2010-07-13 | 1 | Australia |
| 5930-00-655-1515 | 2010-06-08 | 1400 | DIBBS |
| 5930-00-655-1515 | 2010-05-01 | 1063 | DIBBS |
| 5930-00-655-1515 | 2009-12-30 | 446 | DIBBS |
| 5930-00-655-1515 | 2009-09-03 | 4 | India |
| 5930-00-655-1515 | 2008-10-21 | 20 | US |
| 5930-00-655-1515 | 2008-04-29 | 992 | DIBBS |
| 5930-00-655-1515 | 2008-02-25 | 303 | DIBBS |
| 5930-00-655-1515 | 2007-08-13 | 1993 | DIBBS |
| 5930-00-655-1515 | 2007-06-24 | 128 | DIBBS |
| 5930-00-655-1515 | 2007-05-31 | 7 | DIBBS |
| 5930-00-655-1515 | 2007-04-30 | 10 | United States |
| 5930-00-655-1515 | 2007-01-31 | 292 | DIBBS |
Cross Reference | NSN 5930-00-655-1515
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 09N50N | 94830 | PELLERIN MILNOR CORPORATION DBA MILNOR LAUNDRY SYSTEMS |
| 100465 | 10237 | CADILLAC GAGE TEXTRON INC. |
| 1019208-8 | 07187 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 1034-D700-23 | 60756 | CEPEDA ASSOCIATES, INC. |
| 1107-105 | 10018 | AVAHO ACQUISITION CORP DBA IMPAC |
| 1157-0004 | 17794 | PACE, INCORPORATED DBA PACE WORLDWIDE |
| 1157-0004 | K6766 | ELECTRAUTOM LTD |
| 11612 | 04034 | GEMS SENSORS INC. |
| 11TS1-3 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 11TS15+3 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 122-10-4 | 88818 | KEARFOTT CORPORATION DBA KEARFOTT |
| 146-007-0005 | 95542 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 1560 | 17228 | JACKSON PRODUCTS CO |
| 16-790-00-154 | 78022 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 228-1001P4 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 228-1035P1 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 228-1258P15 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 23F201 | 02929 | NEWARK ELECTRONICS CORPORATION DBA NEWARK |
| 23F201 | 15605 | EATON CORP OPNS & TECHNICAL CENTER |
| 266-3067-00 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 266-3067-000 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 27-0035 | 18544 | TELLUROMETER-USA DIV OF PLESSEY INC |
| 292343-000 | 12436 | BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC. |
| 3007092 | 28527 | EXELIS INC. DBA ELECTRONIC SYSTEMS, INTEGRATED |
| 35058DM | 04009 | COOPER INDUSTRIES INC COOPER DISTRIBUTION EQUIPMENT DIV |
| 352258901676 | H0203 | THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS |
| 395-199-007 | 12570 | DRESSER-RAND HOLDINGS, LLC DBA SUBSIDIARY OF FIRST RESERVE |
| 3Z9863-40D | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| 400004-15 | 83330 | DIALIGHT CORPORATION |
| 400004-15 | 91967 | ABBATRON, LLC DIV ABBATRON LLC |
| 400004-15 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 4186300-060 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 4186300-60 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 452-0017-003 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 452-1341 | 11530 | LOCKHEED MARTIN CORPORATION DIV LOCKHEED MARTIN INFORMATION |
| 502683 | 21450 | ARMY WEAPONS COMMAND ATTN AMSWE-REE-S |
| 511-TSI-3 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 511TS1-3 | 15605 | EATON CORP OPNS & TECHNICAL CENTER |
| 511TS1-3 | 60756 | CEPEDA ASSOCIATES, INC. |
| 511TS1-3 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 511TS1-3 | K6596 | HONEYWELL CONTROL SYSTEMS LTD |
| 511TS1-3 | U4042 | HONEYWELL CONTROL SYSTEMS LTD DIV AUTOMATION & CONTROL SOLUTIONS - |
| 511TS1-6742 | 57217 | STRIEGEL SUPPLY INC |
| 5120167 | 24617 | GENERAL MOTORS CORP |
| 5120167 | 72582 | MTU AMERICA INC. |
| 5585734 PIECE 68 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 559E33-2058 | 75377 | KURZ & ROOT GENERATOR COMPANY LLC |
| 614534 | 60807 | MAGNA-TECH ELECTRONIC CO. INC. |
| 689-207 | 82386 | JAIDINGER MFG. CO., INC. DBA JAICO PRODUCTS |
| 7582K6 | 00752 | EDO CORPORATION DIV EDO CORPORATION AP&T |
| 7582K7 | 81640 | EATON CORPORATION DBA FLUID POWER DIV |
| 7586006P001 | 94117 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| 76111-3-0013 | H0068 | DSENERGY PROJECTS B.V. |
| 7655-160 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| 8-06907-5 | 15090 | RAYTHEON COMPANY DBA RAYTHEON |
| 81083 | 98853 | HAMILTON STANDARD ELECTRONICS SYSTEMS INC |
| 812031-0023 | 65597 | THALES DEFENSE & SECURITY, INC. |
| 8810K12 | 15605 | EATON CORP OPNS & TECHNICAL CENTER |
| 8810K15 | 08372 | EATON YALE LTD CUTLER-HAMMER INDUSTRIAL CONTROLS |
| 8810K15 | 15605 | EATON CORP OPNS & TECHNICAL CENTER |
| 8810K15 | 81640 | EATON CORPORATION DBA FLUID POWER DIV |
| 8810K22 | 81640 | EATON CORPORATION DBA FLUID POWER DIV |
| 8810K6 | 81640 | EATON CORPORATION DBA FLUID POWER DIV |
| 8810K6 | 88140 | EATON CORP CIRCUIT PROTECTIVE DEVICES DIV |
| 8816K4 | 15605 | EATON CORP OPNS & TECHNICAL CENTER |
| 8816K4 | 81640 | EATON CORPORATION DBA FLUID POWER DIV |
| 8816K5 | 15605 | EATON CORP OPNS & TECHNICAL CENTER |
| 8816K5 | 81640 | EATON CORPORATION DBA FLUID POWER DIV |
| 8816K6 | 15605 | EATON CORP OPNS & TECHNICAL CENTER |
| 8816K6 | 81640 | EATON CORPORATION DBA FLUID POWER DIV |
| 8816K9 | 81640 | EATON CORPORATION DBA FLUID POWER DIV |
| 8906K699 | 15605 | EATON CORP OPNS & TECHNICAL CENTER |
| 8906K699 | 81640 | EATON CORPORATION DBA FLUID POWER DIV |
| 902587 | 57633 | SCHAEFF NAMCO INC |
| 927-0223A | D2266 | GEMS SENSORS GMBH |
| 94575826 | 73559 | CARLING TECHNOLOGIES, INC DBA CARLINGSWITCH |
| 973.52.17.103 | S4080 | PILATUS AIRCRAFT LTD |
| 9999110 | 31498 | LJF CORP |
| 9N50N | 94830 | PELLERIN MILNOR CORPORATION DBA MILNOR LAUNDRY SYSTEMS |
| A7241 | 93742 | ENGINEERED ELECTRIC COMPANY DBA DRS FERMONT |
| AN3021-3 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN3021-3 | 98437 | ELLIS & WATTS INTERNATIONAL, LLC |
| CE216698 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| CH8810K12 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| CH8816K5 | 15605 | EATON CORP OPNS & TECHNICAL CENTER |
| CH8816K5 | 81640 | EATON CORPORATION DBA FLUID POWER DIV |
| H6678-11 | 12020 | OAK CRYSTAL INC |
| JHP39-706 | 02032 | HOLLINGSWORTH JOHN R CO |
| JHP39-711-1 | 02032 | HOLLINGSWORTH JOHN R CO |
| L-40-D | 73586 | CIRCLE F INDUSTRIES |
| L00216 | 16236 | DLA LAND AND MARITIME |
| MIL-DTL-83731 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-S-83731 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS35058-15 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35058-23 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS35058-23 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35058-4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| RA1157-0004AA | 17794 | PACE, INCORPORATED DBA PACE WORLDWIDE |
| S62-1697 | 48294 | PSI-PERIPHERAL SUPPORT |
| ST40D | 55459 | EATON CORP AEROSPACE AND COMMERCIAL CONTROLS |
| ST40D | 55588 | EATON ELECTRICAL INC. DBA CUTTLER HMMER CMRCL CNTRLS DIV |
| ST40D | 81350 | JOINT ARMY-NAVY SPECIFICATIONS PROMULGATED BY MILITARY DEPARTMENTS |
| ST42D | 00062 | MARINE ELECTRIC SYSTEMS, INC. DBA MESYS |
| ST42D | 09062 | CRANE ELECTRONICS, INC. |
| ST42D | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| ST42D | 31356 | LEE CO THE J B T DIV |
| ST840002-23 | 80249 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| TIP00002 | 97403 | CECOM LR CENTER |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5930-00-655-1515
Related Products | NSN 5930-00-655-1515
5930-00-655-1516, 5930-00-655-1517, 5930-00-655-1518, 5930-00-655-1520, 5930-00-655-1521
Technical Data | NSN 5930-00-655-1515
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 25.000 AMPERES RESISTIVE DC AND 15.000 AMPERES INDUCTIVE DC AND 7.000 AMPERES LAMP DC AND 10.000 AMPERES RESISTIVE AC AND 10.000 AMPERES INDUCTIVE AC AND 3.000 AMPERES LAMP AC |
| BODY STYLE | 7P BUSHING MOUNT |
| BUSHING LENGTH | 0.470 INCHES NOMINAL |
| BODY LENGTH | 1.157 INCHES MAXIMUM |

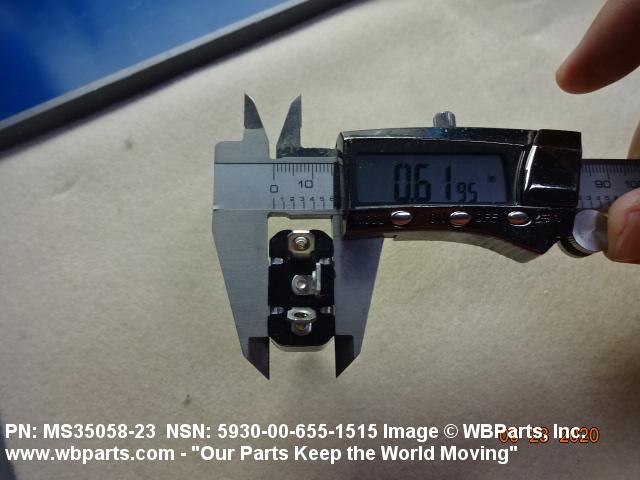

| BODY WIDTH | 0.641 INCHES MAXIMUM |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.078 INCHES MAXIMUM |
| OVERALL LENGTH | 1.157 INCHES MAXIMUM |
| OVERALL WIDTH | 0.641 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.238 INCHES NOMINAL |
| ACTUATOR STYLE | 25 ROUND |

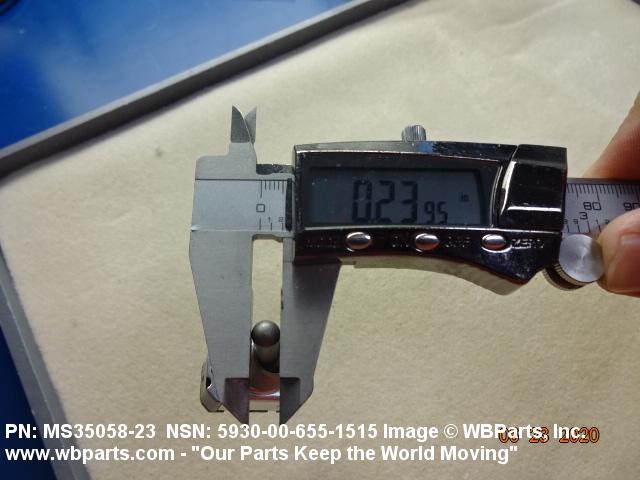

| ACTUATOR DIAMETER | 0.240 INCHES NOMINAL |

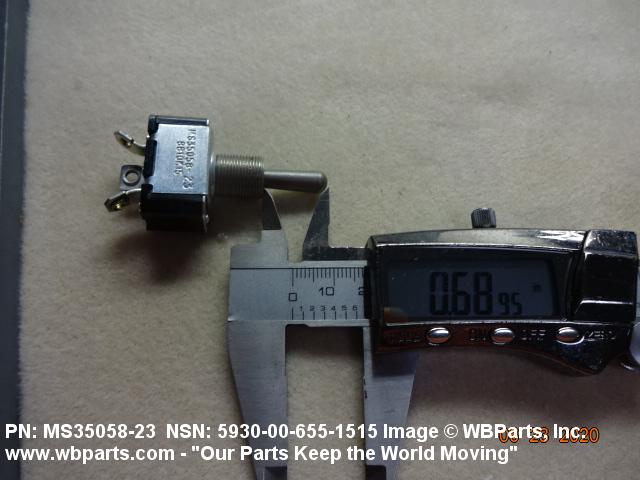

| ACTUATOR HEIGHT | 0.690 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED |
| TERMINAL TYPE AND QUANTITY | 3 TAB W/SCREW |
| INCLOSURE TYPE | FULLY INCLOSED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DRIPTIGHT |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.468 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
| FEATURES PROVIDED | ACTUATOR SEAL |
| TEST DATA DOCUMENT | 81349-MIL-DTL-83731 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 96906-MS35058 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-DTL-83731 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS35058-23 |
Restrictions/Controls & Freight Information | NSN 5930-00-655-1515
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-655-1515
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
