5930-00-655-1518 - TOGGLE SWITCH, MS3505818, MS35058-18, MS3505822

Product Details | TOGGLE SWITCH

5930-00-655-1518 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.

Part Alternates: MS3505818, MS35058-18, MS3505822, MS35058-22, MS3505827, MS35058-27, MS8812K14, A9073, AN30217, AN3021-7, CH8812K13, MILDTL83731, MIL-DTL-83731, MILS83731, MIL-S-83731, PM21323, 6FC6373, 6FC63-73, 706381 PIECE 101, 706381PIECE101, 1040025, 104-0025, 1104081615, 11040816-15, 11TS157, 11TS15-7, 125298, 125-29-8, 211TS117, 211TS11-7, 211TS17, 211TS1-7, 21248734, 2124873-4, 21323, 2281001P7, 228-1001P7, 266-3070-00, 2663070000, 266-3070-000, 308P190, 35058GM, 355-010-027, 368007, 368-007, 715055-124, 7587K5, 7587K6, 8120310027, 812031-0027, 817556, 82726, 8812K13, 8812K14, 92-9211-052 ITEM 12, 929211052ITEM12, 5930-00-655-1518, 00-655-1518, 5930006551518, 355010027, 266307000, 006551518, 715055124

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1961	00-655-1518	00184 ( SWITCH, TOGGLE )

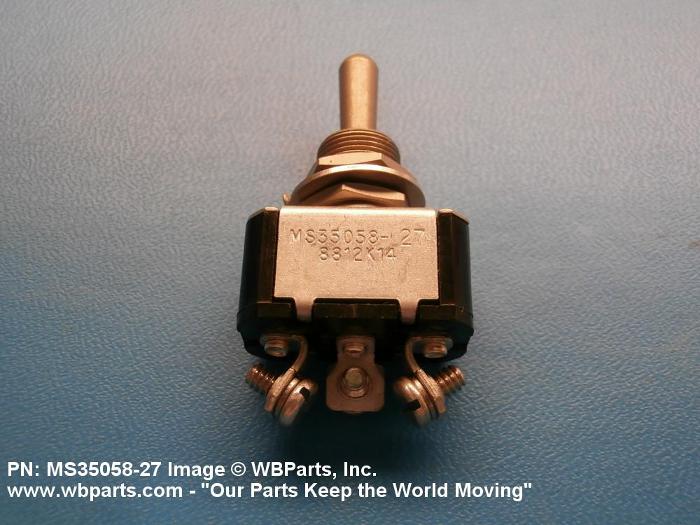

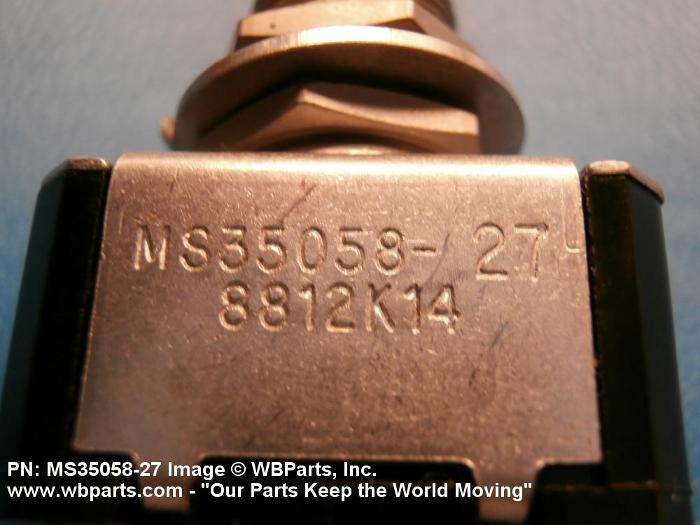

Drawings & Photos | NSN 5930-00-655-1518

Part Number	Request Date	QTY	Origin
MS3505822	2023-04-19	5	Taiwan
MS35058-22	2023-04-10	7	United States
5930-00-655-1518	2022-07-28	235	DIBBS
MS3505822	2021-11-17	4	US
5930-00-655-1518	2021-05-23	100	IL
MS3505827	2020-07-28	1	United States
5930-00-655-1518	2018-05-25	2	United States
MS3505827	2018-03-13	4	US
MS3505822	2017-01-10	1	US
5930-00-655-1518	2016-06-27	129	DIBBS
MS3505827	2015-06-18	1	US
MS3505822	2014-08-22	4	TH
5930-00-655-1518	2014-05-14	663	DIBBS
MS35058-22	2014-05-07	9	United States
MS35058-22	2014-05-07	9	United States
MS3505822	2014-05-02	9	United States
5930-00-655-1518	2013-12-13	266	DIBBS
5930-00-655-1518	2013-10-30	3	US
MS3505827	2013-09-03	250	GE
5930-00-655-1518	2013-04-02	134	DIBBS
MS35058-27	2012-11-05	16
5930-00-655-1518	2012-08-31	0	United States
8812K13	2012-08-31	10	United States
MS3505822	2012-03-14	2	United States
MS3505822	2012-03-08	20	United States
5930-00-655-1518	2011-10-13	310	DIBBS
MS35058-27	2011-09-19	12	PK
5930-00-655-1518	2011-07-30	485	DIBBS
5930-00-655-1518	2011-06-29	344	DIBBS
MS3505822	2011-02-13	280	IL
5930-00-655-1518	2010-06-07	396	DIBBS
MS3505822	2010-05-11	1	United States
5930-00-655-1518	2010-03-12	3	PE
MS3505822	2010-01-11	20	Turkey
MS3505822	2009-06-12	1	United States
5930-00-655-1518	2008-11-13	260	DIBBS
5930-00-655-1518	2008-04-04	75	DIBBS
5930-00-655-1518	2008-01-03	312	DIBBS
5930-00-655-1518	2007-06-07	253	DIBBS

Cross Reference | NSN 5930-00-655-1518

Part Number	Cage Code	Manufacturer
104-0025	93742	ENGINEERED ELECTRIC COMPANY DBA DRS FERMONT
11040816-15	18876	U S ARMY AVIATION AND MISSILE COMMAND
11TS15-7	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
125-29-8	25544	SEMIMETALS INC - WESTERN DIV
125-29-8	92755	NORTHROP GRUMMAN SYSTEMS CORPORATION DBA LAND & SELF PROTECTION SYSTEM
211TS1-7	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
211TS11-7	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
2124873-4	53711	NAVAL SEA SYSTEMS COMMAND
21323	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
228-1001P7	49956	RAYTHEON COMPANY DBA RAYTHEON
266-3070-00	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
266-3070-000	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
308P190	44940	CUMMINS POWER GENERATION INC.
35058GM	04009	COOPER INDUSTRIES INC COOPER DISTRIBUTION EQUIPMENT DIV
355-010-027	07421	INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS
368-007	58016	TEST DEVICES INC
6FC63-73	73559	CARLING TECHNOLOGIES, INC DBA CARLINGSWITCH
706381 PIECE 101	58475	WESTWOOD CORPORATION DBA NMP DIVISION
715055-124	04009	COOPER INDUSTRIES INC COOPER DISTRIBUTION EQUIPMENT DIV
715055-124	16550	CAPSTAN AG SYSTEMS, INC DBA REMEX
7587K5	81640	EATON CORPORATION DBA FLUID POWER DIV
7587K6	81640	EATON CORPORATION DBA FLUID POWER DIV
812031-0027	65597	THALES DEFENSE & SECURITY, INC.
817556	02280	AMERICAN HOIST AND DERRICK CO
82726	18192	COOPER CROUSE-HINDS LLC DBA AIRPORT LIGHTING DIVISION
8812K13	81640	EATON CORPORATION DBA FLUID POWER DIV
8812K13	88026	EATON CORP CUSTOM DISTRIBUTION AND CONTROL DIV
8812K14	08372	EATON YALE LTD CUTLER-HAMMER INDUSTRIAL CONTROLS
92-9211-052 ITEM 12	0BHF9	PRIME TECHNOLOGY, LLC
A9073	96787	STEWART AVIONICS INC
AN3021-7	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
CH8812K13	15605	EATON CORP OPNS & TECHNICAL CENTER
CH8812K13	27192	DRS POWER & CONTROL TECHNOLOGIES, INC.
MIL-DTL-83731	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-S-83731	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS35058-18	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35058-22	25204	ADMIRAL FILTER COMPANY LLC
MS35058-27	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS8812K14	81640	EATON CORPORATION DBA FLUID POWER DIV
PM21323	59501	UNISON INDUSTRIES, LLC

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5930-00-655-1518

Compare

Related Products | NSN 5930-00-655-1518

5930-00-655-1520, 5930-00-655-1521, 5930-00-655-1522, 5930-00-655-1523, 5930-00-655-1524

Technical Data | NSN 5930-00-655-1518

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	1 POLE, DOUBLE THROW, TWO POSITIONS MOMENTARY SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS	115.0 AC AND 28.0 DC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	20.000 AMPERES RESISTIVE DC AND 10.000 AMPERES INDUCTIVE DC AND 5.000 AMPERES LAMP DC AND 10.000 AMPERES RESISTIVE AC AND 7.000 AMPERES INDUCTIVE AC AND 2.000 AMPERES LAMP AC
BODY STYLE	7P BUSHING MOUNT
BUSHING LENGTH	0.470 INCHES NOMINAL
BODY LENGTH	1.157 INCHES MAXIMUM
BODY WIDTH	0.641 INCHES MAXIMUM
MOUNTING SURFACE TO TERMINAL END DISTANCE	1.078 INCHES MAXIMUM
OVERALL LENGTH	1.157 INCHES MAXIMUM
OVERALL WIDTH	0.641 INCHES MAXIMUM
OVERALL HEIGHT	2.238 INCHES NOMINAL
ACTUATOR STYLE	25 ROUND
ACTUATOR DIAMETER	0.240 INCHES NOMINAL
ACTUATOR HEIGHT	0.690 INCHES NOMINAL
ACTUATOR POSITION-ACTION RELATIONSHIP	UP POSITION MOMENTARY AND DOWN POSITION MOMENTARY AND CENTER POSITION MAINTAINED
TERMINAL TYPE AND QUANTITY	3 TAB W/SCREW
INCLOSURE TYPE	FULLY INCLOSED
MOUNTING METHOD	THREADED BUSHING
THREAD SERIES DESIGNATOR	UNS
NOMINAL THREAD SIZE	0.468 INCHES
THREAD CLASS	2A
THREAD QUANTITY PER INCH	32
FEATURES PROVIDED	ACTUATOR SEAL
TEST DATA DOCUMENT	81349-MIL-DTL-83731 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS35058 GOVERNMENT STANDARD
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-DTL-83731
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS35058-27
