Product Details | ELECTRICAL CONDUIT COUPLING NUT
5975-00-117-1084 An item of metallic composition with internal threads and an internal seat designed to join a ferrule capped conduit to a fitting. See also BONDNUT, ELECTRICAL CONDUIT.
Part Alternates: 10319878, 10-319878, 5975-00-117-1084, 00-117-1084, 5975001171084, 001171084
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 JAN 1973 | 00-117-1084 | 12814 ( NUT, COUPLING, ELECTRICAL CONDUIT ) |

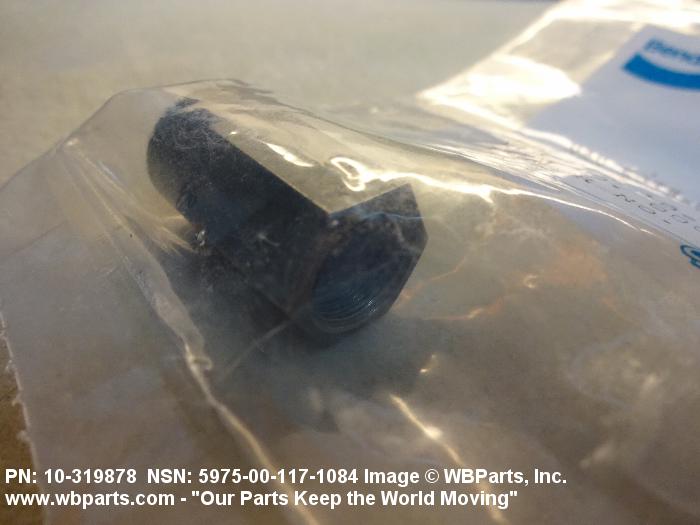

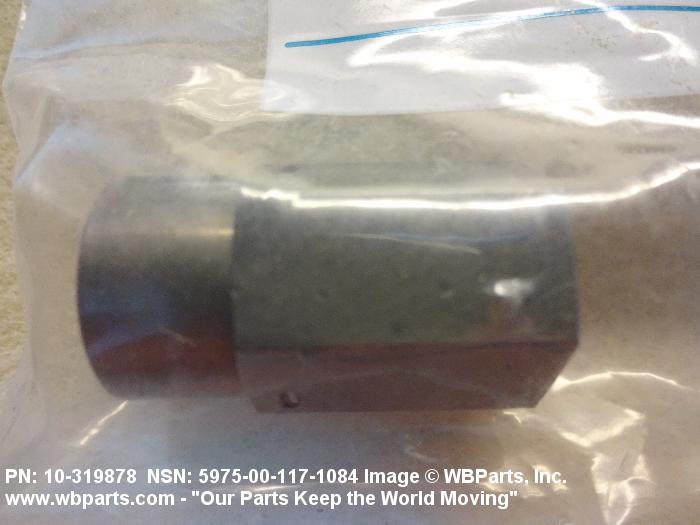

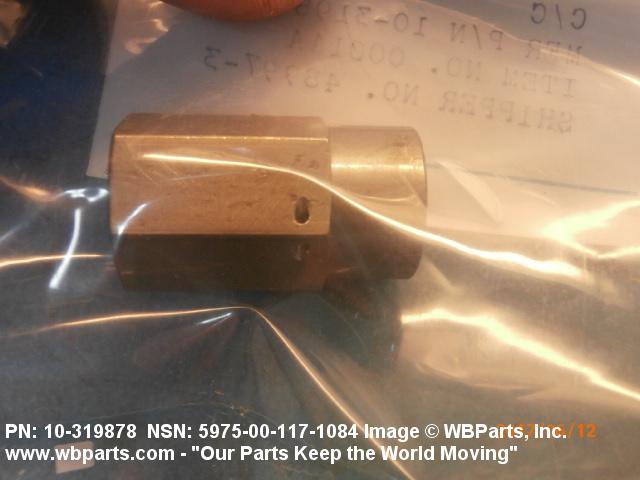

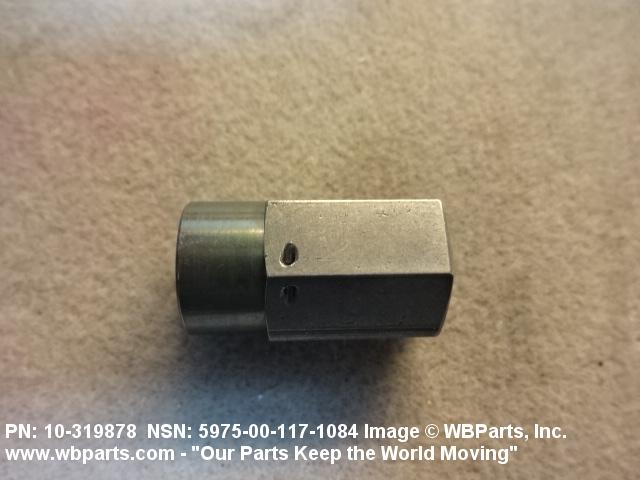

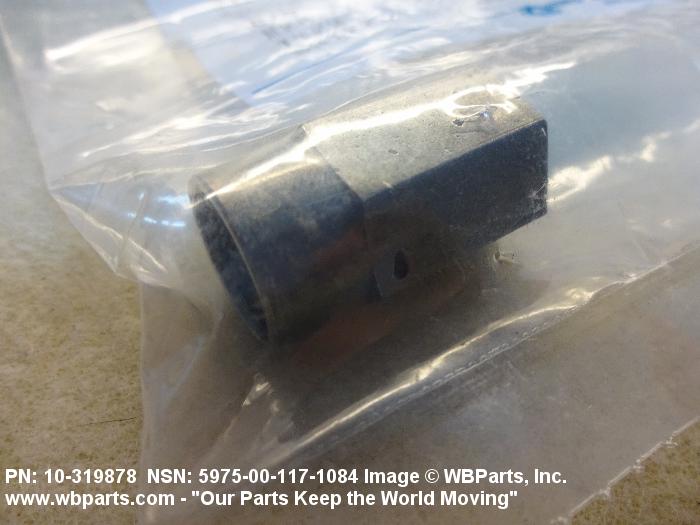

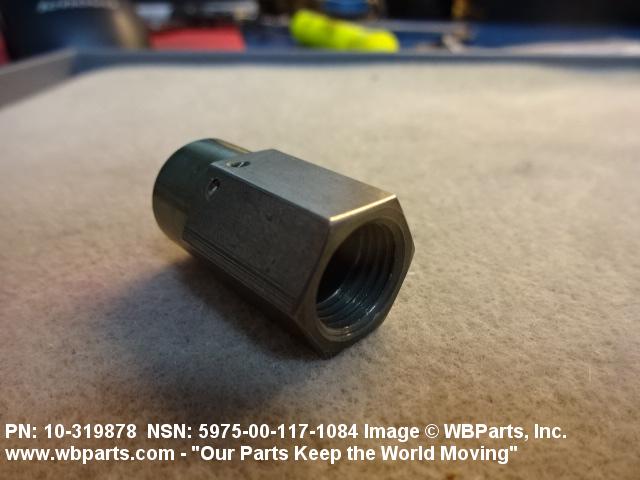

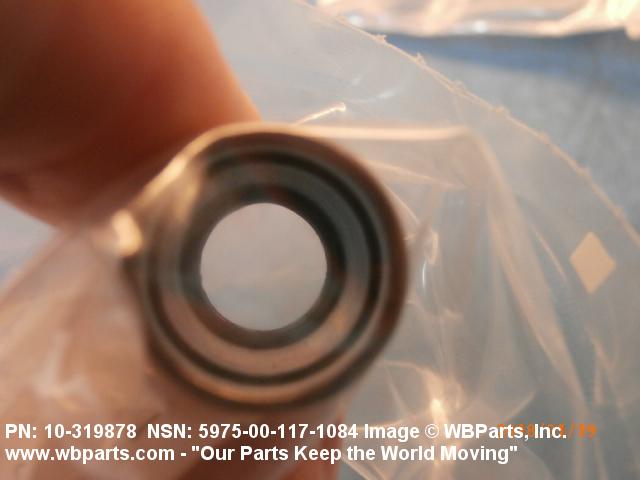

Drawings & Photos | NSN 5975-00-117-1084
Demand History | NSN 5975-00-117-1084
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 10319878 | 2022-12-08 | 10 | United States |
| 10319878 | 2022-04-26 | 4 | United States |
| 10319878 | 2022-04-26 | 10 | United States |
| 10319878 | 2020-07-23 | 1 | United States |
| 10319878 | 2018-04-02 | 8 | United States |
| 10319878 | 2018-01-15 | 8 | United States |
| 10319878 | 2017-12-08 | 4 | United States |
| 10319878 | 2017-08-04 | 7 | United States |
| 5975-00-117-1084 | 2017-07-05 | 4 | United States |
| 5975-00-117-1084 | 2017-06-01 | 4 | United States |
| 5975-00-117-1084 | 2010-04-26 | 5 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5975-00-117-1084
Related Products | NSN 5975-00-117-1084
5975-00-117-2860, 5975-00-117-3792, 5975-00-117-5630, 5975-00-117-8139, 5975-00-117-8323
Technical Data | NSN 5975-00-117-1084
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A48 HEXAGON |

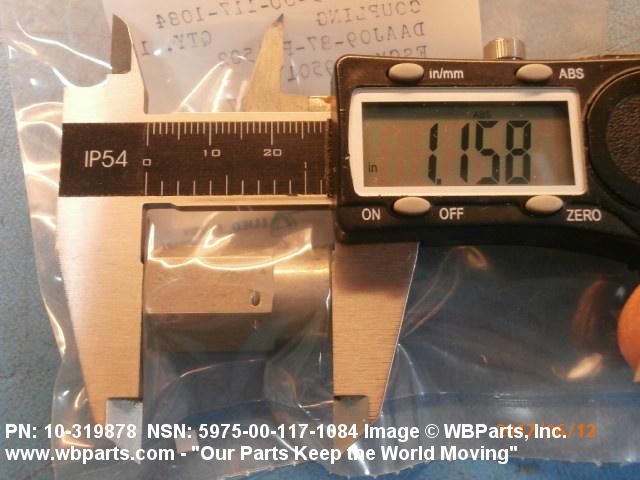

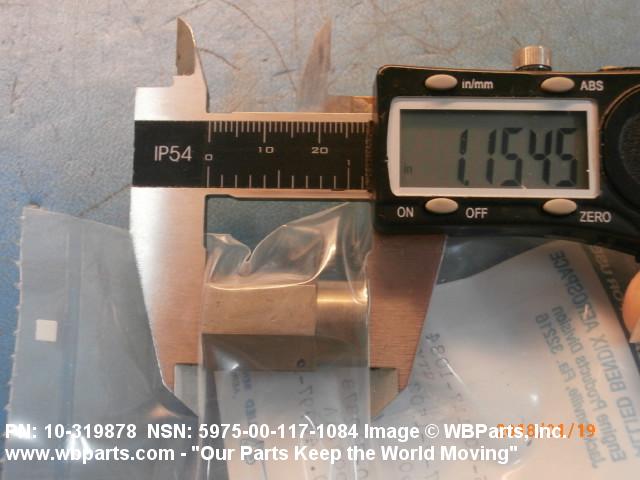

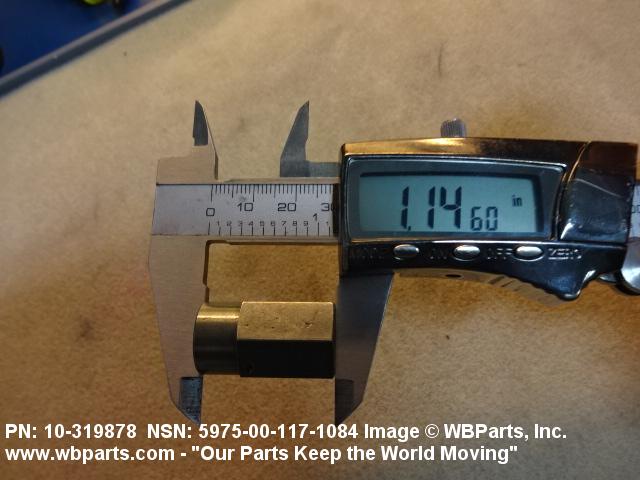

| OVERALL LENGTH | 1.144 INCHES NOMINAL |

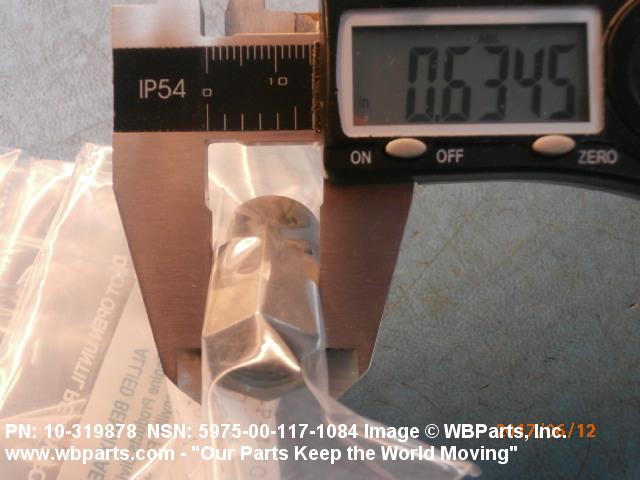

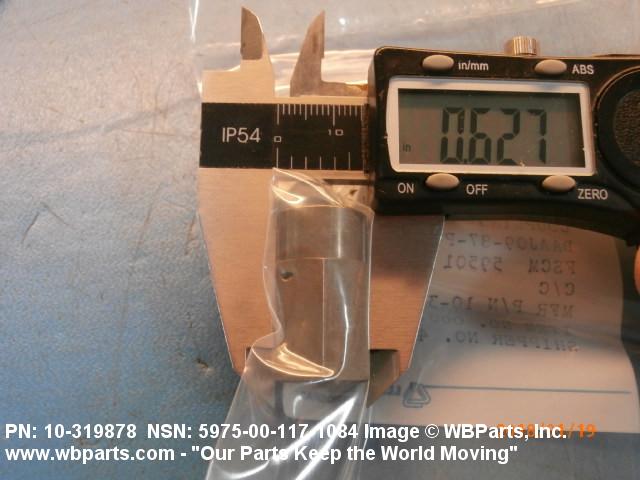

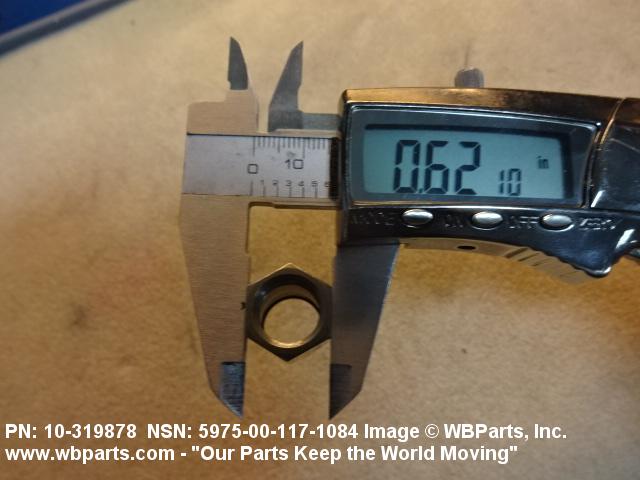

| WIDTH ACROSS FLATS | 0.625 INCHES NOMINAL |
| ITEM ACCOMMODATED TRADE SIZE | 0.250 INCHES SINGLE END |
| MATERIAL | STEEL STAINLESS |

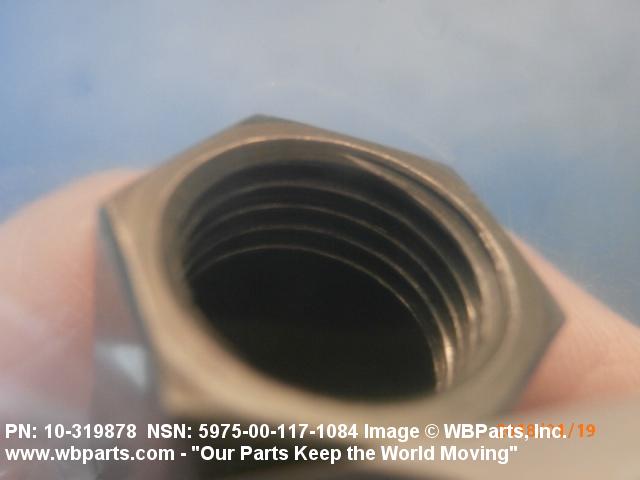

| THREAD SERIES DESIGNATOR | UNF SECOND END |
| NOMINAL THREAD SIZE | 0.500 INCHES SECOND END |
| THREAD CLASS | 2B SECOND END |
| THREAD LENGTH | 0.245 INCHES NOMINAL SECOND END |
| CONDUIT TYPE ACCOMMODATED | RIGID METALLIC THICKWALL SINGLE END |
| SPECIAL FEATURES | HEAT TREATED |
| MANUFACTURERS CODE | 59501 |
| DESIGN CONTROL REFERENCE | 10-319878 |
Restrictions/Controls & Freight Information | NSN 5975-00-117-1084
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-117-1084
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BB | AH-1, UH-1, OV-1 Turbine Engine |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
