Product Details | ELECTRICAL CONDUIT COUPLING NUT
5975-00-752-2746 An item of metallic composition with internal threads and an internal seat designed to join a ferrule capped conduit to a fitting. See also BONDNUT, ELECTRICAL CONDUIT.
Part Alternates: 10037005361, 10-037005-361, 1037005361, 10-37005-361, 8395482, 5975-00-752-2746, 00-752-2746, 5375007522746 , 5975007522746, 007522746
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-752-2746 | 12814 ( NUT, COUPLING, ELECTRICAL CONDUIT ) |
Drawings & Photos | NSN 5975-00-752-2746
Demand History | NSN 5975-00-752-2746
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5975-00-752-2746 | 2022-03-29 | 420 | TR |
| 8395482 | 2020-04-03 | 42 | United States |
| 5975-00-752-2746 | 2015-02-02 | 25 | United States |
| 5975-00-752-2746 | 2014-02-18 | 3 | United States |
| 5975-00-752-2746 | 2013-09-11 | 71 | UM |
| 5975-00-752-2746 | 2013-02-07 | 406 | DIBBS |
| 5975-00-752-2746 | 2013-01-28 | 66 | DIBBS |
| 5975-00-752-2746 | 2013-01-22 | 200 | DIBBS |
| 5975-00-752-2746 | 2013-01-13 | 66 | DIBBS |
| 10037005361 | 2011-11-28 | 100 | US |
| 5975-00-752-2746 | 2011-06-23 | 29 | DIBBS |
| 5975-00-752-2746 | 2011-06-23 | 40 | DIBBS |
| 8395482 | 2010-07-07 | 1 | US |
Cross Reference | NSN 5975-00-752-2746
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10-037005-361 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| 10-37005-361 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| 5375007522746 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 5975007522746 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 8395482 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5975-00-752-2746
Related Products | NSN 5975-00-752-2746
5975-00-752-2843, 5975-00-752-2936, 5975-00-752-2937, 5975-00-752-2938, 5975-00-752-2945
Technical Data | NSN 5975-00-752-2746
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A49 KNURLED/RIBBED |

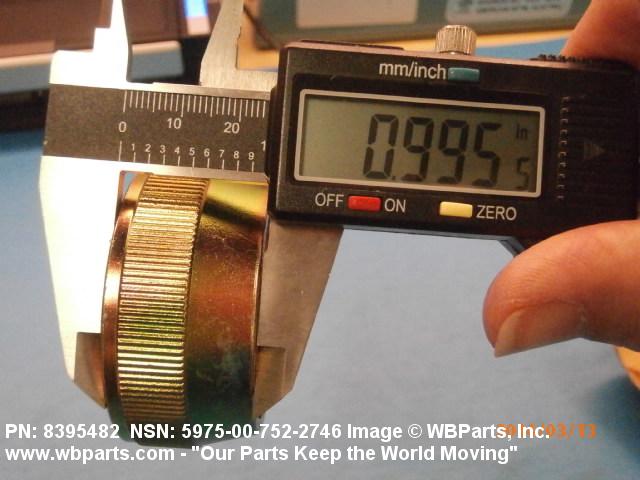

| OVERALL LENGTH | 1.000 INCHES NOMINAL |

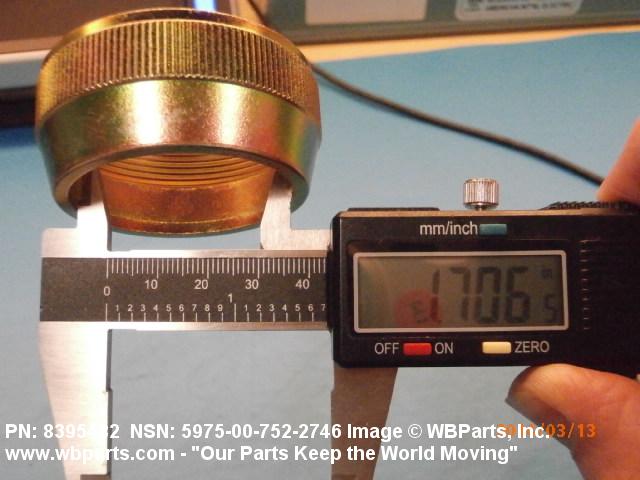

| SEAT END INSIDE DIAMETER | 1.719 INCHES NOMINAL |

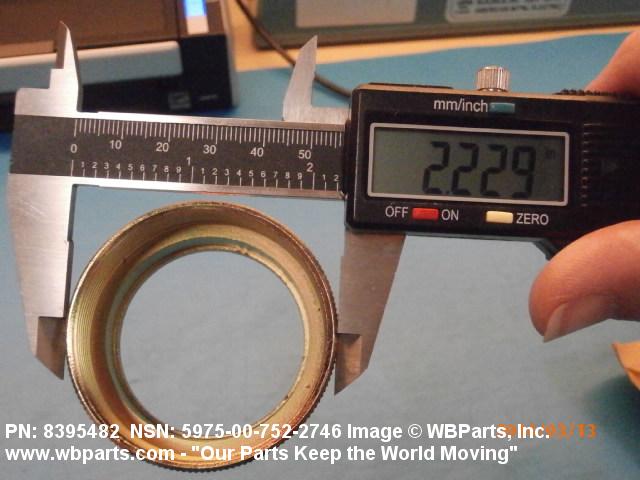

| OUTSIDE DIAMETER | 2.186 INCHES NOMINAL SINGLE END |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | CADMIUM |
| THREAD SERIES DESIGNATOR | UNS SINGLE END |
| NOMINAL THREAD SIZE | 2.062 INCHES SINGLE END |
| THREAD QUANTITY | 16 PER INCH SINGLE END |
| THREAD CLASS | 2B SINGLE END |
| THREAD LENGTH | 0.391 INCHES NOMINAL SINGLE END |
| CONDUIT TYPE ACCOMMODATED | RIGID METALLIC THINWALL SINGLE END |
Restrictions/Controls & Freight Information | NSN 5975-00-752-2746
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-752-2746
Army
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
