Product Details | ELECTRICAL CONDUIT ELBOW
5975-00-772-2342 An item fabricated in the form of an elbow and having both ends threaded female, or with unthreaded connecting facilities on both ends, or connecting facilities on both ends, one of which is a male thread without boss or shoulder. If a locknut or bondnut is included, it shall not be considered as a thread boss or shoulder. It is primarily intended to connect conduit to conduit. It may have a removable cover to facilitate pulling wires, but does not include facilities for mounting wiring devices. For items having a removable cover to facilitate pulling wires and specifically designed for close installation in exposed outdoor locations and which may have facilities for an outside driven ground, see ENTRANCE ELBOW, ELECTRICAL. For items with one end having a male thread with a boss or shoulder, see BOX CONNECTOR, ELECTRICAL. For items having a removable screw cap for pulling wires, with the cap positioned 45 degrees from the connection facilities, see ENTRANCE ELBOW, ELECTRICAL. For items fabricated in the form of an elbow having both ends threaded male, see BEND, ELECTRICAL CONDUIT.
Part Alternates: 6040695281, 60-40695-281, 7722342, 5975-00-772-2342, 00-772-2342, 5975007722342, 007722342
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-772-2342 | 06944 ( ELBOW, ELECTRICAL CONDUIT ) |

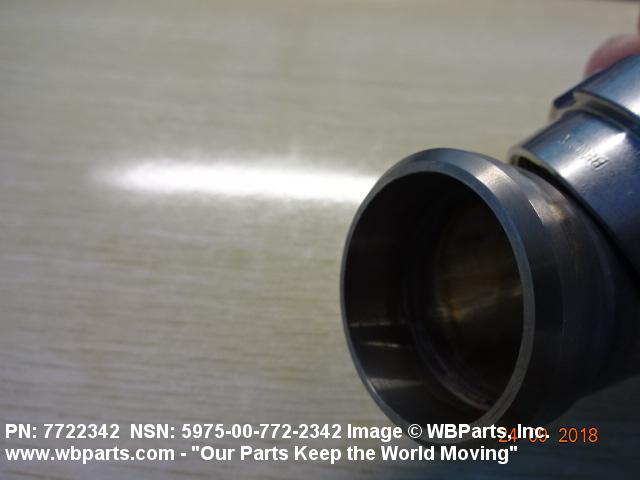

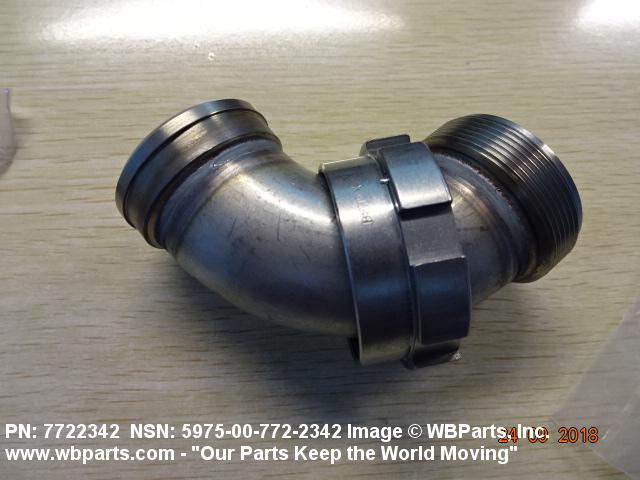

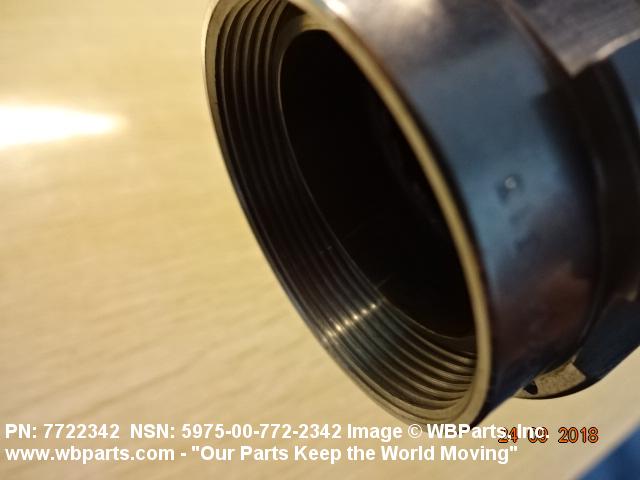

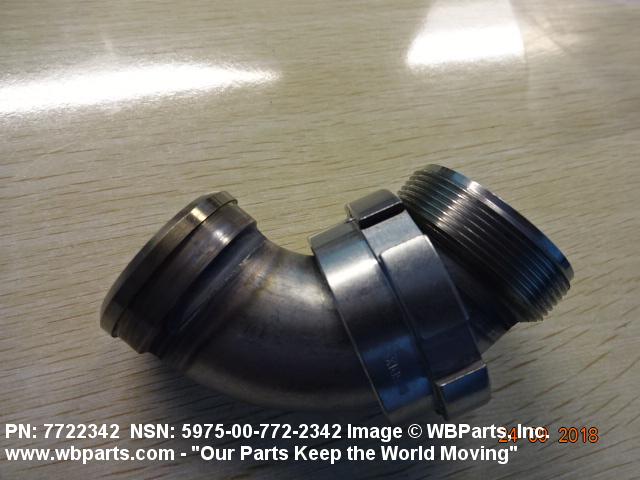

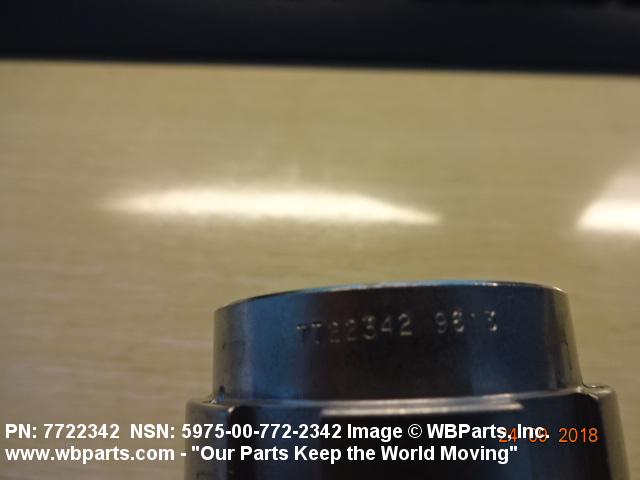

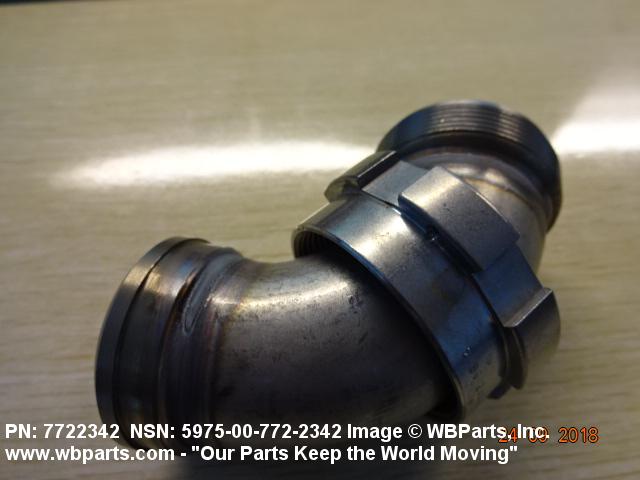

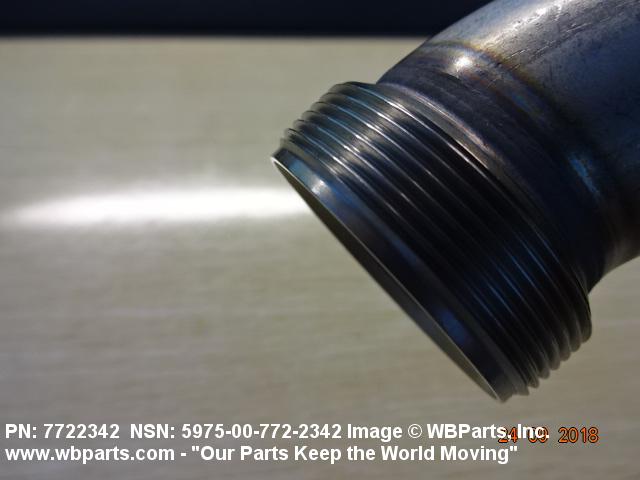

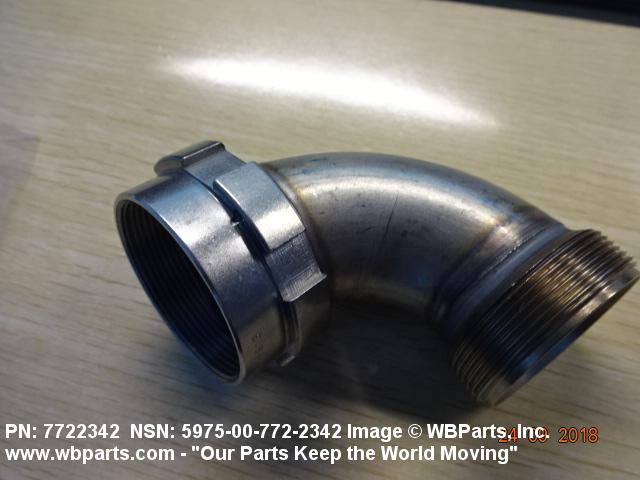

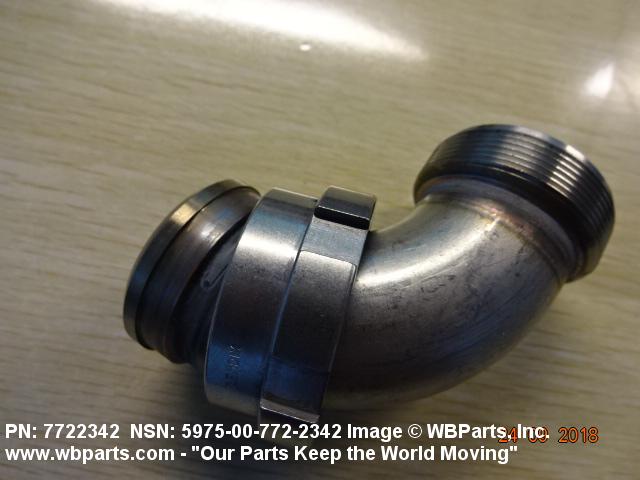

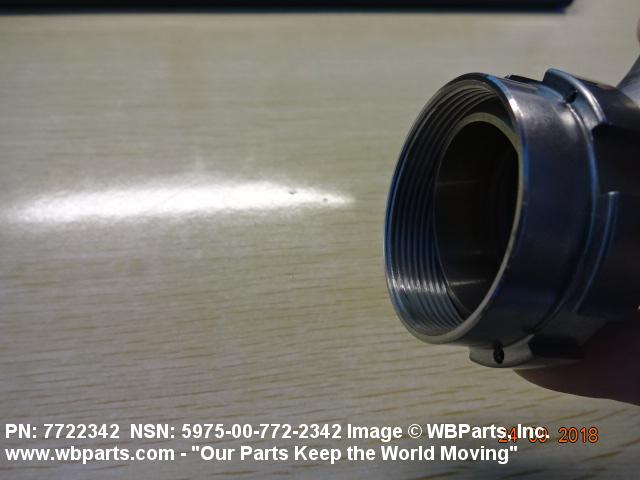

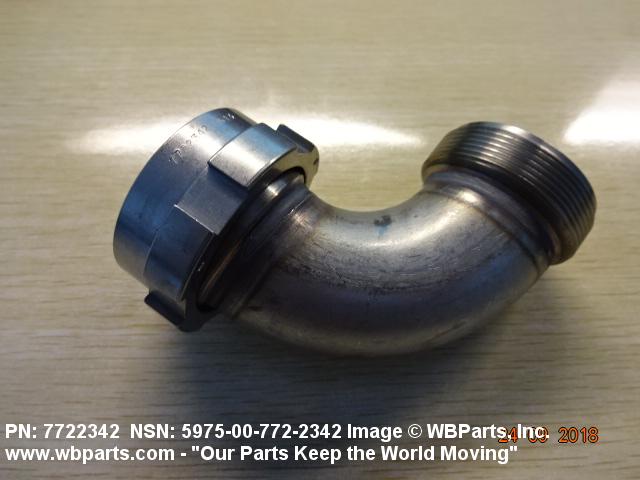

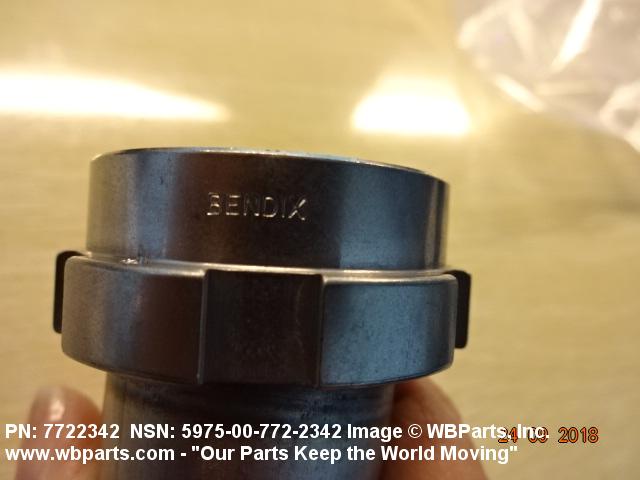

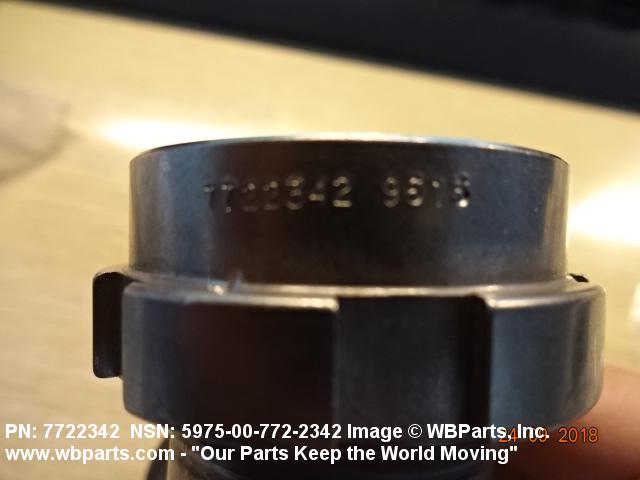

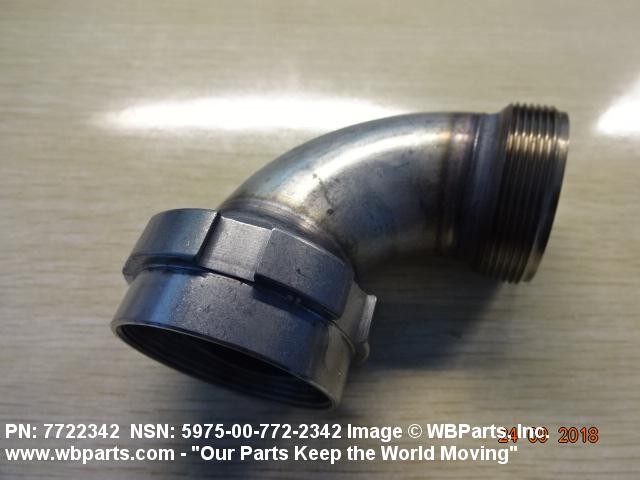

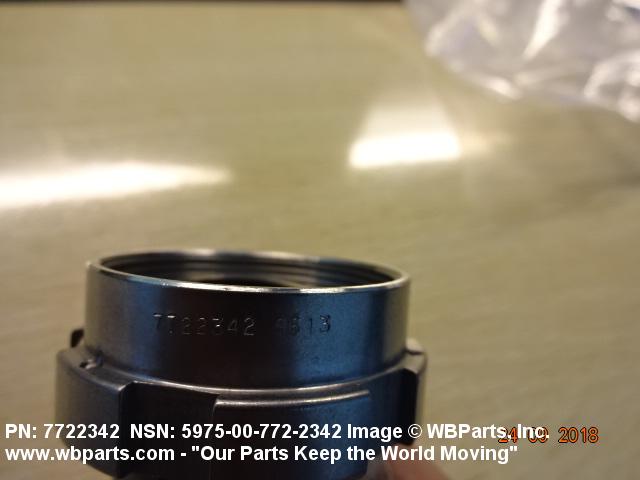

Drawings & Photos | NSN 5975-00-772-2342
Demand History | NSN 5975-00-772-2342
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5975-00-772-2342
5975-00-772-3900, 5975-00-772-5668, 5975-00-772-7510, 5975-00-772-7513, 5975-00-772-8002
Technical Data | NSN 5975-00-772-2342
| Characteristic | Specifications |
|---|---|
| III END ITEM IDENTIFICATION | M60 SERIES TANK AND M728 COMBAT ENGINEER VEHICLE |
Restrictions/Controls & Freight Information | NSN 5975-00-772-2342
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062010 | FITTINGS CONDUIT NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-772-2342
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
