Product Details | TURNBUCKLE BODY
1640-00-067-9875 A metal loop, sleeve or solid item having both ends threaded or one end threaded and the other end designed to accommodate a swivel. Items with both ends threaded shall have right hand screw threads on one and left hand screw threads on the other. It is a component of TURNBUCKLE. See also TIE ROD, TENSIONING, THREADED END. For items specifically designed for aviation, see TURNBUCKLE BODY, AVIATION.
Part Alternates: 000679875
Aircraft Components and Accessories | Aircraft Control Cable Products
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
16 | 00-067-9875 | 19315 ( TURNBUCKLE BODY ) |

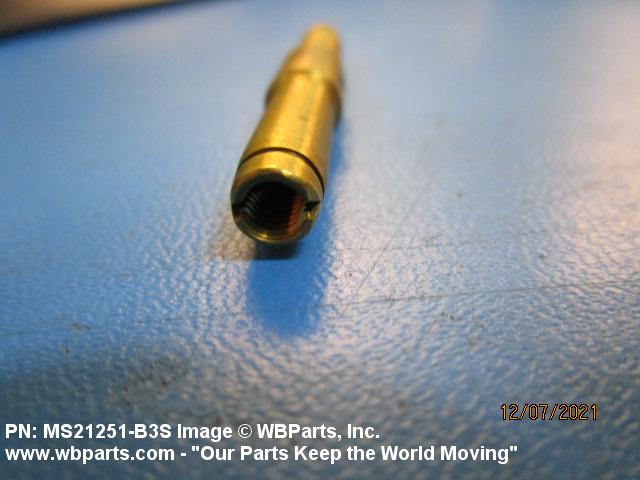

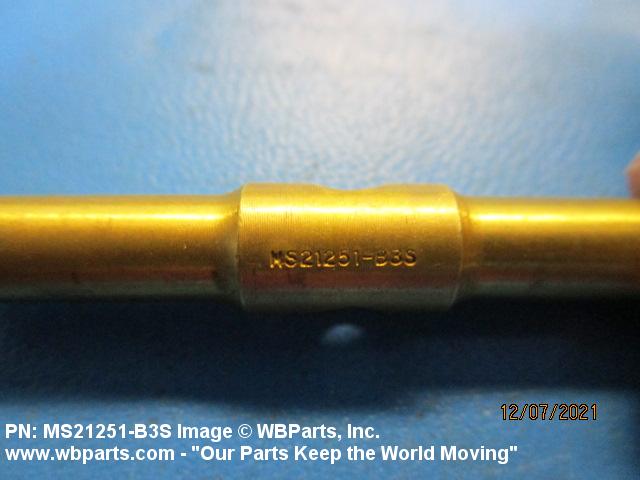

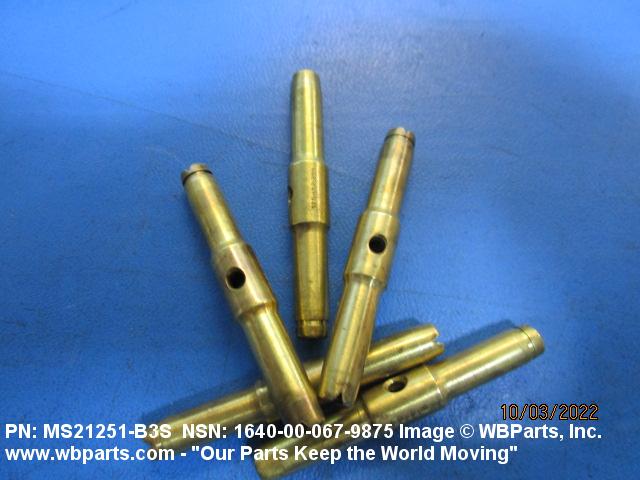

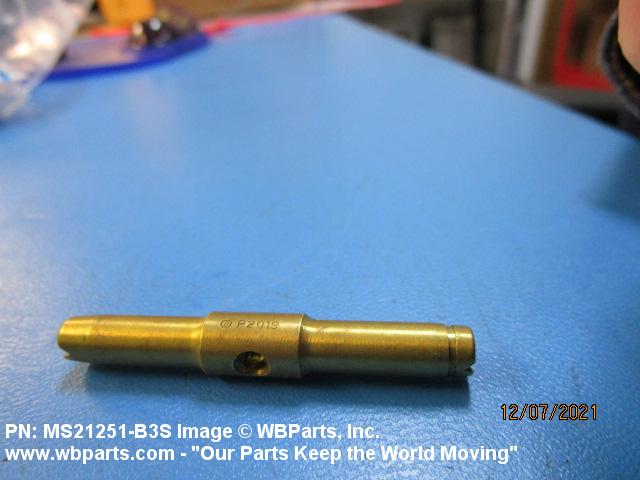

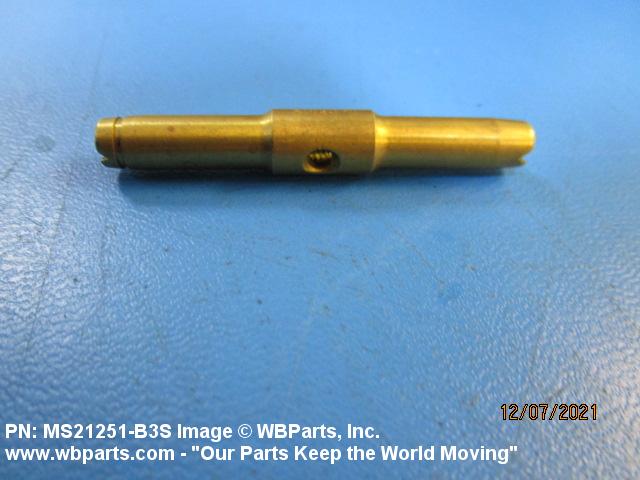

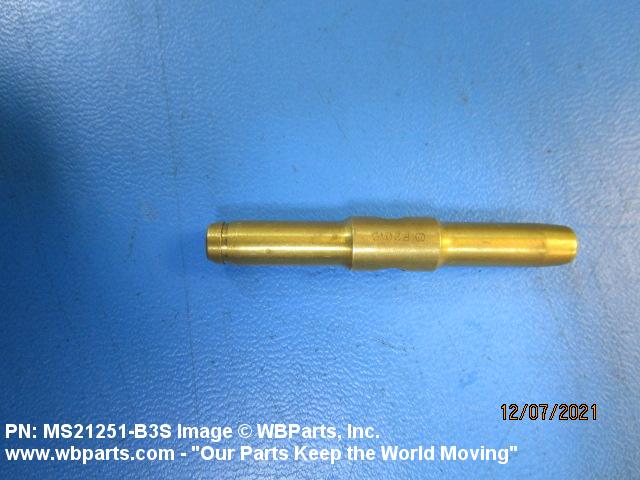

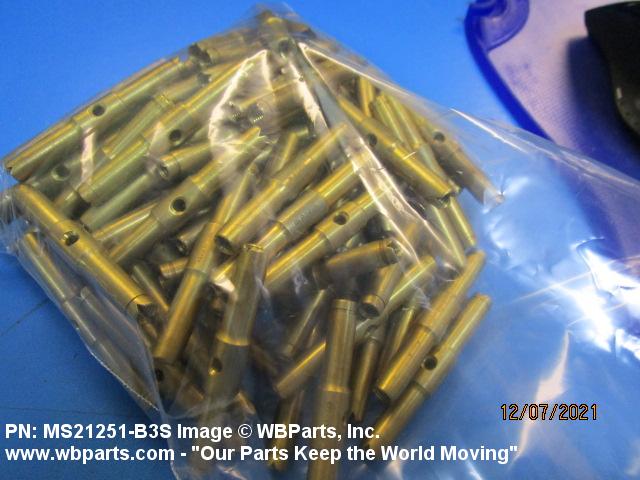

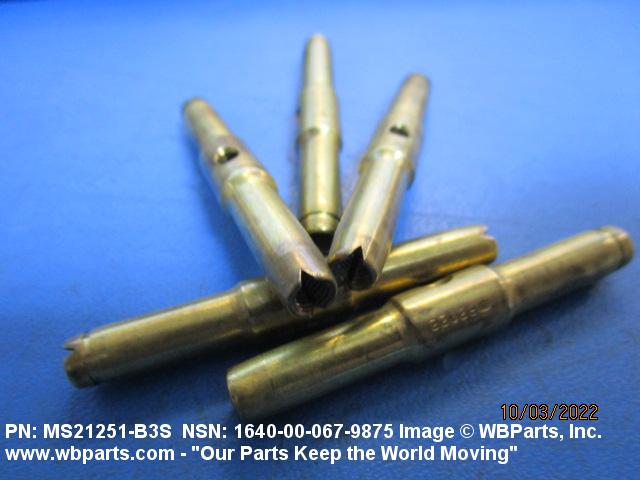

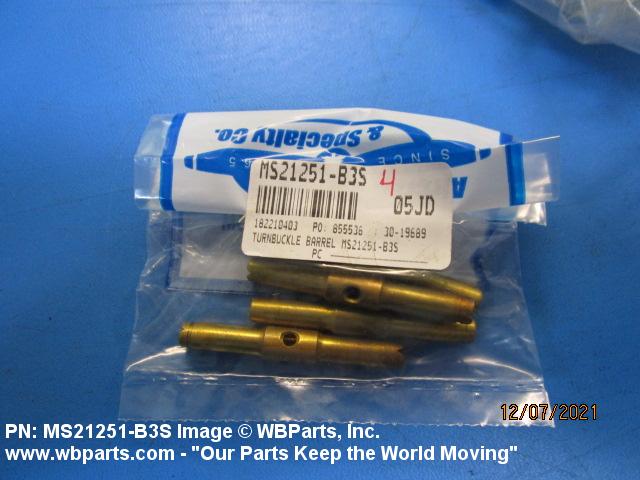

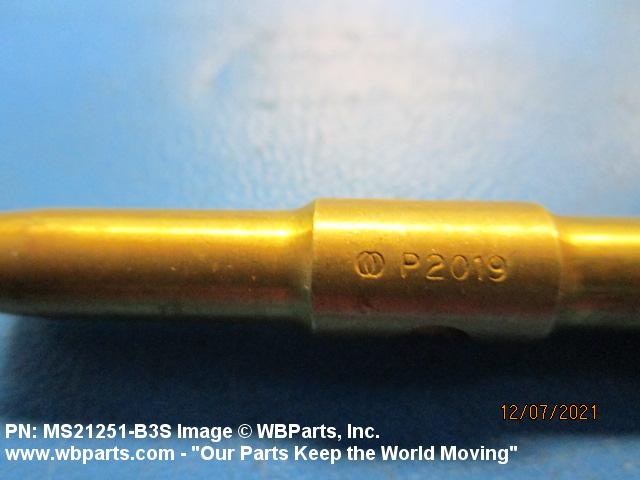

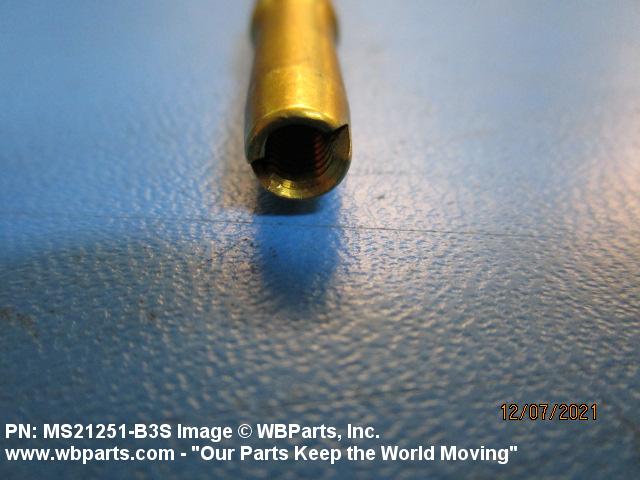

Drawings & Photos | NSN 1640-00-067-9875
Demand History | NSN 1640-00-067-9875
Request a Quote
Comments | What our customers are saying...
NSNs for Compare ( up to 4 ): Add 1640-00-067-9875
Related Products | NSN 1640-00-067-9875
1640-00-067-9877, 1640-00-067-9878, 1640-00-067-9879, 1640-00-067-9880, 1640-00-067-9882
Technical Data | NSN 1640-00-067-9875
Characteristic | Specifications |
---|---|
MATERIAL | COPPER ALLOY 482 OVERALL |
MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-637,COMP 2 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
THREAD SERIES DESIGNATOR | UNF BODY |
NOMINAL THREAD SIZE | 0.190 INCHES BODY |
THREAD CLASS | 3B BODY |
THREAD DIRECTION | RIGHT-HAND OVERALL |
THREAD LENGTH | 2.250 INCHES NOMINAL OVERALL |
BODY STYLE | 254 ROUND BODY W/LOCKING DEVICE |

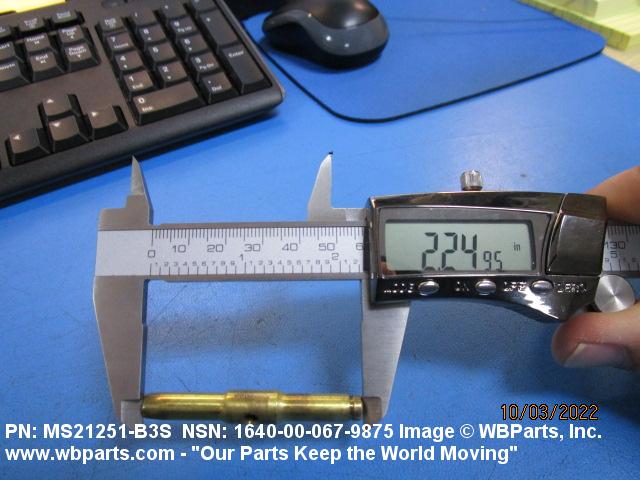

BODY LENGTH | 2.219 INCHES MINIMUM AND 2.281 INCHES MAXIMUM |
MANUFACTURERS CODE | 96906 |
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-DTL-8878 |
MANUFACTURERS CODE | 96906 |
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21251B3S |
Restrictions/Controls & Freight Information | NSN 1640-00-067-9875
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Category | Code | Description |
---|---|---|
No Freight Information |
