NSN 1005-00-614-7381 6147381, 00-614-7381, 006147381
Product Details | FRONT SIGHT BLADE
1005-00-614-7381 A narrow metal strip mounted perpendicular to a base and integral to a SIGHT, FRONT.20410050018Guns, through 30mm10100026Guns, over 30mm up to 75mm10150024Guns, 75mm through 125mm10550033Launchers, Rocket and Pyrotechnic
Part Alternates: 6147381, 1005-00-614-7381, 00-614-7381, 1005006147381, 006147381
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 10 | 01 JAN 1963 | 00-614-7381 | 22225 ( BLADE, FRONT SIGHT ) |
Drawings & Photos | NSN 1005-00-614-7381
Cross Reference | NSN 1005-00-614-7381
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6147381 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1005-00-614-7381
Related Products | NSN 1005-00-614-7381
Technical Data | NSN 1005-00-614-7381
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, QQ-S-631, COMP 1020-CANCELED OR STEEL, QQ-S-634, COMP 1018-CANCELED OR STEEL, QQ-S-634, COMP 1020-CANCELED OR ST1537 |
| SURFACE TREATMENT | PHOSPHATE, MIL-P-16232, TYPE M, CLASS 1 OR PHOSPHATE, MIL-P-16232, TYPE Z, CLASS 1 |

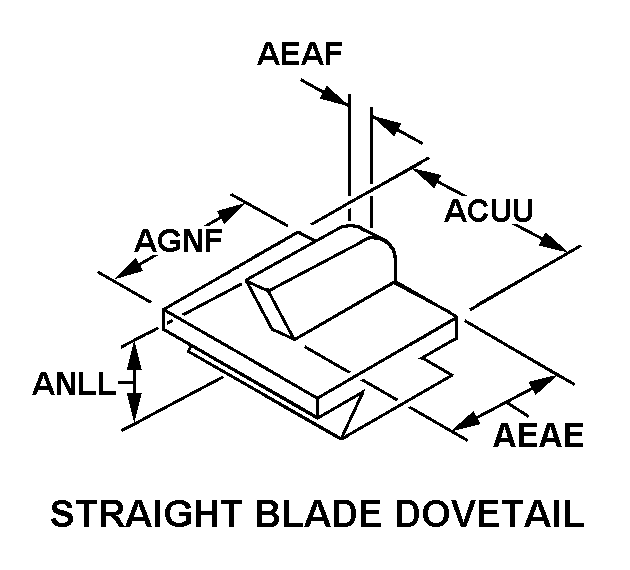

| STYLE DESIGNATOR | C2D STRAIGHT BLADE DOVETAIL |
| BASE WIDTH | 0.375 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
| BLADE LENGTH | 0.320 INCHES NOMINAL |
| BLADE WIDTH | 0.050 INCHES MINIMUM AND 0.055 INCHES MAXIMUM |
| BASE LENGTH | 0.395 INCHES MINIMUM AND 0.400 INCHES MAXIMUM |
| BLADE HEIGHT | 0.255 INCHES MINIMUM AND 0.259 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | 1005-674-1309 M1918A2 |
| III WEAPON SIZE DESIGNATION | .30 CALIBER, AUTOMATIC |
| III WEAPON MODEL NUMBER | M1918A2 |
| III FSC APPLICATION DATA | RIFLE,CAL..30 AUTOMATIC |
| MANUFACTURERS CODE | 19204 |
| DESIGN CONTROL REFERENCE | 6147381 |
Restrictions/Controls & Freight Information | NSN 1005-00-614-7381
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069300 | FIREARMS/PARTS NOI IN BOXES |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 682 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | 2 | Arms/Weapons (all types including Inert Component Parts). When a 2 is indicated in the first position, then the special handling code must be determined from table 85 , part 1. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1005-00-614-7381
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9H | Navy-owned stocks of consumable material managed by the Army within the Army Armament Materiel Readiness Command Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | B14 | US Army Armament and Chemical Acquisition and Logistics Activity ATTN: AMSTA-AC Rock Island, IL 61299-6000 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
