NSN 1005-00-652-8362 6528362, 00-652-8362, 006528362
Product Details | SMALL ARMS CLEANING BRUSH SET
1005-00-652-8362 A set of two or more BRUSH, CLEANING, SMALL ARMS designed for attachment to an integral handle.
Part Alternates: 6528362, 1005-00-652-8362, 00-652-8362, 1005006528362, 006528362
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 10 | 01 JAN 1963 | 00-652-8362 | 22502 ( BRUSH SET, CLEANING, SMALL ARMS ) |
Drawings & Photos | NSN 1005-00-652-8362
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1005-00-652-8362
Related Products | NSN 1005-00-652-8362
Technical Data | NSN 1005-00-652-8362
| Characteristic | Specifications |
|---|---|
| HANDLE TYPE | FLAT STOCK BENT |
| HANDLE OVERALL LENGTH | 1.500 INCHES NOMINAL |
| BRUSH PART MATERIAL | BRASS WIRE 1ST BRUSH PLASTIC 2ND BRUSH |

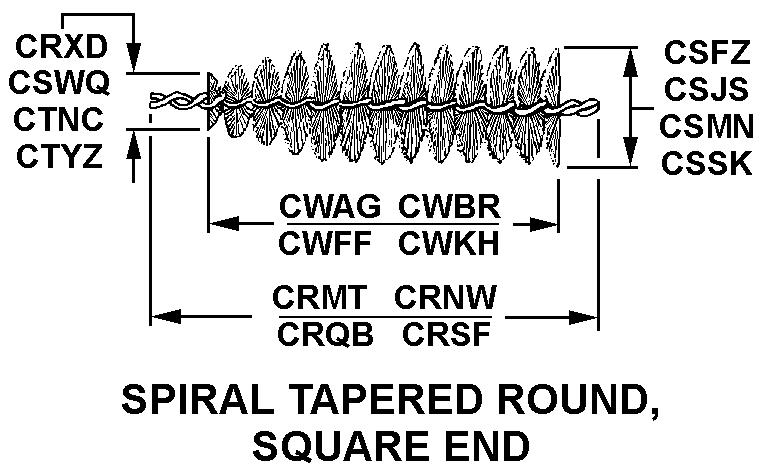

| FIRST BRUSH STYLE | L7 SPIRAL TAPERED ROUND, SQUARE END |
| FIRST BRUSH OVERALL LENGTH | 3.750 INCHES NOMINAL |
| FIRST BRUSH DIAMETER OF BRUSH PART | 0.600 INCHES MINIMUM AND 0.631 INCHES MAXIMUM |
| FIRST BRUSH LENGTH OF BRUSH PART | 3.000 INCHES NOMINAL |
| FIRST BRUSH TAPERED BRUSH PART MINOR DIAMETER | 0.300 INCHES MINIMUM AND 0.331 INCHES MAXIMUM |
| SECOND BRUSH RELATIONSHIP TO FIRST BRUSH | NOT IDENTICAL |

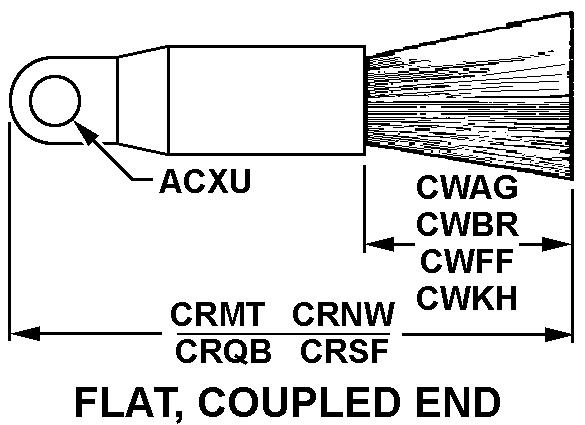

| SECOND BRUSH STYLE | L8 FLAT, COUPLED END |
| SECOND BRUSH OVERALL LENGTH | 1.969 INCHES NOMINAL |
| SECOND BRUSH LENGTH OF BRUSH PART | 0.719 INCHES NOMINAL |
| SPECIAL FEATURES | FIRST BRUSH CHINESE BRISTLE BLACKOR SPECKLED AND SECOND BRUSH WIRE CRIMPED STEEL |
Restrictions/Controls & Freight Information | NSN 1005-00-652-8362
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069300 | FIREARMS/PARTS NOI IN BOXES |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 682 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | 2 | Arms/Weapons (all types including Inert Component Parts). When a 2 is indicated in the first position, then the special handling code must be determined from table 85 , part 1. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1005-00-652-8362
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
