NSN 1005-00-716-1812 7161812, 00-716-1812, 007161812
Product Details | GUN STOCK EXTENSION
1005-00-716-1812 A metal item formed to fit the shoulder on one end and attached on the other end, to the frame or stock of a carbine, rifle, submachine gun or the like.
Part Alternates: 7161812, 1005-00-716-1812, 00-716-1812, 1005007161812, 007161812
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 10 | 01 JAN 1963 | 00-716-1812 | 22050 ( STOCK EXTENSION, GUN ) |
Drawings & Photos | NSN 1005-00-716-1812
Cross Reference | NSN 1005-00-716-1812
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7161812 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1005-00-716-1812
Related Products | NSN 1005-00-716-1812
Technical Data | NSN 1005-00-716-1812
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL,FED,QQ-S-634,COMPOSITION 1018 OR 1025,STOCK STEEL,FED,QQ-S-698,PLATE |
| COLOR | ANY ACCEPTABLE |
| WEAPON FOR WHICH DESIGNED | SUBMACHINE GUN |
| SIZE DESIGNATION | .45 CALIBER |
| MODEL NUMBER | M3 OR M3A1 |

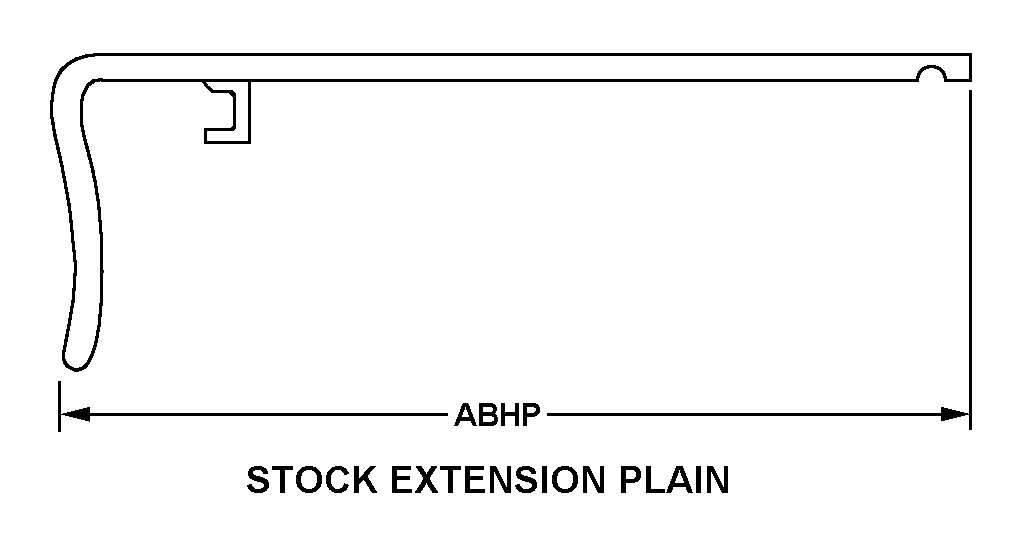

| STYLE DESIGNATOR | E2B STOCK EXTENSION PLAIN |
| OVERALL LENGTH | 11.940 INCHES MINIMUM AND 12.060 INCHES MAXIMUM |
| SPECIAL FEATURES | C/O STOCK P/N 7161932 AND PLATE P/N 7161907 AS WELDED ASSEMBLY |
| III WEAPON SIZE DESIGNATION | .45 CALIBER |
| III WEAPON MODEL NUMBER | M3 OR M3A1 |
| III FSC APPLICATION DATA | SUBMACHINE GUN,CAL..45 |
| MANUFACTURERS CODE | 19204 |
| DESIGN CONTROL REFERENCE | 7161812 |
Restrictions/Controls & Freight Information | NSN 1005-00-716-1812
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | N | FIREARMS PIECE PARTS AND NONLETHAL FIREARMS |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 146230 | GUNS MACHINE/PARTS NOI SM ARMS AMMO |
| Less than car load rating | G | 125 |
| Less than truck load rating | G | 125.0 |
| Water commodity Code | 747 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | 2 | Arms/Weapons (all types including Inert Component Parts). When a 2 is indicated in the first position, then the special handling code must be determined from table 85 , part 1. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1005-00-716-1812
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | M | Ammunition weapons, and tracked combat vehicles weapons, special weapons, chemical and fire control materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | H | Individual and Crew-Served Weapons |
| Weapons Systems/End Item or Homogeneous Group | HG | Submachine Gun, Caliber .45, M3/M3A1 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | B14 | US Army Armament and Chemical Acquisition and Logistics Activity ATTN: AMSTA-AC Rock Island, IL 61299-6000 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | N | FIREARMS PIECE PARTS AND NONLETHAL FIREARMS |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 1 | Combat Essential End Item. End item equipments whose availability in a combat ready condition is essential for execution of the combat and training missions of the command. |
| Materiel Management Code | 1 | Ammunition and Ordnance Materiel10; 11; 12; 13 except 1336, 1337, 1338; 2350; 3470; 4925; 4931; 4933; 6650 |
| Echelon Management Code | 6 | ICP/DSSCs Weapon system-oriented consumable items assigned to another Service/Agency for integrated materiel management which are managed by the ICP on a complex basis and which have not been decontrolled by the Integrated Materiel Manager. |
| Source of Supply | B14 | US Army Armament and Chemical Acquisition and Logistics Activity ATTN: AMSTA-AC Rock Island, IL 61299-6000 |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | N | FIREARMS PIECE PARTS AND NONLETHAL FIREARMS |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9H | Navy-owned stocks of consumable material managed by the Army within the Army Armament Materiel Readiness Command Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | B14 | US Army Armament and Chemical Acquisition and Logistics Activity ATTN: AMSTA-AC Rock Island, IL 61299-6000 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | N | FIREARMS PIECE PARTS AND NONLETHAL FIREARMS |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
