NSN 1005-00-716-1845 7161845, 00-716-1845, 007161845
Product Details | SHOULDER GUN STOCK
1005-00-716-1845 An item usually made of hardwood to which the barrel assembly and other parts of a shoulder-fired gun are attached. It is usually designed in one piece, but some items may have a wooden or metal section for the attachment of gun parts to which a metal STOCK EXTENSION, GUN is attached.20310050018Guns, through 30mm10100026Guns, over 30mm up to 75mm10550033Launchers, Rocket and Pyrotechnic
Part Alternates: 7161845, 1005-00-716-1845, 00-716-1845, 1005007161845, 007161845
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 10 | 01 JAN 1963 | 00-716-1845 | 22048 ( STOCK, GUN, SHOULDER ) |
Drawings & Photos | NSN 1005-00-716-1845
Cross Reference | NSN 1005-00-716-1845
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7161845 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1005-00-716-1845
Technical Data | NSN 1005-00-716-1845
| Characteristic | Specifications |
|---|---|
| MATERIAL | WOOD, MIL-W-13871, TYPE 1 OR WOOD, MIL-W-13871, TYPE 2 |
| COLOR | ANY ACCEPTABLE |
| WEAPON FOR WHICH DESIGNED | CARBINE |
| SIZE DESIGNATION | .30 CALIBER |
| MODEL NUMBER | M1 OR M2 |

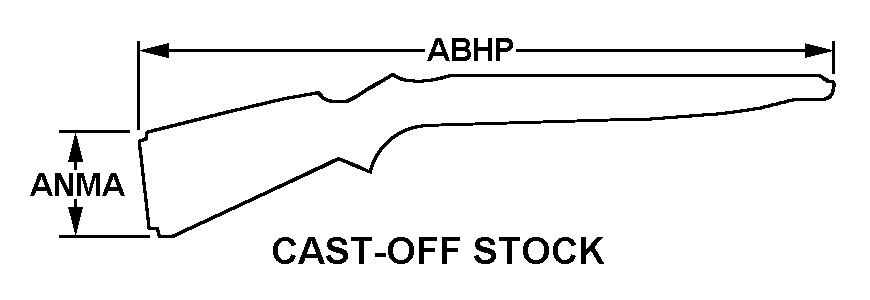

| STYLE DESIGNATOR | E6A CAST-OFF STOCK |
| OVERALL LENGTH | 28.290 INCHES MINIMUM AND 28.410 INCHES MAXIMUM |
| BUTT WIDTH | 3.990 INCHES MINIMUM AND 4.030 INCHES MAXIMUM |
| SPECIAL FEATURES | C/O STOCK P/N 7161844 AND ATTACHED COMPONENTS,SCREW P/N 5196442,NUTP/N 5196440 AND PLATE P/N 5557150 |
| III WEAPON SIZE DESIGNATION | .30 CALIBER |
| III WEAPON MODEL NUMBER | M1 OR M2 |
| III FSC APPLICATION DATA | CARBINE,CAL..30 |
| MANUFACTURERS CODE | 19204 |
| DESIGN CONTROL REFERENCE | 7161845 |
Restrictions/Controls & Freight Information | NSN 1005-00-716-1845
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 1005-00-716-1845
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9H | Navy-owned stocks of consumable material managed by the Army within the Army Armament Materiel Readiness Command Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | B14 | US Army Armament and Chemical Acquisition and Logistics Activity ATTN: AMSTA-AC Rock Island, IL 61299-6000 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
