NSN 1005-00-919-7278 047809 , 119925, 1199-25
Product Details | SMALL ARMS SLING SWIVEL
1005-00-919-7278 An elongated D-shaped hinged device mounted on the underside of the stock and fore-end of a shoulder fired weapon to accommodate a SLING, SMALL ARMS.
Part Alternates: 047809 , 119925, 1199-25 , 7267089, 1005-00-919-7278, 00-919-7278, 1005009197278, 009197278
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 10 | 01 JAN 1960 | 00-919-7278 | 31984 ( SWIVEL, SLING, SMALL ARMS ) |
Drawings & Photos | NSN 1005-00-919-7278
Demand History | NSN 1005-00-919-7278
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1005-00-919-7278 | 2014-04-105 | 63 | DIBBS |
| 1005-00-919-7278 | 2013-01-14 | 94 | DIBBS |
| 1005-00-919-7278 | 2012-04-107 | 110 | DIBBS |
| 1005-00-919-7278 | 2011-03-88 | 69 | DIBBS |
| 1005-00-919-7278 | 2010-08-232 | 251 | DIBBS |
Cross Reference | NSN 1005-00-919-7278
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7267089 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1005-00-919-7278
Related Products | NSN 1005-00-919-7278
Technical Data | NSN 1005-00-919-7278
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MAJOR COMPONENTS | RING,STRAP |

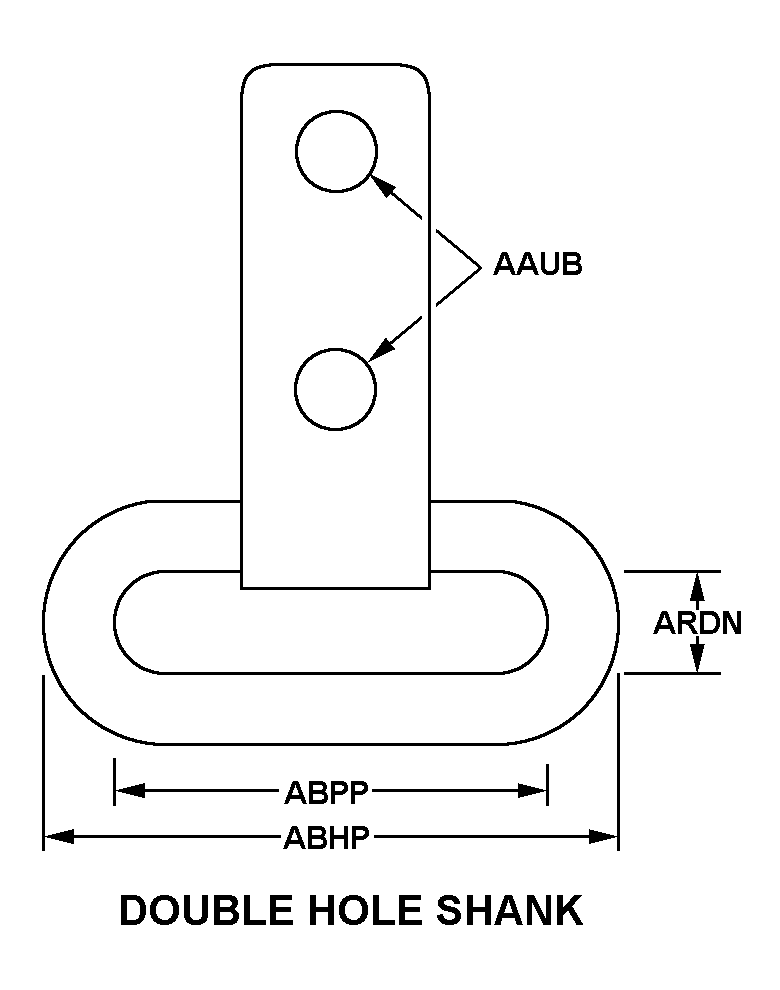

| STYLE DESIGNATOR | A6 DOUBLE HOLE SHANK |
| HOLE DIAMETER | 0.193 INCHES MINIMUM AND 0.198 INCHES MAXIMUM |
| OVERALL LENGTH | 1.749 INCHES NOMINAL |
| OPENING WIDTH | 1.365 INCHES MINIMUM AND 1.385 INCHES MAXIMUM |
| OPENING HEIGHT | 0.375 INCHES MINIMUM AND 0.395 INCHES MAXIMUM |
| III WEAPON SIZE DESIGNATION | 7.62 MILLIMETER |
| MANUFACTURERS CODE | 19204 |
| DESIGN CONTROL REFERENCE | 7267089 |
Restrictions/Controls & Freight Information | NSN 1005-00-919-7278
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069100 | FILTERS:CARTRIDGES/ELEMENTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1005-00-919-7278
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
