NSN 1005-01-283-3215 03038118, 03-038-118, 325133
Product Details | TRIGGER
1005-01-283-3215 An item/device, part of the firing mechanism, that actuates a firing pin or initiates an explosive train.20610050018Guns, through 30mm10100026Guns, over 30mm up to 75mm10150024Guns, 75mm through 125mm10250030Guns, over 150mm through 200mm10550033Launchers, Rocket and Pyrotechnic10950021Miscellaneous Weapons
Part Alternates: 03038118, 03-038-118, 325133, 3251336, 325133-6, 1005-01-283-3215, 01-283-3215, 1005012833215, 012833215
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 10 | 02 AUG 1988 | 01-283-3215 | 22223 ( TRIGGER ) |
Drawings & Photos | NSN 1005-01-283-3215
Demand History | NSN 1005-01-283-3215
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1005-01-283-3215 | 2016-03-75 | 303 | DIBBS |
| 1005-01-283-3215 | 2012-11-312 | 362 | DIBBS |
| 1005-01-283-3215 | 2012-09-263 | 484 | DIBBS |
| 1005-01-283-3215 | 2011-10-301 | 14 | DIBBS |
| 1005-01-283-3215 | 2010-09-252 | 92 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1005-01-283-3215
Technical Data | NSN 1005-01-283-3215
| Characteristic | Specifications |
|---|---|

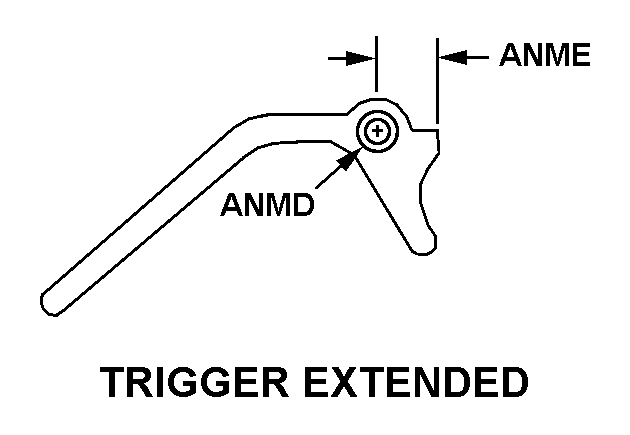

| STYLE DESIGNATOR | K10A TRIGGER EXTENDED |
| PIVOT HOLE DIAMETER | 0.218 INCHES NOMINAL |
| PIVOT HOLE DISTANCE FROM END | 0.406 INCHES NOMINAL |
| ATTACHMENT FACILITY AND COMPONENT ACCOMMODATED | DRILLED TRIGGER EXTENSION |
| III WEAPON SIZE DESIGNATION | .50 CALIBER |
| III WEAPON MODEL NUMBER | M0 |
Restrictions/Controls & Freight Information | NSN 1005-01-283-3215
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | Y | COMMUNICATION/ELECTRONIC EQUIPMENT AND PARTS |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069300 | FIREARMS/PARTS NOI IN BOXES |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 685 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | 2 | Arms/Weapons (all types including Inert Component Parts). When a 2 is indicated in the first position, then the special handling code must be determined from table 85 , part 1. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1005-01-283-3215
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | Y | COMMUNICATION/ELECTRONIC EQUIPMENT AND PARTS |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
