NSN 1010-00-767-5452 8765665, 00-767-5452, 007675452
Product Details | GUN SAFETY LOCK
1010-00-767-5452 An item activated only by a SAFETY (as modified) and designed to lock the hammer, SEAR; TRIGGER, or other components of the firing mechanism of a gun to prevent accidental discharge.20310050018Guns, through 30mm10100026Guns, over 30mm up to 75mm10150024Guns, 75mm through 125mm
Part Alternates: 8765665, 1010-00-767-5452, 00-767-5452, 1010007675452, 007675452
Weapons | Guns, over 30mm up to 75mm
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 10 | 01 JAN 1962 | 00-767-5452 | 22635 ( LOCK, GUN SAFETY ) |
Drawings & Photos | NSN 1010-00-767-5452
Cross Reference | NSN 1010-00-767-5452
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8765665 | 19206 | ARMY, UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1010-00-767-5452
Technical Data | NSN 1010-00-767-5452
| Characteristic | Specifications |
|---|---|

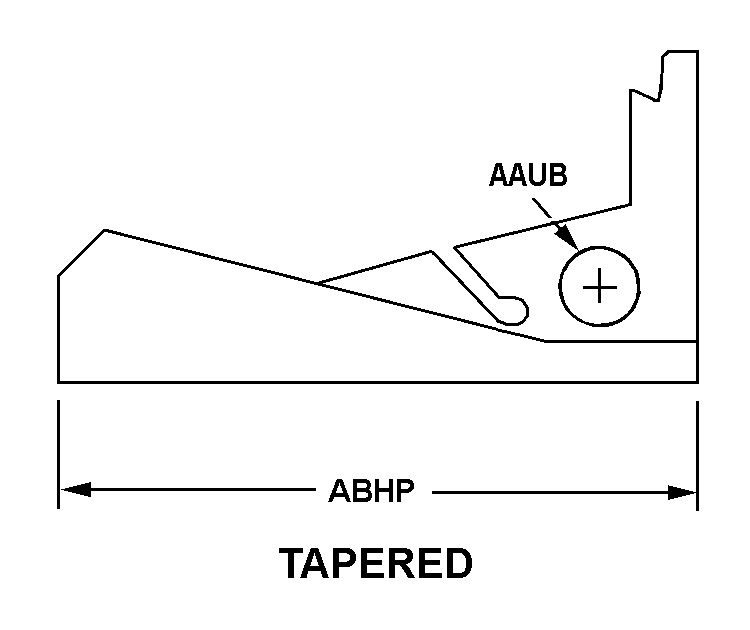

| STYLE DESIGNATOR | J3B TAPERED |
| HOLE DIAMETER | 0.286 INCHES NOMINAL |
| OVERALL LENGTH | 1.938 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | CATCH |
| SPECIAL FEATURES | W/DRILLED HOLE 0.094 IN. PLUS 0.003 DIA,0.160 IN. PLUS .005 DEEP,1/2 IN. FROM END 2/GREATEST H ON LONGITUDINAL CENTER LINE |
Restrictions/Controls & Freight Information | NSN 1010-00-767-5452
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069300 | FIREARMS/PARTS NOI IN BOXES |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 682 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | 2 | Arms/Weapons (all types including Inert Component Parts). When a 2 is indicated in the first position, then the special handling code must be determined from table 85 , part 1. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
