NSN 1015-00-550-3702 5503702, 00-550-3702, 005503702
Product Details | MORTAR MOUNT FOOT
1015-00-550-3702 A spiked metallic item with a rounded base designed for attachment to the end of a LEG, MORTAR MOUNT.20610100026Guns, over 30mm up to 75mm10150024Guns, 75mm through 125mm10200030Guns, over 125mm through 150mm10250030Guns, over 150mm through 200mm10300030Guns, over 200mm through 300mm10350016Guns, over 300mm
Part Alternates: 5503702, 1015-00-550-3702, 00-550-3702, 1015005503702, 005503702
Weapons | Guns, 75mm through 125mm
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 10 | 01 JAN 1963 | 00-550-3702 | 22615 ( FOOT, MORTAR MOUNT ) |
Drawings & Photos | NSN 1015-00-550-3702
Cross Reference | NSN 1015-00-550-3702
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5503702 | 19206 | ARMY, UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1015-00-550-3702
Technical Data | NSN 1015-00-550-3702
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON, MALLEABLE |
| SURFACE TREATMENT | PHOSPHATE |

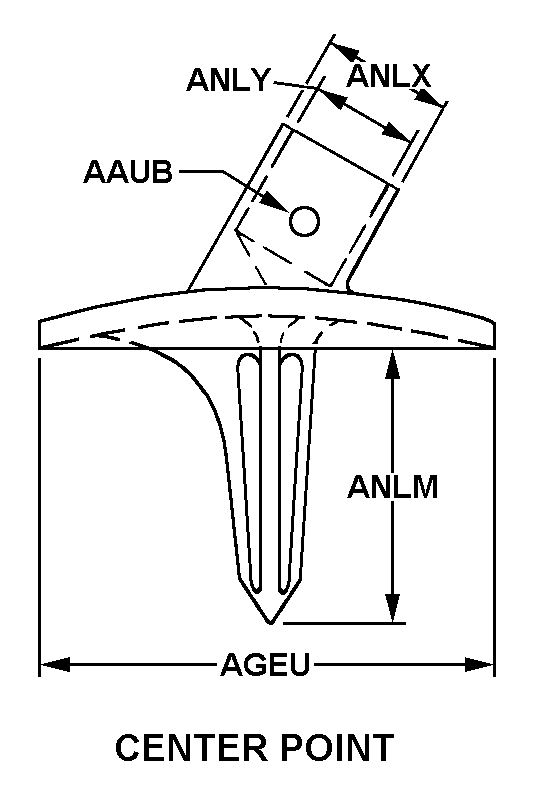

| STYLE DESIGNATOR | D1 CENTER POINT |
| HOLE DIAMETER | 0.196 INCHES NOMINAL |
| BASE DIAMETER | 4.563 INCHES NOMINAL |
| DISTANCE FROM BASE TO FOOT END | 2.875 INCHES NOMINAL |
| ATTACHMENT END OUTSIDE DIAMETER | 1.344 INCHES NOMINAL |
| ATTACHMENT END INSIDE DIAMETER | 0.953 INCHES NOMINAL |
| III WEAPON SIZE DESIGNATION | 81MM,SIZE DESIGNATION |
| III WEAPON MODEL NUMBER | MODEL NO. M1 |
Restrictions/Controls & Freight Information | NSN 1015-00-550-3702
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 146150 | GUN CARRAIGE/GUN MOUNT PARTS NOI |
| Less than car load rating | M | 85 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 684 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | W | Any material not otherwise specified that may require special handling with special instructions identified in the DI T_9 trailer data. Primarily used with Channel Airlift 463-L pallets. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1015-00-550-3702
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9H | Navy-owned stocks of consumable material managed by the Army within the Army Armament Materiel Readiness Command Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | B14 | US Army Armament and Chemical Acquisition and Logistics Activity ATTN: AMSTA-AC Rock Island, IL 61299-6000 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
