NSN 1015-01-256-2136 82A5027A0151, 01-256-2136, 012562136
Product Details | ARTILLERY CLEANING BRUSH
1015-01-256-2136 A brush specially designed for cleaning the bore, breech, or other component parts of an artillery weapon. It may be a brush unit only or it may be provided with a handle or staff and/or have facilities for attachment thereto.20610100026Guns, over 30mm up to 75mm10150024Guns, 75mm through 125mm10200030Guns, over 125mm through 150mm10250030Guns, over 150mm through 200mm10300030Guns, over 200mm through 300mm10350016Guns, over 300mm
Part Alternates: 82A5027A0151, 1015-01-256-2136, 01-256-2136, 1015012562136, 012562136
Weapons | Guns, 75mm through 125mm
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 10 | 03 JUN 1987 | 01-256-2136 | 22300 ( BRUSH, CLEANING, ARTILLERY ) |
Drawings & Photos | NSN 1015-01-256-2136
Demand History | NSN 1015-01-256-2136
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1015-01-256-2136 | 2019-01-15 | 2 | United States |
| 1015-01-256-2136 | 2014-08-240 | 151 | DIBBS |
| 1015-01-256-2136 | 2014-06-163 | 207 | DIBBS |
| 1015-01-256-2136 | 2014-06-152 | 207 | DIBBS |
| 1015-01-256-2136 | 2013-10-294 | 98 | DIBBS |
| 1015-01-256-2136 | 2013-09-258 | 86 | DIBBS |
| 1015-01-256-2136 | 2013-05-127 | 119 | DIBBS |
| 1015-01-256-2136 | 2012-08-219 | 245 | DIBBS |
| 1015-01-256-2136 | 2012-06-181 | 80 | DIBBS |
| 1015-01-256-2136 | 2012-05-125 | 109 | DIBBS |
| 1015-01-256-2136 | 2011-11-322 | 140 | DIBBS |
| 1015-01-256-2136 | 2011-02-54 | 206 | DIBBS |
| 1015-01-256-2136 | 2010-09-253 | 119 | DIBBS |
| 1015-01-256-2136 | 2009-12-341 | 96 | DIBBS |
| 1015-01-256-2136 | 2009-07-211 | 60 | DIBBS |
| 1015-01-256-2136 | 2009-04-117 | 185 | DIBBS |
| 1015-01-256-2136 | 2009-03-61 | 44 | DIBBS |
| 1015-01-256-2136 | 2008-11-325 | 49 | DIBBS |
Cross Reference | NSN 1015-01-256-2136
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 82A5027A0151 | 01365 | MARINE CORPS LOGISTICS COMMAND TECHNICAL DATA REPOSITORY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1015-01-256-2136
Related Products | NSN 1015-01-256-2136
Technical Data | NSN 1015-01-256-2136
| Characteristic | Specifications |
|---|---|

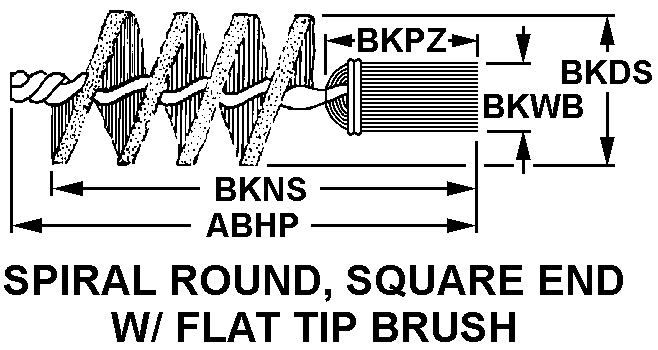

| STYLE DESIGNATOR | M5 SPIRAL ROUND, SQUARE END WITH FLAT TIP BRUSH |
| OVERALL LENGTH | 1181.0 MILLIMETERS NOMINAL |
| BRUSH PART DIAMETER | 88.9 MILLIMETERS NOMINAL |
| BRUSH LENGTH | 165.0 MILLIMETERS NOMINAL |
| SPECIAL FEATURES | PROVIDED WITH BRUSH SECTION 82A5027A0154,1 EA;ADAPTER 82A5027A0159,1 EA;ROD SECTION 82A5027A0153,3 EA |
Restrictions/Controls & Freight Information | NSN 1015-01-256-2136
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 033100 | BROOM BRUSHES O/T FLOOR |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 748 | unknown |
| Originating Activity Code | PA | Marine Corps Logistics Base Albany, GA 31704-1128 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | 2 | Arms/Weapons (all types including Inert Component Parts). When a 2 is indicated in the first position, then the special handling code must be determined from table 85 , part 1. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1015-01-256-2136
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 0 | Non-combat Essential End Item. End items that do not fit the definition of Code 1 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
