NSN 1020-00-380-0496 1339231PC1, 00-380-0496, 003800496
Product Details | SNAP RING PLIERS
1020-00-380-0496
Part Alternates: 1339231PC1, 1020-00-380-0496, 00-380-0496, 1020003800496, 003800496
Weapons | Guns, over 125mm through 150mm
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 10 | 01 JAN 1963 | 00-380-0496 | 77777 ( ) |

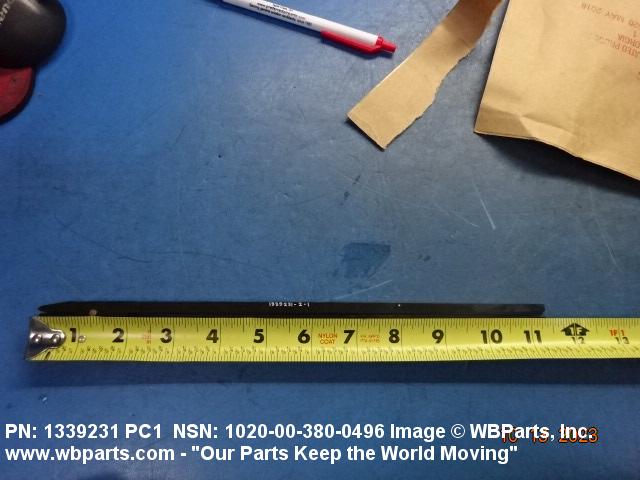

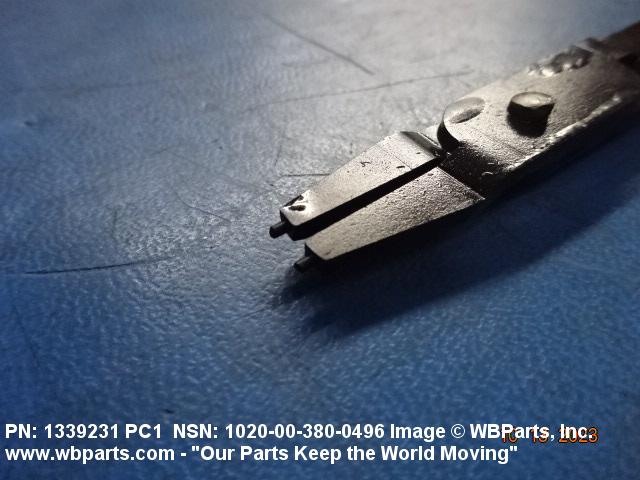

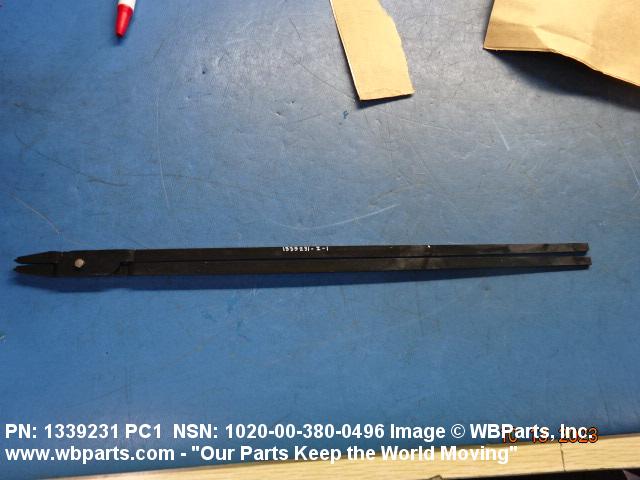

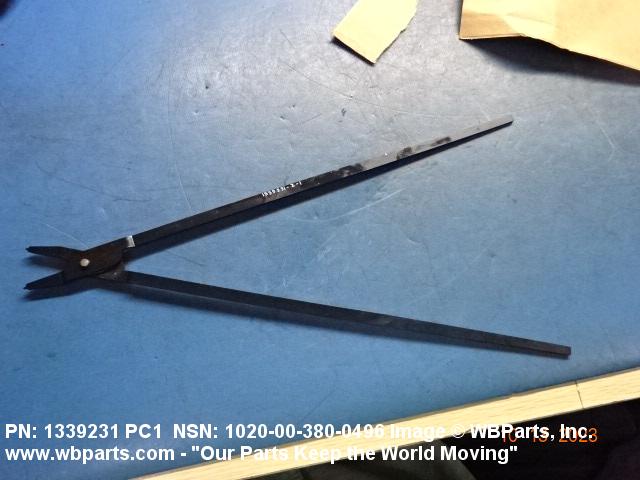

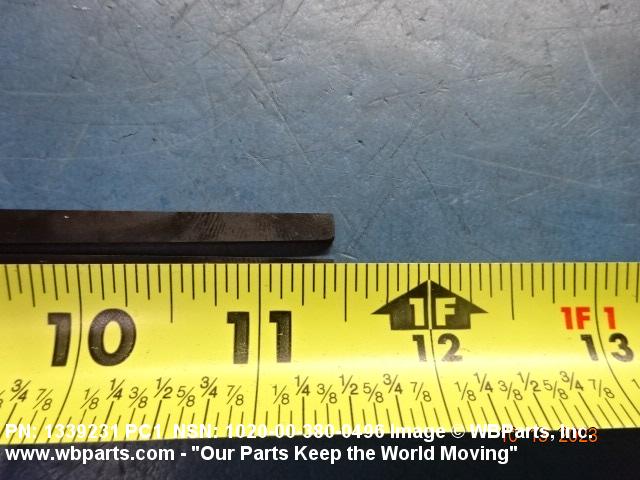

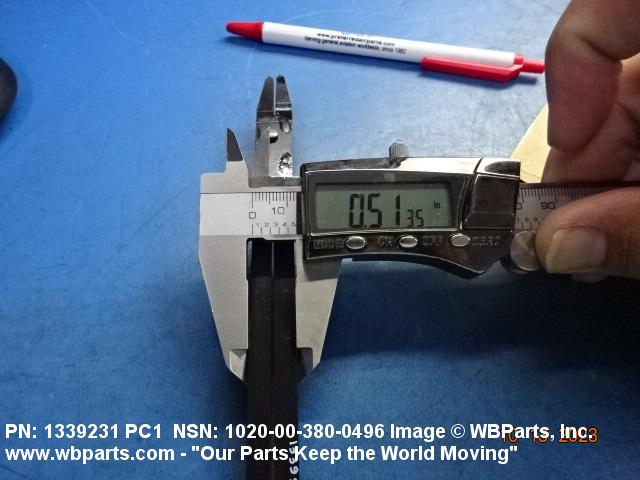

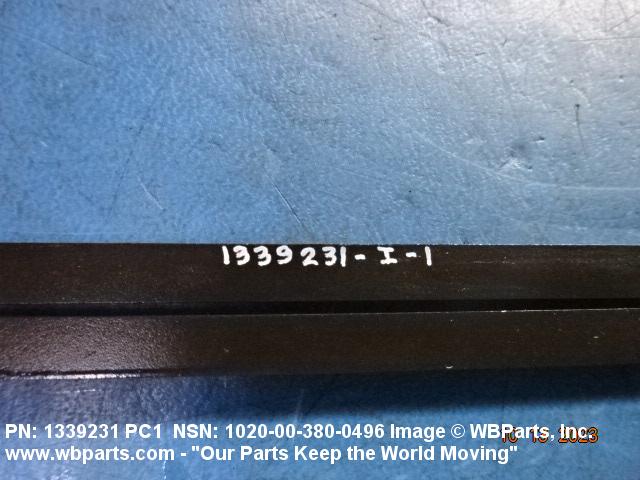

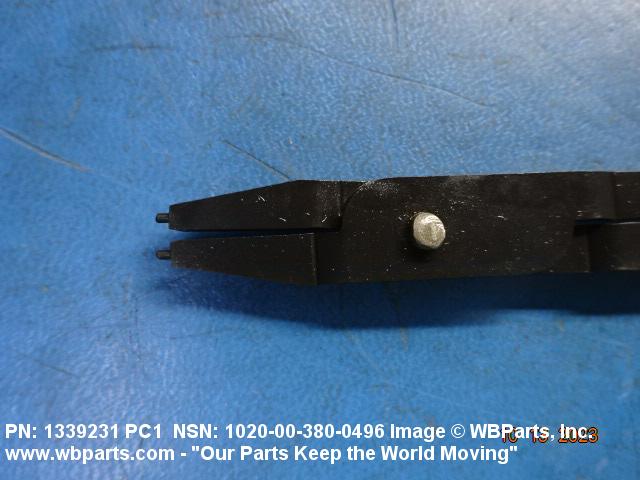

Drawings & Photos | NSN 1020-00-380-0496
Demand History | NSN 1020-00-380-0496
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1020-00-380-0496 | 2023-09-257 | 1 | United States |
| 1020-00-380-0496 | 2023-06-171 | 1 | United States |
| 1020-00-380-0496 | 2022-10-286 | 14 | DIBBS |
| 1020-00-380-0496 | 2022-01-30 | 12 | DIBBS |
| 1020-00-380-0496 | 2014-03-64 | 27 | DIBBS |
| 1020-00-380-0496 | 2012-10-285 | 14 | DIBBS |
| 1020-00-380-0496 | 2012-07-191 | 17 | DIBBS |
| 1020-00-380-0496 | 2012-01-30 | 25 | DIBBS |
| 1020-00-380-0496 | 2011-12-343 | 18 | DIBBS |
| 1020-00-380-0496 | 2011-01-03 | 13 | DIBBS |
| 1020-00-380-0496 | 2010-10-274 | 14 | DIBBS |
| 1020-00-380-0496 | 2010-09-260 | 1 | DIBBS |
| 1020-00-380-0496 | 2010-09-260 | 2 | DIBBS |
| 1020-00-380-0496 | 2009-11-314 | 13 | DIBBS |
Cross Reference | NSN 1020-00-380-0496
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1339231PC1 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1020-00-380-0496
Related Products | NSN 1020-00-380-0496
Technical Data | NSN 1020-00-380-0496
| Characteristic | Specifications |
|---|---|
| GENERAL CHARACTERISTICS ITEM DESCRIPTION | STEEL,LOW CARBON,0.010 IN. DEEP CARBURIZED AND HARDEN TO ROCKWELL C 35-45,PROTECTIVE FINISH PER MIL-C-16232 TYPE 1,0.313 IN. H,0.500 IN. W,11.500 IN. LG O/A DIMENSIONS |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 1339231PC1 |
Restrictions/Controls & Freight Information | NSN 1020-00-380-0496
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069300 | FIREARMS/PARTS NOI IN BOXES |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 685 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | 2 | Arms/Weapons (all types including Inert Component Parts). When a 2 is indicated in the first position, then the special handling code must be determined from table 85 , part 1. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1020-00-380-0496
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
