NSN 1025-00-563-7232 XX0028593, XX002-8593, 10255637232
Product Details | ARTILLERY CLEANING STAFF SECTION
1025-00-563-7232 A round wooden staff or metal tubing item with an integral metal coupling on one or both ends. It may be used singly or as one of two or more similar items attachable end to end. It is designed for use as a staff for attachment to and manual manipulation of a BRUSH, CLEANING, ARTILLERY, rammers, and the like. See also ROD, CLEANING SMALL ARMS.20610100026Guns, over 30mm up to 75mm10150024Guns, 75mm through 125mm10200030Guns, over 125mm through 150mm10250030Guns, over 150mm through 200mm10300030Guns, over 200mm through 300mm10350016Guns, over 300mm
Part Alternates: XX0028593, XX002-8593, 10255637232, 1025-563-7232 , 7309228, 1025-00-563-7232, 00-563-7232, 1025005637232, 005637232
Weapons | Guns, over 150mm through 200mm
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 10 | 01 JAN 1963 | 00-563-7232 | 22306 ( STAFF SECTION, CLEANING, ARTILLERY ) |
Drawings & Photos | NSN 1025-00-563-7232
Demand History | NSN 1025-00-563-7232
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1025-00-563-7232 | 2026-01-28 | 2 | EG |
| 1025-00-563-7232 | 2025-03-79 | 1407 | DIBBS |
| 1025-00-563-7232 | 2024-03-85 | 3949 | DIBBS |
| 1025-00-563-7232 | 2024-01-22 | 1041 | US |
| 1025-00-563-7232 | 2024-01-22 | 1041 | DIBBS |
| 1025-00-563-7232 | 2023-11-317 | 205 | DIBBS |
| 1025-00-563-7232 | 2023-06-174 | 8 | us |
| 1025-00-563-7232 | 2023-06-170 | 988 | DIBBS |
| 1025-00-563-7232 | 2022-07-200 | 100 | us |
| 1025-00-563-7232 | 2022-06-181 | 443 | DIBBS |
| 1025-00-563-7232 | 2022-06-153 | 283 | DIBBS |
| 1025005637232 | 2020-10-294 | 144 | US |
| 1025-00-563-7232 | 2020-07-183 | 168 | United States |
| 1025-00-563-7232 | 2020-03-65 | 20 | US |
| 1025-00-563-7232 | 2020-02-34 | 312 | DIBBS |
| 1025-00-563-7232 | 2019-11-311 | 1707 | DIBBS |
| 1025-00-563-7232 | 2019-10-302 | 1707 | DIBBS |
| 1025-00-563-7232 | 2019-06-172 | 2349 | Korea |
| 1025-00-563-7232 | 2019-01-23 | 2 | United States |
| 1025-00-563-7232 | 2018-01-03 | 128 | DIBBS |
| 1025-00-563-7232 | 2017-12-339 | 12 | IN |
| 1025-00-563-7232 | 2017-11-334 | 297 | DIBBS |
| 1025-00-563-7232 | 2017-11-319 | 1572 | US |
| 1025-00-563-7232 | 2017-11-311 | 1572 | DIBBS |
| 1025-00-563-7232 | 2017-10-284 | 2613 | DIBBS |
| 1025-00-563-7232 | 2016-07-189 | 433 | DIBBS |
| 1025-00-563-7232 | 2016-03-63 | 786 | DIBBS |
| 1025-00-563-7232 | 2014-10-275 | 472 | DIBBS |
| 1025-00-563-7232 | 2014-07-198 | 2800 | DIBBS |
| 1025-00-563-7232 | 2012-02-46 | 700 | us |
| 1025-00-563-7232 | 2011-12-347 | 467 | DIBBS |
| 1025-00-563-7232 | 2011-05-124 | 1461 | DIBBS |
| 1025-00-563-7232 | 2011-03-69 | 1458 | DIBBS |
| 1025-00-563-7232 | 2011-02-42 | 725 | DIBBS |
| 1025-00-563-7232 | 2010-05-126 | 1694 | DIBBS |
| 1025-00-563-7232 | 2009-06-155 | 1392 | DIBBS |
| 1025-00-563-7232 | 2009-05-148 | 273 | DIBBS |
| 1025-00-563-7232 | 2009-05-148 | 706 | DIBBS |
| 1025-00-563-7232 | 2009-04-98 | 299 | DIBBS |
Cross Reference | NSN 1025-00-563-7232
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1025-563-7232 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 1025005637232 | 64067 | SOURCEAMERICA |
| 1025005637232 | 83421 | NATIONAL INDUSTRIES FOR THE BLIND |
| 1025005637232 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |

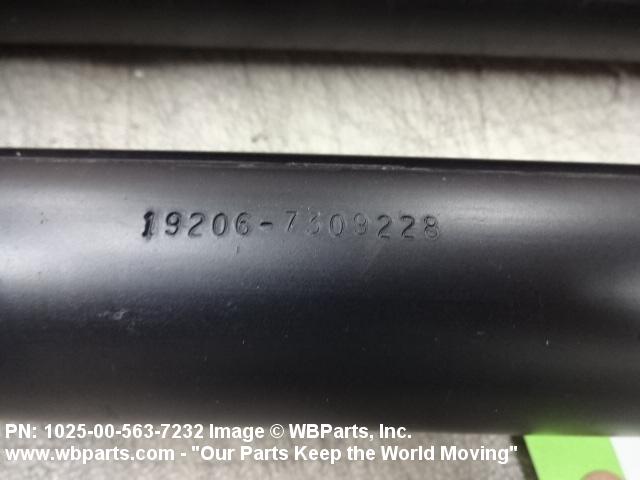

| 7309228 | 19206 | ARMY, UNITED STATES DEPARTMENT OF THE |
| XX002-8593 | H2229 | RDM TECHNOLOGY B.V. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1025-00-563-7232
Related Products | NSN 1025-00-563-7232
Technical Data | NSN 1025-00-563-7232
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY, WW-T-785-CANCELED |

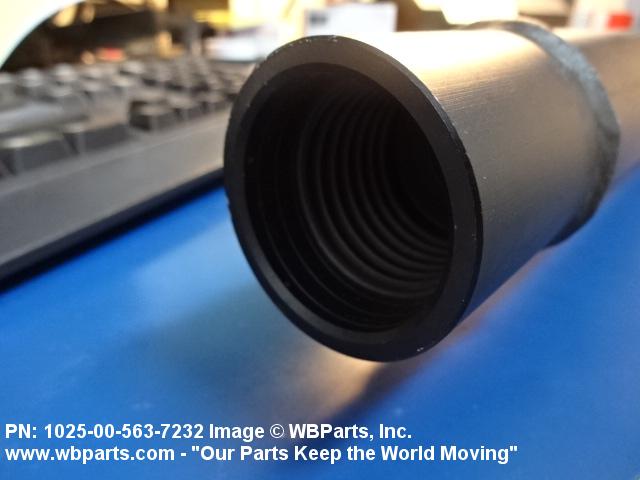

| END TYPE AND LOCATION | THREADED EXTERNALLY FIRST END AND THREADED INTERNALLY SECOND END |

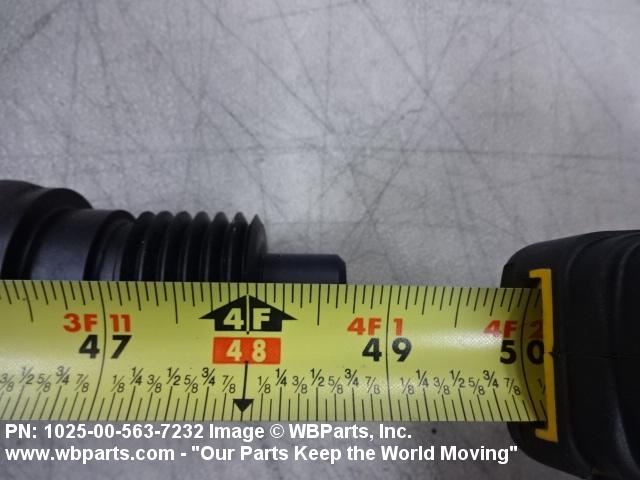

| OVERALL LENGTH | 47.875 INCHES MINIMUM AND 48.125 INCHES MAXIMUM |

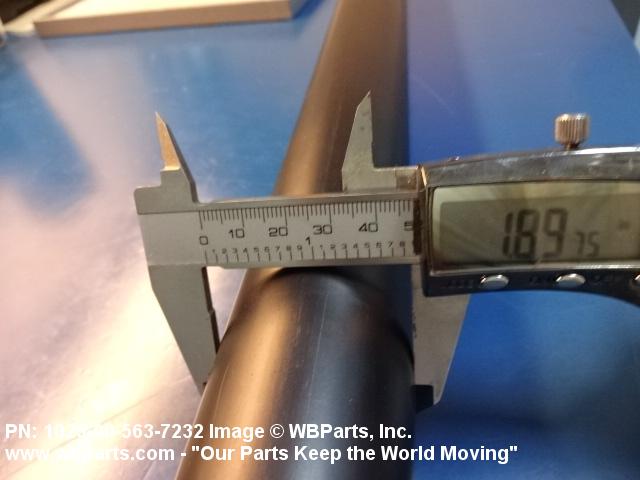

| OUTSIDE DIAMETER | 1.875 INCHES NOMINAL |

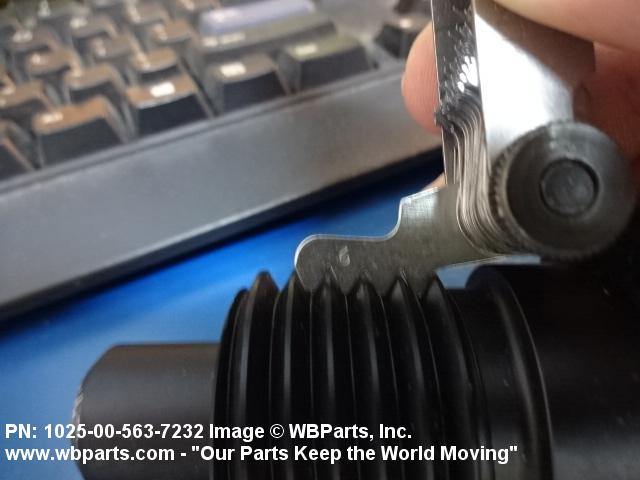

| THREAD DESIGNATOR | 1-1/2-6UNC-2A 1-1/2-6UNC-2B |
| THREAD LENGTH | 1.000 INCHES NOMINAL 1.063 INCHES NOMINAL |
| SPECIAL FEATURES | ASSIGNED MODEL NO. M15 |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE |
Restrictions/Controls & Freight Information | NSN 1025-00-563-7232
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069300 | FIREARMS/PARTS NOI IN BOXES |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 685 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | 2 | Arms/Weapons (all types including Inert Component Parts). When a 2 is indicated in the first position, then the special handling code must be determined from table 85 , part 1. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1025-00-563-7232
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
