Product Details | INDIRECT FIRE PLOTTING BOARD

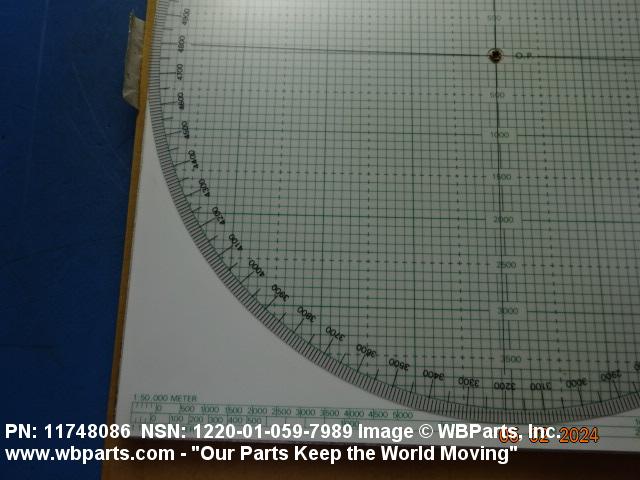

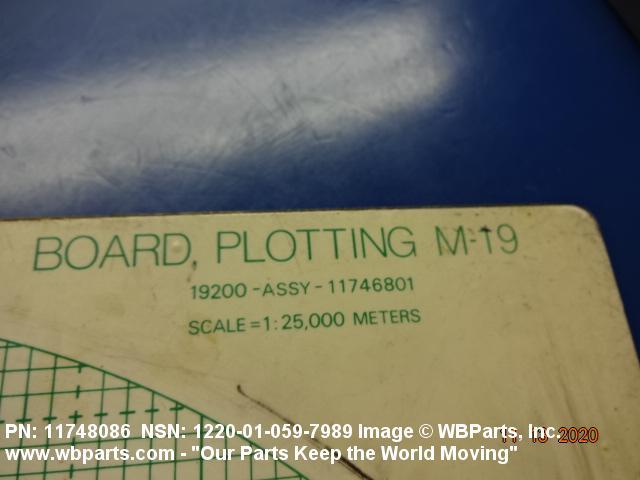

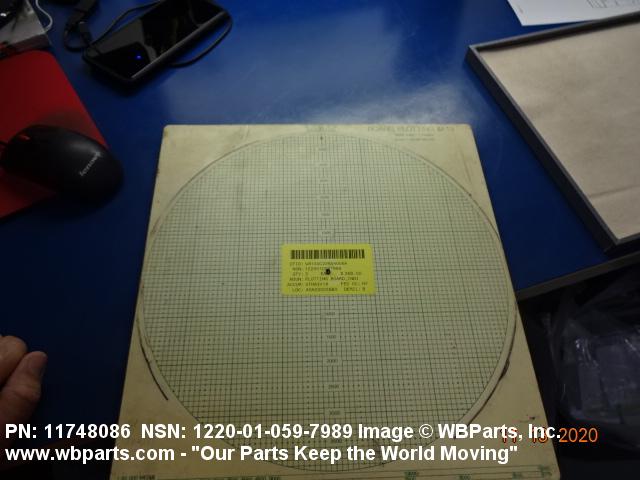

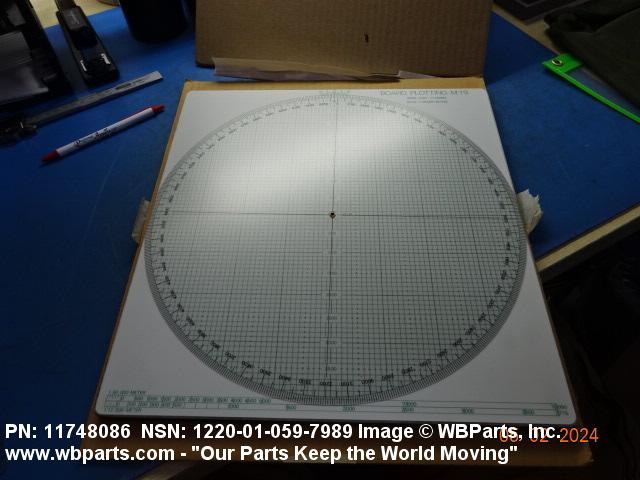

1220-01-059-7989 A specifically designed, hand held device, with a plane surface inscribed with mathematical data, and a pivoted rotating disk inscribed with millimeter scales around its periphery. It is used to determine the unknown distance of a target in relation to the known positions of the observer and the gun location.
Part Alternates: 11748086, 1220-01-059-7989, 01-059-7989, 1220010597989, 010597989
Fire Control Equipment | Fire Control Computing Sights and Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 12 | 16 APR 1978 | 01-059-7989 | 60824 ( PLOTTING BOARD, INDIRECT FIRE ) |
