NSN 1430-00-444-9653 004449653
Product Details | WAVEGUIDE ADAPTER
1430-00-444-9653 An item designed to establish the necessary accommodations to connect a waveguide to a coaxial line, or to connect two or more terminated waveguides whose physical design does not normally allow connection.
Part Alternates: 004449653
Guided Missiles | Guided Missile Remote Control Systems
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 14 | 00-444-9653 | 00186 ( ADAPTER, WAVEGUIDE ) |
Drawings & Photos | NSN 1430-00-444-9653
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1430-00-444-9653
Technical Data | NSN 1430-00-444-9653
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | D4 WAVEGUIDE TO COAXIAL |
| ADAPTER LENGTH | 0.579 INCHES NOMINAL |

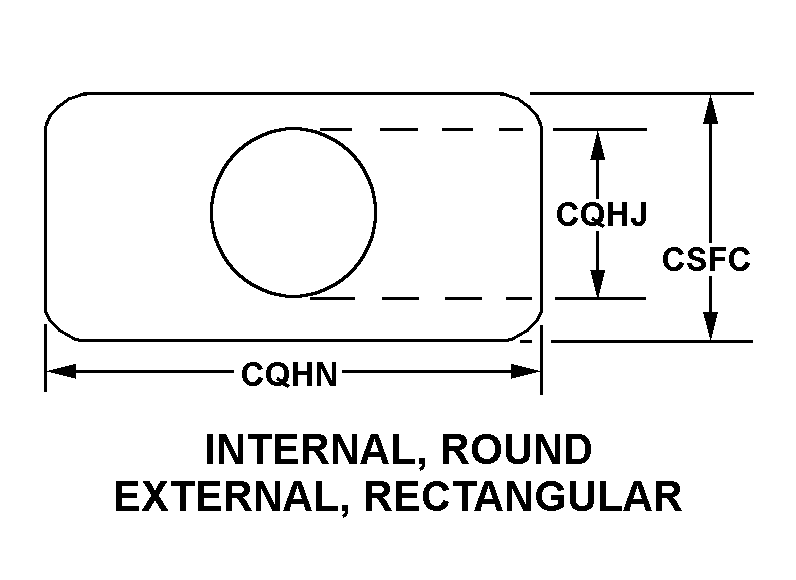

| CROSS-SECTIONAL SHAPE STYLE | A13 INTERNAL, ROUND EXTERNAL, RECTANGULAR |
| WAVEGUIDE INSIDE DIAMETER | 0.437 INCHES MINIMUM AND 0.440 INCHES MAXIMUM |
| WAVEGUIDE OUTSIDE WIDTH | 1.804 INCHES NOMINAL |
| WAVEGUIDE OUTSIDE HEIGHT | 0.854 INCHES NOMINAL |
| MANUFACTURERS CODE | 18876 |
| DESIGN CONTROL REFERENCE | 9068791 |
Restrictions/Controls & Freight Information | NSN 1430-00-444-9653
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
