NSN 1560-00-872-2425 3680891, 368089-1, 00-872-2425
Product Details | PULLEY BRACKET
1560-00-872-2425
Part Alternates: 3680891, 368089-1, 1560-00-872-2425, 00-872-2425, 1560008722425, 008722425
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 01 JAN 1960 | 00-872-2425 | 77777 ( ) |

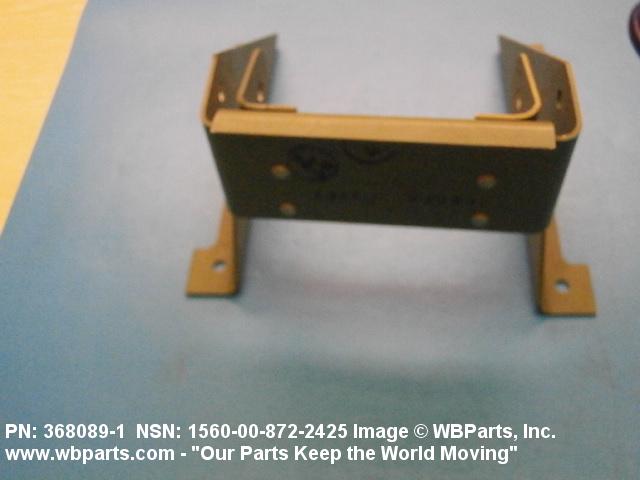

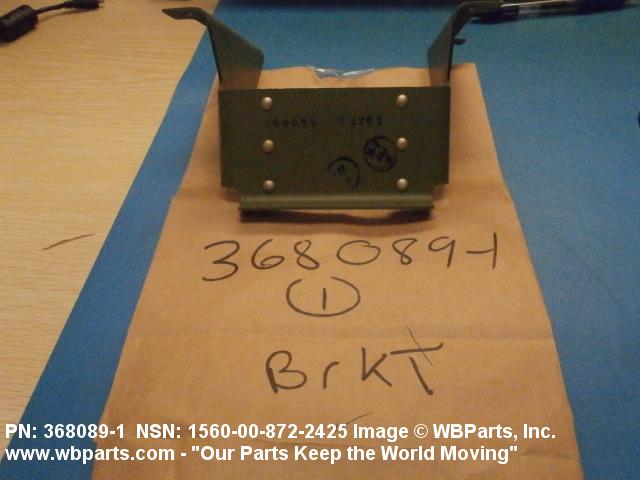

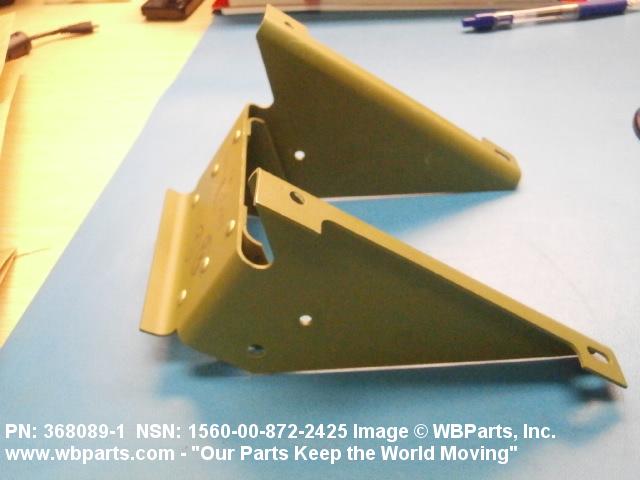

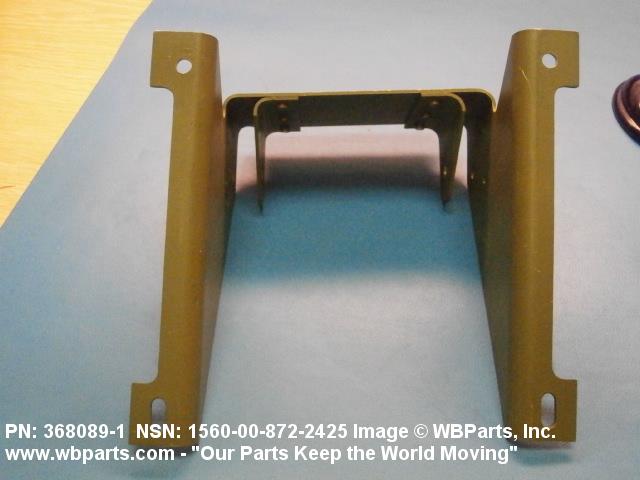

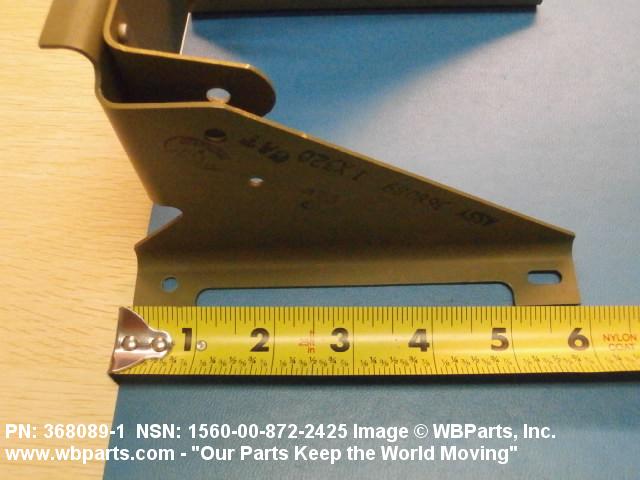

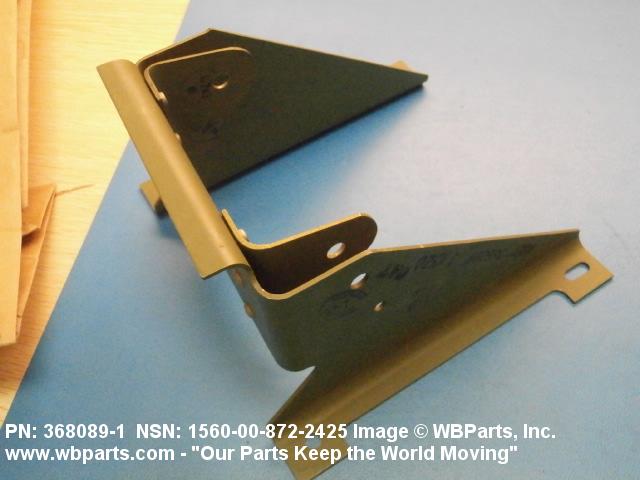

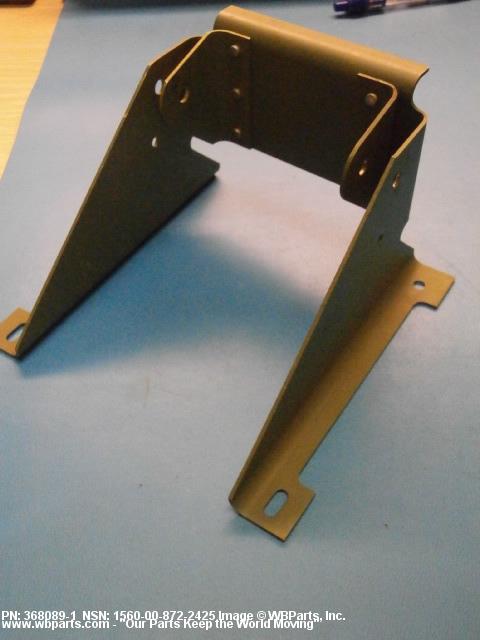

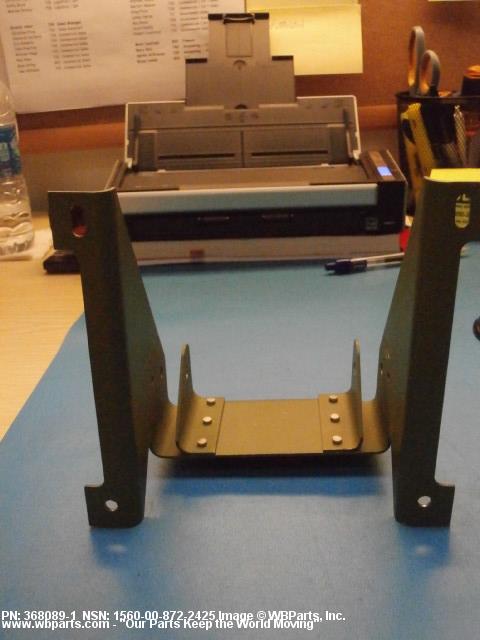

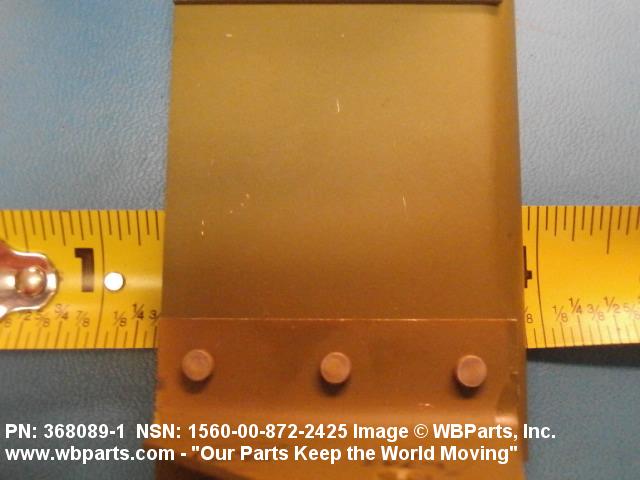

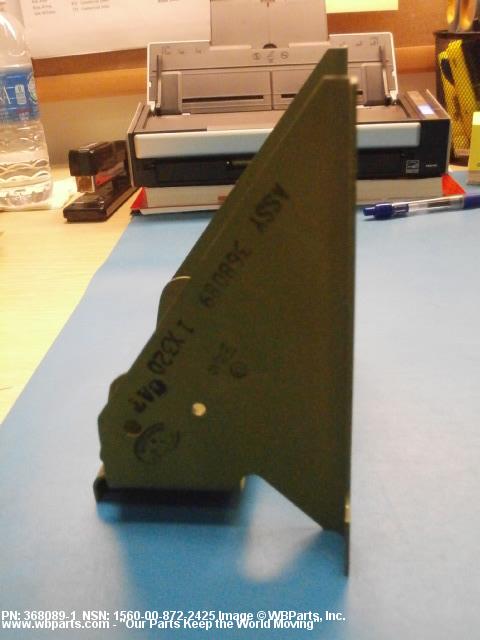

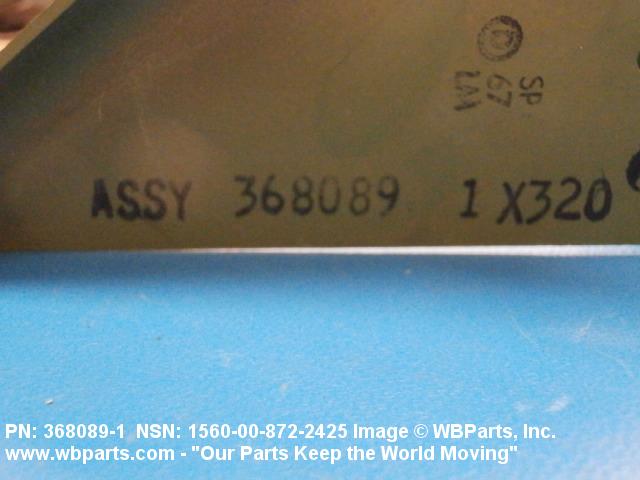

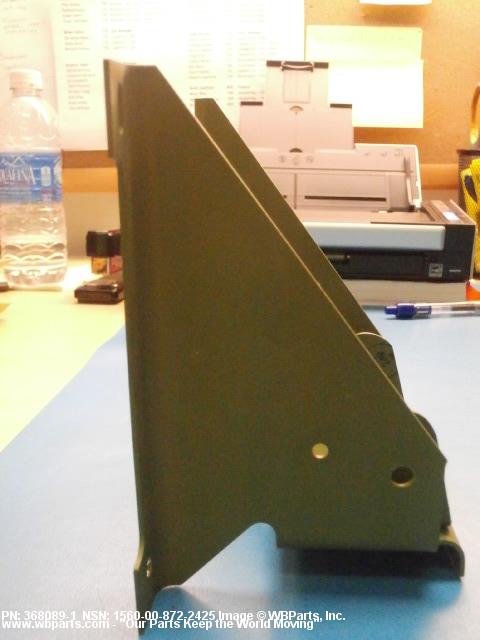

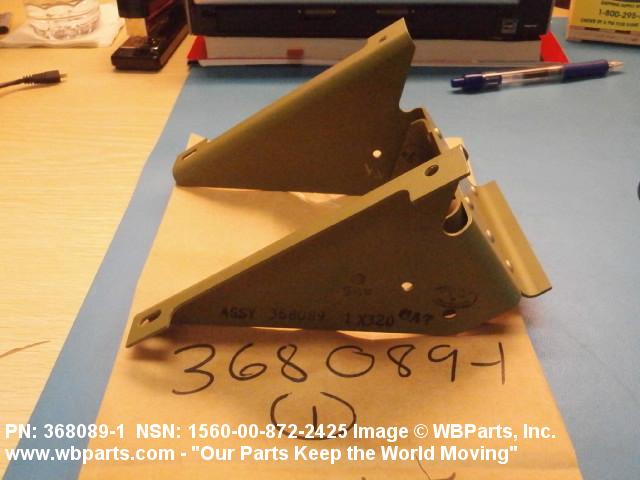

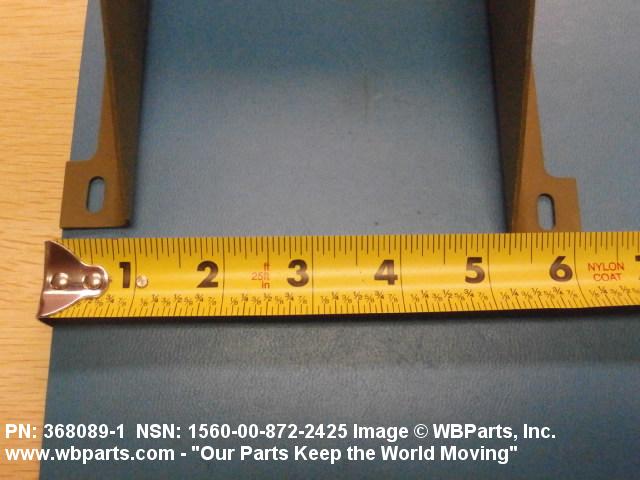

Drawings & Photos | NSN 1560-00-872-2425
Demand History | NSN 1560-00-872-2425
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1560-00-872-2425 | 2015-02-51 | 1 | United States |
Cross Reference | NSN 1560-00-872-2425
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 368089-1 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1560-00-872-2425
Related Products | NSN 1560-00-872-2425
Technical Data | NSN 1560-00-872-2425
| Characteristic | Specifications |
|---|---|
| GENERAL CHARACTERISTICS ITEM DESCRIPTION | ALUMINUM ALLOY 2024,QQ-A-250/5,0.063 MATERIAL THK,5.950 IN. LG,3.800 IN. DEEP |
| MANUFACTURERS CODE | 98897 |
| DESIGN CONTROL REFERENCE | 368089-1 |
Restrictions/Controls & Freight Information | NSN 1560-00-872-2425
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013140 | ALUMINUM ANGLES |
| Less than car load rating | S | 60 |
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
