NSN 1560-01-437-0301 6980871, 698087-1, 01-437-0301
Product Details | BELLOWS COMPENSATOR
1560-01-437-0301
Part Alternates: 6980871, 698087-1, 1560-01-437-0301, 01-437-0301, 1560014370301, 014370301
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 03 OCT 1996 | 01-437-0301 | 77777 ( ) |

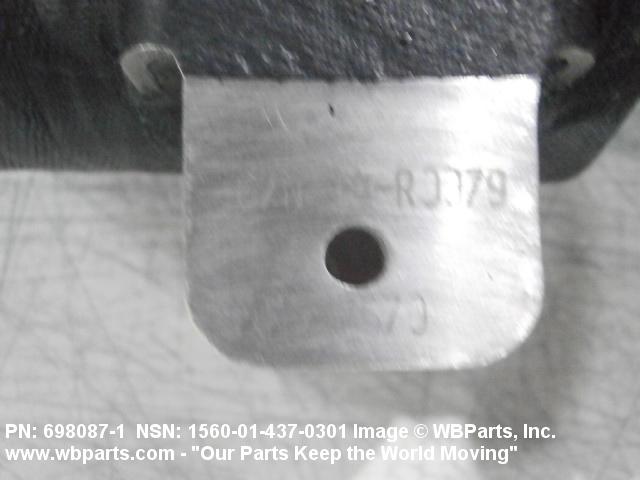

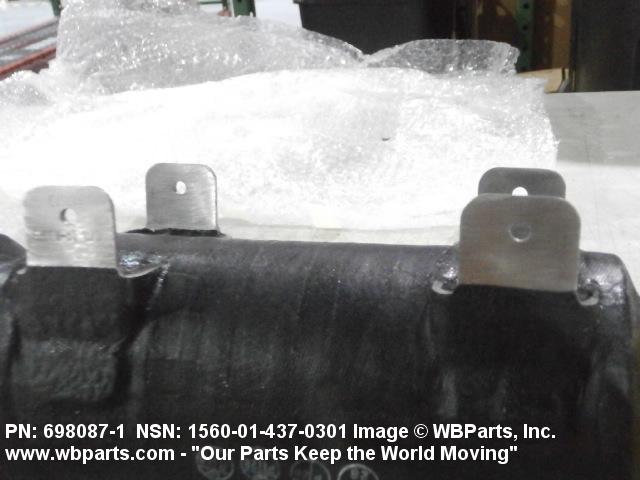

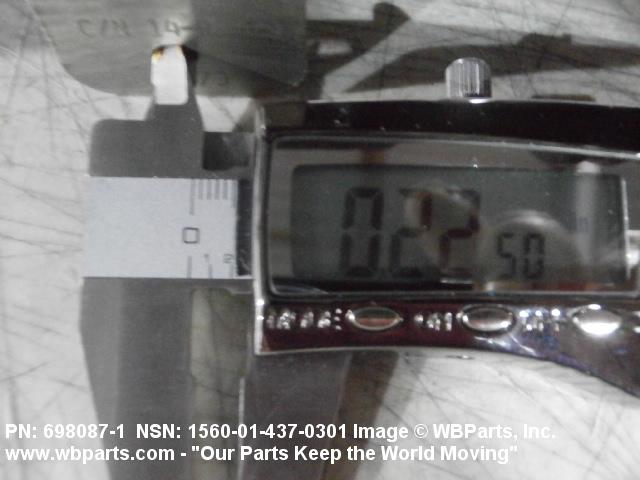

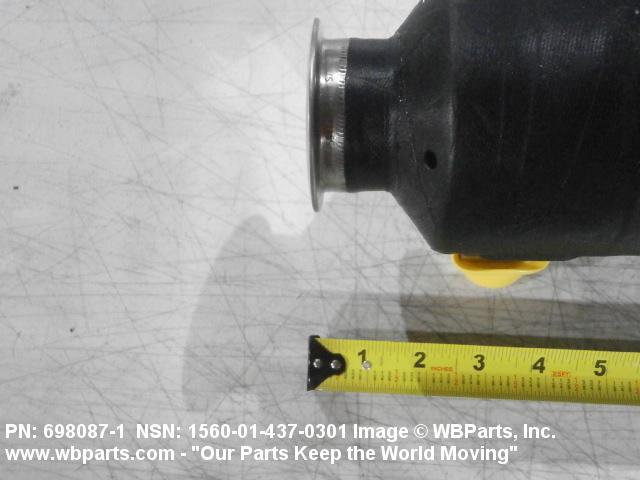

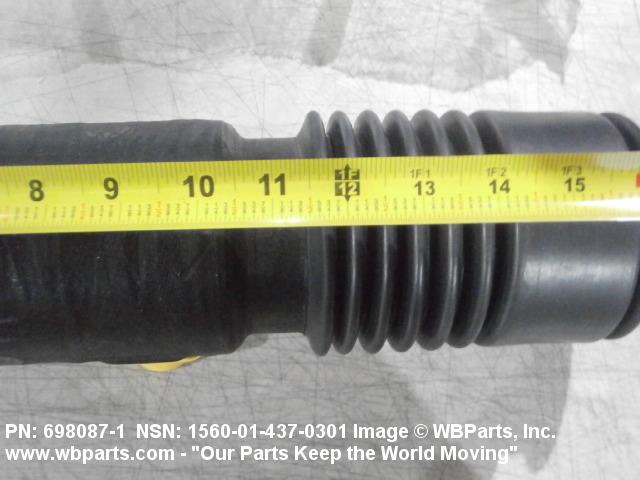

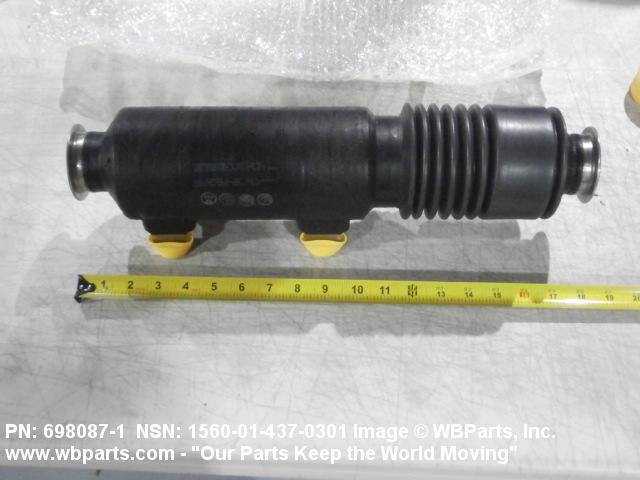

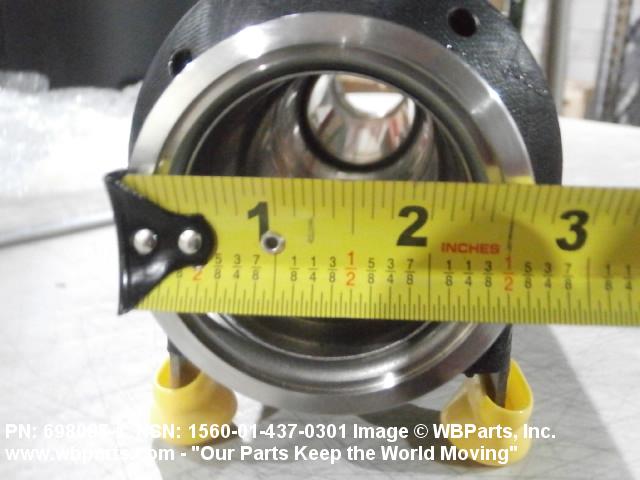

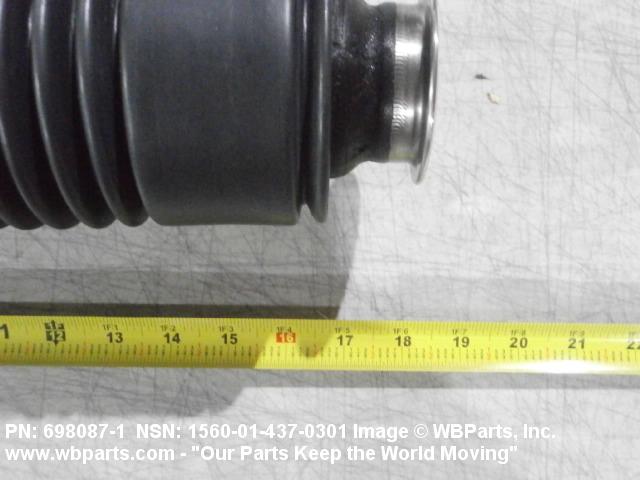

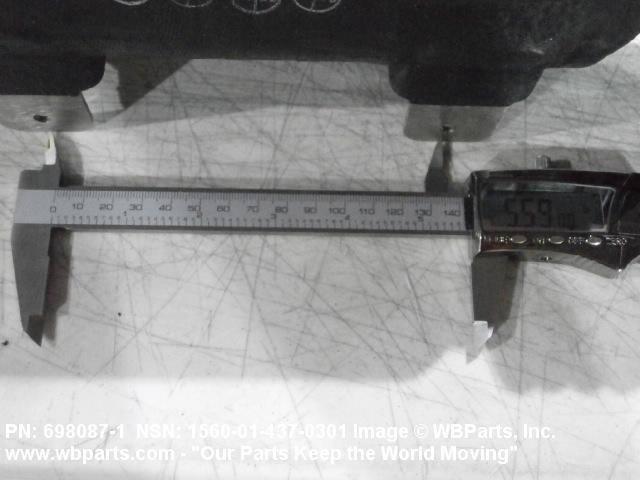

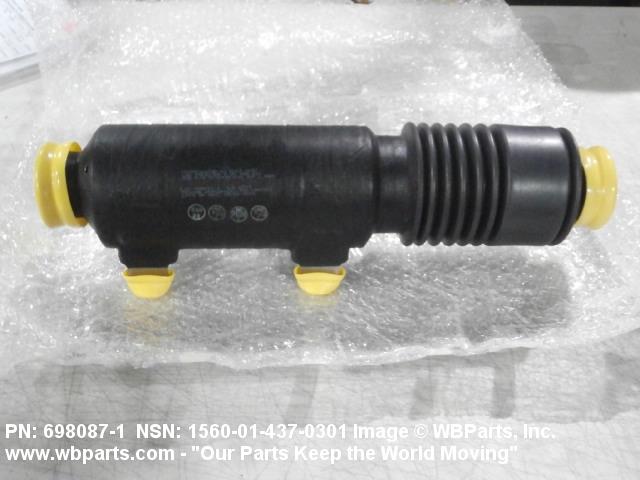

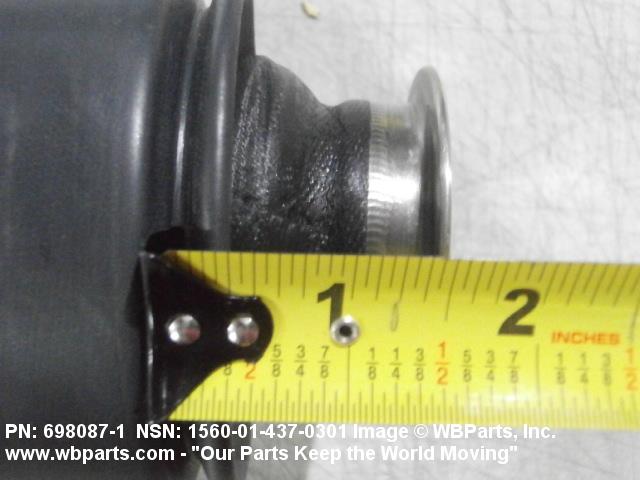

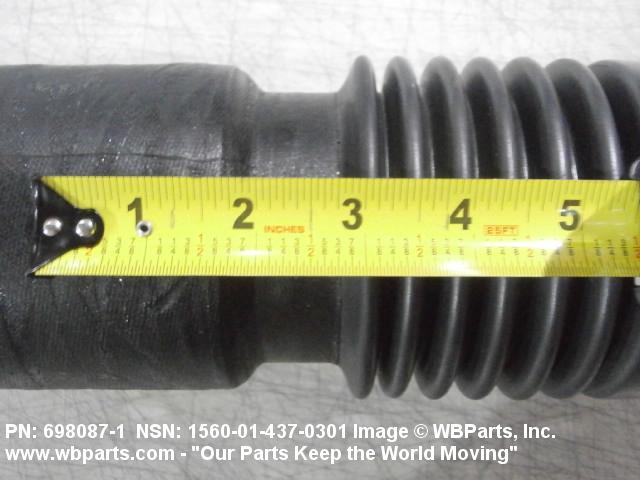

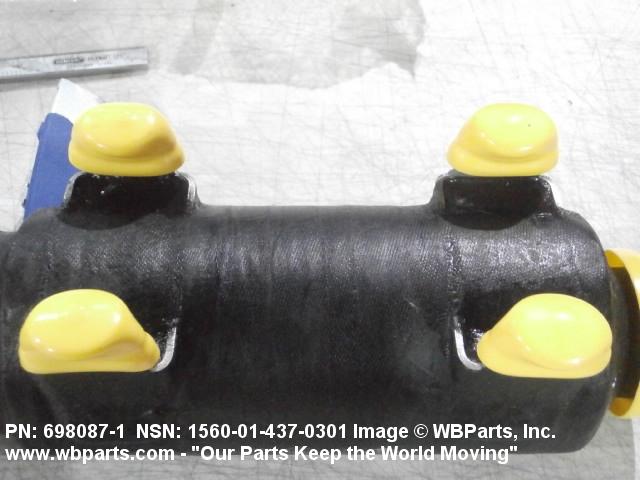

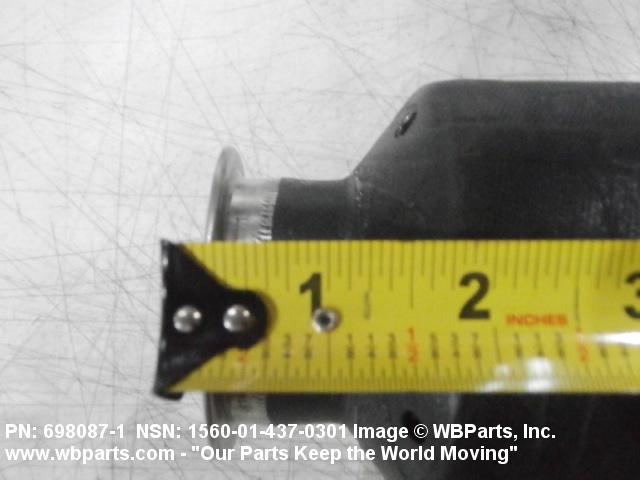

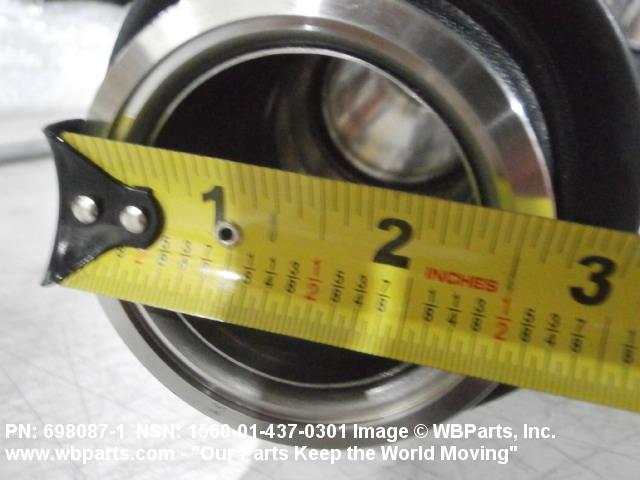

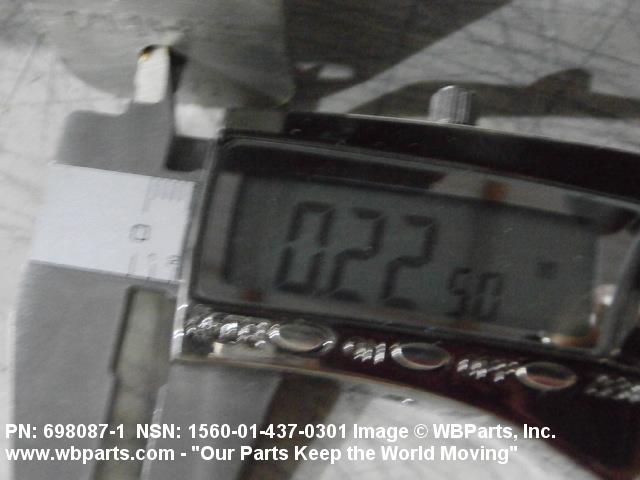

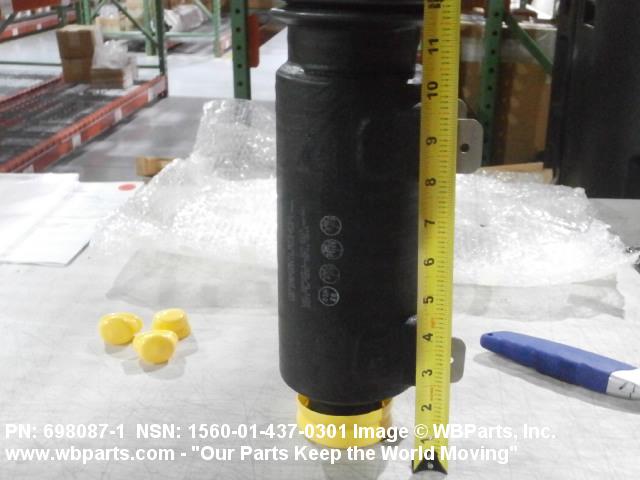

Drawings & Photos | NSN 1560-01-437-0301
Demand History | NSN 1560-01-437-0301
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6980871 | 2015-03-62 | 10 | United States |
| 698087-1 | 2015-02-57 | 10 | United States |
Cross Reference | NSN 1560-01-437-0301
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 698087-1 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1560-01-437-0301
Related Products | NSN 1560-01-437-0301
Technical Data | NSN 1560-01-437-0301
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY |
| OVERALL LENGTH | 18.000 INCHES NOMINAL |
| OVERALL DIAMETER | 2.720 INCHES NOMINAL |
| GENERAL CHARACTERISTICS ITEM DESCRIPTION | SEAL TYPE JOINT TYPE PRESSURED BALANCED (LOW PRESSURE) IN LINE BLEED AIR DUCTING SYSTEM COMPENSATORS, INTENDED USE IN ABSORB AXIAL VARIATIONS IN DUCT LENGTH CAUSED BY TEMPERTURE AND DIMENSIONAL TOLERANCES OF THE STRUCTURE AND DUCTS,LOCATION OUTER WING LEADING EDGE |
Restrictions/Controls & Freight Information | NSN 1560-01-437-0301
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
