NSN 1610-00-240-0835 1A200FM9047, 00-240-0835, 002400835
Product Details | AIRCRAFT PROPELLER
1610-00-240-0835 A propeller designed to provide thrust for a fixed or tilt wing aircraft. It may be of solid or built-up construction; constant or controllable speed type; adjustable, fixed or variable pitch design with reversing and/or feathering capabilities during aircraft operation. Variable pitch propellers have integral facilities for changing the pitch angle of the blades while aircraft is in flight. Excludes HUB-BLADE ASSEMBLY, PROPELLER, AIRCRAFT. See also TEST CLUB.
Part Alternates: 1A200FM9047, 1610-00-240-0835, 00-240-0835, 1610002400835, 002400835
Aircraft Components and Accessories | Aircraft Propellers and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1963 | 00-240-0835 | 30770 ( PROPELLER, AIRCRAFT ) |
Drawings & Photos | NSN 1610-00-240-0835
Demand History | NSN 1610-00-240-0835
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1610-00-240-0835 | 2025-01-29 | 5 | MX |
| 1610-00-240-0835 | 2009-05-134 | 1 | IT |
| 1A200FM9047 | 2007-05-140 | 1 | IS |
Cross Reference | NSN 1610-00-240-0835
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1A200FM9047 | 76275 | CESSNA AIRCRAFT CO MCCAULEY ACCESSORY DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1610-00-240-0835
Technical Data | NSN 1610-00-240-0835
| Characteristic | Specifications |
|---|---|
| PROPELLER TYPE | FIXED PITCH |
| ROTATION DIRECTION | RIGHT-HAND |
| SPAN MAXIMUM DIAMETER | 7.500 FEET |
| BLADE QUANTITY | 2 |
| BLADE FAIRING REMOVABILITY | NONREMOVABLE |
| BLADE ANGLE IN DEG | 26.700 |
| MATERIAL AND LOCATION | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT AND LOCATION | ANODIZED, MIL-A-8625 OVERALL |

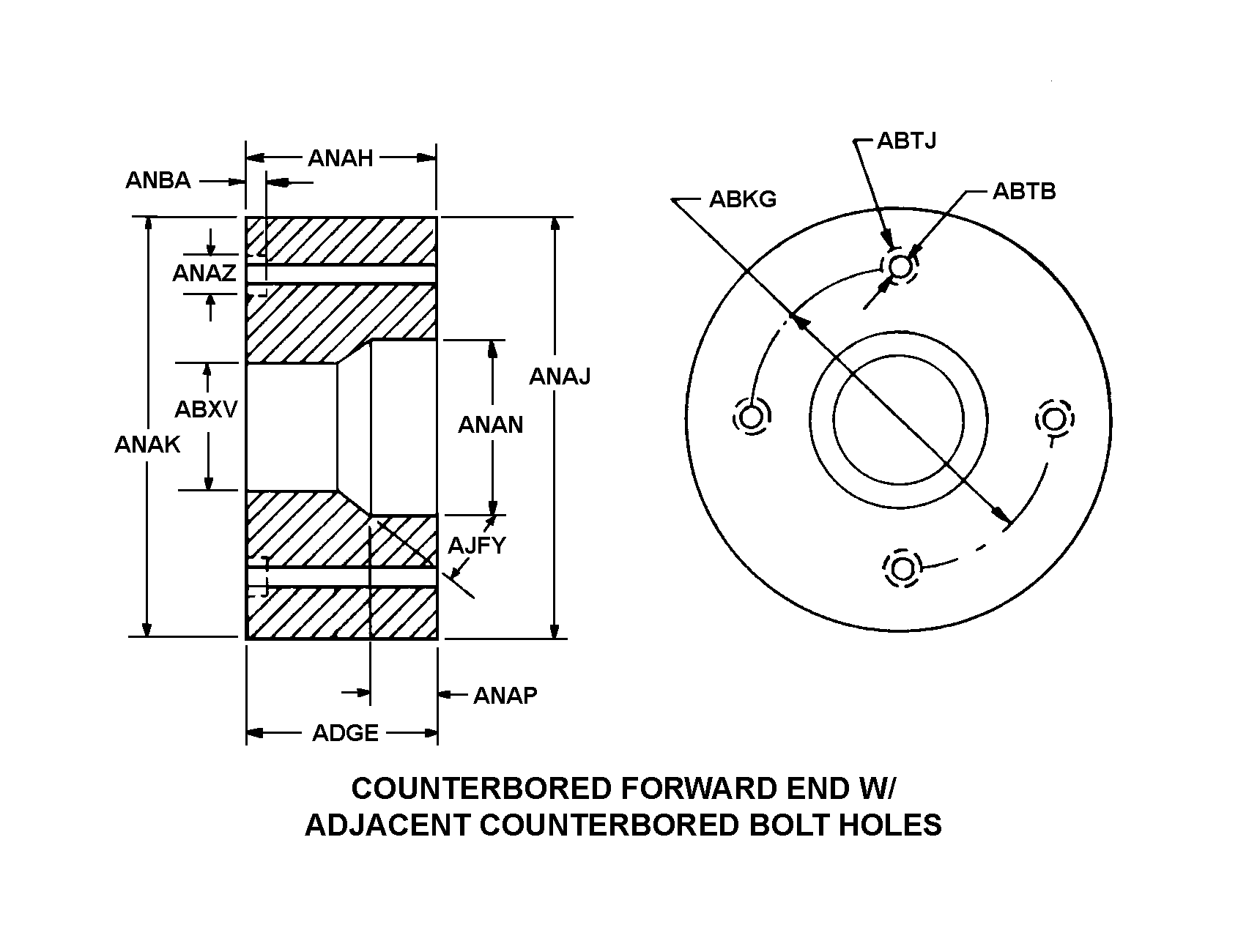

| HUB SHAFT ACCOMMODATION STYLE | 6A COUNTERBORED FORWARD END W/ADJACENT COUNTERBORED BOLT HOLES |
| BOLT CIRCLE DIAMETER | 6.000 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.453 INCHES NOMINAL |
| BORE DIAMETER | 2.251 INCHES MINIMUM AND 2.252 INCHES MAXIMUM |
| BORE LENGTH | 3.563 INCHES NOMINAL |
| HUB OVERALL LENGTH | 3.563 INCHES NOMINAL |
| HUB FORWARD FACE DIAMETER | 7.000 INCHES NOMINAL |
| HUB AFT FACE DIAMETER | 7.000 INCHES NOMINAL |
| FORWARD COUNTERBORE DIAMETER | 3.875 INCHES NOMINAL |
| FORWARD COUNTERBORE DEPTH | 1.500 INCHES NOMINAL |
| MOUNTING HOLE COUNTERBORE DIAMETER | 0.695 INCHES MINIMUM AND 0.705 INCHES MAXIMUM |
| MOUNTING HOLE COUNTERBORE DEPTH | 0.688 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 8 |
| MANUFACTURERS CODE | 76275 |
| DESIGN CONTROL REFERENCE | 1A200FM9047 |
Restrictions/Controls & Freight Information | NSN 1610-00-240-0835
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 012280 | AIRCRAFT PROPELLER BLADES |
| Less than car load rating | M | 85 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
