NSN 1615-00-957-6676 009576676
Product Details | SEDIMENT STRAINER BODY
1615-00-957-6676 A component of a STRAINER, SEDIMENT designed to contain a STRAINER ELEMENT, SEDIMENT. It may have inlet and/or outlet connections, means for mounting, or a drain plug(s) or cock(s). Excludes BOWL, SEDIMENT. See also FILTER BODY, FLUID.
Part Alternates: 009576676
Aircraft Components and Accessories | Helicopter Rotor Blades, Drive Mechanisms and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 00-957-6676 | 19290 ( STRAINER BODY, SEDIMENT ) |
Drawings & Photos | NSN 1615-00-957-6676
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1615-00-957-6676
Technical Data | NSN 1615-00-957-6676
| Characteristic | Specifications |
|---|---|

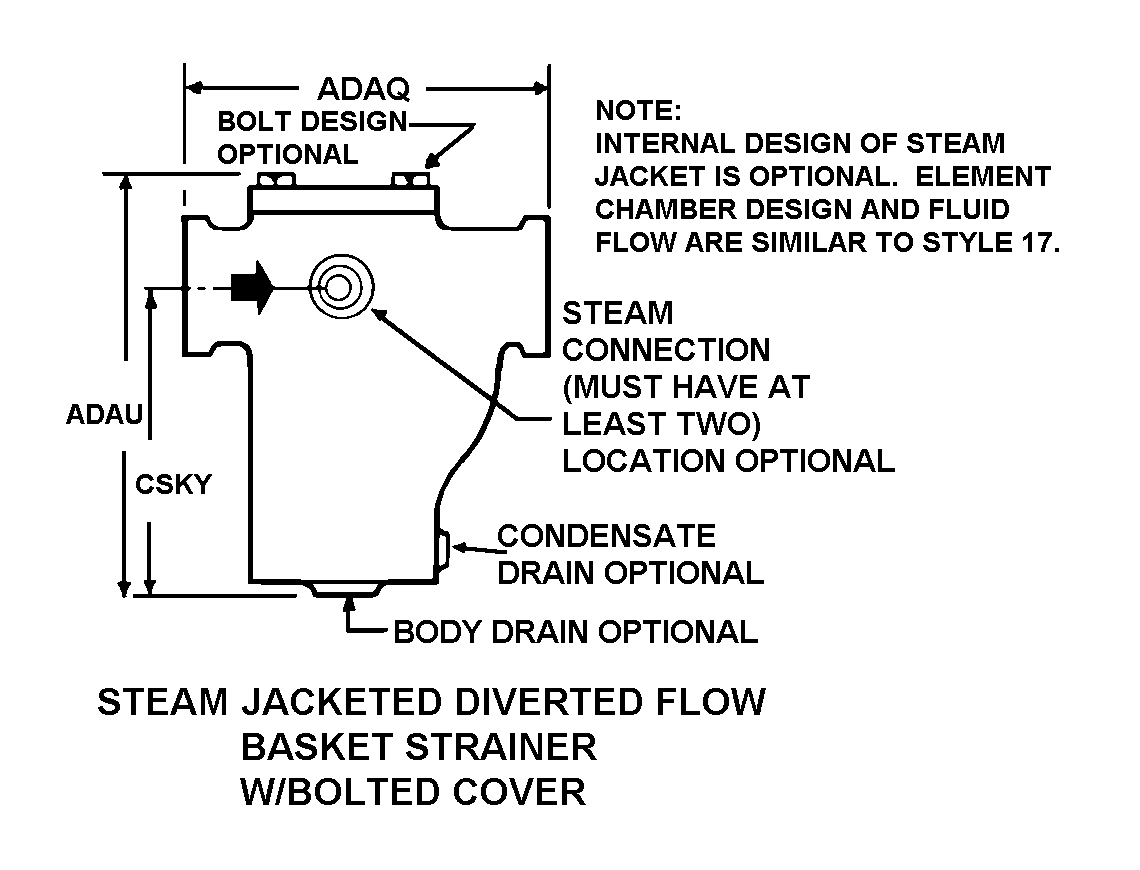

| STYLE DESIGNATOR | C12 STEAM JACKETED DIVERTED FLOW BASKET STRAINER W/BOLTED COVER |
| BODY LENGTH | 4.380 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 2.125 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY 2024 BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-267,T4 FED STD SINGLE MATERIAL RESPONSE BODY |
| SURFACE TREATMENT | ANODIZE BODY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE BODY |
| FIRST DISCHARGE CONNECTION RELATIONSHIP TO INTAKE CONNECTION | NOT IDENTICAL |
| MANUFACTURERS CODE | 77272 |
| DESIGN CONTROL REFERENCE | 114D5109-1 |
Restrictions/Controls & Freight Information | NSN 1615-00-957-6676
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
